AR3000D | 3000W Monoblock Class-D Amplifier w/ Capacitor | Boss

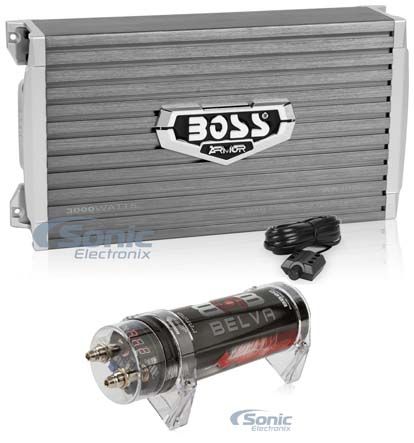

Boss AR3000D Monoblock Amplifier with Bass Remote + 2 Farad Capacitor

3000W Max ARMOR Series Class-D Car Amplifier Package

3000W Max ARMOR Series Class-D Car Amplifier Package

• RMS: 1200W x 1 @ 4 ohms
• Peak: 2200W x 1 @ 2 ohms, 3000W x 1 @ 1 ohm
• Strappable Peak: 6000W x 1 @ 2 ohms
• Bass Boost 0-12 dB
• Heavy Duty Aluminum Alloy Heatsink
• Dimensions: 12-1/3"W x 5"D x 2-8/10"H

4.4

(43)
List price $369.98
Save: $182.07

$187.91

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Boss

Authorized dealer

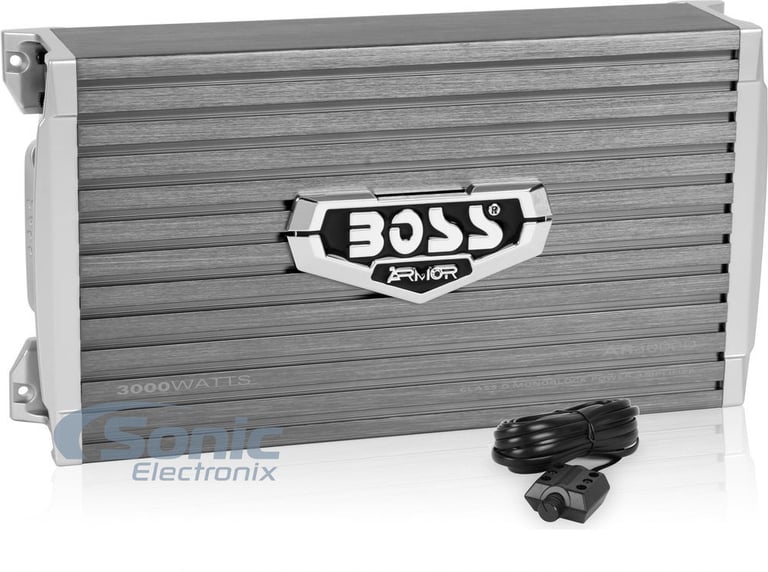

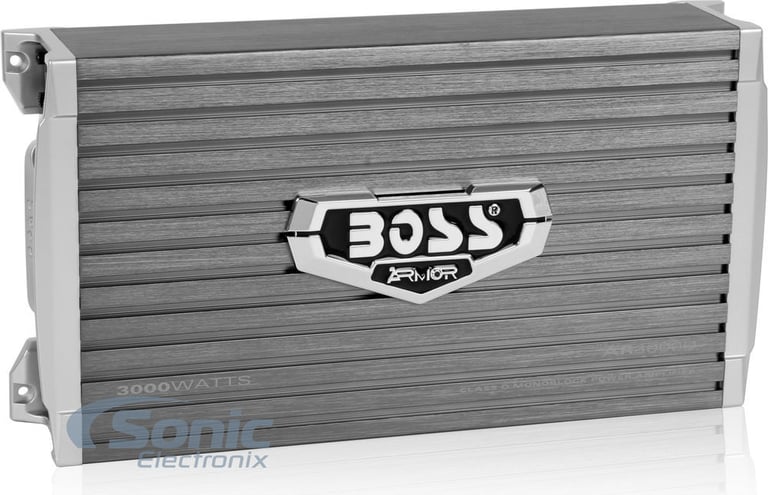

Boss AR3000D

3000W Max Monoblock ARMOR Series Class D Car Amplifier
Quantity: 1

General Features:

  • Monoblock ARMOR Series Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 563 watts x 1 chan.
    • 2 ohms: 1125 watts x 1 chan.
    • 1 ohms: 2250 watts x 1 chan.
    • Strapped, 2 ohms: 4500 watts
  • Total Max Power: 3000 Watts
  • Pulse Width Modulated MOSFET power supply

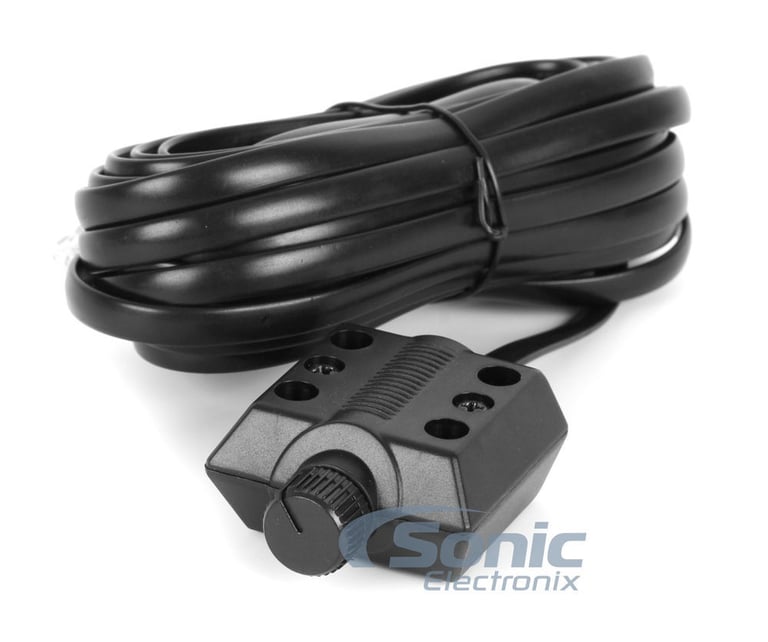

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

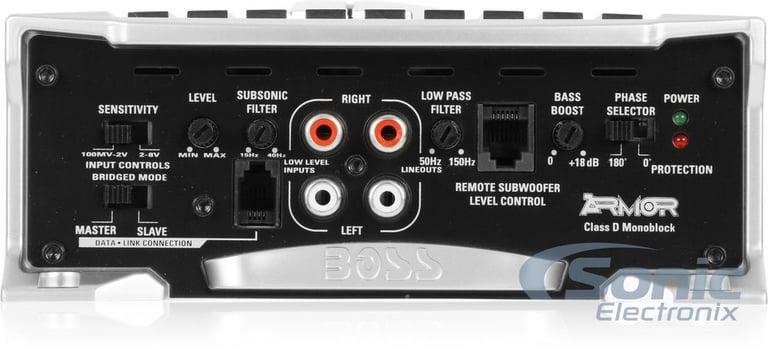

  • Nickel-plated RCA level inputs

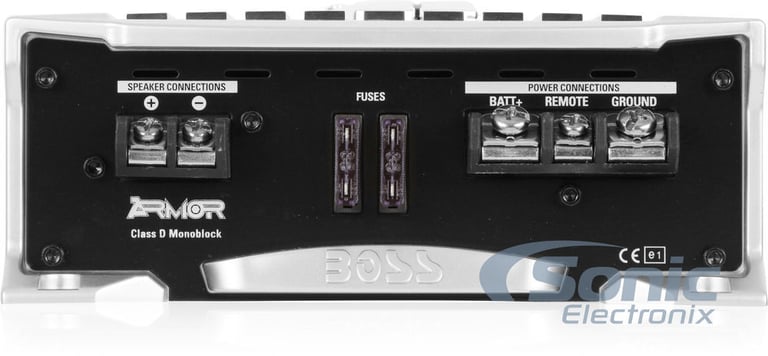

  • Nickel-plated screw terminals
  • Variable low-pass filter (50-150 Hz, 24 dB/octave)
  • Variable subsonic filter (15-40 Hz, 24 dB/octave)
  • Damping factor: 125
  • Frequency response: 9-50000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 12-1/3"W x 5"D x 2-8/10"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

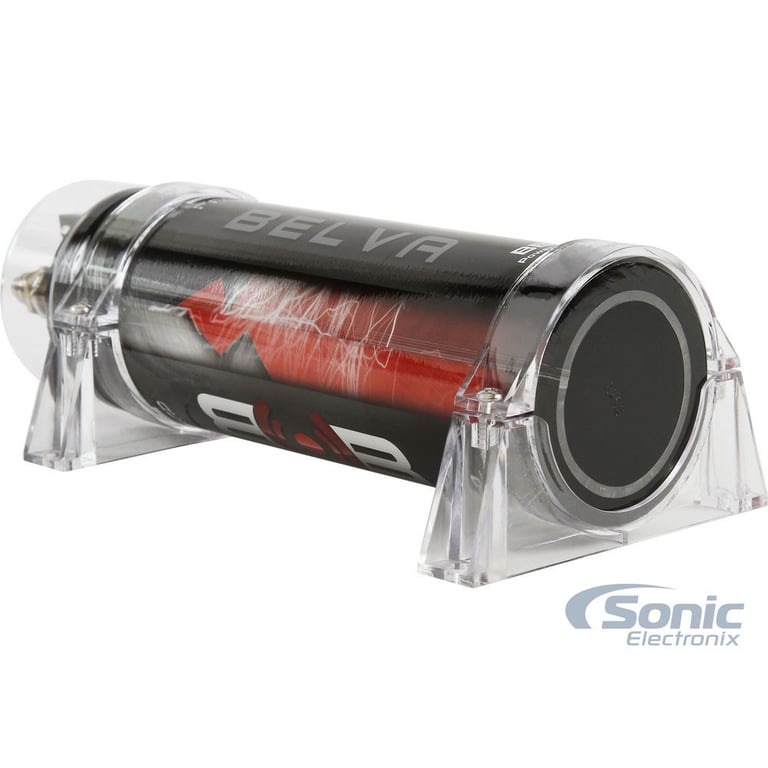

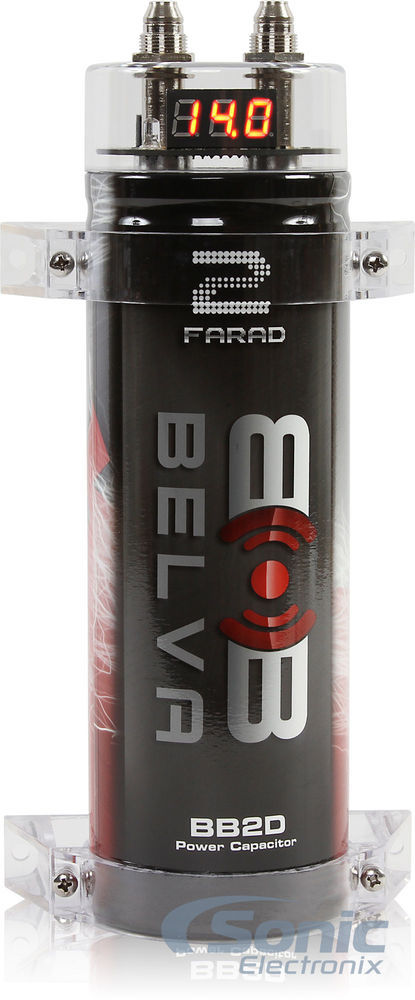

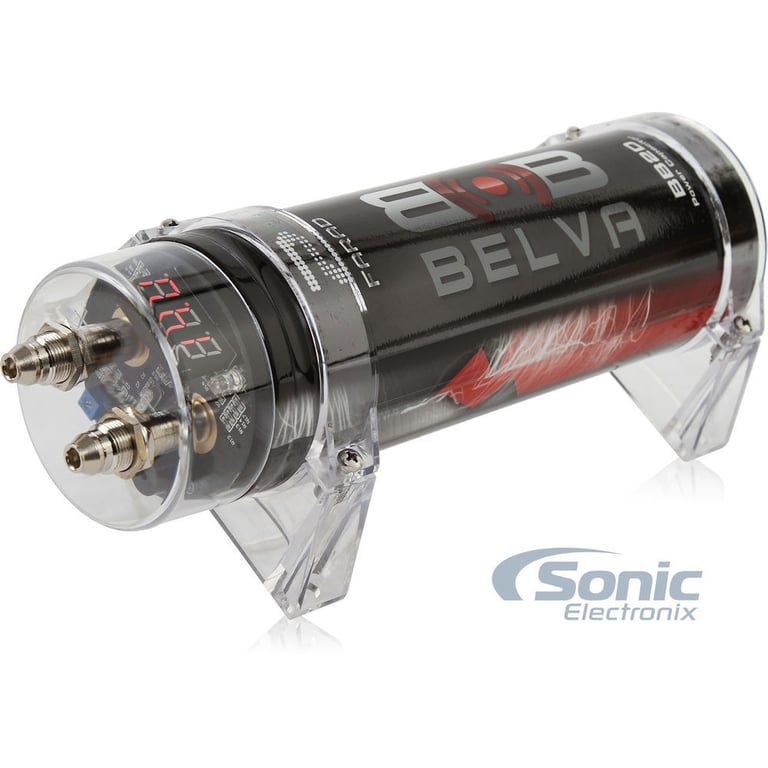

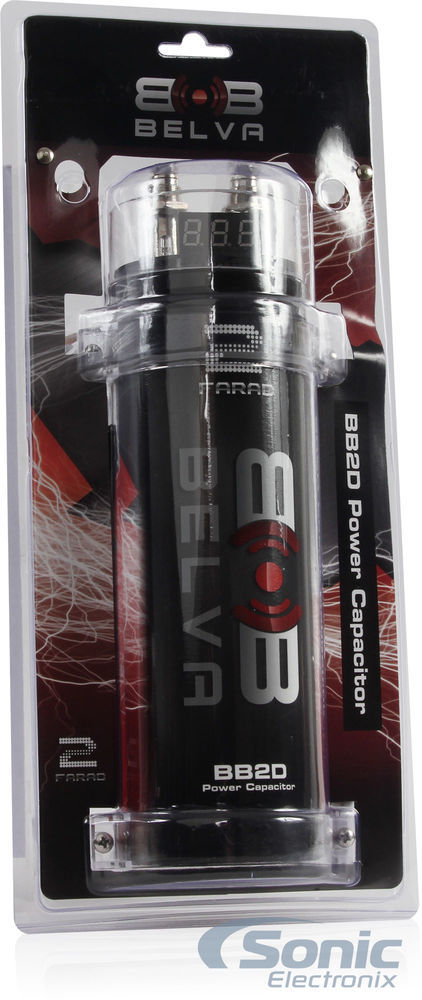

Belva BB2D

2.0 Farad Capacitor with Digital Red Display, Perfect for systems up to 2000W
Quantity: 1

General Features

  • 2.0 Farad Power Capacitor
  • Perfect for systems up to 2000W
  • Red digital voltage display
  • Audible warning indicators
  • Includes clear mounting brackets
  • Automatic shutoff protection
  • 10-16 Volts DC
  • Accepts any gauge of wire with ring terminals
  • Dimensions: 10-1/2"L x 4-1/2"W x 3-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
563 watts x 1 channels
RMS Power @ 2 ohms
1125 watts x 1 channels
RMS Power @ 1 ohm
2250 watts x 1 channels
Amplifier Specifications
Amplifier Series
Armor (Boss)
Marine Certified
No
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.01%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Yes
Fan Cooled
No
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer
REVIEWS
Boss AR3000D Monoblock Amplifier with Bass Remote + 2 Farad Capacitor

Boss AR3000D Monoblock Amplifier with Bass Remote + 2 Farad Capacitor

4.4

(43)

Write a review

Overall rating distribution

5 star
60%
4 star
23%
3 star
12%
2 star
5%
1 star
0%

By feature average rating

Durability
4.5
Value
4.8
Features
4.5
Design
4.4
Usability
4.7

ron j

September 2, 2014

best value

The following review is for AR3000D, which is a part of the bundle you are viewing.

I have 2 12 inch cerwin vega 1500 watt speakers and this boss amp is pushing them like they were made for each other

58

found this helpful.

Zachary

September 17, 2013

cheaper elsewhere

The following review is for AR3000D, which is a part of the bundle you are viewing.

Although I have switched to Fosgate since purchasing this, I really cant complain. I used it to power a 122x MOFO and it sounded great. It does not produce anywhere near the rated wattage so dont expect it to. Emblem makes it look pretty silly but its nice and heavy and if I had to guess I would say it probably produces 400rms. Fits 4 gauge wire

52

found this helpful.

W@LE

November 21, 2014

affordable price

The following review is for AR3000D, which is a part of the bundle you are viewing.

For the affordable price. I would recommend this product to any one .

49

found this helpful.

Everyone

September 26, 2013

It is alright!

The following review is for AR3000D, which is a part of the bundle you are viewing.

It is a really great amp for the price, and it is also not only have somewhat durability but the features of this amp is great. It came in and i had it for about a month and i already overloaded the amp. I had 2 Audiobahn A1206 12s hooked up and it made them slam. One of the best normal bass hitting amp you could find unless you do want to go big. i recommend it, just waiting on the new one to come in.

51

found this helpful.

Evan

October 17, 2012

Pretty damn powerful

The following review is for AR3000D, which is a part of the bundle you are viewing.

Although I am extremely skeptical about the 3000 watt max, I can feel the rms watts doing their business. Pretty boxy boring design but sometimes I don't mind a company saving money on the componets (what really matters) by cutting back on design. Wish it didn't have such a cheesy "Boss" name plate on the front.

44

found this helpful.

Darrell

July 7, 2015

boss amp

The following review is for AR3000D, which is a part of the bundle you are viewing.

Works but wish there was more power like it says it has

22

found this helpful.

Tim

July 13, 2015

Protection system is AWESOME

The following review is for AR3000D, which is a part of the bundle you are viewing.

Blew the amp fuses the first time hooking the amp to my battery. MY bad. There's no way i should've, but i guess i was too excited to noticed. :( Mistakenly hooked positive to negative and negative to positive on the amp. rewired quickly, and put in the spare fuses that comes with and it worked like nothing happen.

I had this powering a BOSS P126DVC, all the way! And shortly added another one. I'm debating on another one; to powered each sub separately. (One sub runs at 2000ish RMS, and the amp at most can only put out 3000 RMS running at 2 ohms.) so its only runnong both subs at half.
I have noticed the amp turn off... if listing to real heavy nonstop bass after 30-45mins. Scared me the first time, thought I blew a sub or the amp. Turns out the thermal protection works wonders. Again that's because I'm running it to its maxed settings on two subs that the amp can only truly power one of.

2 Months of constant use, hour drives too!

19

found this helpful.

QTRML

June 8, 2015

awesome amp....does what it say it will do...plan to get 4 more

The following review is for AR3000D, which is a part of the bundle you are viewing.

i have heard of boss ..but never tried them well im glad i have it was worth every penny..this amp delivers.....

19

found this helpful.

ClNShvN

January 16, 2020

Must Have

The following review is for BB2D, which is a part of the bundle you are viewing.

This is keeping the power flowing. Preventing that drain that comes from running 2 amps.

9

found this helpful.

K Walk

August 30, 2015

nice but over heats

The following review is for AR3000D, which is a part of the bundle you are viewing.

I brought the amp in the winter time, work all winter until summer came. It do give off some nice bass, but over heats in the summer!!!!

10

found this helpful.

Jaree

February 17, 2020

Works great

The following review is for BB2D, which is a part of the bundle you are viewing.

My issue was the strain my amp and subs would put on my battery, no more drainage issues, speakers still sound great, car runs perfect

7

found this helpful.

Steve

January 5, 2020

Great CAP for the money

The following review is for BB2D, which is a part of the bundle you are viewing.

I would highly recommend this CAP and the BOSS 1100 Watt combo. I have it hooked up in my F150 with driving (2) Kicker 12" COMP Subs. The amp combined with the 2 Mf Cap makes these subs rock. The Bass is clear and solid with virtually no distortion. My daughter liked it so much that she asked me to install one in her GMC Serria. I am about to purchase a third to install for a guy at work.
Would I recommend this amp to a friend?....Hell yes without a second thought.

6

found this helpful.

Nathan

June 11, 2017

Great Product

The following review is for BB2D, which is a part of the bundle you are viewing.

The product works great! I am very satisfied with the performance of the capacitor.

6

found this helpful.

Markeith

November 12, 2015

Good Cap

The following review is for BB2D, which is a part of the bundle you are viewing.

This is a good cap. The issues I had was the resistor did not light up when charging. To charge this cap, put the resiston up for 10 seconds or so. Once charged, when you go to finish the install the cap should be in the 12 volt range. I bought this to replace a 500k scosche cap. That cap ways way too small and point less being that I have a 2000 watt belva monoblock. This amp work really nice. It goes great with the belve amp. For 40 bucks, you will not be unpleased with the purchase.

6

found this helpful.

Terrance

August 2, 2015

Need a bass knob in it kept getting hot to fast

The following review is for AR3000D, which is a part of the bundle you are viewing.

Didn't come with a bass knob kept getting hot but the power light was on also the fuel was good

10

found this helpful.
