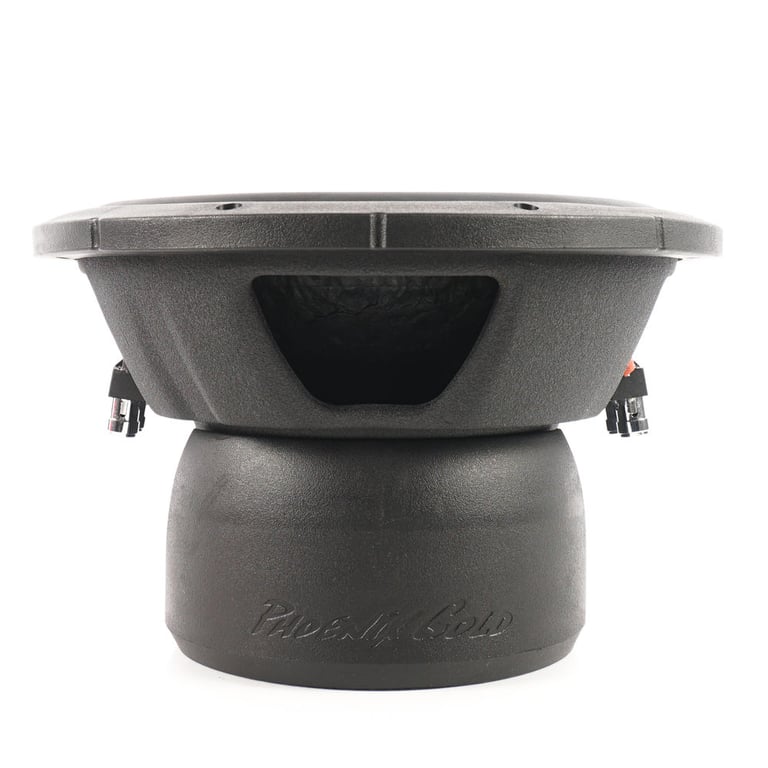

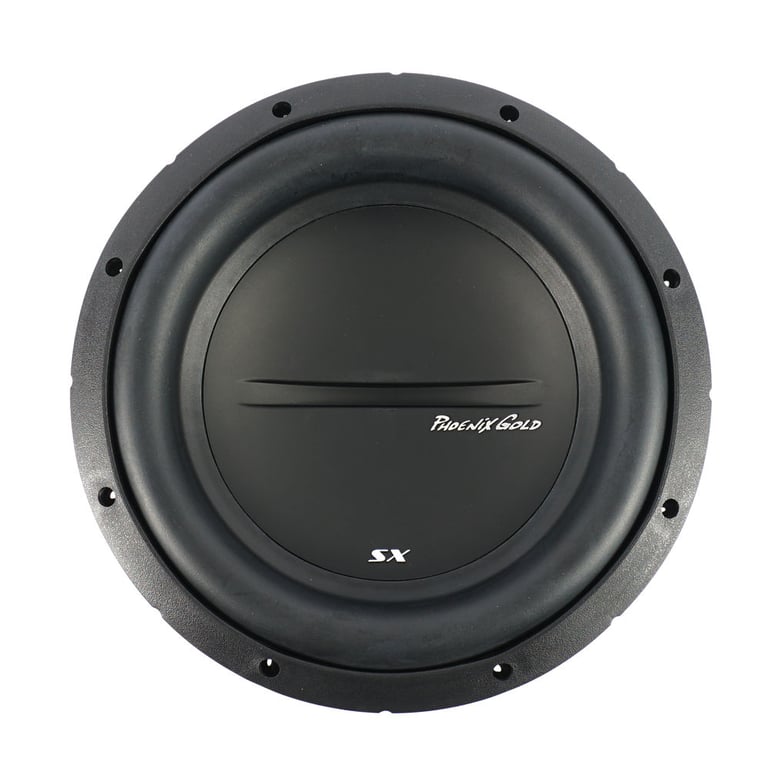

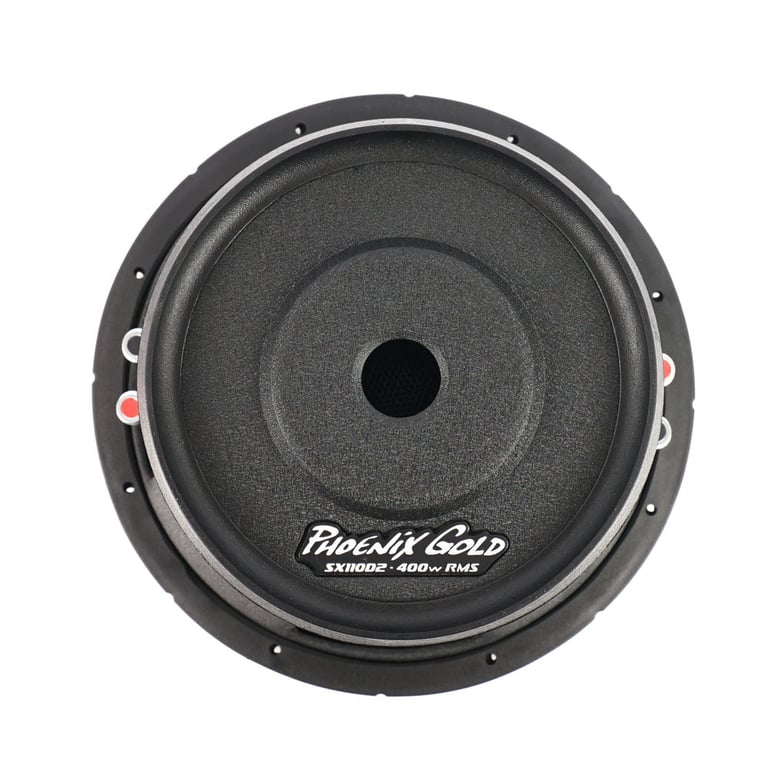

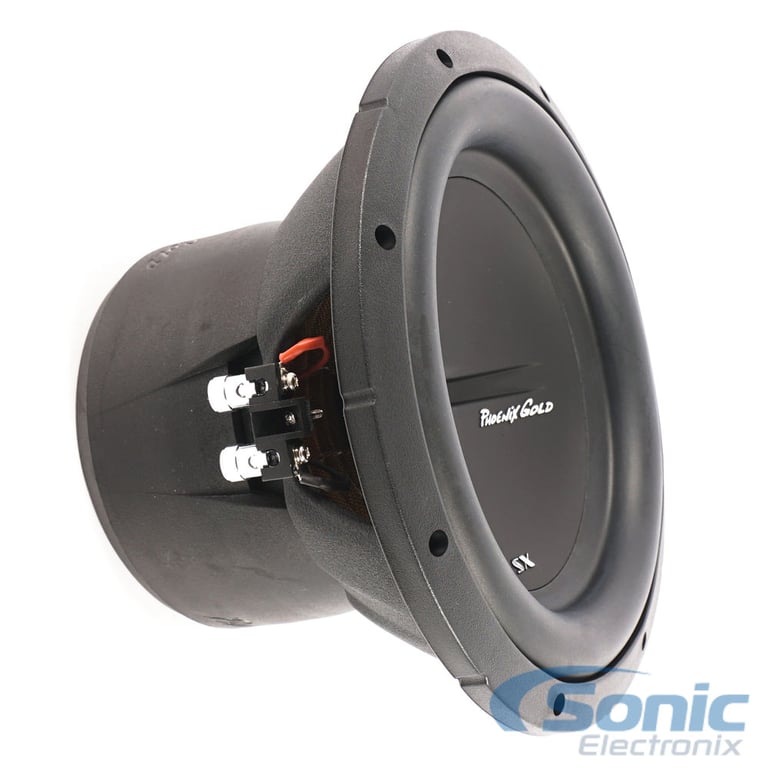

Phoenix Gold SX110D2 | 400 Watt Dual 2-Ohm 10" Subwoofer

Phoenix Gold SX110D2

SX1 Series 10" Dual 2 Ohm Subwoofer

SX1 Series 10" Dual 2 Ohm Subwoofer

• SX2 Series 10" Dual 2 Ohm Subwoofer
• 400W RMS power
• 35mm excursion
• Butyl rubber surround
• 2.5 inch copper voice coils
• Optimized for sealed or vented enclosures

SAVE when you bundle with select enclosures:
Click Here to View Bundles!

List price $229.00
Save: $40.00

$189.00

Special Order. Ships at Later Date with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Phoenix Gold

Authorized dealer

Product Details:

  • SX Series 10" Dual 2 Ohm Subwoofer
  • RMS Power Handling: 400W
  • 35mm of Peak to Peak Excursion
  • High Excursion CAE/CAD Motor Design
  • Vented Aluminum Former
  • Long Throw Spider Suspension
  • One Piece Polypropylene Plated Dustcap
  • High Roll Butyl Rubber Surround
  • 2.5 Inch High Temperature OFC Copper Voice Coils
  • Nickel Plated 12 Gauge Speaker Terminal
  • Optimized for Sealed or Vented Enclosures
  • Powder Coated Anti-Resonant Steel Basket
  • Impedance: Dual 2-Ohms
  • Mounting Depth: 5.875in - 148mm
  • Mounting Diameter: 9.25in - 235mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

View the SX2 Series Subwoofer Manual for detailed specs, wiring diagrams, enclosure recommendations, and more!


FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
SX Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Diameter
2.5"
Sensitivity
90 dB
Xmax (millimeters)
35 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.6 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth
5 7/8"
Cutout Diameter
9 1/4"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
28.9 Hz
Equivalent Compliance (Vas)
23.64 liters
Total Speaker Q Value (Qts)
.41
Electrical Q Value (Qes)
.445
Electrical Resistance of Voice Coil (Re)
1.1 ohms
Mechanical Q Value (Qms)
4.87
What is in the box?
WITB: Subwoofers
Subwoofer
Paperwork
User manual
Authorized Dealer
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
REVIEWS
Phoenix Gold SX110D2

Phoenix Gold SX110D2


Write a review

Overall rating distribution

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
0
Value
0
Features
0
Design
0
Usability
0
ACCESSORIES
WIRING GUIDE
Wiring Guide to Wire 1 Phoenix Gold SX110D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Phoenix Gold SX110D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Phoenix Gold SX110D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Phoenix Gold SX110D2 Subwoofers

2 Channel Amp

4 Channel Amp
