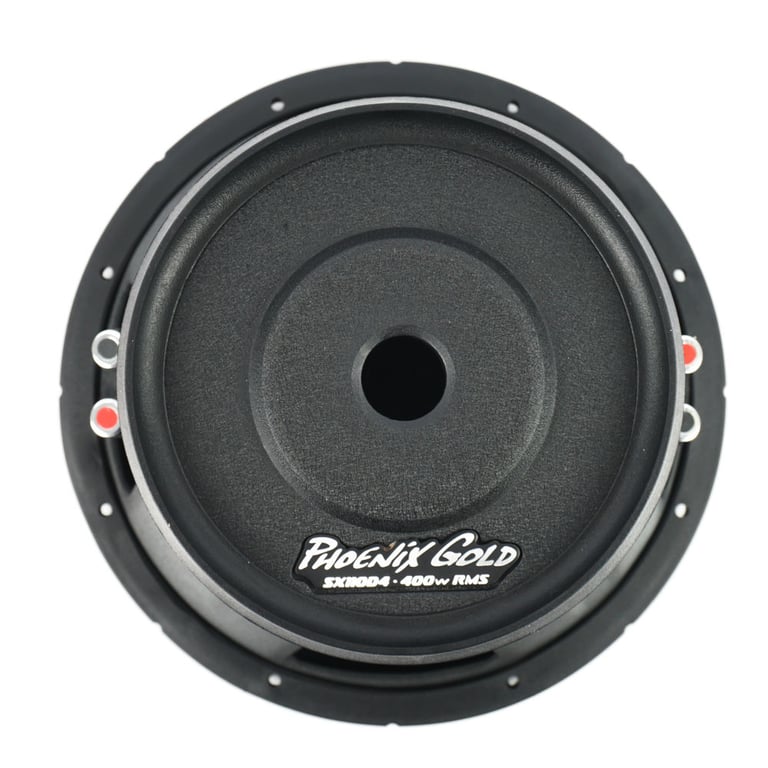

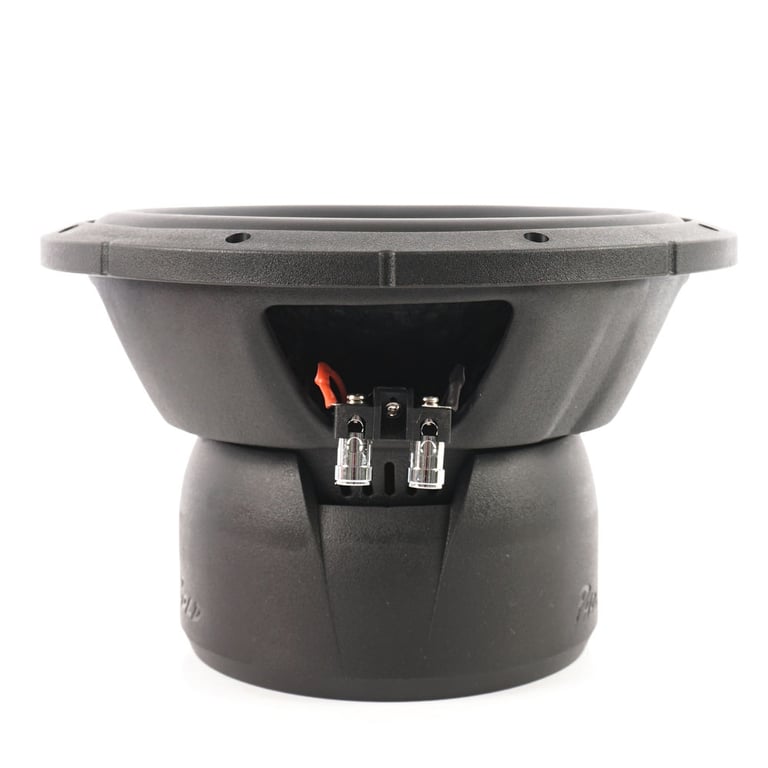

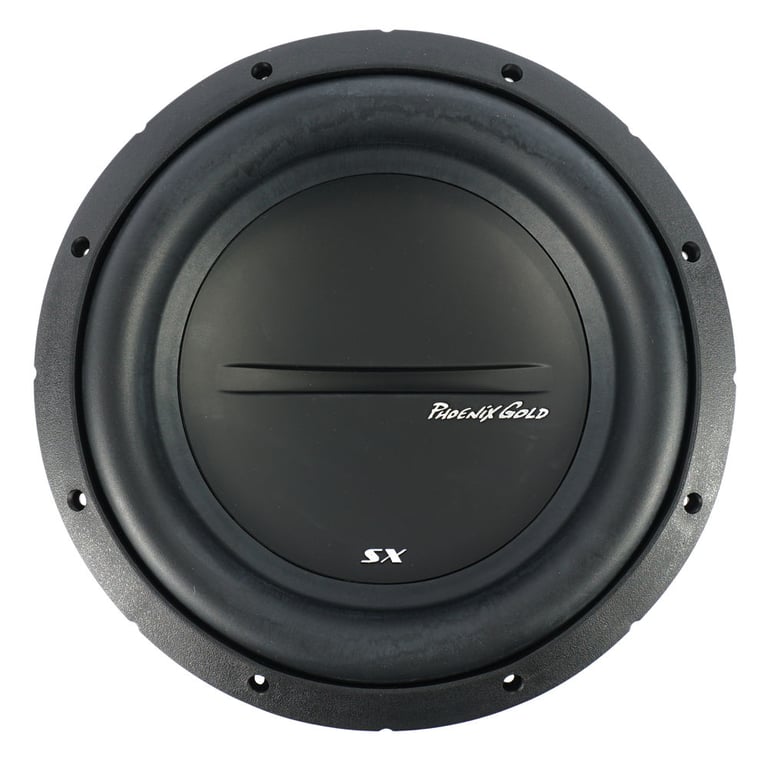

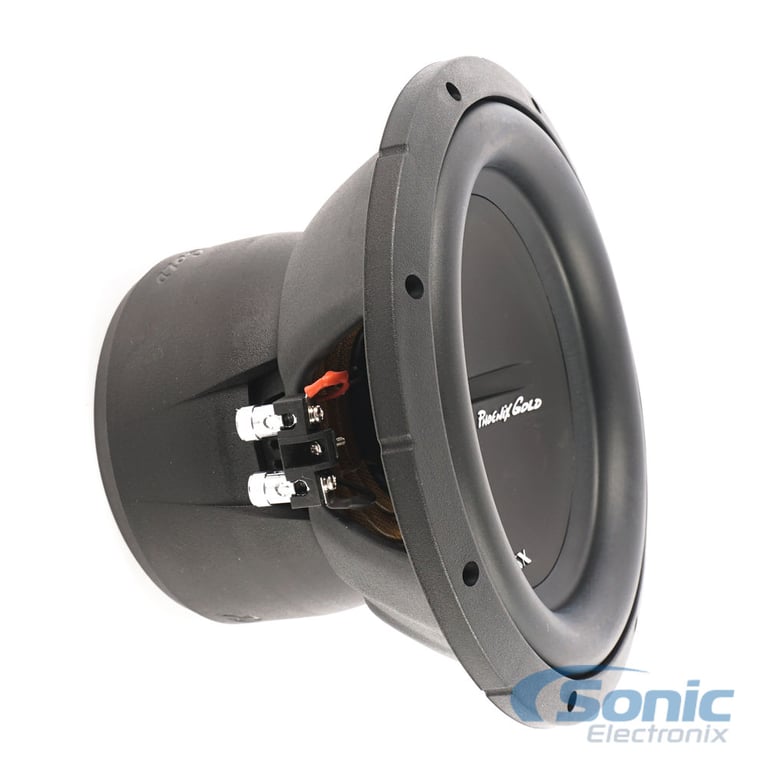

Phoenix Gold SX110D4

800 Watt SX1 Series 10" Dual 4 Ohm Subwoofer

Phoenix Gold
Shop all Phoenix Gold
highlight-star-icon

• SX Series 10" Dual 4 Ohm Subwoofer
• 400W RMS power
• 35mm excursion
• Butyl rubber surround
• 2.5 inch copper voice coils
• Optimized for sealed or vented enclosures

Learn more about the sx110d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
FD1327B main

Scosche FD1327B / FD1327 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mazda, Mercury trucks (Black)

154

$12.99

List price $13.25

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

R168X2 main

Rockford Fosgate Prime R168X2

220W Peak (110W RMS) 6x8" Prime Series 2 Way Coaxial 4-ohm Speakers

47
Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

Description


Phoenix Gold brand icon

Authorized dealer

Product Details:

  • SX Series 10" Dual 4 Ohm Subwoofer
    • RMS: 400 Watts
    • Peak: 800 Watts
  • 35mm of Peak to Peak Excursion
  • High Excursion CAE/CAD Motor Design
  • Vented Aluminum Former
  • Long Throw Spider Suspension
  • One Piece Polypropylene Plated Dustcap
  • High Roll Butyl Rubber Surround
  • 2.5 Inch High Temperature OFC Copper Voice Coils
  • Nickel Plated 12 Gauge Speaker Terminal
  • Optimized for Sealed or Vented Enclosures
  • Powder Coated Anti-Resonant Steel Basket
  • Impedance: Dual 2-Ohm
  • Mounting Depth: 5.875in - 148mm
  • Mounting Diameter: 9.25in - 235mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

View the SX2 Series Subwoofer Manual for detailed specs, wiring diagrams, enclosure recommendations, and more!


Subwoofer Wiring Guide


Wiring Guide to Wire 1 Phoenix Gold SX110D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Phoenix Gold SX110D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Phoenix Gold SX110D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Phoenix Gold SX110D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
SX Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
90 dB
Xmax (millimeters)
35 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.6 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5 7/8"
Cutout Diameter
9 1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.2 Hz
Equivalent Compliance (Vas)
22.6 liters
Total Speaker Q Value (Qts)
.47
Electrical Q Value (Qes)
.519
Electrical Resistance of Voice Coil (Re)
1.85 ohm
Mechanical Q Value (Qms)
4.56
