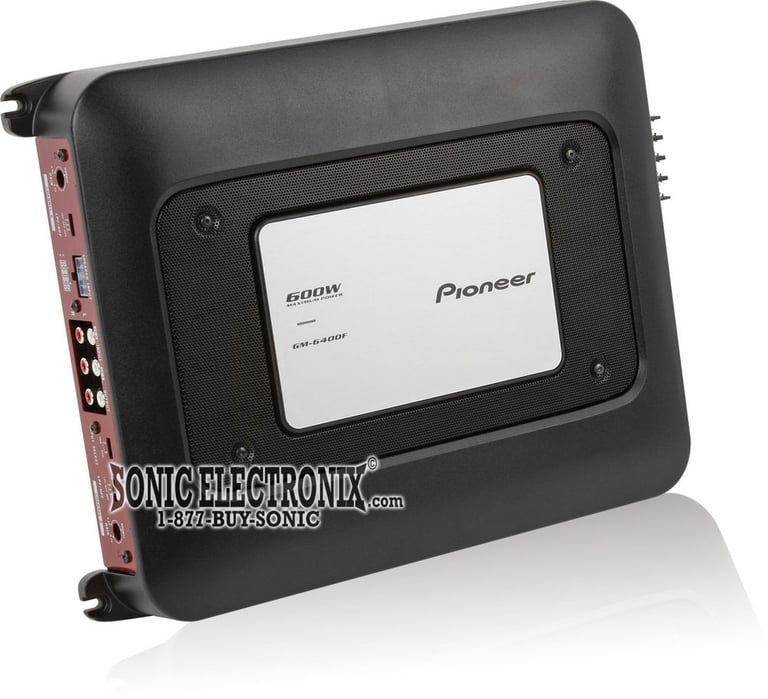

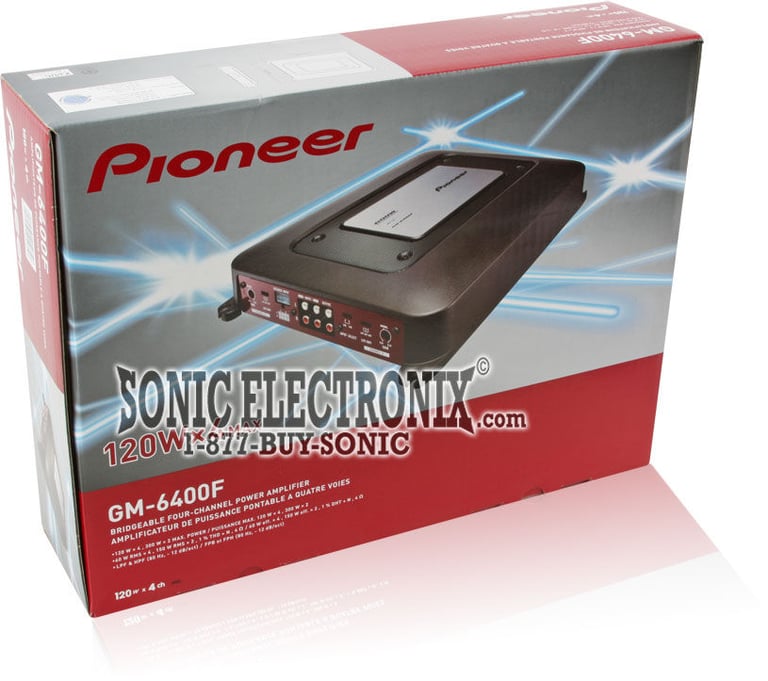

Pioneer GM-6400F

600W Max, 4-Channel Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

GM Series • Bridgeable 4-Channel • Class AB Amplifier • 60 Watts RMS x4 Channel @ 4 ohm • 75 Watts RMS x 4 Channel @ 2 ohm • Speaker Level Inputs • LPF/HPF Crossovers • Gain Caution Feature • H Shaped Chassis

Learn more about the gm6400f

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

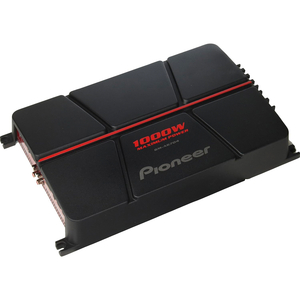

gma6704 thumbnail

Pioneer GM-A6704

OUR PRICE: $189.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-3002 main

Metra 82-3002

5.25" or 6.5" Speaker Bracket for select 1995-2014 vehicles from Chevrolet, GMC, Hummer

28
-43.50%

$12.99

List price $22.99

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

ZS46CX main

Hifonics ZS46CX

400W Peak (80W RMS) 4x6" Zeus Series 2-way 4-ohm Coaxial Car Speakers

23
-15.97%

$21.00

List price $24.99

PAC SH4568

Speaker Wiring Harness for select 1988-2020 vehicles from Chevrolet, GMC, Buick (Sold as Pair)

-54.17%

$11.00

List price $24.00

Product Highlights


GM Series • Bridgeable 4-Channel • Class AB Amplifier • 60 Watts RMS x4 Channel @ 4 ohm • 75 Watts RMS x 4 Channel @ 2 ohm • Speaker Level Inputs • LPF/HPF Crossovers • Gain Caution Feature • H Shaped Chassis

Description


Pioneer brand icon

Authorized dealer

Is your system showing it's full potential? Pioneer is constantly finding ways to make amplifier technology better. With added design features like the H-Shaped chassis, inherited from their top of the line PRS amplifiers, their improved GM-Series prove how you can add cutting edge technology and more power to your system without breaking the bank. Pioneer's Gain Control Caution feature will automatically reduce the amplifier's output until the headunit volume is decreased to acceptable levels. It feels good to have Pioneer in your vehicle.

  • GM Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Max power output: 600 watts
  • PWM Regulated MOSFET power supply
  • LED power indicators

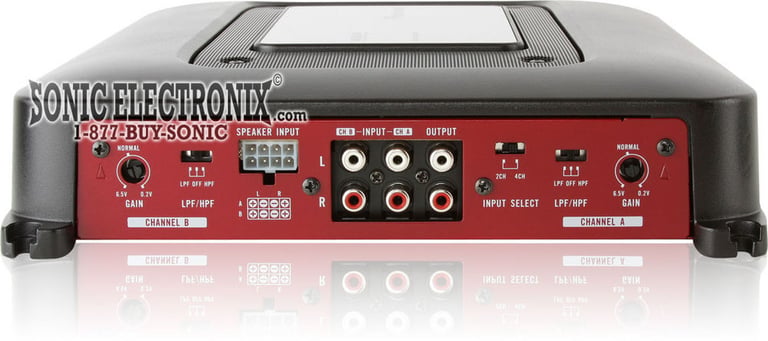

  • 4/3/2 channel operation
  • Built-in crossover LPF/HPF (front/rear independent)
  • Variable high-pass filter (cut off frequency: 80 Hz, -12 dB/octave)
  • Variable low-pass filter (cut off frequency: 80 Hz, -12 dB/octave)
  • Built-in speaker level inputs
  • Hi-volt (400mV ~ 6.5v) input level control
  • Exclusive H shaped chassis and heatsink
  • Gain control caution feature helps prevent damage to speakers
  • CEA-2006 compliant amplifier
  • Frequency response: 10-50,000 Hz
  • Dimensions: 8-1/2"L x 2-1/2"W x 13-5/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer GM-A6704 thumbnail
(newest, current model)
Pioneer GM-A6604 thumbnail
(previous model, replaced by Pioneer GM-A6704)
Pioneer GM-6500F thumbnail
(previous model, replaced by Pioneer GM-A6604)
Pioneer GM-6400F thumbnail
(previous model, replaced by Pioneer GM-6500F)
Pioneer GM-6300F thumbnail
(previous model, replaced by Pioneer GM-6400F)
Pioneer GM-6200F thumbnail
(previous model, replaced by Pioneer GM-6300F)

Loading...
LVE-GM-SLVECG1-D12S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D12S

For select 1999-2006 vehicles from GMC, Chevrolet Extended Cab - Dual 12" 800W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.86%

$369.99

List price $455.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Signal-to-Noise Ratio
95 dB
Channel Separation
70 dB
Remote bass/level controller
No

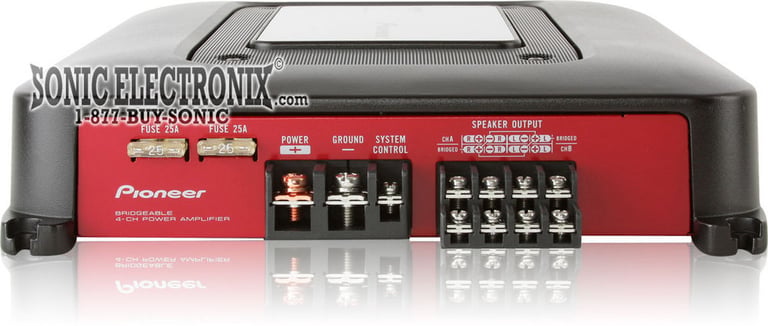

Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-6400F

Weight:

12.00lbs

Internal SKU:

gm6400f

Internal Product ID:

16645

Product and How-to Videos


Customer Ratings & Reviews


Pioneer GM-6400F thumbnail image

5 star
82%
4 star
18%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.8
Features
4.7
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Awesome Amp

I've had this system in place powering 4 60 watt speakers running at 50rms each and I've never had a problem with it. It runs a little warm to the touch after a long drive with loud music, but that's to be expected. All in all I've never noticed any negatives about this amp in the last 6 months, and expect that it will continue to preform greatly.

By Skystrider17 on May 12, 2011

34 found this helpful


Nice Quality

I have had this in my Dodge Caravan for about six months. Install was simple with the power cable kit (sold seperately.) Haven't had any trouble at all sounds great! I actually enjoy driving to work now.

By Jason on February 1, 2011

32 found this helpful


Super Amplifier

This is by far the best AMP I have ever purchased. It is quiet,stays cool and no distortion. Any one who about to upgrade your audio system should really consider this AMP. That's why I bought 3 of them. Sonic Electronix has very fair prices and fast shipping.

By River rat 1969 on August 30, 2010

32 found this helpful


Good starting amp for sure

Good sound quality for this price. Nice design and features for price also. Really can take the heat too. Ran it hard in one hundred degree weather. It was ready to start melting my car before it turned off. Finally did but let it cool for a minute and it was right back to working perfect. Great budget amp to beat up.

By Daniel on November 27, 2011

31 found this helpful


works for me

my Pioneer GM-6400F is bridged driving infinity 6x9's with no problem, sounds excellent, no malfunctions

By Kirk on August 27, 2009

31 found this helpful


Pioneer GM-6400F

Awesome amp! Nice power. Years back i owned a pioneer AD360 amp. It had a lot of kick and the GM-6400F is the same. Just make sure that it is connected to a 4 channel car stereo otherwire you loose sound.

By John on June 7, 2011

31 found this helpful


Great Amp for the price.

First off, great price on a CE 2006 compliant amp. It works perfect to power my Focal Comp's and rear 2 ways.

Rugged design, and has some wieght to it.

By Totoro on April 12, 2011

29 found this helpful


Great amp for an even better price!

Great amp. It's heavy, which means it's built well. It was easy to install. Never gets hot. Maybe just warm during a road trip. It made my speakers sound so amazing. The subtleties are just that much more apparent now. Get it. You won't regret it.

By Ram on November 17, 2010

29 found this helpful


wOHOOOO

I'll just say that i was amazed when i heard what this amp did to my 6x9s and 6-1/2s.... OMG it was amazing!!! Played it for an hour straight and it didn't even get warm. Love this amp and I would buy it again for sure.

By Quanderius on May 28, 2010

29 found this helpful


GET THIS AMP

This is a really nice amplifier especially for the price. Small in size, light weight, easy to work with, easy to tune. I have this amp powering two sets of 6.5 component speaker systems and it pushes them hard. Hard but clean. It offers a couple of great protection features as well, so IT wont let you blow your stuff. Overall awesome value. I would recommend this amp to anyone wanting to upgrade their sound system.

By Caleb on August 18, 2010

28 found this helpful




GX8628 small

JBL GX8628 (GX8628AM)

360W Peak (120W RMS) 5x7" / 6x8" GX Series 2 Way Coaxial 2.3-ohm Speakers

(1)

$74.99

List price $74.99

NXL-X6TPNEO/BK small

DS18 NXL-X6TPNEO/BK

900W Peak (300W RMS) 6.5" Hydro Series 2 Way Marine Tower Speakers in Black with Built-in Passive Radiator and RGB LED

$1079.95

List price $1079.95

MG1337 small

Mean Green Alternators MG1337

200 Amp High Output Alternator for select 1992-2000 vehicles from Dodge

$519.99

List price $519.99

FMK505 small

American International FMK505

Double DIN Stereo Dash Kit for select 1987-1993 Mustang

(1)

$9.99

List price $29.00

SW-SAV218D2 small

Sundown Audio SA-18 v.2 D2 18" (SA18V2D2)

2500W Peak (1250W RMS) 18" SA Series Dual 2-ohm Car Subwoofer (SW-SAV218D2)

$499.99

List price $599.99

No picture

JL Audio BassWedge CP112-W0v3 (Open Box, Great)

300W RMS 12" W0v3 Series BassWedge Ported Subwoofer System

(13)

$220.87

List price $279.99

REVO 12 SW-W GRILLE small

Wet Sounds REVO 12 SW-W GRILLE

Grille for Wet Sounds 12" REVO 12 Marine Subwoofers (White)

$69.99

List price $69.99

T1SG-12 small

Rockford Fosgate Power T1SG-12

12" Power T1 Slim Mesh Grille Insert

$44.99

List price $44.99

T1S1-10P small

Rockford Fosgate Power T1 T1S1-10P

1000W Peak (500W RMS) 10" T1 Slim Series Single 1-ohm Shallow Subwoofer for Ported Enclosures

$539.99

List price $647.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 GMC Sierra Denali

2008 Kia Rio

1988 Dodge Caravan

1999 Pontiac Sunfire

2015 Chevrolet Express 2500

2010 Cadillac SRX

2009 Kia Borrego

2008 Audi A3 Quattro

1997 Mazda Millenia

2020 Toyota Corolla

Vehicle
Store
Delete

2000 Harley Davidson FLHR Road King

1994 Harley Davidson FLHTC Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
