Massive Audio D 8004 (D8004) + FREE 4-Channel 4 Gauge Amp Wire Kit

1920W Peak (960W RMS) D Block Series Class A/B 4-Channel Car Amplifier + Amp Kit

highlight-star-icon

•120 Watts RMS x 4 @ 4 ohm
• 240 Watts RMS x 4 @ 2 ohm
• 480 Watts RMS x 2 @ 2 ohm, Bridged
• Total Peak Power: 960 Watts x 2
• CBuilt-in Noise Reduction Circuitry
• Full Mosfet with High Grade Switching Devices

Learn more about the d8004_bak44

We apologize

This item has been discontinued


Loading...
TA02BCB main

Scosche TA02BCB

Install a New Car Stereo in select 1986-2018 vehicles from Toyota

1
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Limited time!
Club 422F main

JBL Club 422F (SPKCB422FAM)

210W Peak (70W RMS) 4" Club Series 2 Way Coaxial 3-ohm Speakers

-46.14%

$69.99

List price $129.95

Stage3 427F main

JBL Stage3 427F (STAGE3427FAM)

300W Peak (60W RMS) 4" Stage3 Series 2-Way Coaxial 3-ohm Car Speakers

3
-22.23%

$69.95

List price $89.95

XED42 main

Cerwin-Vega XED42

300W Peak (40W RMS) 4" XED Series 2-Way Coaxial 4-ohm Speakers

4
-16.67%

$39.99

List price $47.99

FKB110 main

MB Quart FKB110

160W Peak (80W RMS) 4" Formula Series 2-Way 4-ohm Coaxial Car Speakers

-36.18%

$29.99

List price $46.99

NSP4 main

NVX NSP4

300W Peak (100W RMS) 4" N-Series 2-Way Coaxial Car Speakers

25
-25.00%

$44.99

List price $59.99

Description


Massive Audio brand icon

Authorized dealer

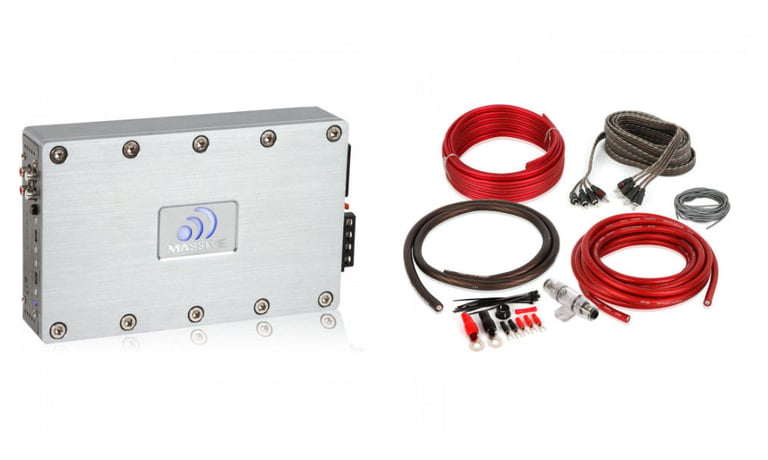

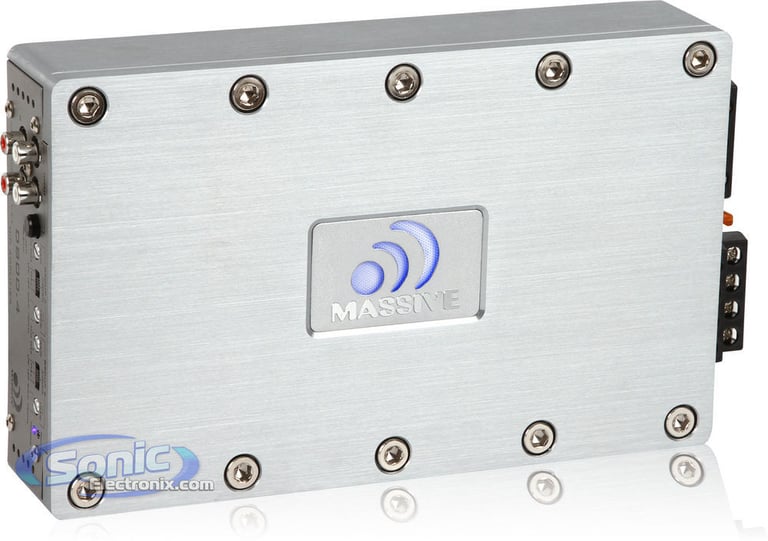

Massive Audio D 8004 (D8004)

1920W Peak (960W RMS) D Block Series Class A/B 4-Channel Car Amplifier - CEA-2006 Compliant
Quantity: 1

General Features:

  • Massive Audio 800.4 D Block Series 4-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 120 watts x 4 chan.
    • 2 ohm: 240 watts x 4 chan.
    • Bridged at 2 ohm, 480 x 2 chan.
  • Max power output: 960 watts x 2 chan.
  • MOSFET power supply with high grade switching devices
  • LED power/protect indicators
  • Brushed aluminum "finless" heat sink
  • 6-Way protection circuitry
  • Nickle plated connectors
  • Frequency response: 10-25,00Hz
  • THD (Total Harmonic Distortion): <>1%
  • Signal-to-Noise Ratio: >90 dB

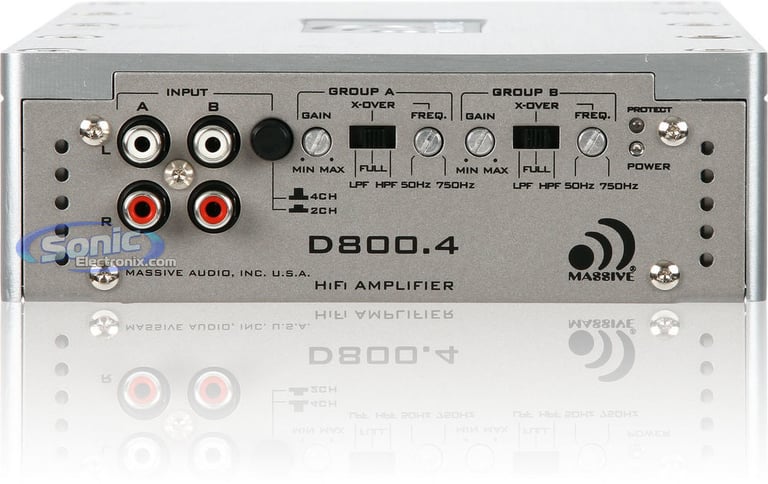

  • High pass and low pass variable crossovers 50-800Hz (18dB)
  • Max Voltage: 15V
  • Max RCA Voltage: 5V
  • CEA-2006 compliant amplifier
  • Weight: 9 lbs
  • Dimensions: 10-1/2"L x 6-1/2"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's Warranty

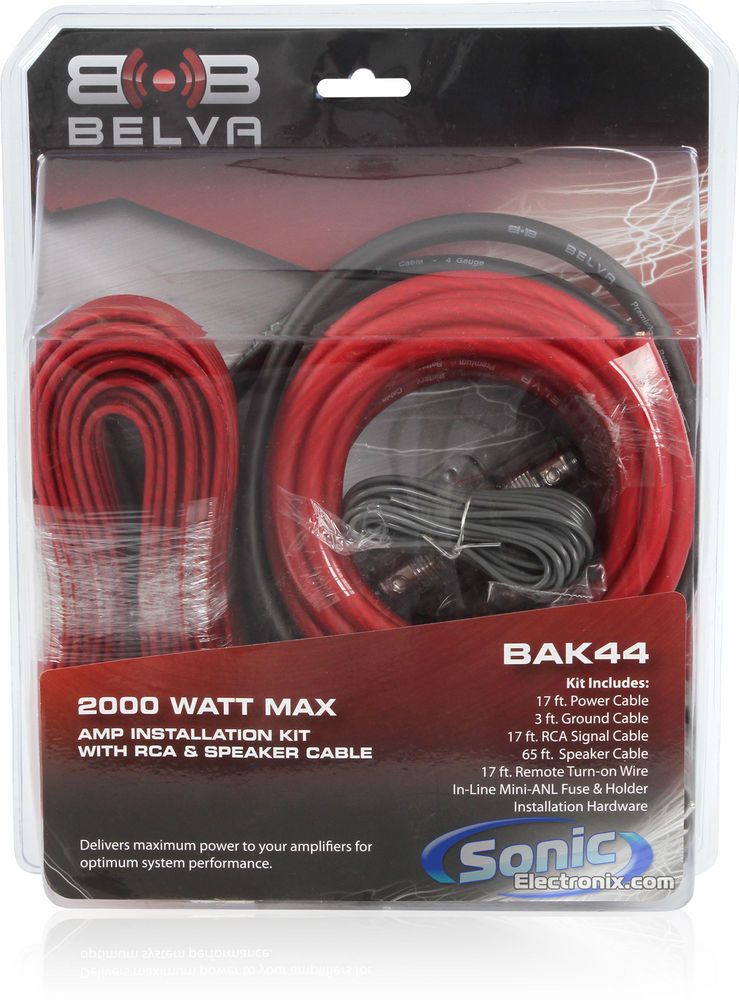

Belva BAK44

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

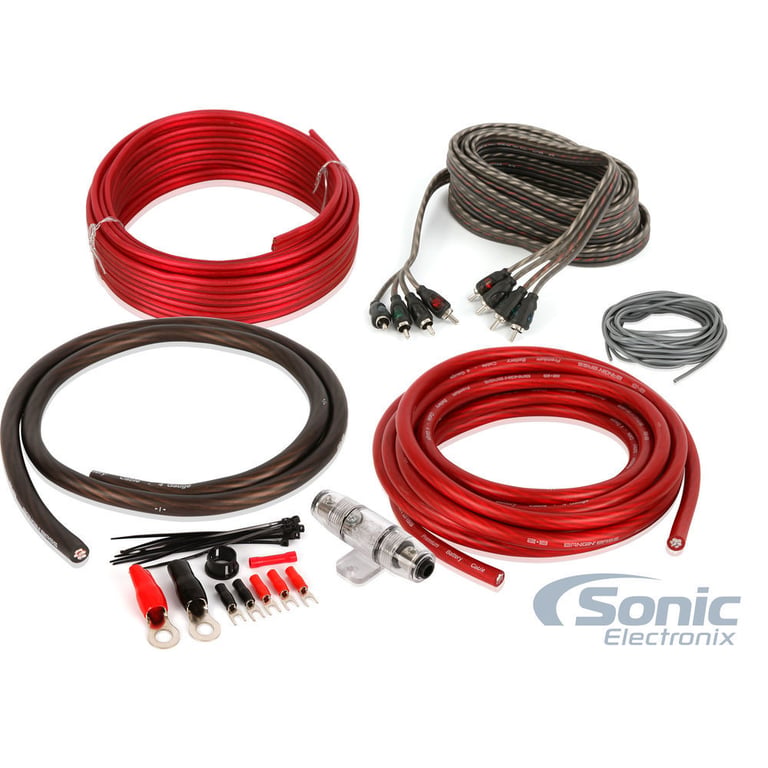

Kit includes:

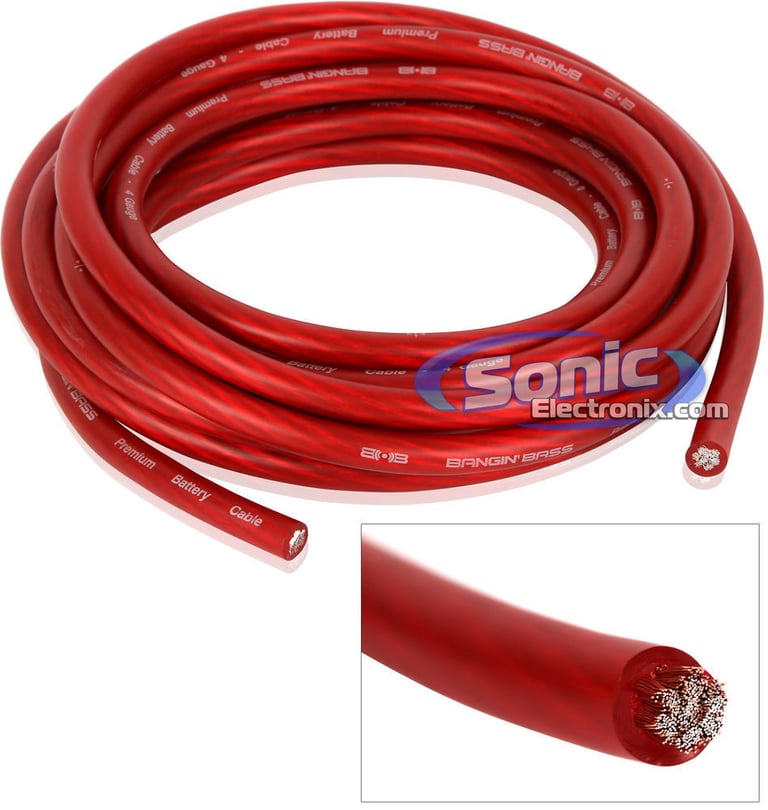

  1. 17 ft. Red 4 gauge power wire

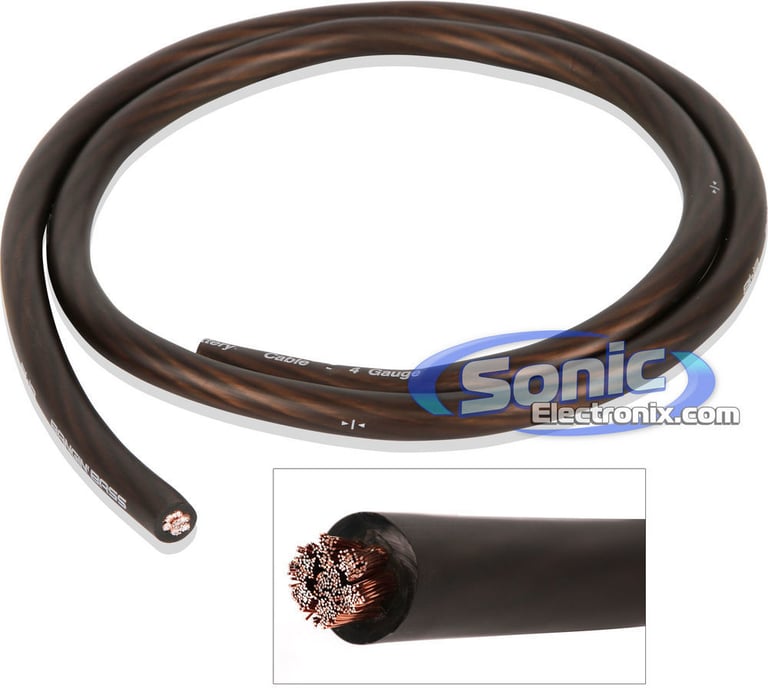

  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 40 ft. 16 gauge speaker wire

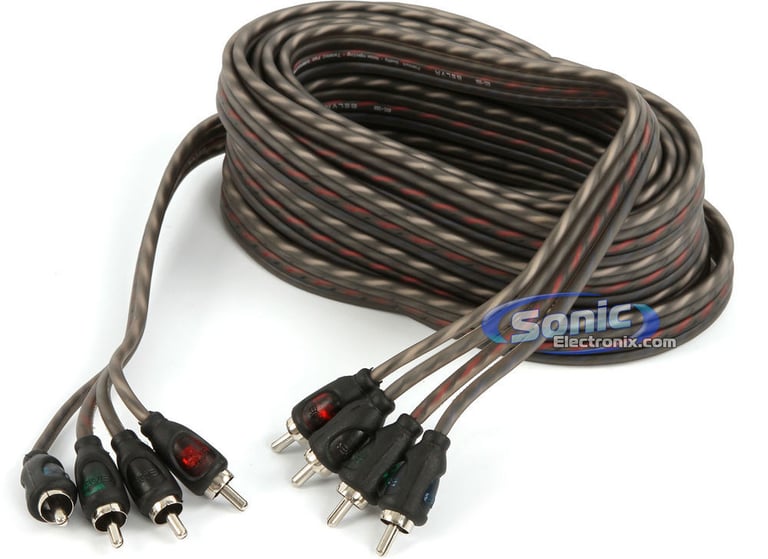

  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable

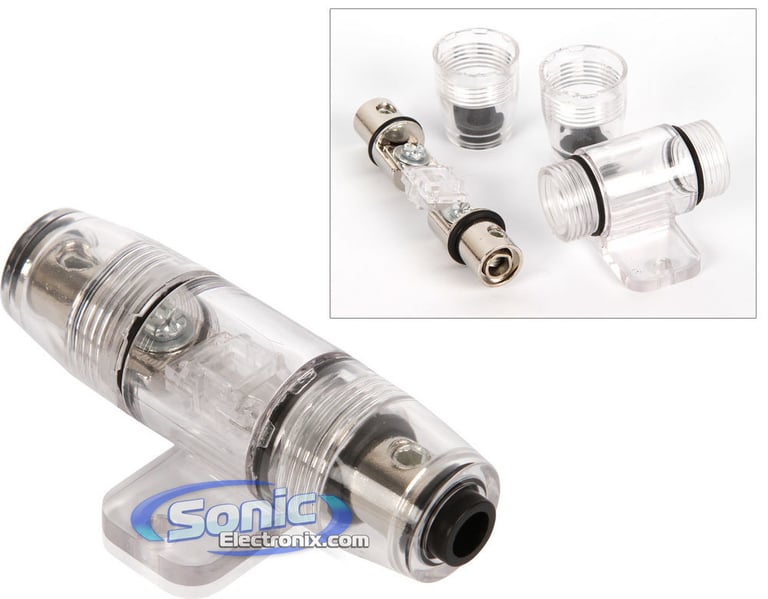

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
120 watts x 4 channel
RMS Power @ 2 ohms
240 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
480 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
960 watts
Total RMS Power Output
480 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
>1%
Speaker Level Inputs
No
Preamp Outputs
Not Specified
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 750 Hz
Subsonic Filter
Not Specified
Signal-to-Noise Ratio
90 dB
Channel Separation
>80 dB
Bass Boost
Not Specified
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

D 8004, BAK44

Weight:

11.58lbs

Internal SKU:

d8004_bak44

Internal Product ID:

166663

Customer Ratings & Reviews


Massive Audio D 8004 (D8004) + FREE 4-Channel 4 Gauge Amp Wire Kit thumbnail image

5 star
80%
4 star
12%
3 star
6%
2 star
2%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.9
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Awesome product for the price

The following review is for BAK44, which is a part of the bundle you are viewing.

I was overall satisfied with everything in the kit. The wire was great quality and easy to run. I liked that it came with a plastic grommet for my firewall. I think the fuse was really nice and looks great under the hood. Just make sure you have a 4 gauge crimping tool which I did not have. I ended up crimping with some pliers and a hammer to tighten up the terminals.

By JT on January 17, 2014

141 found this helpful


Good kit for the $

The following review is for BAK44, which is a part of the bundle you are viewing.

Used this kit to install a 4 channel amp and had plenty of wire to do the job.

By Tomas on January 13, 2015

136 found this helpful


Everything I needed

The following review is for BAK44, which is a part of the bundle you are viewing.

Great value, great quality, everything that was necessary to install the full system. Kudos.

By DEREK on January 29, 2015

129 found this helpful


good amp kit

The following review is for BAK44, which is a part of the bundle you are viewing.

The amp kit works well. The installation was very easy. I had plenty of wire. For the power and ground wires I soldered on my own copper lugs. The only real drawback is that this kit is cca instead of ofc, but that is why it is so cheap.

By Philip on January 26, 2014

133 found this helpful


excellent value

The following review is for BAK44, which is a part of the bundle you are viewing.

this had everything you need in it to do an amp install. I was impressed with the speaker wire as it was a heavy gauge wire. 14awg I think. it was listed to have 20ft of speaker wire in product description but had 65ft in package, (nice). all the wire was nice and flexible (easy to work with) unlike some cheaper wire I've seen or used that's real stiff. couldn't ask for anything more.....

By werthy1 on November 27, 2013

131 found this helpful


great amp kit

The following review is for BAK44, which is a part of the bundle you are viewing.

Made amp installation easy. Good quality gauge wire and inline fuse with this kit.

By Ozzie on January 6, 2015

127 found this helpful


Amp wiring kit

The following review is for BAK44, which is a part of the bundle you are viewing.

This is an above average installation kit with all the wiring you need except a RCA for 5th channel.

Half price with bundle with Amp

By Joel on December 30, 2014

127 found this helpful


Worked Perfect

The following review is for BAK44, which is a part of the bundle you are viewing.

Great price and fast shipping. It was all I needed to hook up my amp and composite speakers. Plenty of length on all can cables.

By Shon on February 27, 2014

128 found this helpful


Really Good Quality!!

The following review is for BAK44, which is a part of the bundle you are viewing.

Got this wiring kit at a discount after purchasing together with amp, so ended up at around $37. Ive bought 4 gauge wiring kits before at local radio shop for the same price, but not the same quality at all! The power and ground wire are super flexible, great for passing through firewall and bending around tight corners. Great quality anl fuse, and was surprised to find 20 ft of equally good, thick, speaker wire, just enough to rewire my whole car! And loved the 4 twisted rca cables that make install a breeze, and helps keep everything looking neat and clean. Perfect for a 4 channel Amp Install.

By Frank on January 1, 2014

127 found this helpful


works great

The following review is for BAK44, which is a part of the bundle you are viewing.

everything I needed to install, good price and value. Will order another shortly.

By Donnie on September 2, 2014

118 found this helpful




No picture

Rockford Fosgate PBR300X2 Open Box Complete (Very Good, Used)

300 Watts Punch Series Boosted Rail Compact 2-Channel Amplifier

$135.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1996 Toyota Avalon

2018 BMW 2 Series

1990 Alfa Romeo Spider

2012 Buick Verano

2012 Nissan Armada

2011 MINI Cooper

2019 Honda Pilot

2007 GMC Envoy

2023 Kia Seltos

2011 Saab 9-5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
