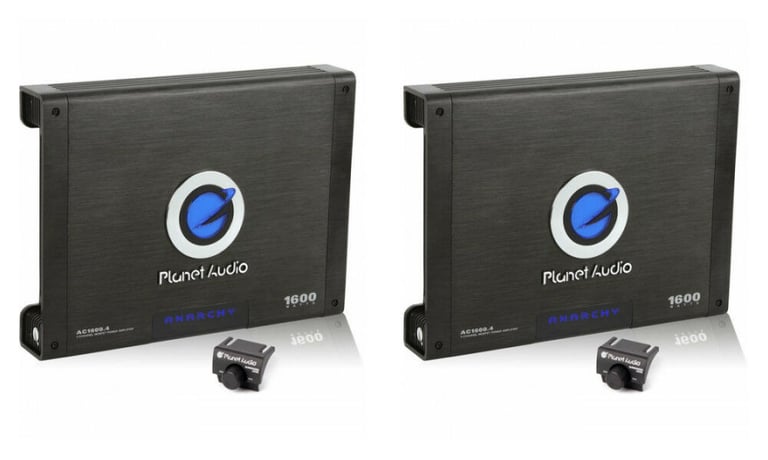

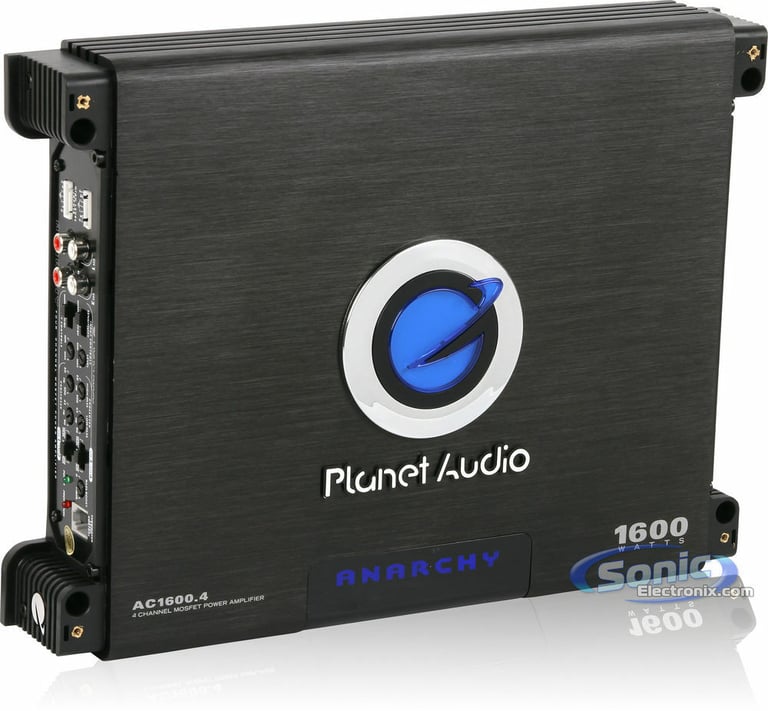

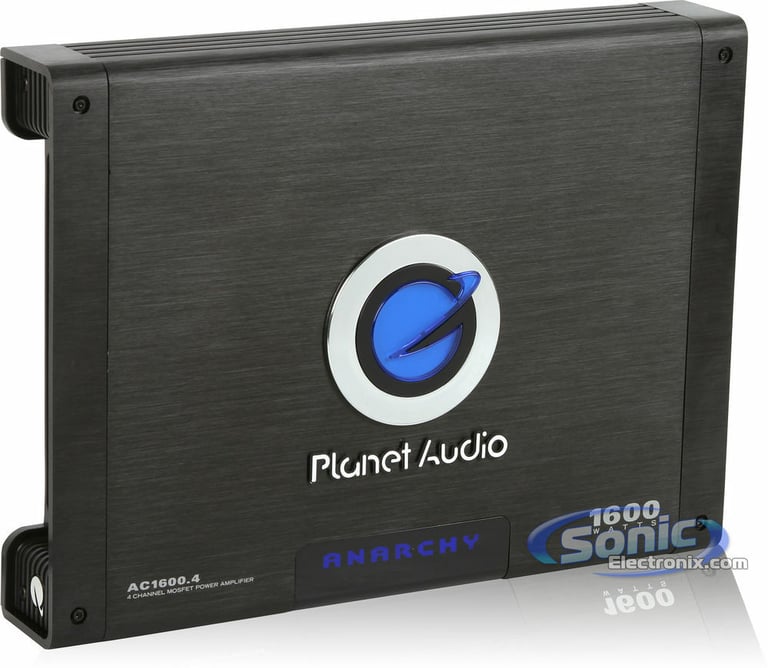

Planet Audio AC1600.4 1600W 4 Channel Car Amplifier Power Amp & Remote (2 Pack)

Planet Audio AC1600.4 1600W 4 Channel Car Amplifier Power Amp & Remote (2 Pack)

highlight-star-icon

• RMS: 300W x 4 @ 2 ohm
• 1600W Max.
• Switchable Phase Shift
• Input Sensitivity Selector
• Remote Subwoofer Control
• Heavy-Duty Screw Terminals
• Chrome-Plated Connections
• Illuminated Logo

Learn more about the ac16004_2

We apologize

This item has been discontinued


Loading...
70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

99-5700 main

Metra 99-5700 Dash Kit

Install a new Single-DIN car stereo in select 1975-2000 vehicles from Ford, Mercury, Mazda

5
-12.50%

$27.99

List price $31.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

44
-10.01%

$17.99

List price $19.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

14
-10.50%

$179.00

List price $200.00

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Description


Planet Audio brand icon

Authorized dealer

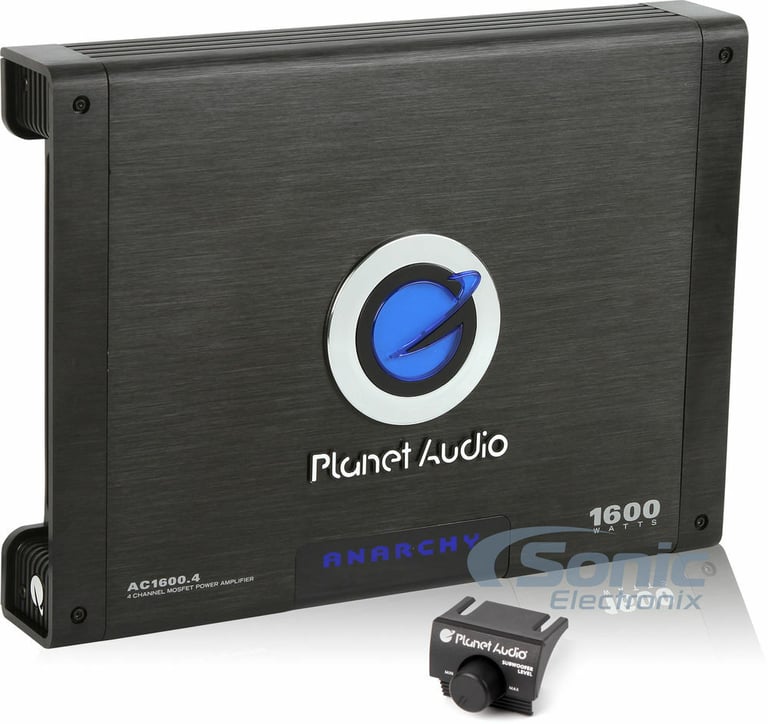

Planet Audio AC1600.4

1600W Anarchy Series 4-Channel Class AB MOSFET Power Amplifier with Remote Level Control
Quantity: 2

Planet Audio Authorized Dealer

General Features

  • Anarchy Series 4-Channel MOSFET Car Amplifier
  • RMS Power Rating:
    • 2 ohm: 300 watts x 4 chan.
    • Bridged, 4 ohm: 600 watts x 2 chan.
  • Max power output:
    • 2 ohm: 400 watts x 4 chan.
  • Pulse width modulated MOSFET power supply

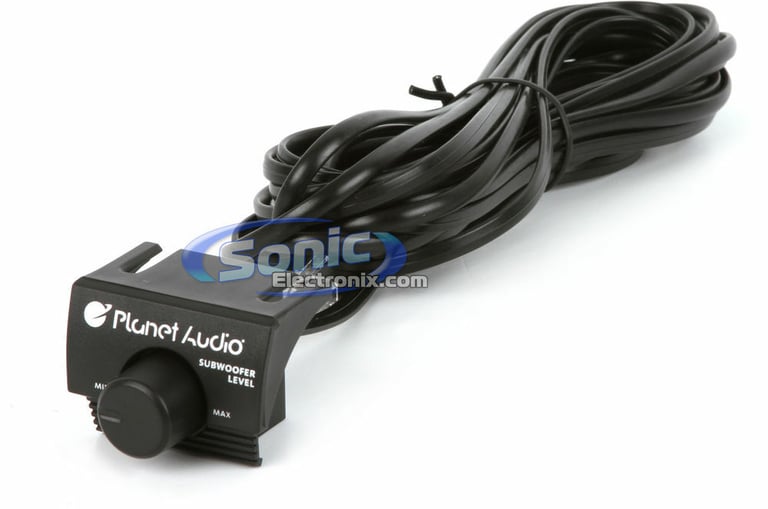

  • Convenient remote subwoofer control
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +18 dB
  • Bridgeable Tri-mode operations
  • Chrome-plated connections enhance durability
  • Variable high and low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

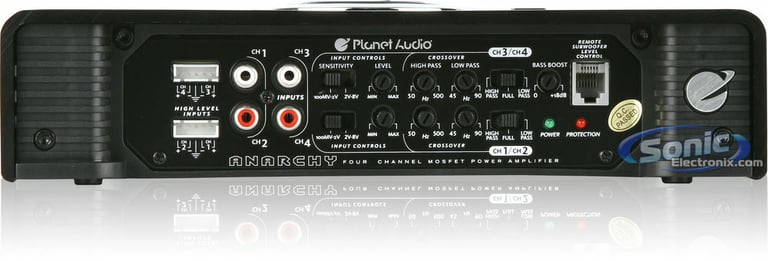

  • Low level and high level inputs

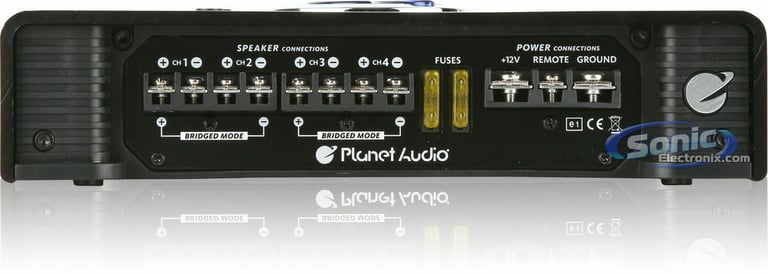

  • Heavy-duty set-screw terminals
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (45-90 Hz, 24 dB/octave)
  • Signal-to-Noise Ratio: 102 dB
  • Frequency response: 20-20,000 Hz
  • Dimensions: 12-3/8"L x 10"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

  • Loading...
    Limited time!
    46CSC654 main

    Kicker CSC65 (46CSC654)

    600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

    254
    -33.36%

    $79.96

    List price $119.99

    Limited time!
    Club 622 main

    JBL Club 622

    360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

    5
    -28.58%

    $99.95

    List price $139.95

    UTE-73BT main

    Alpine UTE-73BT

    Single DIN Digital Media Receiver with Bluetooth

    44
    -16.69%

    $149.95

    List price $180.00

    DB652 main

    Polk Audio DB652 (DB 652)

    600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

    214
    -9.16%

    $109.00

    List price $119.99

    CV15BT main

    Cerwin-Vega CV15BT

    Single Din Digital Media Receiver with Bluetooth

    3
    43DSC6504 main

    Kicker DSC650 (43DSC6504)

    480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

    72
    -10.53%

    $84.99

    List price $94.99

    GX608C main

    JBL GX608C (GX608CAM)

    420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

    7
    XED62 main

    Cerwin-Vega XED62

    600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

    15
    -16.67%

    $49.99

    List price $59.99

    REF6532IXAM main

    Infinity Reference REF6532IXAM

    360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

    22
    -20.01%

    $119.95

    List price $149.95

    NSP65 main

    NVX NSP65

    540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

    93
    -35.19%

    $69.99

    List price $107.99


    Best selling similar products

    DAX800XR_MRR_S8FO1 small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (40)

    $1383.97

    List price $2029.97

    KWZ1000AW_MRR_FLFO1_S small

    JVC KW-Z1000AW Direct-Fit Digital Receiver Package

    • Bluetooth Digital Multimedia Receiver for select Ford vehicles
    • 10.1" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 4 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (38)

    $1883.96

    List price $2282.96

    DAX800XR_MRR_S8GM1_8 small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (39)

    $1456.96

    List price $2074.96

    DAX800XR_MRR2_S8FO1_S small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (9)

    $1473.96

    List price $2143.96

    DAX800XR_MRR_S8FO2_s small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (39)

    $1348.96

    List price $1973.96

    DAX1050XR_MRR_FLCH2_D small

    Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 10.1" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 4 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (38)

    $1883.97

    List price $2479.97

    DAX800XR_MRR_S8GM3_CI small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (39)

    $1605.96

    List price $2254.96

    DAX1050XR_MRR_FLFO1 small

    Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
    • 10.1" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 4 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (38)

    $1913.97

    List price $2509.97

    KWZ1000AW_MRR_FLCH2_D small

    JVC KW-Z1000AW Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2013-2022 vehicles from Ram, Jeep, Dodge
    • 10.1" Capacitive Touchscreen Display
    • Supports wireless Apple CarPlay and wireless Android Auto
    • 3 sets of 4 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM and iDataLink Ready

    (38)

    $1883.97

    List price $2228.97

    DAX800XR_MRR_S8FO1_S small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (40)

    $1403.96

    List price $2053.96

    Specifications & Details


    Power Specifications - Full Range Channels
    RMS Power @ 2 ohms
    300 watts x 4 channel
    Bridged RMS Power
    600 watts x 2 channel
    Amplifier Specifications
    Series
    Anarchy Series
    Amplifier Class
    A/B
    Number of Channels
    4-Channel
    Total Peak Power Output
    1600 watts
    Total RMS Power Output
    1200 watts
    Maximum Input Gauge Size
    4 AWG
    Minimum Impedance Unbridged
    2 ohm
    Minimum Impedance Bridged
    4 ohms
    THD at Rated RMS Power
    0.01%
    Speaker Level Inputs
    Yes
    Preamp Outputs
    No
    Built-in Crossover
    Low-Pass (LP)
    High-Pass (HP)
    High-Pass Crossover Frequency
    50 - 500 Hz
    Low-Pass Crossover Frequency
    45 - 90 Hz
    Signal-to-Noise Ratio
    102 dB
    Bass Boost
    0 - 18 dB
    Remote bass/level controller
    No
    Fuse Rating
    20A x 1
    Warranty and Return Policy
    Parts Warranty Duration
    6 years
    Labor Warranty Duration
    6 years
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    AC1600.4 2 Pack

    Weight:

    24.00lbs

    Internal SKU:

    ac16004_2

    Internal Product ID:

    167989

    Customer Ratings & Reviews


    Planet Audio AC1600.4 1600W 4 Channel Car Amplifier Power Amp & Remote (2 Pack) thumbnail image

    5 star
    64%
    4 star
    23%
    3 star
    0%
    2 star
    0%
    1 star
    14%



    Durability
    4.5
    Value
    4.3
    Features
    4.4
    Design
    4.6
    Usability
    4.6

    Customer Reviews

    Sort by:

    Loading...

    planet audio

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    Great super cheap 4 channel shops around here were asking almost twice the price found it here for far less super deal

    By alfonso on August 18, 2011

    56 found this helpful


    great amp.

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    I used it on four 6x9 pioneer and two 6.5 pioneer nice clean sound

    By chainbreaker on January 2, 2015

    53 found this helpful


    So you gave it a bad review because it's advertised in max rating.

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    Everyone is advertising their stuff at max wattage these days. The specs of the amp clearly back your statements. And I agree that it only delivers the RMS power that it advertises. Wow. I cannot believe you left a negative 1-star review trashing this amp just because it's advertised at max rating and not RMS rating. Everyone does that.

    By Rick on January 10, 2011

    54 found this helpful


    planet audio 1600 watt amp JUNK

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    It seems Planet Audio has gone to Boss audio like quality.
    Planet Audio used to be pretty good and actually under rated their amps.

    This amp carrys two 20 amp fuses. The calculation for watts is voltsxamps=watts. so thats 14 volts(which most people aren't running) times forty amps= 560 watts. Thats until the fuses pop.

    So you ask "why would a company design an amp that would pop the built in fuses when turned up". That's becuase they don't. It's roughly a 500 watt amp. not 1600. If you want to pay 90 bucks for a 600 watt amp go ahead. You can find better things for that price to wattage ratio.

    By grandam88 on December 9, 2010

    52 found this helpful


    Planet audio amp

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    I love this amp it works great haven't had any problems with it yet works good sounds clear bumps hard one of the best amps I've owned

    By Bray on February 23, 2013

    49 found this helpful


    I like em!

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    Soon as I received this amp I installed it in my 2005 X-Runner. It drives two component sets of boss audio; that’s 4 x 6.5 with 4 x 2” tweeters. Paired with my Pioneer AVIC-F700BT, it sounds great and delivers a crisp clean sound! No clipping, no fading when I drive it hard and it runs pretty cool compared to some other amps I’ve had. I was so impressed with it that I purchased the Mono amp to match it and they look and sound great in my truck. For my small cabin I get all the sound separation I need, clarity and good kick bass accompanied by deep, hard hitting bass from the AC 1500.1. There is no way I’m getting all the power these amps claim to be capable of but they are good budget amps if you are simply going to install them for sheer listening pleasures only. They are not competition amps. I’m a 43 year old man who enjoys listening to hip-hop on a regular basis and I love the quality of sound I receive from my Anarchy series Amps!

    By Onixxf on April 6, 2011

    48 found this helpful


    super buy

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    This amp is more than enough for me in fact have it turned down some it powers everything 2- 6.5 2-6.5 +tweeters plus 12in sub sounds awesome

    By richard on May 29, 2013

    45 found this helpful


    Great Amp

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    I love this amp. I've put this lil thing through soo much hell. Right now I have 4 Sony 6x9s running off 1/2 channel and 3/4 have a Kicker CVR 15in sub its a great amp for highs and decent for lows i wouldnt really approve this for full time lows but full time highs and mids Definitely yes. Currently at the moment im updating the system to two Kicker 15in L7s running off of a Power Acoustik 2000/1 BAMF Series with a Planet Audio Equalizer and Boss Bass Expander. If your in Polk county Florida just keep an eye out for a blue Jeep on 35s with a big ol Cvr in the back youll hear a jeep beat down

    By Zeke on June 16, 2011

    46 found this helpful


    A Must Have

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    Ordered both this and the 2 channel version matched with the infinity reference's through a kenwood H.U. I am blown away by the clarity and shear power. I cant even turn it up to the max it's so loud. Did I mention no distortion?

    By Black-Ice on June 19, 2012

    43 found this helpful


    definitely worth it

    The following review is for AC1600.4, which is a part of the bundle you are viewing.

    Clean signal great power for low price. I got this amp pushin my dash and door speakers in my grand cherokee, sound is clean crisp and loud.

    By kdbjeep on March 12, 2012

    42 found this helpful




    No picture

    Crossfire XS-SPL15-v2

    15" XS-SPL Series Competition Car Subwoofer

    $1599.95

    List price $1599.95

    BALLASTSLIM-35W-AC-UPR small

    Race Sport Accessories BALLASTSLIM-35W-AC-UPR

    Elite Slim Series 35W AC Dual Beam Slim Ballasts Only (Pair)

    $53.99

    List price $109.99

    60.7CS small

    Infinity Kappa 60.7CS

    6-1/2" 2-way Kappa Series Component System (KAPPA60.7CS)

    (8)

    $119.99

    List price $279.99

    ZX700.5 small

    Kicker ZX700.5

    ZX Series 5-Channel Amplifier 06ZX700.5

    (23)

    $69.95

    List price $679.99

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    1987 Ford F-150

    2001 Chevrolet Monte Carlo

    1968 Chevrolet C20 Pickup

    1987 Subaru XT Coupe

    2019 BMW X3

    2020 Ford EcoSport

    1986 Ford Aerostar

    1990 BMW 325i

    2010 Volvo S40

    2009 Acura TL

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
