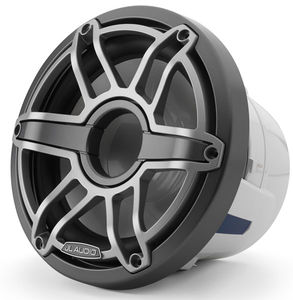

JL Audio M6-8IB-S-GmTi-4 (m68ibsgmti4) M6 8" Marine Subwoofer

JL Audio M6-8IB-S-GmTi-4

M6 8" Marine Subwoofer Driver (200 W 4 Ω) Gunmetal Trim Ring, Titanium Sport Grille

M6 8" Marine Subwoofer Driver (200 W 4 Ω) Gunmetal Trim Ring, Titanium Sport Grille

• 8" Marine Subwoofer
Power: 200 W RMS 4 Ohm
• Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system
• Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds

$309.99

Special Order. Ships at Later Date with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JL Audio

Authorized dealer


General Features:

  • Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure.
  • Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
  • The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l).
  • Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Power Handling

  • Continuous Power Handling (RMS): 200 W
  • Recommended Amplifier Power (RMS): 50 - 200 W
  • System Efficiency: 86.7 dB @ 1 W / 1 m
  • System Nominal Impedance: 4Ω

Specs

  • Nominal Diameter: 8.0 in / 200 mm
  • Overall Diameter: 8.80 in / 224 mm
  • Bolt Hole Circle Diameter: 7.97 in / 202 mm
  • Frontal Grilles Protrusion*: 1.45 in / 37 mm
  • Mounting Hole Diameter: 7.375 in / 187 mm
  • Mounting Depth: 5.00 in / 127 mm
  • Driver Displacement: 0.033 cu ft / 0.93 L
  • Net Weight: 8.70 lbs / 3.90 kg

Materials Used:

  • Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty.
  • Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
  • Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.
  • Gold-plated, marine-grade brass connection terminals
  • Marine-grade stainless steel mounting hardware is included.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • FEATURES & SPECS
    Subwoofer Specifications
    Subwoofer Series
    Subwoofer Size
    8"
    Peak Power Handling
    400 watts
    RMS Power Handling
    200 watts
    Voice Coil(s)
    Single
    Impedance (Per Voice Coil)
    4 ohms
    Voice Coil Diameter
    Frequency Response
    Not Specified By Manufacturer
    Sensitivity
    86.7 dB
    Xmax (millimeters)
    14 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Dark Gray
    Woofer Composition
    Mica Injected Polypropylene - MIPP
    Woofer Surround
    Synthetic Rubber
    Magnet Structure
    Subwoofer Grille
    Yes - Included
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Minimum Sealed Box Volume
    2 cubic feet
    Optimum Sealed Box Volume
    Minimum Ported Box Volume
    1.5 cubic feet
    Optimum Ported Box Volume
    Top-Mount Depth
    5"
    Cutout Diameter
    8.8"
    Electromechanical Parameters
    Free-Air Resonance (Fs)
    Equivalent Compliance (Vas)
    Total Speaker Q Value (Qts)
    Electrical Q Value (Qes)
    Electrical Resistance of Voice Coil (Re)
    Mechanical Q Value (Qms)
    Efficiency Bandwidth Product (EBP)
    What is in the box?
    WITB: Subwoofers
    Subwoofer
    Authorized Dealer
    Authorized Dealer
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
