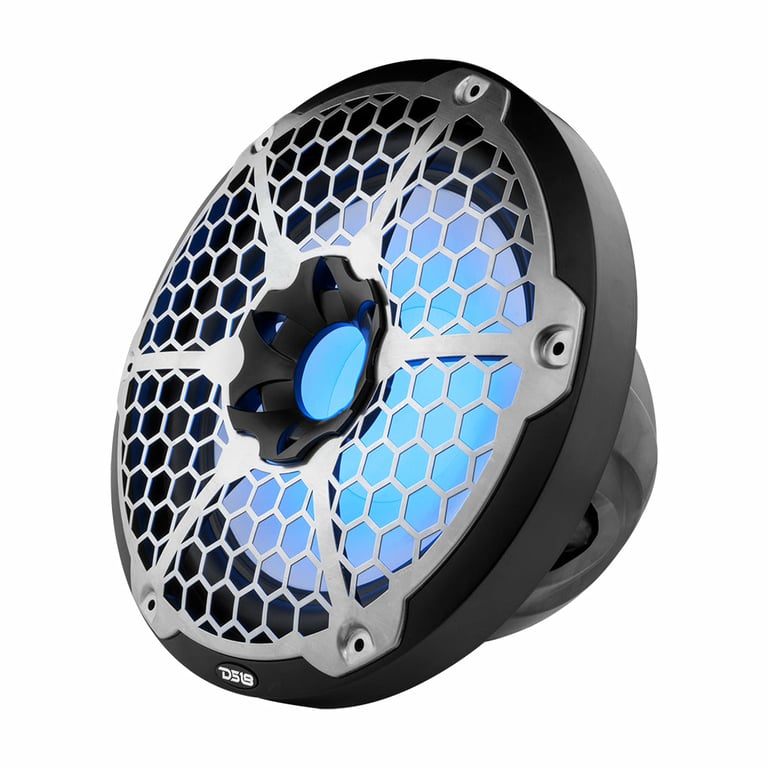

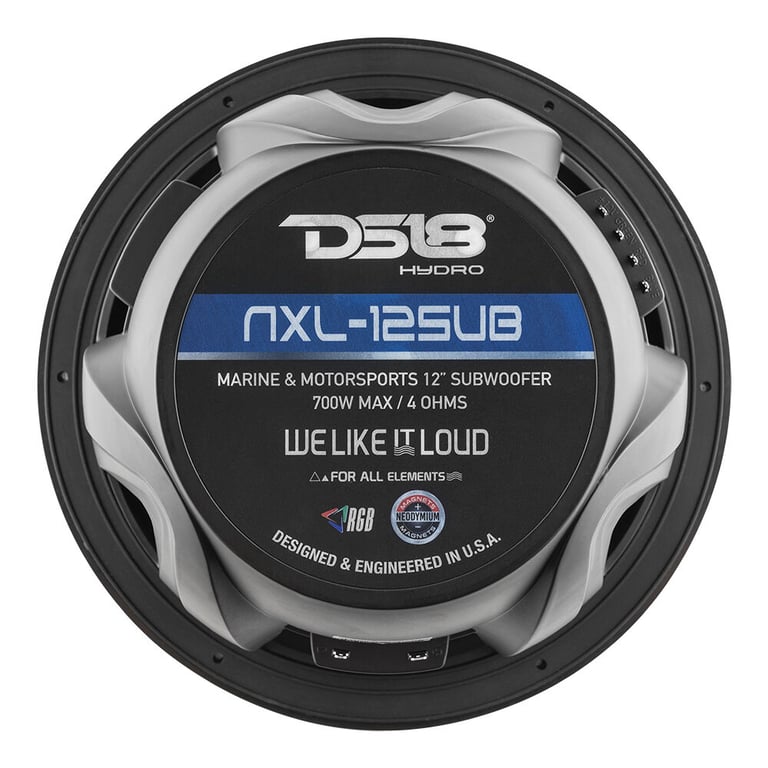

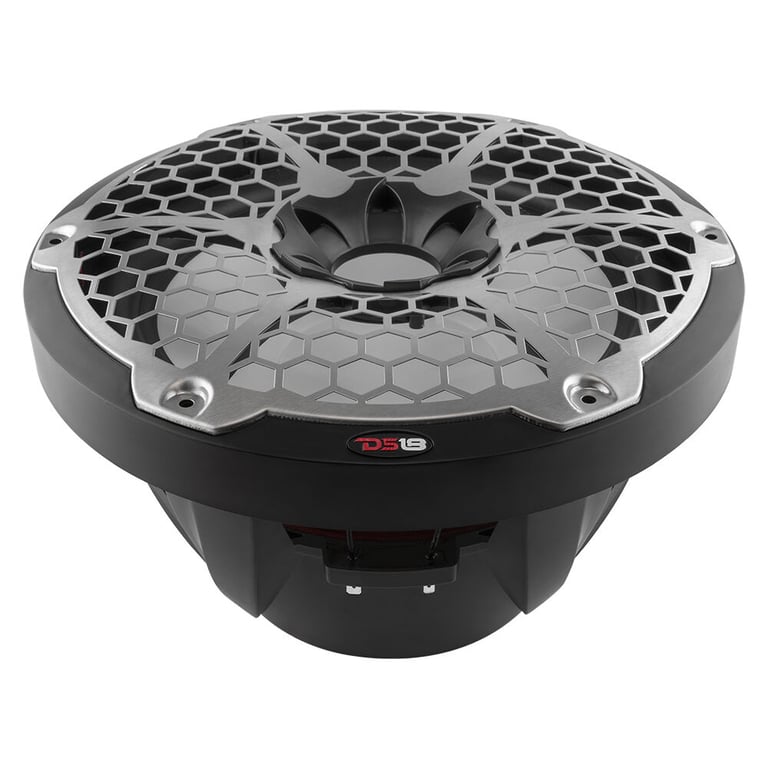

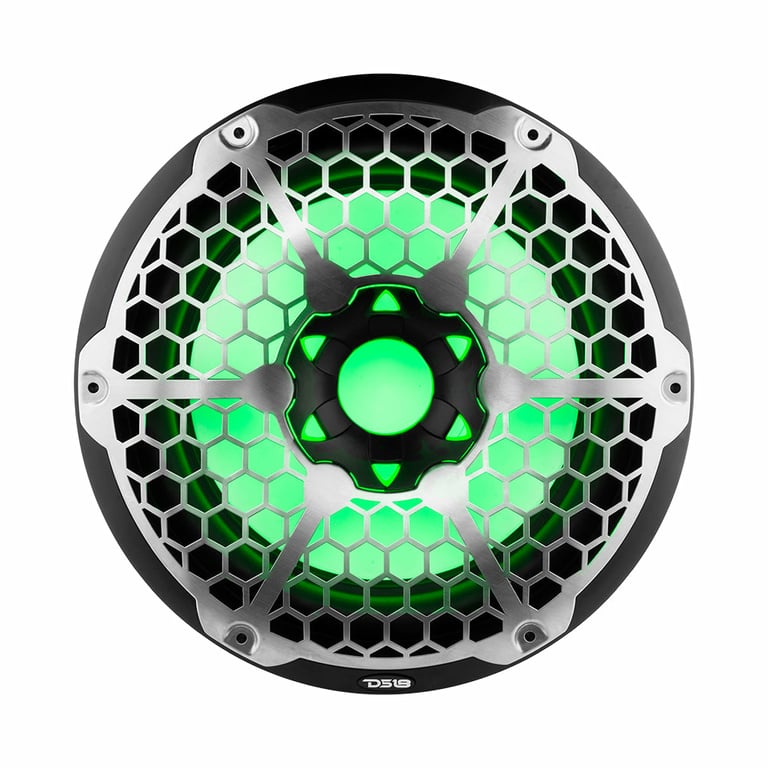

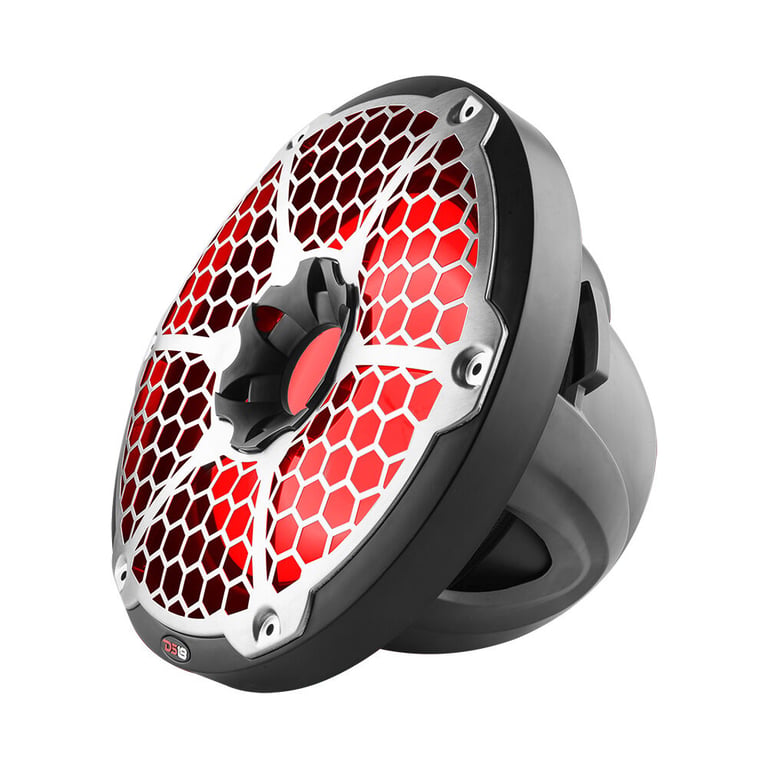

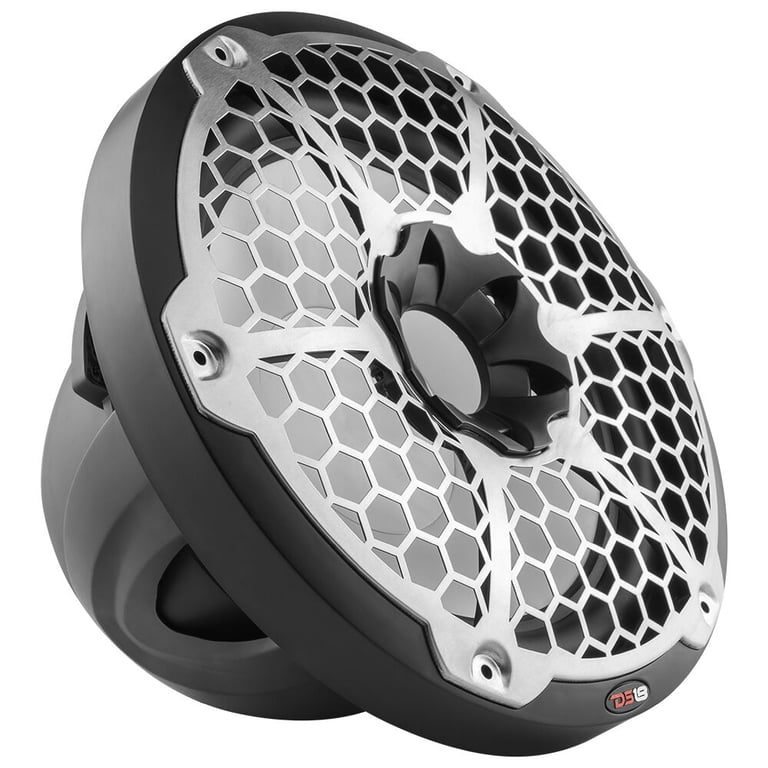

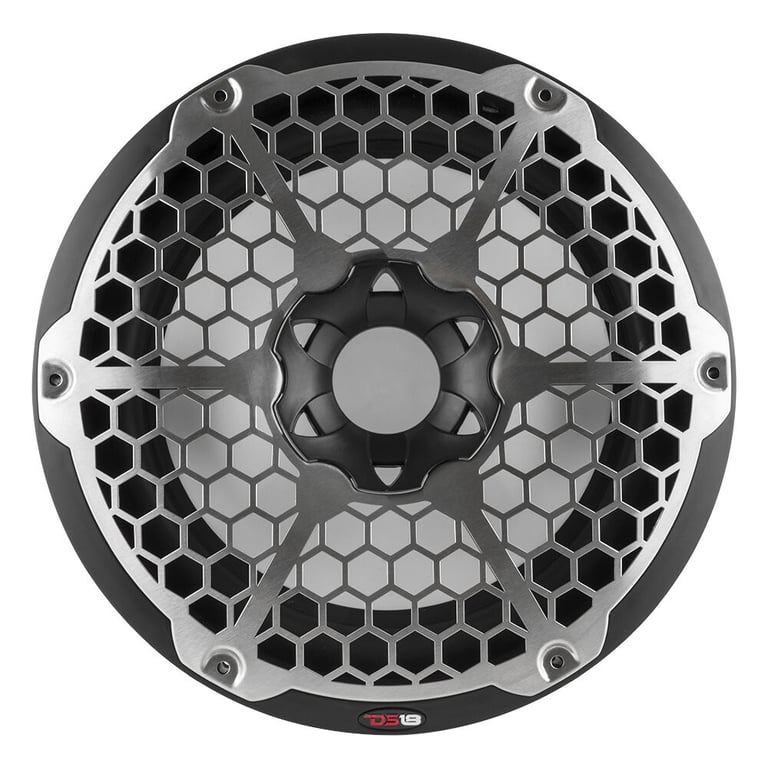

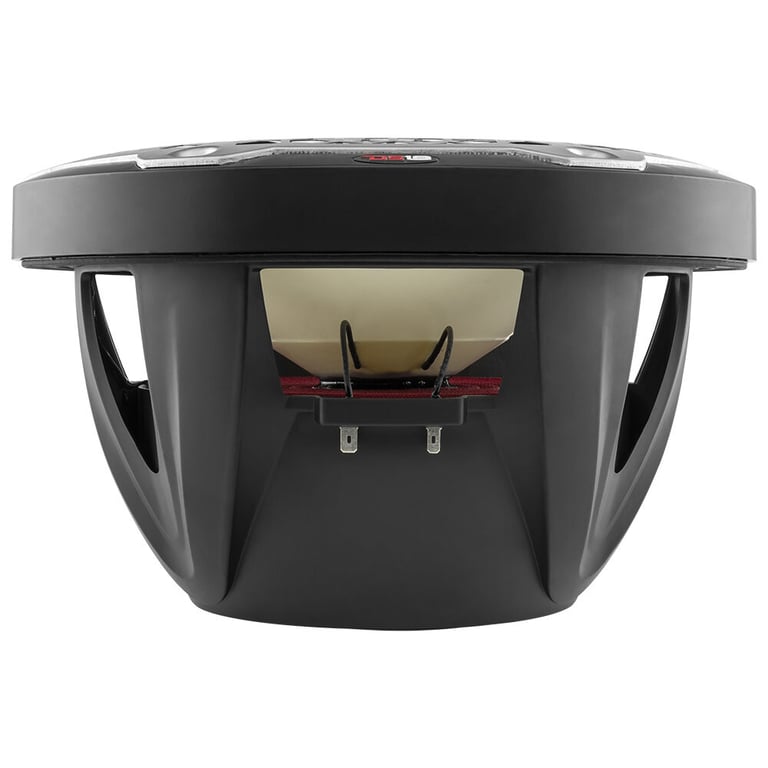

DS18 NXL-12SUB/BK

700W Peak (350W RMS) 12" Hydro Series Single 4-Ohms Marine Subwoofer with Stainless Grille

DS18
Shop all DS18
highlight-star-icon

• Peak Power: 700 watts
• RMS Power: 350 watts
• Water Resistance Paper Cone Cone
• Rubber Surround
• Impedance: Single 4 ohms
• Mount depth: 5.75"
• Sensitivity: 91 dB

Learn more about the nxl12subbk
Thanks , You Pay:

$339.95

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one nxl12subbk.

Set your vehicle or Return to product page
shipping truck icon Free shipping in USA. Provide zip for delivery date.
Dollar Icon
VIP Product Get $34.00 in rewards to spend later
Quantity
In Stock.
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 24 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Current Promotions (1 offer)


Get a Free roll of Belva 16 Gauge Speaker Wire. Simply click the "Add Both to Cart" button and you will see your savings at checkout. This offer cannot be combined with any other coupons or offers.

DS18 NXL-12SUB/BK

100% off


Priced separately $352 94

Promo Savings of $12 99

Total price:

$339 95

Description


DS18 brand icon

Authorized dealer

Product Details:

  • 12" Single 4 ohms Hydro Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Water Resistance Paper Cone Cone
  • Rubber Surround
  • IP65 Marine Grade Compliant 100% UV Stable
  • Integrated LED-RGB Lighting
  • High Gloss Basket with UV Coating
  • 2" High Temp Injection Molded Composite Grilles
  • 20 mm Xmax
  • Single Stacked Ferrite Magnet motor structure
  • Frequency Response: 30 - 500 Hz
  • Resonance Frequency (Fs): 33 Hz
  • Sensitivity: 91 dB
  • Sealed box volume: 0.75 cubic feet - 1.65 cubic feet
  • Ported box volume: 1.5 cubic feet - 2.75 cubic feet
  • Top-mount depth: 5.75"
  • Cutout diameter: 10.71"
  • Authorized Internet Dealer
  • Protective subwoofer grille: No
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconDS18 NXL12SUBBK owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DS18 NXL-12SUB/BK Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DS18 NXL-12SUB/BK Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DS18 NXL-12SUB/BK Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 DS18 NXL-12SUB/BK Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Hydro Series
Subwoofer Size
12"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
Voice Coil Diameter
2"
Frequency Response
30 - 500 Hz
Sensitivity
91 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Water Resistance Paper Cone
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.65 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2.75 cubic feet
Top-Mount Depth (Mounting Depth)
5.75"
Cutout Diameter
10.71"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
75.492 liters
Total Speaker Q Value (Qts)
.341
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
See below for additional accessories
Other Accessory #1
1 x 1.5M #16 Speaker Input Wired with Fast Terminal
Other Accessory #2
1 x 1.5M #22 RGB LED Power Input Wired with Fast Terminal
Other Accessory #3
6 x M5.2 Phillips Inner Hex Head 304 Stainless Steel (4mm Hex Tool)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

NXL-12SUB/BK

Weight:

17.00lbs

Internal SKU:

nxl12subbk

Internal Product ID:

195227
