Kole Audio TRAX1-1800D (TRAX 1-1800D)

1800W Max, TRAX Series Class D Digital Monoblock Amplifier

Product videos
highlight-star-icon

TRAX Series Class D Digital Monoblock Amplifier • 1100W x 1 chan. @ 1 ohm • 820W x 1 chan. @ 2 ohm • 550W x 1 chan. @ 4 ohm • 1800W Max • PWM Power Supply • Midnight Blue Finish • Three-Way Protection •

Learn more about the trax11800d

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Product Highlights


TRAX Series Class D Digital Monoblock Amplifier • 1100W x 1 chan. @ 1 ohm • 820W x 1 chan. @ 2 ohm • 550W x 1 chan. @ 4 ohm • 1800W Max • PWM Power Supply • Midnight Blue Finish • Three-Way Protection •

Description


Kole Audio brand icon

Authorized dealer

  • TRAX Series Class D Digital Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 550 watts x 1 chan.
    • 2 ohm: 820 watts x 1 chan.
    • 1 ohm: 1100 watts x 1 chan.
  • Max power output: 1800 watts x 1 chan.
  • Regulated PWM Power Supply

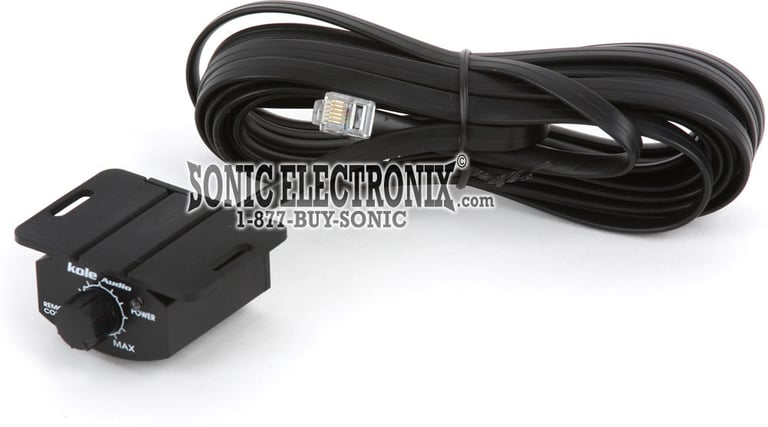

  • Wired remote bass level control included.
  • LED power indicators
  • Bass Boost: 0-18 dB at 45 Hz
  • Midnight blue anodized finish with silver end caps
  • High-speed digital circuitry
  • Three-way protection circuitry (short, thermal and overload)
  • Bridged synchronization (strap amps together for double power!)
  • Pre-amp outputs
  • 1800 Phase switch
  • Variable low-pass filter (40-200 Hz, 12 dB/octave)
  • Variable subsonic filter (12 dB at 20-50 Hz)
  • Frequency response: 15-150 Hz
  • Low Level Inputs: 200mV-6V
  • Dimensions: 12-1/8L x 10W x 2-1/4H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Kole Audio TRAX1-1800D thumbnail
(newest, current model)
Kole Audio KX1-2000D thumbnail
(previous model, replaced by Kole Audio TRAX1-1800D (TRAX 1-1800D))

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(23)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(14)

$199.99

List price $287.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
550 watts x 1 channel
RMS Power @ 2 ohms
820 watts x 1 channel
RMS Power @ 1 ohm
1100 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1800 watts
Total RMS Power Output
1100 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
.5%
Speaker Level Inputs
No
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 200 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRAX1-1800D

Weight:

11.00lbs

Internal SKU:

trax11800d

Internal Product ID:

17384
