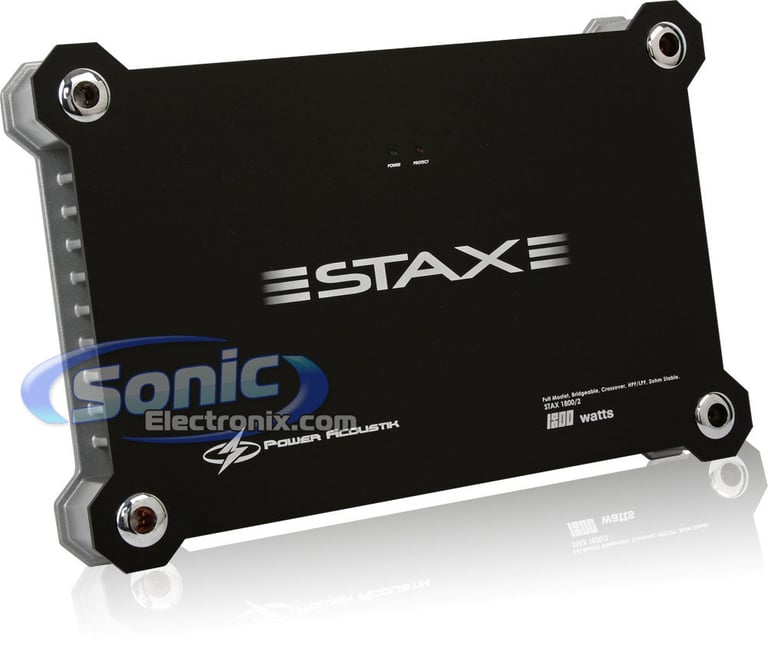

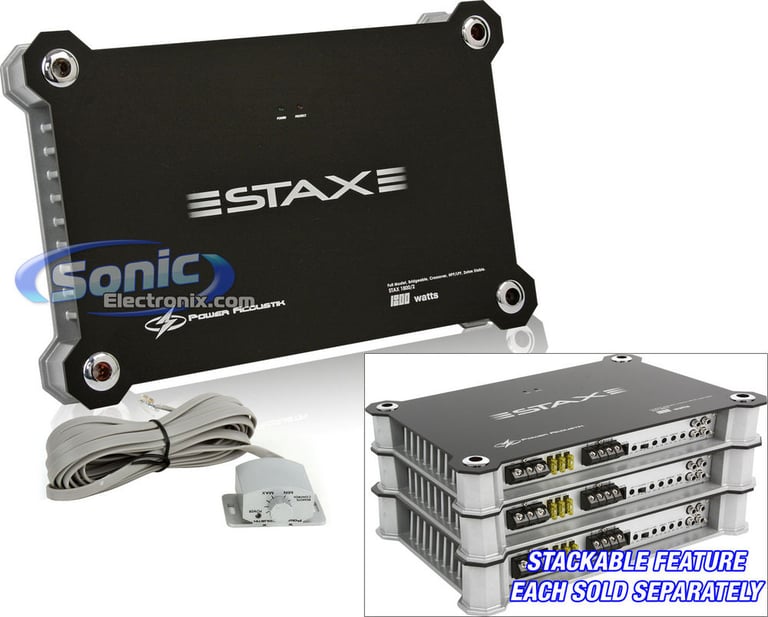

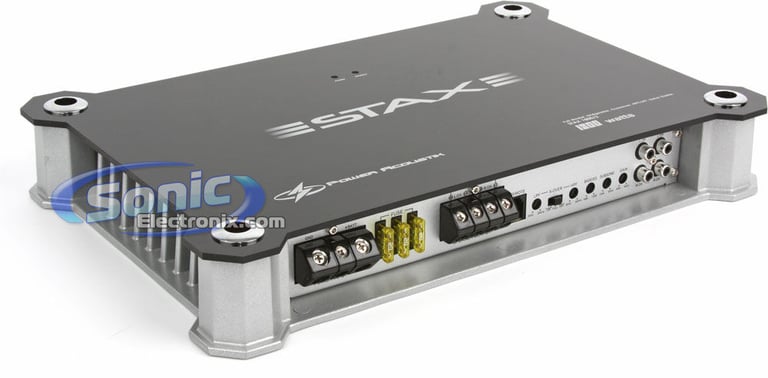

Power Acoustik STAX 1800/2 (STAX1800/2)

1800W Max, 2-Channel Class A/B STAX Series Amplifier

2
Power Acoustik
Shop all Power Acoustik
Product videos
highlight-star-icon

STAX 2-Channel Class A/B Car Amplifier • 300 Watts x 2 Chan. @ 4 Ohms • 380 Watts x 2 Chan. @ 2 Ohms • 1800 Watts Max • 3-Way System Protection Circuitry • MOSFET Power Supply • Preamp RCA Outputs •

Learn more about the stax18002

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

STAX 2-Channel Class A/B Car Amplifier • 300 Watts x 2 Chan. @ 4 Ohms • 380 Watts x 2 Chan. @ 2 Ohms • 1800 Watts Max • 3-Way System Protection Circuitry • MOSFET Power Supply • Preamp RCA Outputs •

Description

Power Acoustik

Authorized dealer

General Features
  • STAX 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 300 watts x 2 chan.
    • 2 ohms: 380 watts x 2 chan.
    • Bridged, 4 ohms: 760 watts x 1 chan.
  • Max power output: 1800 watts
  • MOSFET power supply

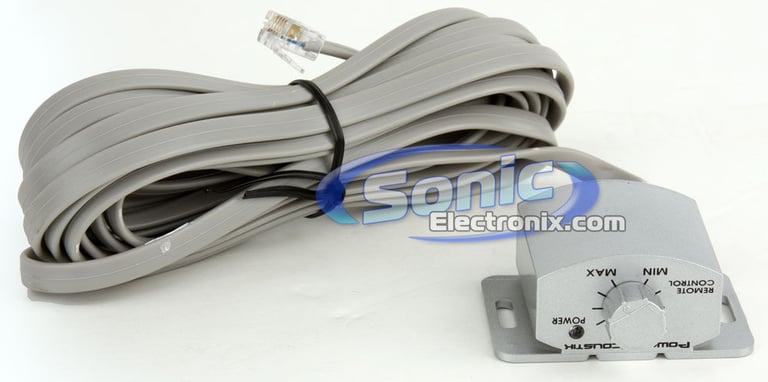

  • Bass Remote Details (Wired remote bass level control included
  • LED power and protect indicators
  • Bass Boost/EQ details (0-12 dB bass boost at 45 Hz)
  • 2/1 channel operation

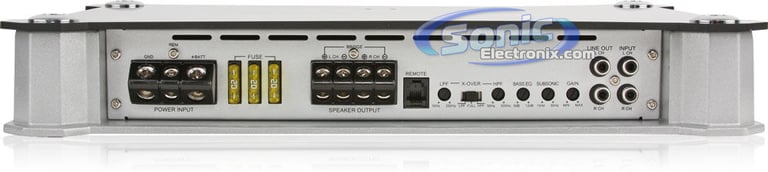

  • Preamp RCA outputs
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

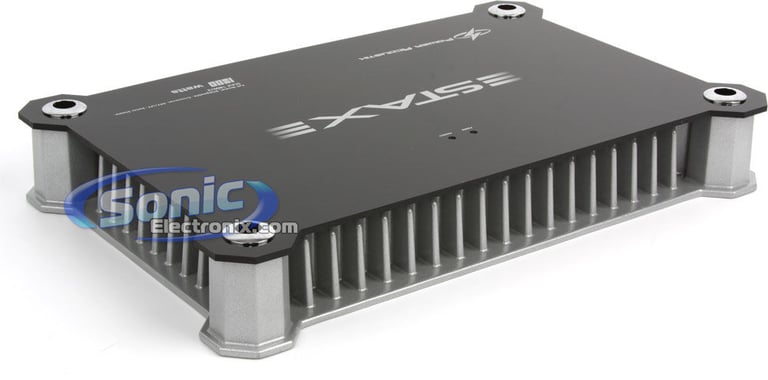

  • Heavy duty aluminum alloy heatsink for maximum heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Subsonic Filter (15-50 Hz)
  • Frequency response: 10-30,000 Hz
  • Dimensions: 14-3/4"L x 9-5/8"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Read more about the STAX1800/2 at our blog.

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 2 channel
RMS Power @ 2 ohms
380 watts x 2 channel
Bridged RMS Power
760 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1800 watts
Total RMS Power Output
760 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
20A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Power Acoustik

Model Number:

STAX1800/2

Weight:

12.00lbs

Internal SKU:

stax18002

Internal Product ID:

17510
