Name: Eclipse XA1200 R/B
Brand: Eclipse
SKU: LS-xa1200-RB
Price: 99.99 USD
Availability: Discontinued

by Eclipse

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

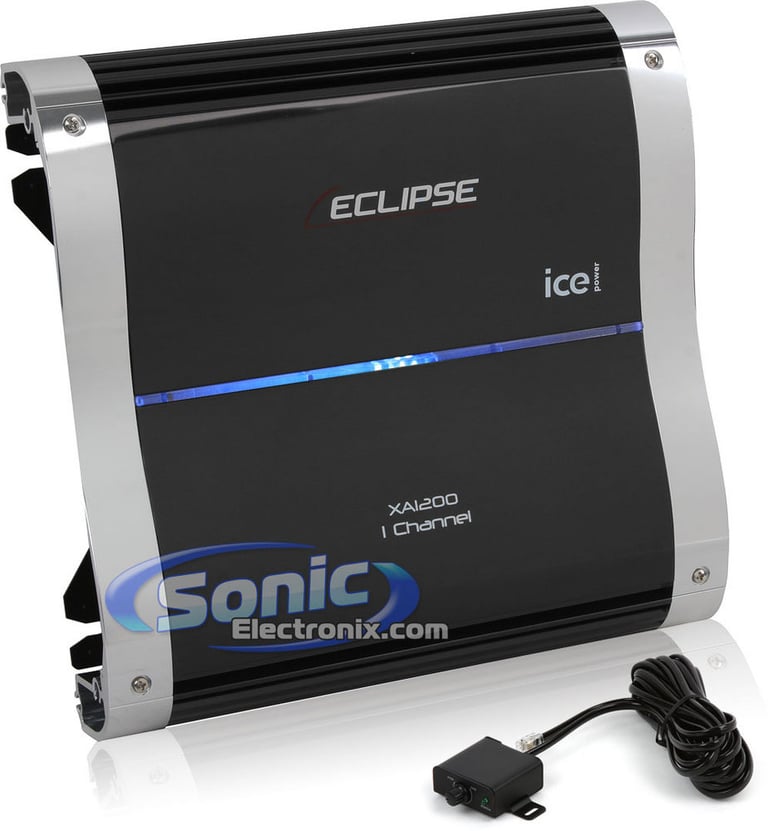

Eclipse XA1200 R/B Image 1 — Eclipse XA1200 R/B

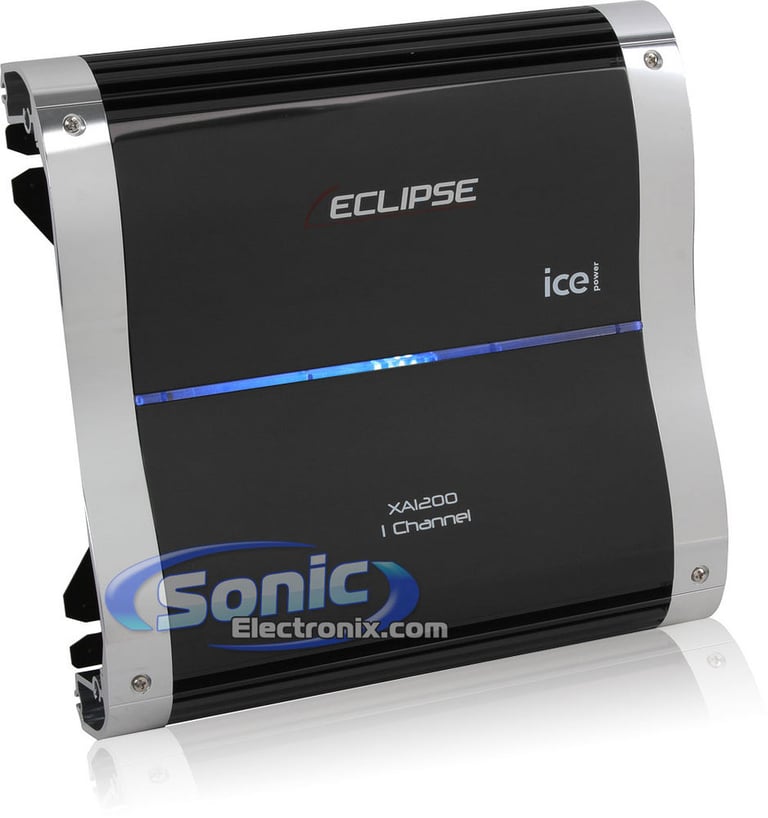

Eclipse XA1200 R/B Image 2 — Eclipse XA1200 R/B

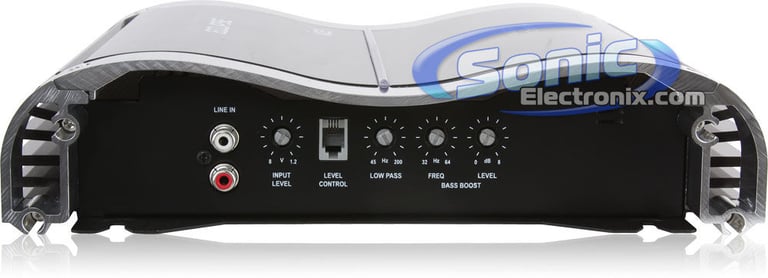

Eclipse XA1200 R/B Image 3 — Eclipse XA1200 R/B

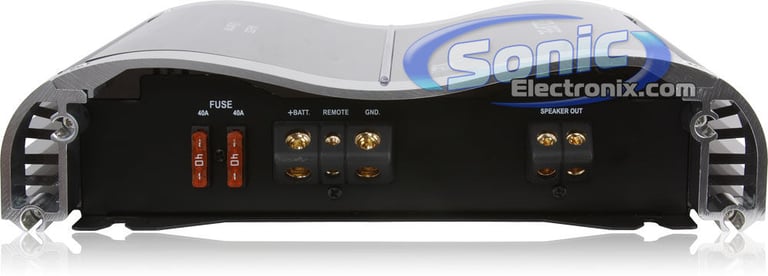

Eclipse XA1200 R/B Image 4 — Eclipse XA1200 R/B

Eclipse XA1200 R/B Image 5 — Eclipse XA1200 R/B

Eclipse XA1200 R/B Image 6 — Eclipse XA1200 R/B

Eclipse XA1200 R/B Image 7 — Eclipse XA1200 R/B

Product videos

Product highlights

XA Series Class D Monoblock Car Amplifier • 350 Watts x 1 Chan. @ 4 Ohm • 500 Watts x 1 Chan. @ 2 Ohm • 600 Watts • Variable Low-Pass Filter • ICEpower Design • CEA-2006 Compliant • LED Power Indicators

Learn more about the LS-xa1200-RB

Product Highlights

Description

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Eclipse ICEpower

Following the long tradition of award winning electronics, Eclipse introduced their highly innovative amplifiers. The Eclipse XA1200 monoblock amplifier follows strictly that tradition and the result is an incredibly efficient amplifier made for subwoofers. This single channel amp is designed and engineered specifically with the intent to push a subwoofer clearly, efficiently, and without the distortion that other amplifiers produce. Using Eclipses latest technology, the XA1200 features ICEpower. This means that the amplifier produces superior audio quality, is housed in a compact case, reduced energy demand, and amplifier reliability. Heat is kept low with the digital processors inside the amplifier, resulting in an increased power output. The amp is quite small when compared to how much wattage that it is able to produce. At 4 ohm, the XA1200 produces 350 watts and 500 watts at 2 ohm. That is more than enough wattage for any entry-level system, up to a high-end advanced system. The package includes a bass level remote so the user can adjust the bass level from the front seat without having to adjust any setting on the amplifier itself.

SonicElectronix.com is offering an online special with these amps and we are passing the saving on to you! We have drastically reduced prices on these incredible amplifiers. If you are looking to install a new subwoofer in your vehicle, then consider the Eclipse XA1200 to power that subwoofer. With a deal this good, it is hard to pass up the opportunity.

Product Features:

XA Series Class D Monoblock Car Amplifier with ICE Technology
RMS Power Rating:

4 ohm: 350 watts x 1 chan.
2 ohm: 500 watts x 1 chan.

Max power output: 600 watts
MOSFET switching power supply
ICEpower class D design

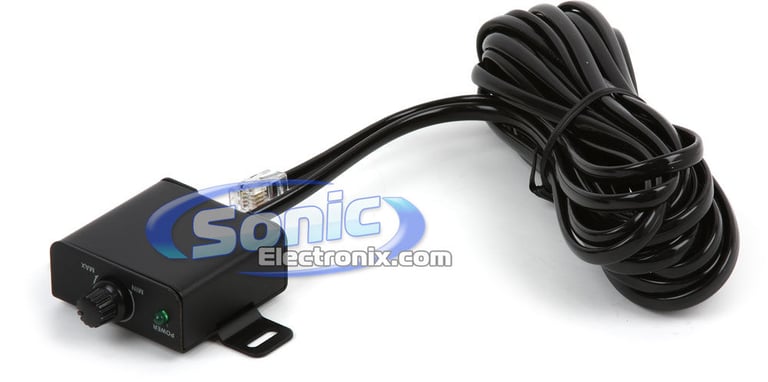

Wired remote bass level control included
LED power indicators
Bass Boost (0-8 dB at 50 Hz)
Bass boost frequency selection (32-64 Hz)
Mono channel operation
Protection temperature (90 C)
Heavy duty aluminum alloy heatsink
RCA level inputs
Screw terminals
Variable low-pass filter (40-200 Hz, Linkwitz Riley 18 dB/octave)
Subsonic Filter (18 dB at 20 Hz)
CEA-2006 compliant amplifier
Frequency response: 20-20,000 Hz
Input sensitivity: 1.2V-8V
Damping Factor: 90
Dimensions: 10-1/4"L x 10-1/8"W x 2-3/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90 Day SonicElectronix.com warranty

You can learn more about the XA1200 at our blog.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

350 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

600 watts

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 500 Hz

Subsonic Filter

20 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 8 dB

Remote bass/level controller

Yes

Fuse Rating

40A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
