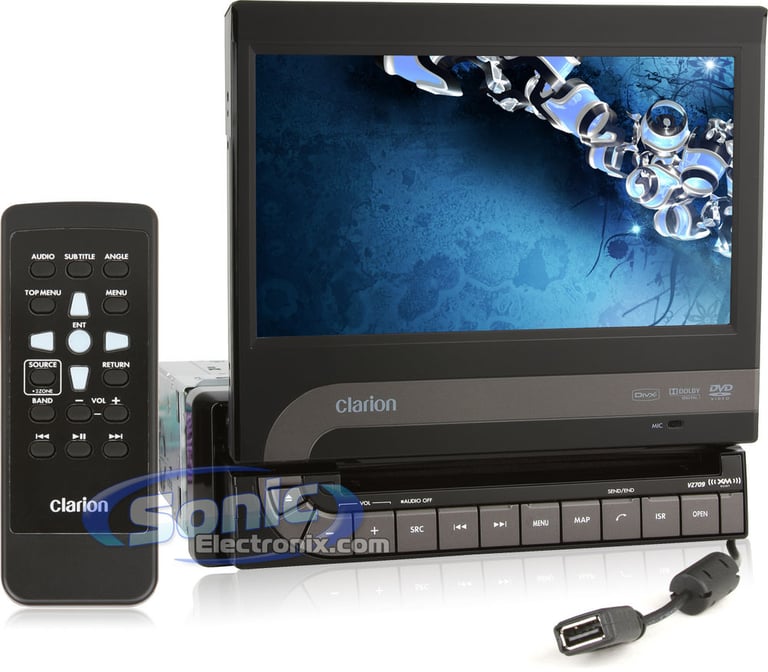

Clarion VZ709 (VZ-709)

In-Dash 7" TFT-LCD Touchscreen Monitor with Bluetooth, DVD Player and Remote

Clarion
Shop all Clarion
Product videos
highlight-star-icon

Single DIN In-Dash 7" TFT-LCD Touchscreen Monitor with Built-in Bluetooth, DVD Multimedia Player and Remote • 50W x 4 Chan. Max • Magna Bass EX Dynamic bass enhancement • Built-in bluetooth • iPod, navigation, satellite ready • DSP Tuner with variable bandwidth

Learn more about the vz709

We apologize

This item has been discontinued


Loading...
MA03B main

Scosche MA03B Wiring Harness

Install a new car stereo in select 2001-2018 vehicles from Mazda

26
EXCLUSIVE
TERMINATOR52 main

MTX Audio TERMINATOR52

140W Peak (70W RMS) 5.25" Terminator Series 2 Way Component 4-ohm Speakers

5
-69.23%

$39.99

List price $129.95

KFC-C1356S main

Kenwood KFC-C1356S

520W Peak (60W RMS) 5.25" 2-way 4-ohm Dual Cone Car Speakers

-41.68%

$34.99

List price $60.00

DMX125BT main

Kenwood DMX125BT

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-26.30%

$199.00

List price $270.00

Product Highlights


Single DIN In-Dash 7" TFT-LCD Touchscreen Monitor with Built-in Bluetooth, DVD Multimedia Player and Remote • 50W x 4 Chan. Max • Magna Bass EX Dynamic bass enhancement • Built-in bluetooth • iPod, navigation, satellite ready • DSP Tuner with variable bandwidth

Description


Clarion brand icon

Authorized dealer








General Features:

  • In-dash AM/FM, DVD, CD, MP3, WMA player with Remote
  • iPod USB direct connectivity via your standard iPod-to-USB connection cable allows you to charge, control, and playback audio from your iPod through the receiver and stereo system

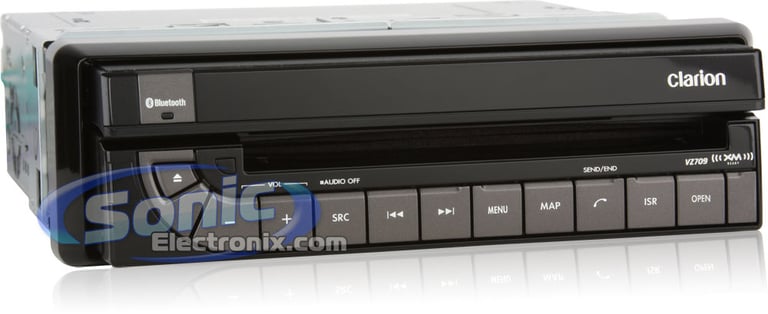

  • Motorized, flip-out face

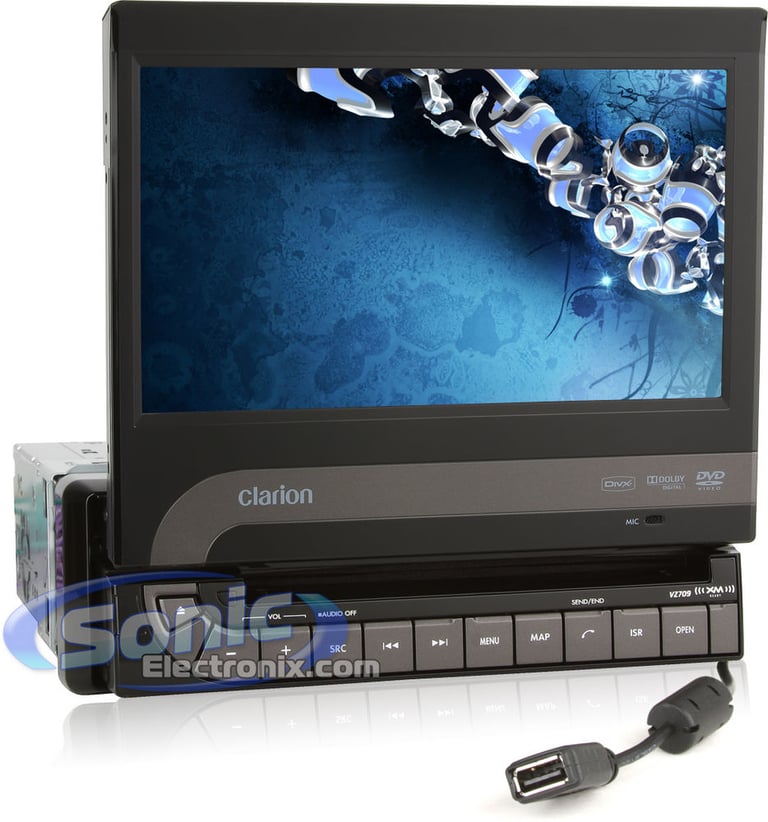

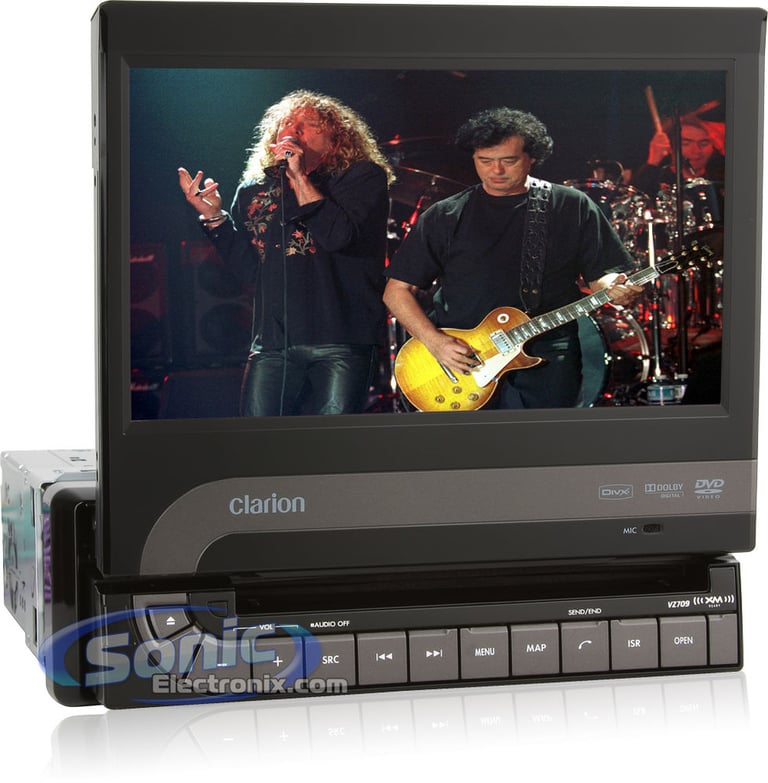

  • 7" TFT-LCD Touchscreen display

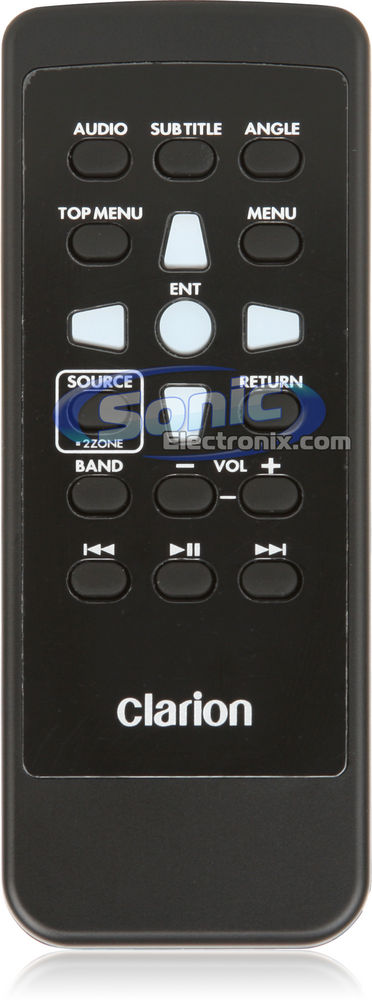

  • Wireless remote control included
  • White glow button lighting
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 19 watts x 4 channels
  • Built-in IR Eye
  • MP3 ID3 Tag Display (Title/Artist/Album)

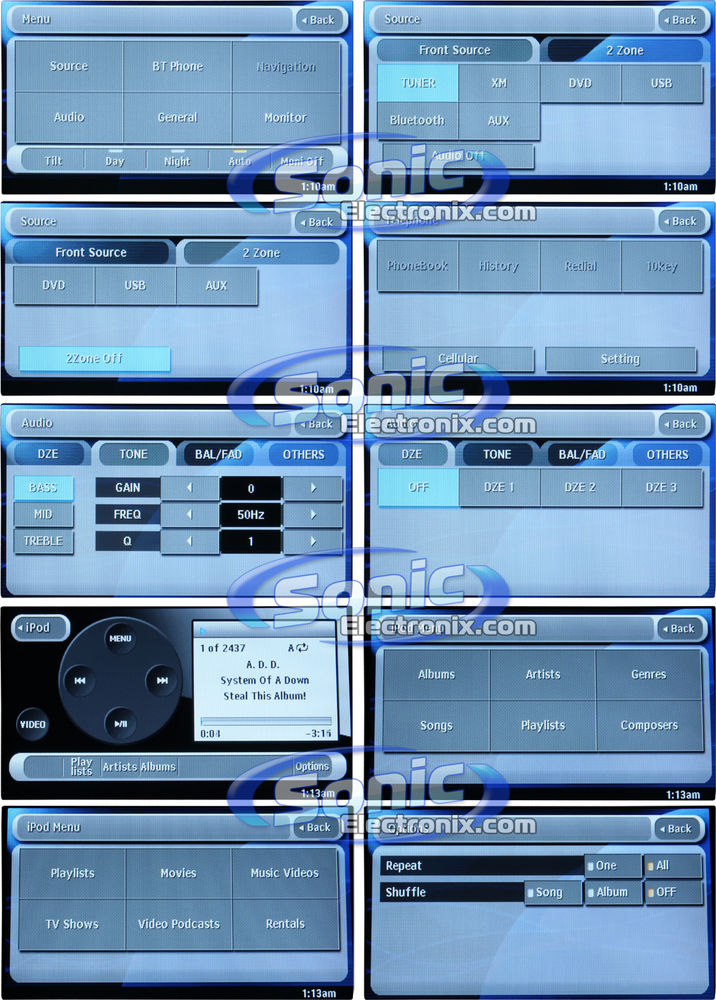

  • Four (4) preset wallpaper designs
  • 1-year SonicElectronix.com warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, DVD, DVD-/+RW, DVD-/+R, DivX, MP3, and WMA
  • Tuner with 18FM/6AM presets
  • DSP Tuner with variable bandwidth
  • Magna Bass EX Dynamic bass enhancement
  • 3-band parametric equalizer
  • 24-bit digital-to-analog converter
  • Built low-pass/high-pass filter
  • Subwoofer volume control

Expandability Options:

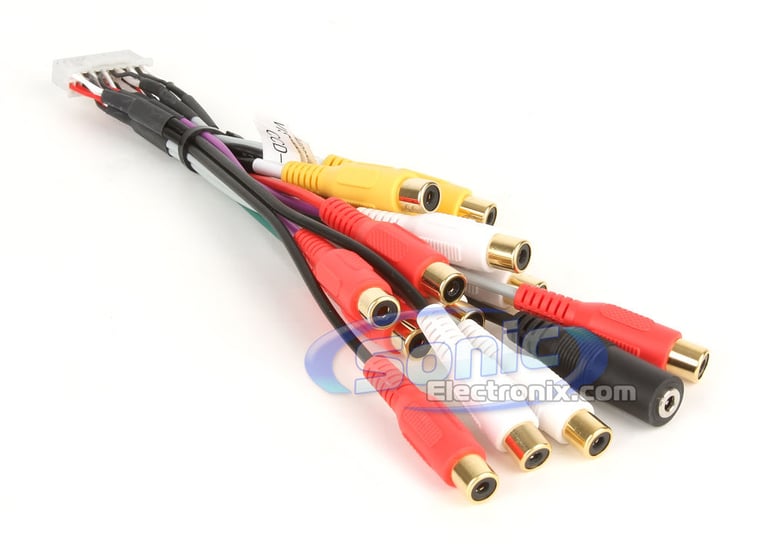

  • 3 Sets of 2V preamp outputs (front, rear and subwoofer)
  • 2-Zone entertainment: front and separate source control
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • Wired Bluetooth microphone also available: Clarion RCB199
  • XM Satellite Radio Ready: A subscription is required for service as well as the XM Satellite Package
  • iPod Ready:
    • Audio playback: Direct connection via USB Input
    • Video playback: Clarion CCA748 required and sold separately
  • Navigation Ready: Clarion NAX980HD or Clarion NP509 Navigation module required

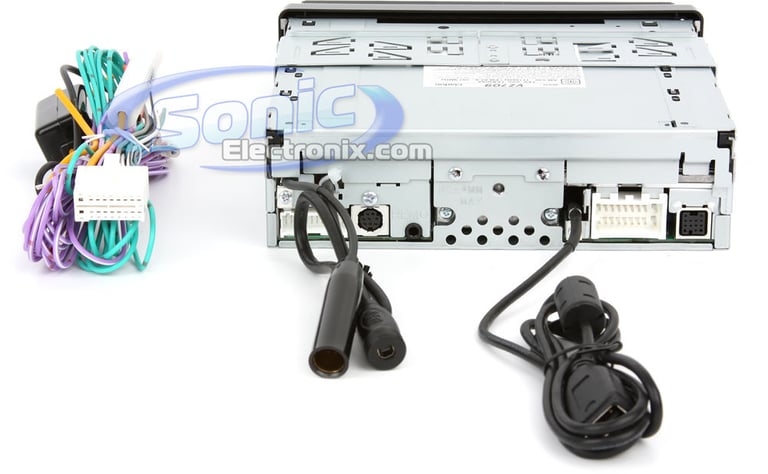

  • Rear view camera RCA Input
  • 1 Set of rear AV composite video inputs
  • 1 Set of rear AV composite outputs for 2nd zone
  • 1 Rear video RCA Composite output
  • Rear USB Connection
  • Steering wheel remote compatible with the PAC SWI-JACKv1 or the Axxess ASWC

Any iPods/iPhones released after March 2, 2009 have not been tested by the manufacturer and/or Sonic Electronix for compatibility. Therefore we do not guarantee compatibility in regards to, but not limited to: playback, video, charging, and response time.

Product history:

Clarion VZ709 thumbnail
(newest, current model)
Clarion VRX785BT thumbnail
(previous model, replaced by Clarion VZ709 (VZ-709))
Clarion VRX775VD thumbnail
(previous model, replaced by Clarion VRX785BT)
Clarion VRX765VD thumbnail
(previous model, replaced by Clarion VRX775VD)
Clarion VRX755VD thumbnail
(previous model, replaced by Clarion VRX765VD)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

AVH-2550NEX small

Pioneer AVH-2550NEX

• Double DIN Bluetooth DVD Receiver
• 6.8" Resistive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer with 7 Preset EQ Curves
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatible

$650.00

List price $750.00

i509-WRA-JL small

Alpine i509-WRA-JL

• Custom Fit Bluetooth Digital Multimedia Receiver
• 9" WVGA Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Compatible
• Built-in HD Radio Tuner
• Anti-glare double DIN touchscreen display
• Hi-Res audio playback

(1)

$2899.95

List price $3480.00

i407-WRA-JK small

Alpine i407-WRA-JK

• Double DIN Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 5-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Compatible
• Built-in HD Radio Tuner
• Anti-glare double DIN touchscreen display
• Customizable user interface and wallpapers

$1199.95

List price $1440.00

I407-WRA-JL small

Alpine I407-WRA-JL

• Custom Fit Bluetooth Digital Multimedia Receiver
• Compatible with select 2018-2023 Wrangler (JL) and Gladiator
• 6.95" TFT Active Matrix Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 5-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Ready
• High-resolution audio playback

$1499.95

List price $1800.00

i509-WRA-JK small

Alpine i509-WRA-JK

• Custom Fit Bluetooth Digital Multimedia Receiver
• 9" Touchscreen WVGA Display
• Designed for select 2011-2018 vehicles from Jeep
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Splash-proof and dust-proof touchscreen and bezel (IP53-rated)

$2599.95

List price $3120.00

DDX5707S small

Kenwood DDX5707S

• Double DIN Bluetooth CD/DVD Multimedia Receiver with USB and AUX
• 6.8" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready

(5)

$399.00

List price $580.00

108TO4_PKG1 small

Pioneer DMH-C5500NEX Package for 2015-2017 Toyota Camry

• Double DIN Bluetooth Digital Multimedia Receiver
• 8" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Equalizer
• SiriusXM Satellite Radio Ready
• Built-in HD Radio

(134)

$829.96

List price $1028.97

DDX9907XR small

Kenwood eXcelon DDX9907XR

• Double DIN Bluetooth CD/DVD Multimedia Receiver with USB and AUX
• 6.8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatible

(2)

$1199.00

List price $1400.00

AVH-W4500NEX small

Pioneer AVH-W4500NEX

• Double DIN Bluetooth CD/DVD Receiver
• 7" Touchscreen Display Display
• Wireless Apple CarPlay and Android Auto Compatible
• 5 display colors, 112 key color options
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

(5)

$999.99

List price $1200.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security

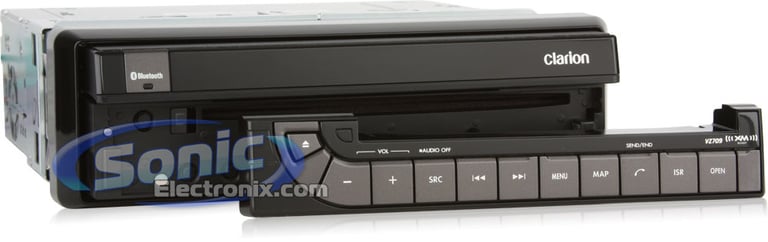

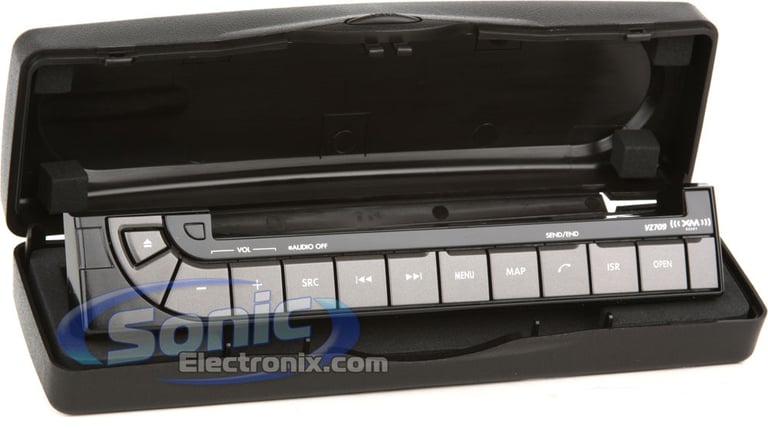

Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
19 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
3-band parametric
Display Type
TFT-LCD Display
Touchscreen
Yes
Expandability Features
Inputs
Audio/Video (Rear)
Backup Camera
Outputs
Composite Video (RCA)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VZ709

Weight:

9.00lbs

Internal SKU:

vz709

Internal Product ID:

17853

Product and How-to Videos


Customer Ratings & Reviews


Clarion VZ709 (VZ-709) thumbnail image

5 star
50%
4 star
17%
3 star
0%
2 star
33%
1 star
0%



Durability
4.7
Value
3.7
Features
4
Design
3.7
Usability
4

Customer Reviews

Sort by:

Loading...

Great Package!

Easy to install and very simple to use. Great picture quality especially for the price! I love this unit. Bluetooth your phone calls, gps to find your way, and it all folds away to keep it out of sight of the thieves.

By calvinmcginnis@comcast.net on February 22, 2011

23 found this helpful


Been great so far

Had this installed about a week now, seems to work good. Installed in myself in no time, as easy as any other stereo. Be sure to think about what your screen could be covering up tho.

By Kr0n on September 26, 2010

22 found this helpful


A Solid Unit, A Bit Outdated & Lacking Smooth Features

Purchased this unit several weeks ago. It's a solid unit, but is a little buggy being as its a 2008=2009 model. Couldn't get the Blue Tooth to operate properly with my Droid 2. Wouldn't take Phone Book Data, and would jump back and forth between Stereo & Phone mode. My main reason for returning was the lack of GPS support. Sonic sells the NP 509, but you also need a 100$ adapter to make the unit work with your "Nav Ready" receiver. When you add up what it would cost to get the stereo, gps, and adapter, your over 100$ in price higher than the brand new NZ 500!! I recommend doing diligent research before purchasing this unit!

By Alex on December 27, 2010

21 found this helpful


A Very Nice Unit At the Best Price Anywhere.

This unit is very nice and has a ton of features for the price. The only thing I do not like is that you cannot operate radio or CD while the unit screen is closed. Other than that, this is the best deal online, without a doubt. Clarion head units are so very underrated.

By Mix Master Mike on March 17, 2011

20 found this helpful


Clarion VZ709

The Clarion VZ709 is pretty awesome for the price you pay. It has played everything I have thrown at it, without any skips etc, over the past 6 months.

Since this is a great mobile video option, and I wholeheartedly recommend it, I will close with some things I dislike about it.

First, there is no display whatsoever when the screen is down. In all of the mobile DVD units I have owned, there was some display.

Next, to get the DVD to play on the screen while you drive, you need to install a toggle switch. Connect the emer brake wire to ground, then insert the toggle switch somewhere on that wire. Kind of a pain, as all other units I have owned, I just had to connect that wire to ground. Works swimmingly though.

That's it. Everything else about the unit kills. The removable face is the ultimate deterrent to theft. Never buy a mobile DVD head unit without it.

By Augster on October 13, 2010

19 found this helpful


not so good

i have this unit and a Jensen for some unknown reason the Clarion some tells me some of my music is not DRM free and will not play it but the jensen will and the music is not protected at all voltage out put is very low while the jensen is very good also when screen is closed there is no LCD to view tracks playing or station buy another brand and if you your trying to go cheap buy Jensen. Boss power acustic and all jive time brands screw up between 6 -12 months

By keith on November 14, 2010

19 found this helpful




NX509 small

Clarion NX509 (NX-509)

Double DIN 7" TFT-LCD Touchscreen Monitor with Built-in GPS Navigation, DVD Multimedia Player, and Remote

(1)

$699.99

List price $1199.99

DX40 small

Kicker DX40 4" DX Series 02DX40

$44.99

List price $69.99

PERISHER Sound Disk Beanie (Black) small

AERIAL7 Perisher (Black)

Woven Fabric Beanie with Sound Disk Headphone Speakers and In-line Smartphone Microphone

$34.99

List price $60.00

BC2218WNR small

Xscorpion BC2218WNR

100 Pack of 22/18 Gauge Seamless Nylon Red Butt Connectors w/ Windows

(5)

$4.99

List price $12.99

TS-A1057 small

Pioneer TS-A1057

4" 2-way Speakers

$49.99

List price $89.99

CRT0.14 small

Xscorpion CRT0.14

10 Piece 1/0 AWG Copper Ring Terminals 1/4"

$14.99

List price $29.99

MAZU2P small

GROM Audio MAZU2P (GROM-USB2P-MAZ)

Android and iPhone Compatible USB Interface for Select 2002-2008 Mazda Vehicles

(1)

$134.99

List price $134.99

EXL-X10.4D small

DS18 EXL-X10.4D

1700W Peak (850W RMS) 10" EXL-X Series Dual 4-ohm Car Subwoofer

$289.95

List price $289.95

BARCAM221,AVH-210EX small

Pioneer AVH-200EX In-Dash Receiver + Premium License Plate Mount Backup Camera

Double DIN Bluetooth CD/DVD Car Stereo Receiver w/ 6.2" Touchscreen w/ Backup Camera Bundle

(53)

$259.98

List price $349.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Mazda CX-7

2002 BMW 330Ci

2003 Dodge Durango

2021 Cadillac XT5

2007 BMW 550i

2001 Jeep Wrangler

1984 Volkswagen Scirocco

2004 Lexus GS430

2019 Ford F-150

2013 Ram 3500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
