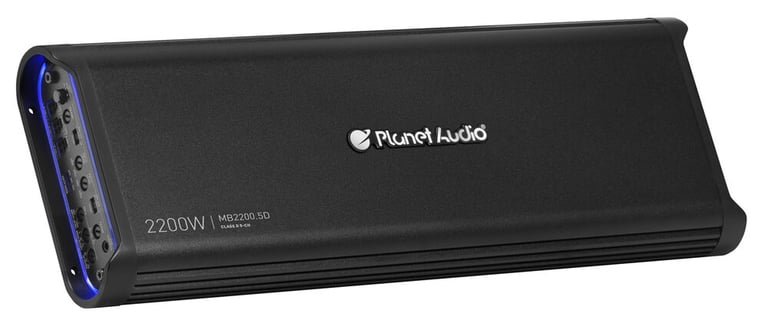

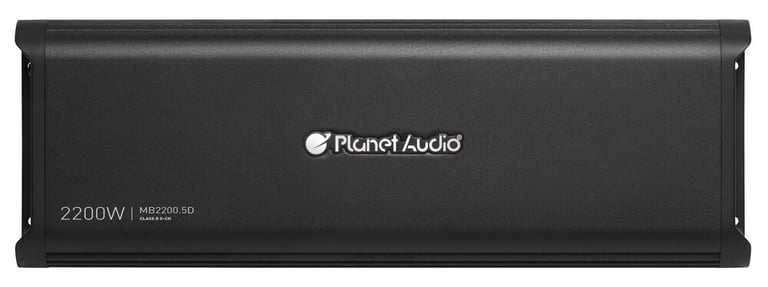

Planet Audio MB2200.5D

2200W Peak (1200W RMS) Planet Pro Series Class-D 5-Channel Amplifier with Bass Remote

highlight-star-icon

• 113 watts x 4 channel + 375 watts x 1 channel @ 4 ohm
• 225 watts x 4 channel + 750 watts x 1 channel @ 2 ohm
• Bridged: 450 watts x 2 channel @ 4 ohm + 750 watts x 1 channel @ 2 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 5-Channel Amplifier

Learn more about the mb22005d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

Description


Planet Audio brand icon

Authorized dealer

Product Details:

  • MINI BANG Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 113 watts x 4 channel + 375 watts x 1 channel
    • 2 ohm: 225 watts x 4 channel + 750 watts x 1 channel
    • Bridged: 450 watts x 2 channel @ 4 ohm + 750 watts x 1 channel @ 2 ohm
  • Peak Power Rating:
    • 4 ohm: 600 watts x 2 channel + 500 watts x 1 channel
    • 2 ohm: 300 watts x 4 channel + 1000 watts x 1 channel
  • Total power output: 900 watts

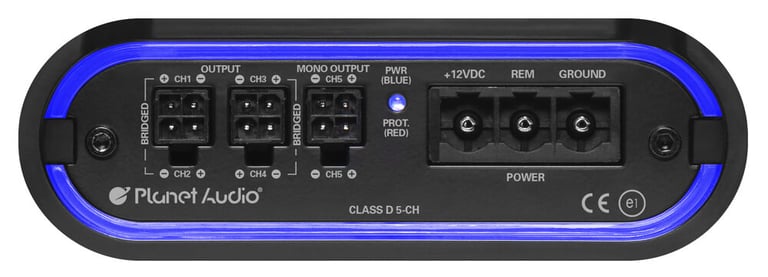

  • LED Power/Protect Light

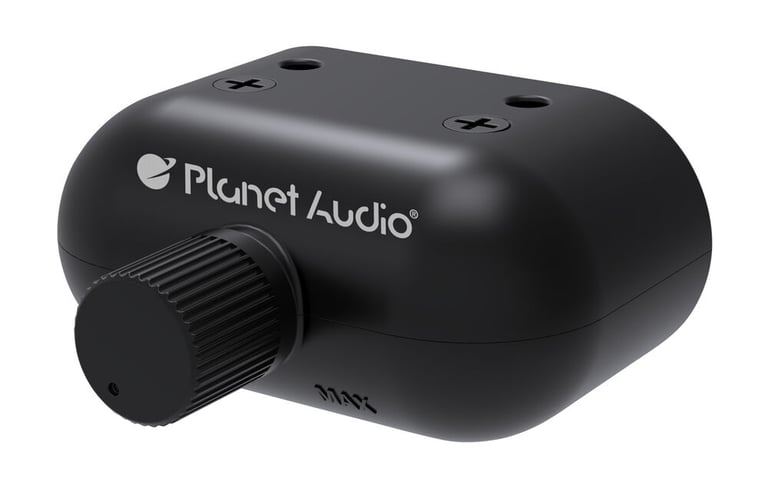

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • Soft turn-on circuit
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Chrome plated RCA low level and high level inputs
  • Black anodized heatsink
  • Illuminated end panel trips
  • Frequency Response: 9 - 50000 Hz
  • Total Harmonic Distortion (THD): <0.01%
  • Signal to Noise Ratio: 103 dB

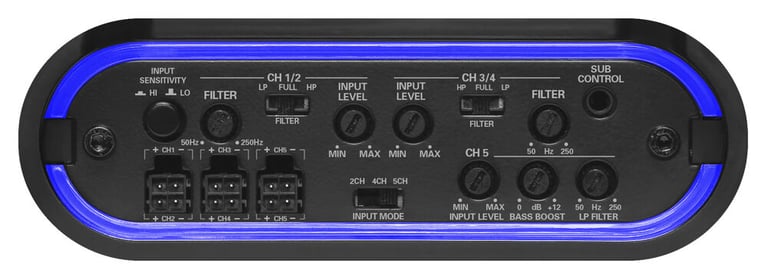

  • Variable high-pass filter: 50 - 250 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 60A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 15.01" L x 5.12" W x 1.7" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MB2200.5D

Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(17)

$259.99

List price $323.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$549.99

List price $779.98

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(5)

$499.99

List price $600.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

GM-DX975 small

Pioneer GM-DX975

• 75 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$549.99

List price $650.00

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
113 watts x 4 channel
RMS Power @ 2 ohms
225 watts x 4 channel
Bridged RMS Power
450 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
375 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
600 watts x 2 channel
Peak Power @ 2 ohms
300 watts x 4 channel
Amplifier Specifications
Series
MINI BANG Series
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
2200 watts
Total RMS Power Output
900 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
9 - 50000 Hz
THD at Rated RMS Power
<0.01%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
103 dB
Channel Separation
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Total Fuse Rating
60
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Mounting screws (4)
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MB2200.5D

Weight:

7.00lbs

Internal SKU:

mb22005d
