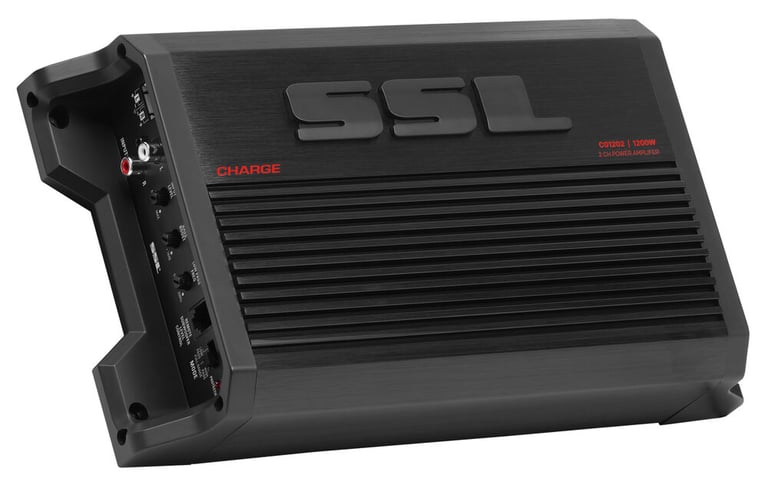

Sound Storm Labs (SSL) CG1202

Charge 1200W 2 Channel Full Range Class A/B Subwoofer Audio Amplifier

highlight-star-icon

• 225 Watts RMS x 2 @ 4 ohms
• 450 Watts RMS x 2 @ 2 ohms
• Total Peak Power: 1200 Watts
• CEA-2006 Compliant
• MOSFET Power Supply
• Dimensions: 6.5"W x 11.7"L x 2.5"H

Learn more about the cg1202

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL)

Authorized dealer

General Features:

  • SSL Charge CG1202
  • Class A/B Full Range 2-Ohm 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 225 watts x 2 chan.
    • 2 ohms: 450 watts x 2 chan.
    • Bridged, 4 ohms: 900 watts x 1 chan.
    • 1 ohm: ------------N/A------------
  • Total power output: 1200 watts
  • CEA-2006 Compliant Amplifier

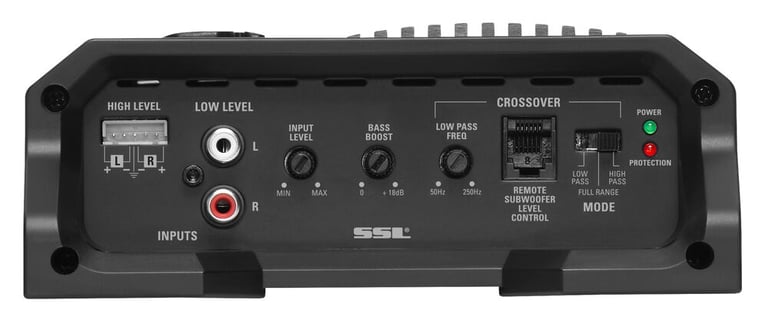

  • High and Low Level Inputs
  • Include Remote Subwoofer Control
  • MOSFET Power Supply
  • 2/1 channel operation
  • Frequency Response: 9 - 50000 Hz
  • Total Harmonic Distortion (THD): 0.010%
  • Signal to Noise Ratio: 105 dB
  • Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • Dimensions: 6.5"W x 11.7"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Sound Storm Labs CG1202 Owner's Manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
225 watts x 2 channel
RMS Power @ 2 ohms
450 watts x 2 channel
Bridged RMS Power
900 watts x 1 channel
Amplifier Specifications
Series
Marine Certified
Amplifier Class
A/B
Number of Channels
2
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Preamp Outputs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Bass Boost
0 - 18 dB
Remote bass/level controller
Fan Cooled
No
Strappable
No
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

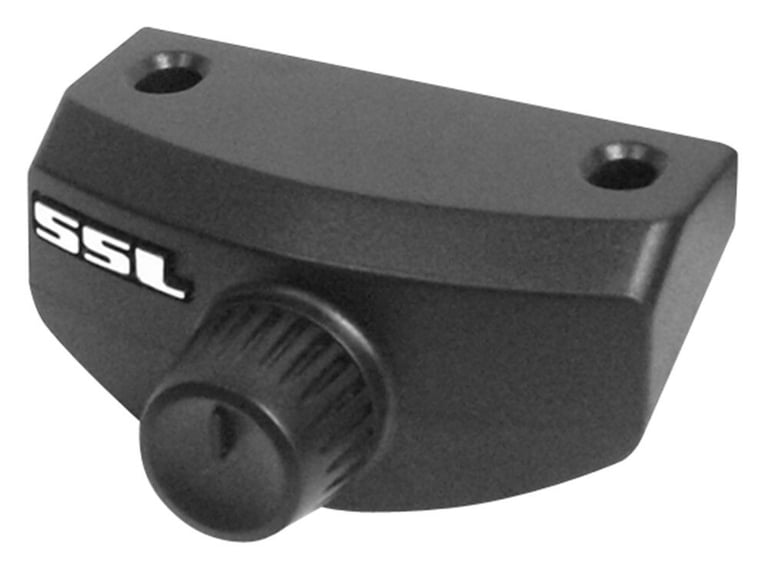

Wired gain knob (wire attached)
Mounting screws (4)
High-level input wiring harness w/ molex connector
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CG1202

Weight:

5.50lbs

Internal SKU:

cg1202

Internal Product ID:

179767
