Orion Cobalt CO6002

600W Max, 2-Channel Amplifier

Orion
Shop all Orion
Product videos
highlight-star-icon

• 100 Watts x 2 Chan. @ 4 Ohm
• 155 Watts x 2 Chan. @ 2 Ohm
• 600 Watts Max
• Tri-Mode Capable
• High-Level Inputs
• Selectable Bass Boost
• LED Power/Protect Indicators

Learn more about the co6002

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

Limited time!
KW-M180BT main

JVC KW-M180BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-24.40%

$189.00

List price $250.00

NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$54.99

List price $65.99

Belva BMV712

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Phone Mirroring

23
-63.34%

$54.99

List price $149.99

Product Highlights


• 100 Watts x 2 Chan. @ 4 Ohm
• 155 Watts x 2 Chan. @ 2 Ohm
• 600 Watts Max
• Tri-Mode Capable
• High-Level Inputs
• Selectable Bass Boost
• LED Power/Protect Indicators

Description


Orion brand icon

Authorized dealer

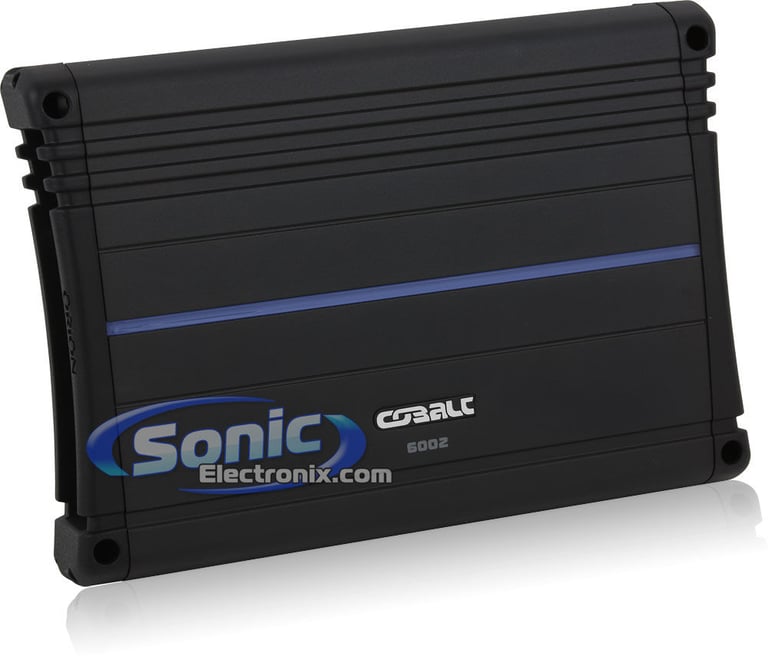

  • Cobalt 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 155 watts x 2 chan.
    • Bridged, 4 ohm: 310 watts x 1 chan.
  • Max power output: 600 watts
  • MOSFET power supply
  • Tri-mode and bridgeable operation
  • LED power and protect indicators
  • Illuminated blue LED stripe design
  • Selectable bass boost (0, 6, 12 dB)
  • 2/1 channel operation

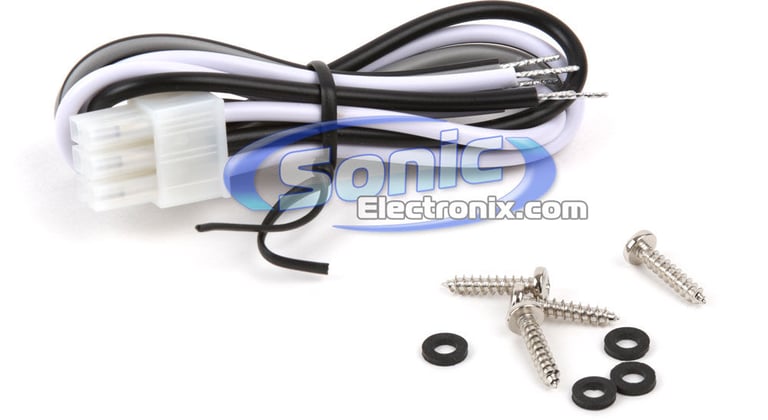

  • High-level inputs (signal sensing for automatic turn on)
  • 3-Way system protection circuitry (thermal, short circuit, and overload)
  • Heavy duty aluminum alloy convection heatsink

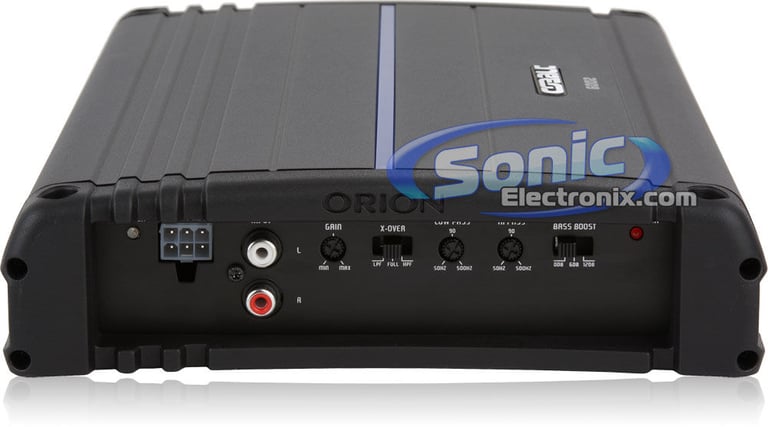

  • Chrome-plated RCA level input

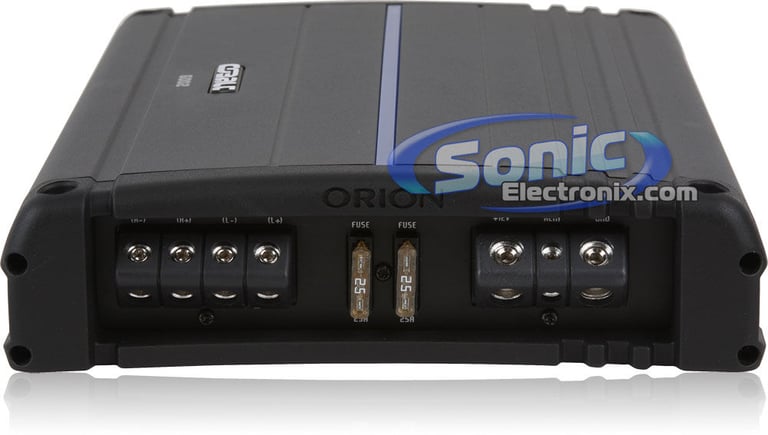

  • Chrome-plated screw terminals
  • Input sensitivity (175mV-8V)
  • Damping factor (>100)
  • Continuously variable high-pass filter (50-500 Hz)
  • Continuously variable low-pass filter (50-500 Hz, 2nd order 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-30,000 Hz
  • Dimensions: 11-7/16"L x 8-1/8"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
155 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
310 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
310 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.7%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Bass Boost
0, 6 or 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

CO6002

Weight:

8.00lbs

Internal SKU:

co6002

Internal Product ID:

17981

Product and How-to Videos


Customer Ratings & Reviews


Orion Cobalt CO6002 thumbnail image

5 star
25%
4 star
25%
3 star
50%
2 star
0%
1 star
0%



Durability
3.5
Value
4
Features
4
Design
4
Usability
4.8

Customer Reviews

Sort by:

Loading...

good amp

This amp is pretty good it hits hard only problem is it gets very hot after a while.

By Dharmendra on February 1, 2011

18 found this helpful


Burnt my finger...after it went into thermal

Nice little amp... uses it to push a 4ohm pbsub it sounded nice for a while... then it turned off on me after an hour of driving at 80percent volume... switched positions with the Avionixx 820 t channel that I had running the front and now I can hear that the sq is also a bit off...louder than a head unit but seams to boost the bass by itself midbass started to bottom out early... Like the look and size... heat THD not so good...

By brauhmaudio on March 29, 2011

13 found this helpful


Geat purchase

I had this amp pushing two 15" subs and holy crap. My windshield wipers were moving... along with everything else. This is a great little un-expected little amp. I bought this but i guess my beats were so loud that someone else wanted them more than me (got jacked) soo now im thinking of selling my 3,100 watt lanzar amp to get this one again. I will probably get two of them though.

By Jose on August 23, 2009

14 found this helpful


Good amp

I have liked the orion amp so far. I have been using it for about 6 months now and haven't run into any problems. I am satisfied with the performance of the amp but there is one thing I do not like about it to much, and that is that it gets pretty hot pretty fast but it still runs great.

By Peter on December 21, 2010

12 found this helpful




RZ3-BSSB10-U_SW-10FA-S4-B small

Polaris XP 1000 Custom Enclosure & 10" Subwoofer Combo by SSV Works & Wet Sounds

SSV Works RZ3-BSSB10-U Custom Molded Unloaded Subwoofer Enclosure + 600W XS Series Single 4-ohm Marine Subwoofer (WetSounds)

(1)

$422.53

List price $739.98

HIR9BGTM_HIR9BGTA small

Boss HIR9BGTM_HIR9BGTA

Pair of 9" Universal Widescreen TFT Headrest Monitors w/ Built-In DVD Player

(1)

$229.98

List price $808.00

KDC-BT758HD small

Kenwood KDC-BT758HD

Single-Din Bluetooth Car Stereo w/ Internet Radio Control

(2)

$169.99

List price $249.99

RZ3-BSS10-U_MM1040 small

Polaris XP 1000 Custom Enclosure & 10" Sub Combo by SSV Works & Polk Audio

SSV Works RZ3-BSS10-U Custom Molded Unloaded Subwoofer Enclosure + Polk Audio MM1040 10" Mobile Monitor 700W Subwoofer

(21)

$386.16

List price $559.94

No picture

AutoPage RS-860LCD (RS860LCD, RS860 LCD)

6-Channel 2-way LCD Pager Car Alarm with Remote Start

$199.99

List price $499.99

RZ3-BSSB10-U_40CWD104 small

Polaris XP 1000 Custom Enclosure & 10" Subwoofer Combo by SSV Works & Kicker

SSV Works RZ3-BSSB10-U Custom Molded Unloaded Subwoofer Enclosure + Kicker CompD104 300W Dual 4-Ohm Subwoofer

(2)

$284.95

List price $459.94

FSC10AT-T45 small

MTX Audio Thunderform FSC10AT-T45 (Tan, Amplified)

Ford F-150 Supercrew 2001-2003, Amplified 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

$467.99

List price $599.99

EK 300 (6000H10080) small

AKG EK 300 - 6000H10080

Standard Mini XLR To 1/8" Mini Jack Replacement Cable

$9.99

List price $39.00

RZ3-BSSB10-U_NSW104V2 small

Polaris XP 1000 Custom Enclosure & 10" Subwoofer Combo by SSV Works & NVX

SSV Works RZ3-BSSB10-U Custom Molded Subwoofer Enclosure + NVX NSW104V2 350W N-Series V2 Dual 4-Ohm Subwoofer

(43)

$323.76

List price $447.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Honda Odyssey

1994 Lexus SC300

2001 Ford Ranger

1997 Chrysler Sebring

2013 Ford Transit Connect

1984 Ford LTD

2003 Lexus SC430

2012 Toyota Matrix

2011 Lexus IS250

2016 BMW M2

Vehicle
Store
Delete

2004 Harley Davidson FXSTD/I Softail Deuce

1995 Honda VFR750F Interceptor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
