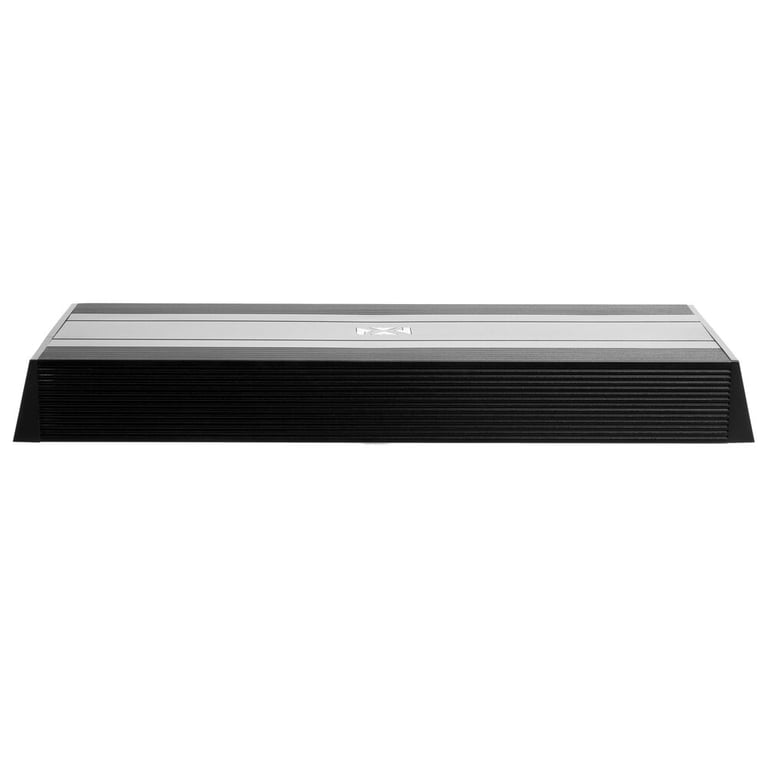

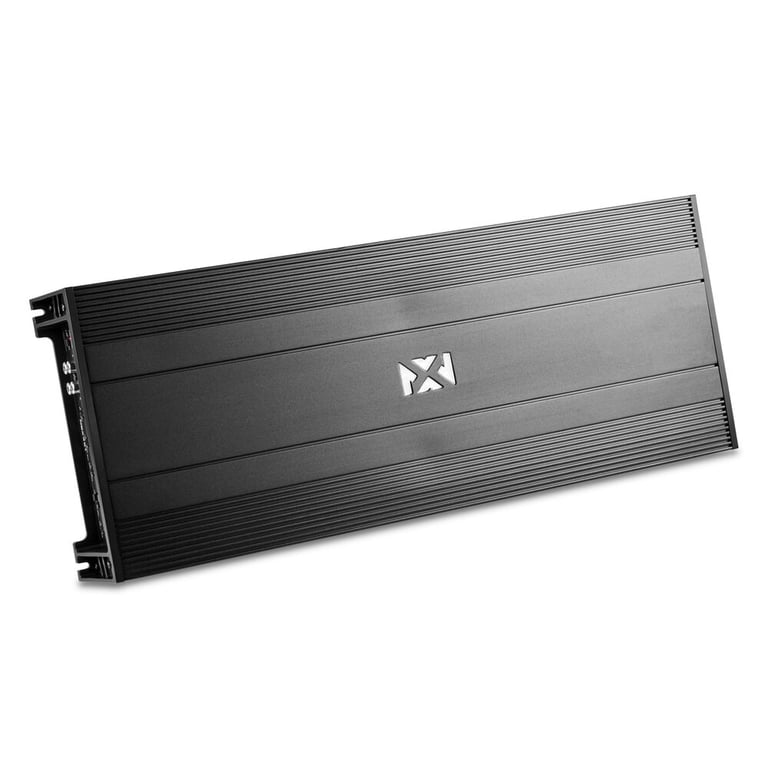

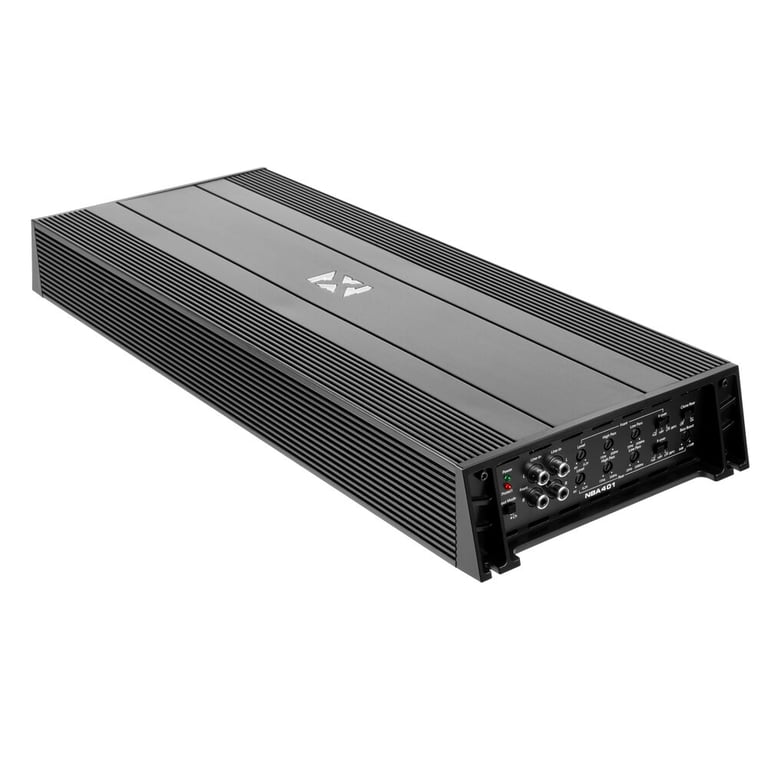

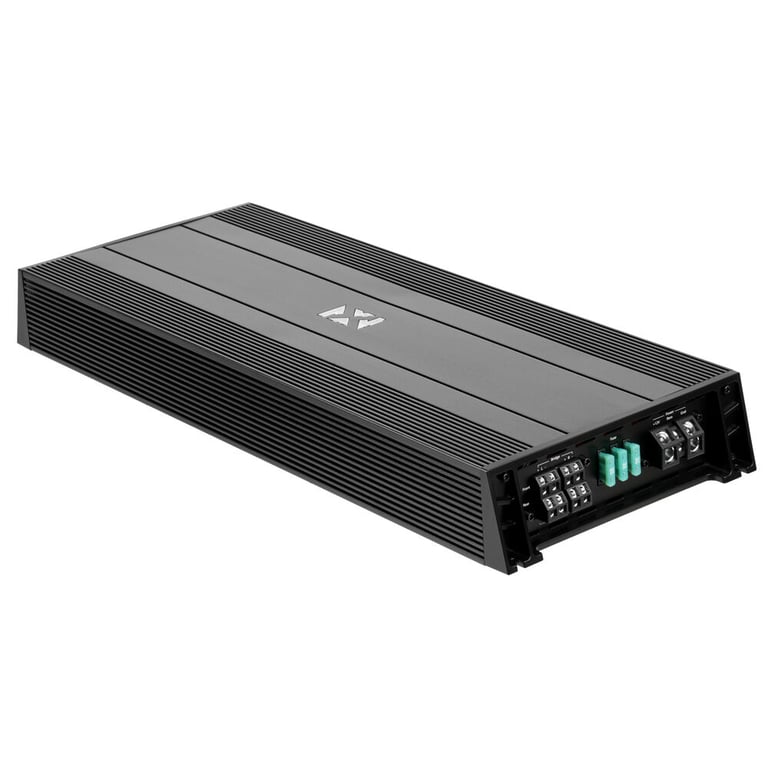

NVX NBA401

1600W Peak (800W) RMS N-Series Class A/B 4-Channel Car Audio Amplifier

NVX
Shop all NVX
Product videos
highlight-star-icon

• 135 watts x 4 channel @ 4 ohm
• 200 watts x 4 channel @ 2 ohm
• Total RMS Power: 800 watts
• CEA-2006 Compliant

Learn more about the nba401

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

nda6004 thumbnail

NVX NDA6004

OUR PRICE: $159.99

View item

Loading...
C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

Product Highlights


• 135 watts x 4 channel @ 4 ohm
• 200 watts x 4 channel @ 2 ohm
• Total RMS Power: 800 watts
• CEA-2006 Compliant

Description


NVX brand icon

Authorized dealer

Class AB 4 Channel Amplifier
3 Way Protection Circuitry Inputs And Outputs Mosfet Power Supply
800 Watt Peak Power

Product Details:

  • NVX N-Series NBA401
  • Class A/B 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 135 watts x 4 channel
    • 2 ohm: 200 watts x 4 channel
    • Bridged, 4 ohm: 400 watts x 2 channel
  • Total power output: 800 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

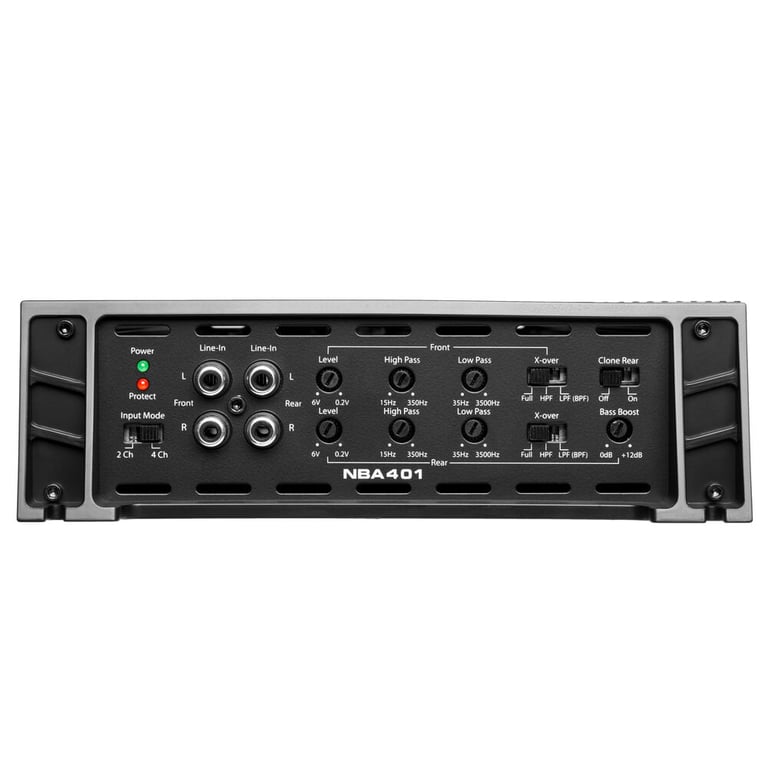

  • Input sensitivity:
    • Low level: 0.2V-6V
  • Frequency Response: 10 - 50000 Hz
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 15 - 350 Hz, 24 dB/octave
  • Variable low-pass filter: 35 - 350 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz

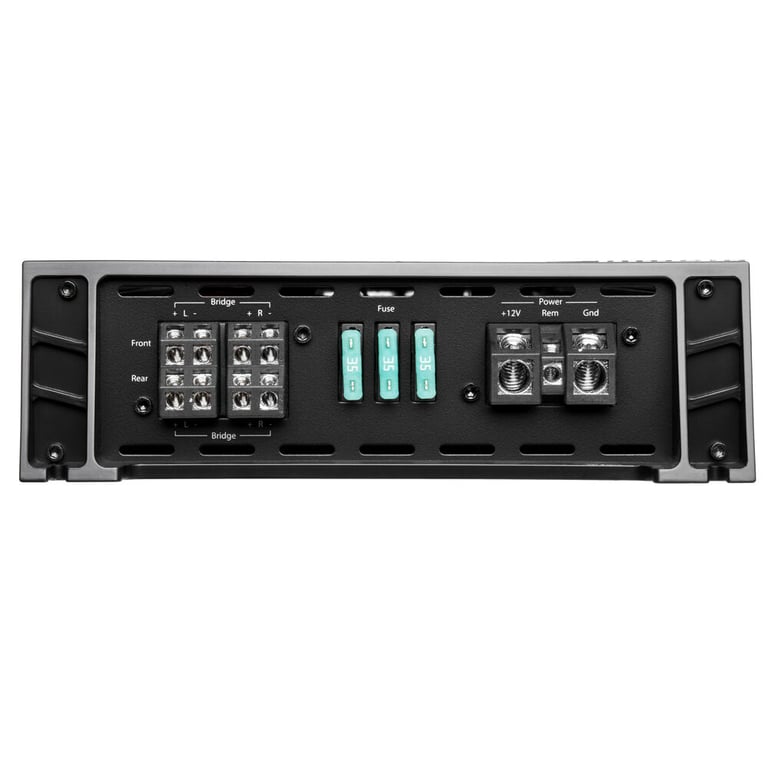

  • Fuse Rating: 35A x 3
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 20.5"W x 7.8"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

NVX NDA6004 thumbnail
(newest, current model)
NVX NBA401 thumbnail
(previous model, replaced by NVX NDA6004)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
135 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
270 watts x 4 channel
Peak Power @ 2 ohms
400 watts x 4 channel
Bridged Peak/Max Power
800 watts x 2 channel
Amplifier Specifications
Series
N Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 50000 Hz
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
15 - 350 Hz
Low-Pass Crossover Frequency
35 - 350 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
45 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
35A x 3
Total Fuse Rating
105
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting Brackets
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

NBA401

Weight:

10.00lbs

Internal SKU:

nba401

Internal Product ID:

181091

Product and How-to Videos


Customer Ratings & Reviews


NVX NBA401 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.8
Design
4.8
Usability
4.8

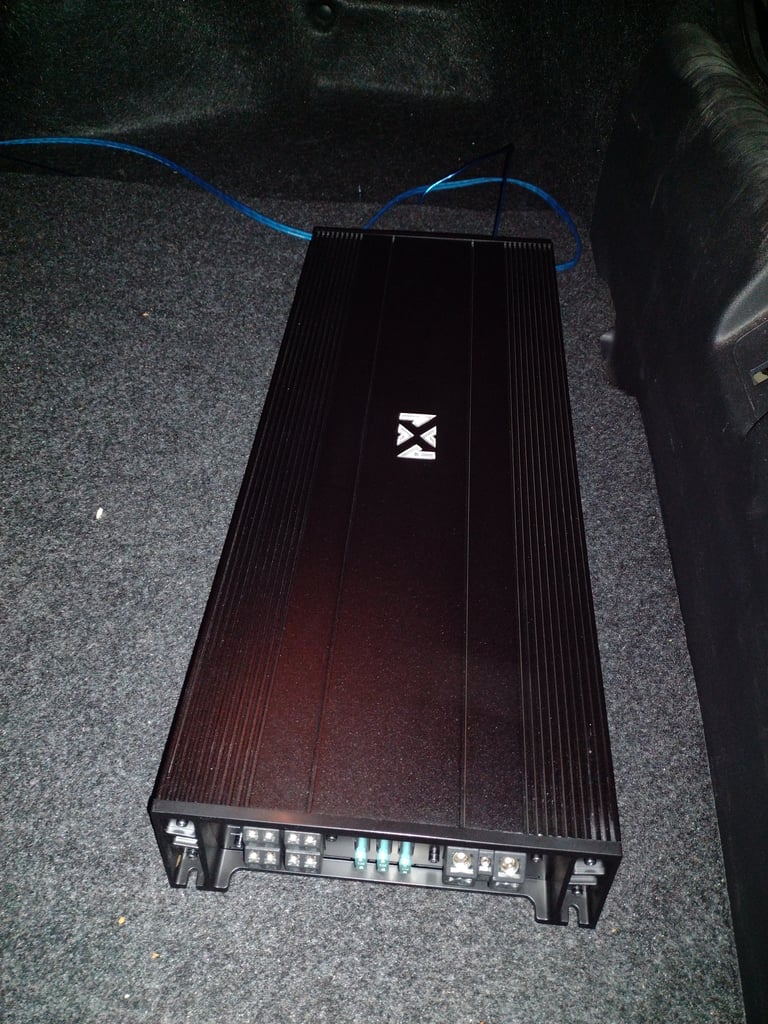

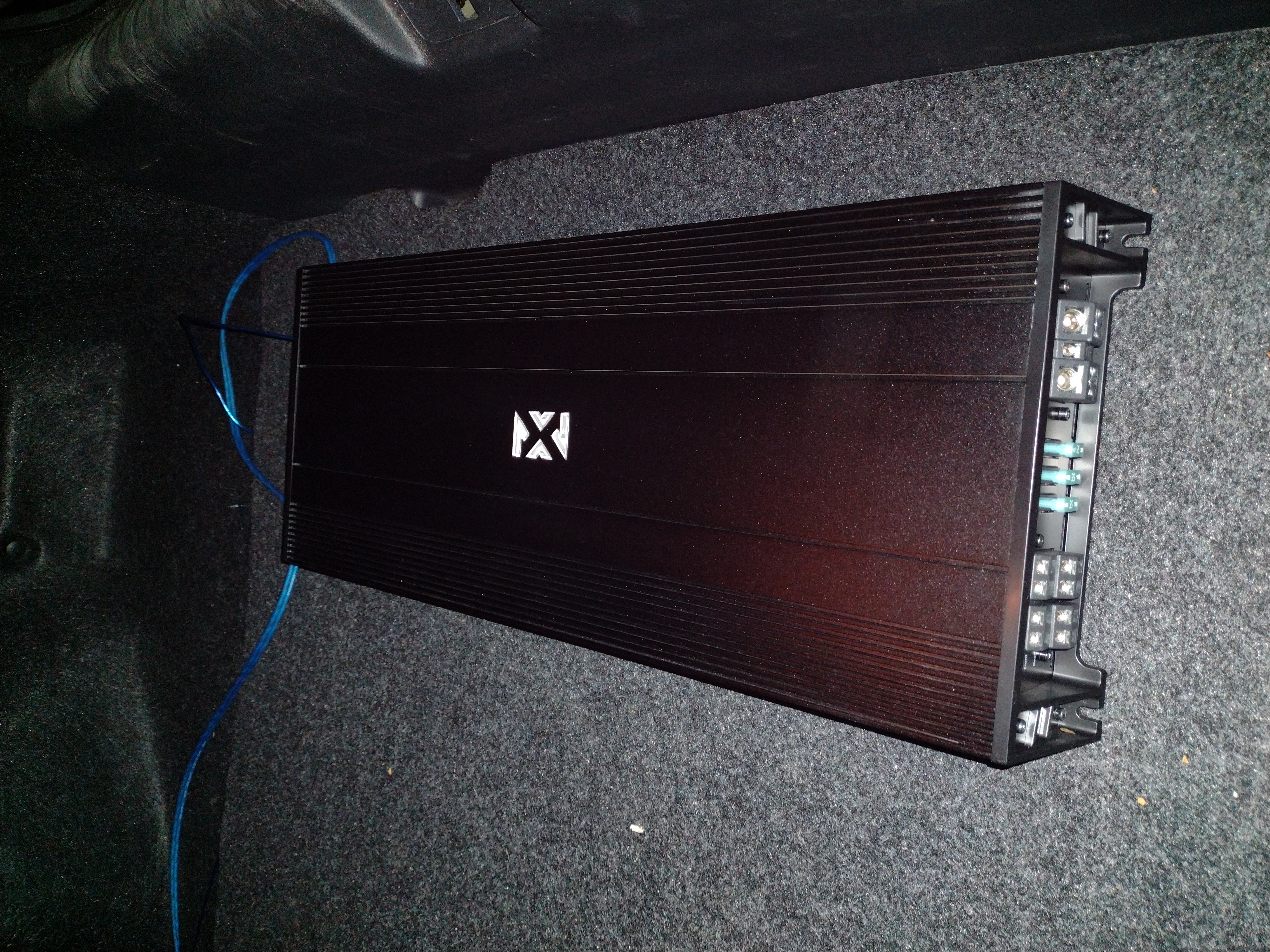

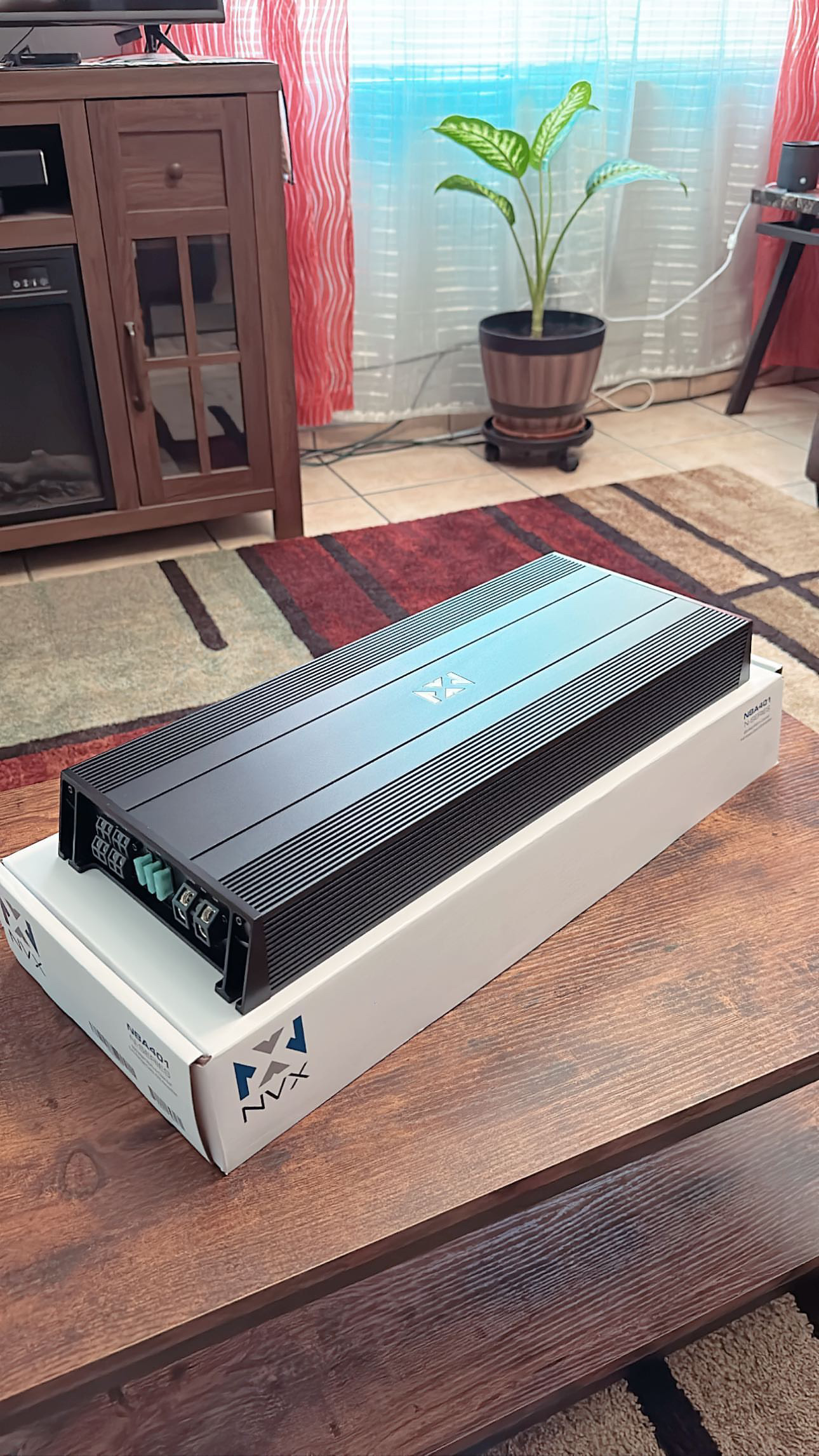

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great sounding amp! True power output.

This amp is great! It is affordable and performs very well. It sounds great through the JBL 960C component speakers and NVX 6x9s in the back. The only complaint I have is the size. This amp is long. It barely fit mounted on the rear of my 60/40 split rear seat but that's not the fault of the amp. Class A/B amps just run bigger and with this much power delivered, it has to be that big to dissipate the heat. It has an internal fan on the bottom. Make sure to mount it in a way that it has clearance for good air flow/intake to keep it cool.

By Terrell on June 1, 2022 Checkmark Icon Verified purchase

39 found this helpful


Sweet

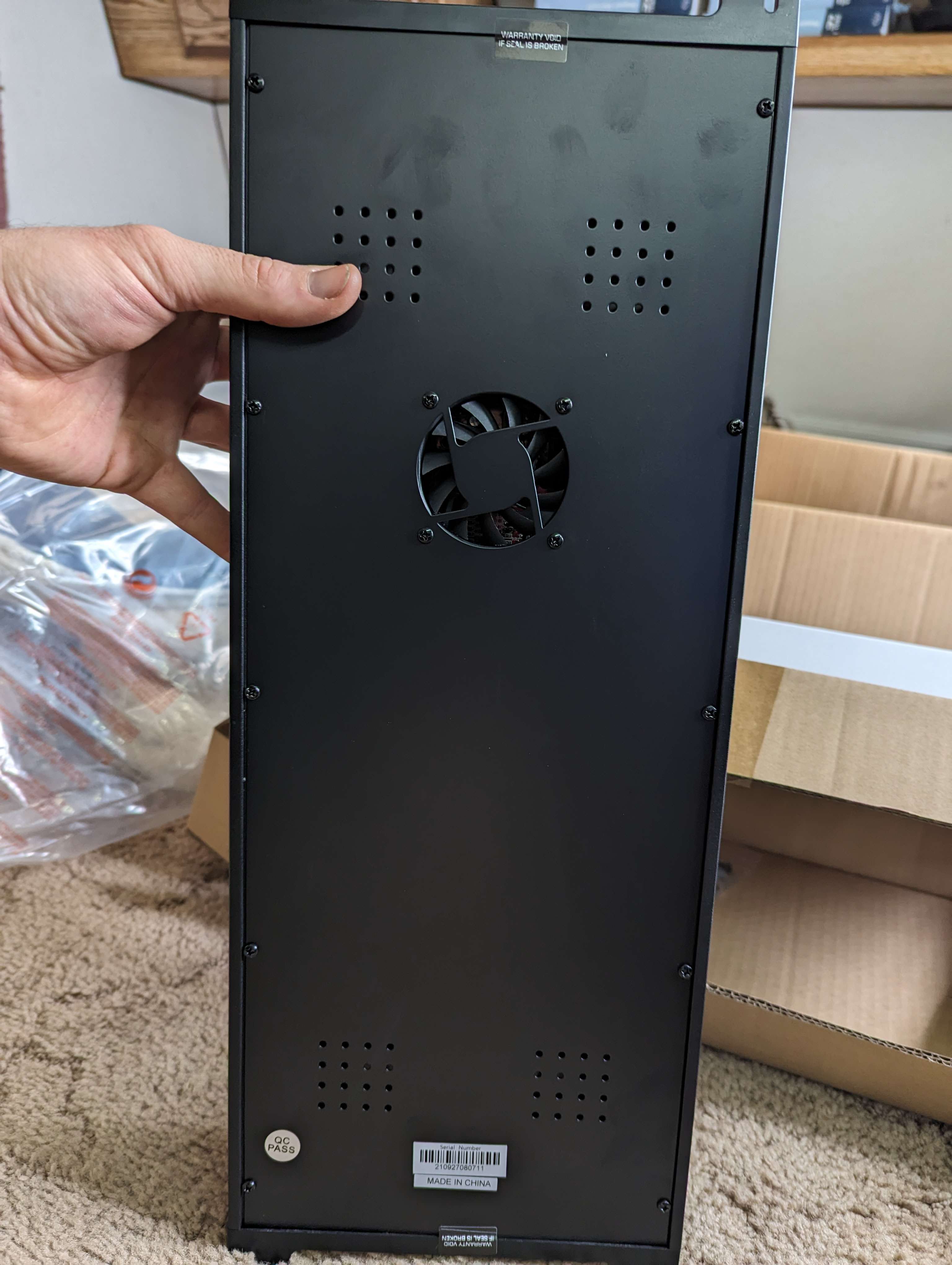

This amp is pretty big so make sure you do your measurements. It fits under my backseat of a 95 Jeep Grand Cherokee and the Amp is killer. It
has a fan on the bottom that I didn’t see anywhere In the description. What a huge difference because there is no air under that backseat and this thing hasn’t overheated. I recommend this amp my stereo has never sounded so good.

By Russell on July 7, 2022 Checkmark Icon Verified purchase

37 found this helpful


Solid product!

I like that NVX has good quality amps and also very pocket friendly. I don't have to spend a ton of money to have a great sounding system and if I accidentally blow anything again I didn't spend that much on it so no biggie. I will buy more NVX products.

By Jamie on October 9, 2023 Checkmark Icon Verified purchase

29 found this helpful


Great AB Power

They do rated and have a good sound. I was between this or a deafbonce class AB but this had a bit more power and I love to have overhead. Can't go wrong at 130. Also they send 3 replacement screws, alan keys, and hardware WITH RUBBER STANDOFFS CAUSE THERE IS A FAN ON THE BOTTOM! Just amazing.

Now I'm thinking If I should get another one just cause there such a good deal

By Tracy on February 12, 2024 Checkmark Icon Verified purchase

16 found this helpful


By Raphael on February 12, 2024 Checkmark Icon Verified purchase

16 found this helpful


Great quality sound!

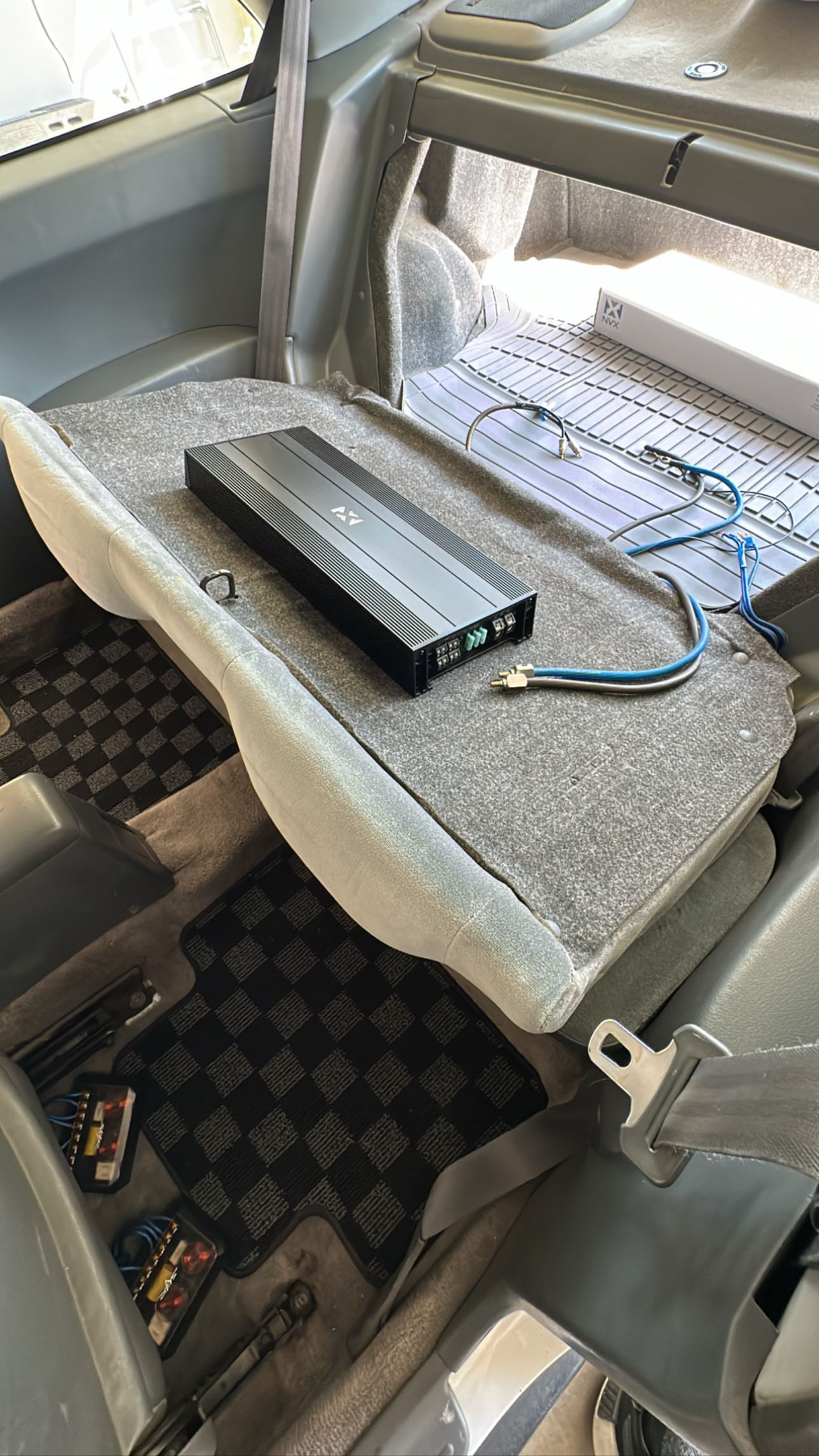

This is a very large amp, is does take about 100A to power this thing! I set it up the moment is was delivered, took very little time to set up the levels and off I went enjoying crystal clear audio from my infinity speakers! I’d highly recommend NVX amps for anyone that enjoys their music

By Keenan on July 12, 2024 Checkmark Icon Verified purchase

4 found this helpful


Amazing amplifier

Great amp for the price sad to hear it’s been discontinued

By Christopher on July 17, 2025 Checkmark Icon Verified purchase


By Austin on September 21, 2024 Checkmark Icon Verified purchase
