Sound Storm Labs (SSL) EV2.1600

1600W Max, Evolution Series 2-Channel Class AB Power Amplifier with Remote Level Control

Product videos
highlight-star-icon

• Class AB
• 300W x 2 Chan. @ 4 Ohms
• 800W x 2 Chan. @ 2 Ohms
• 1600W Max Bridged
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Learn more about the ev21600

We apologize

This item has been discontinued

Product Highlights


• Class AB
• 300W x 2 Chan. @ 4 Ohms
• 800W x 2 Chan. @ 2 Ohms
• 1600W Max Bridged
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Description


Sound Storm Labs (SSL)

Authorized dealer

SSL Platinum Dealer

Amplifier Features:

  • Evolution Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 300 watts x 2 chan.
  • Max power output:
    • 2 ohms: 800 watts x 2 chan.
    • Bridged, 4 ohms: 1600 watts x 1 chan.
  • MOSFET PWM (Pulse Width Modulated) power supply)
  • Wired remote bass level control included

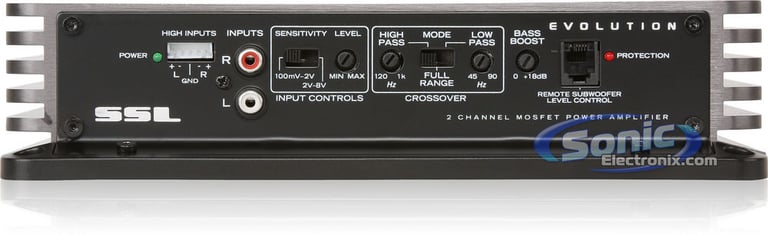

  • Power and protection LED indicators
  • Variable tuned bass EQ (0-18 dB bass boost)
  • 2 Ohm stable
  • 2/1 channel monoblock operation
  • Selectable input sensitivity (100mV-2V or 2V-8V)
  • Thermal and speaker short protection
  • Soft turn-on circuit
  • Remote turn-on/turn-off circuit
  • Variable input gain control
  • Dark gray anodized heatsink
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs

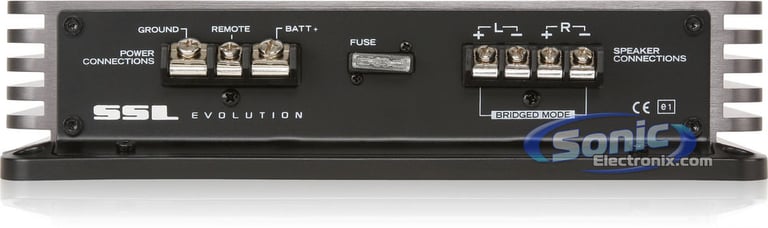

  • Nickel-plated screw terminals
  • Variable low-pass filter (45-90 Hz, 12 dB/octave)
  • Variable high-pass filter (120-1,000 Hz, 12 dB/octave)
  • Frequency response: 9,000-50,000 Hz
  • Dimensions: 10"D x 14"W x 2-3/8"H
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Package Includes:

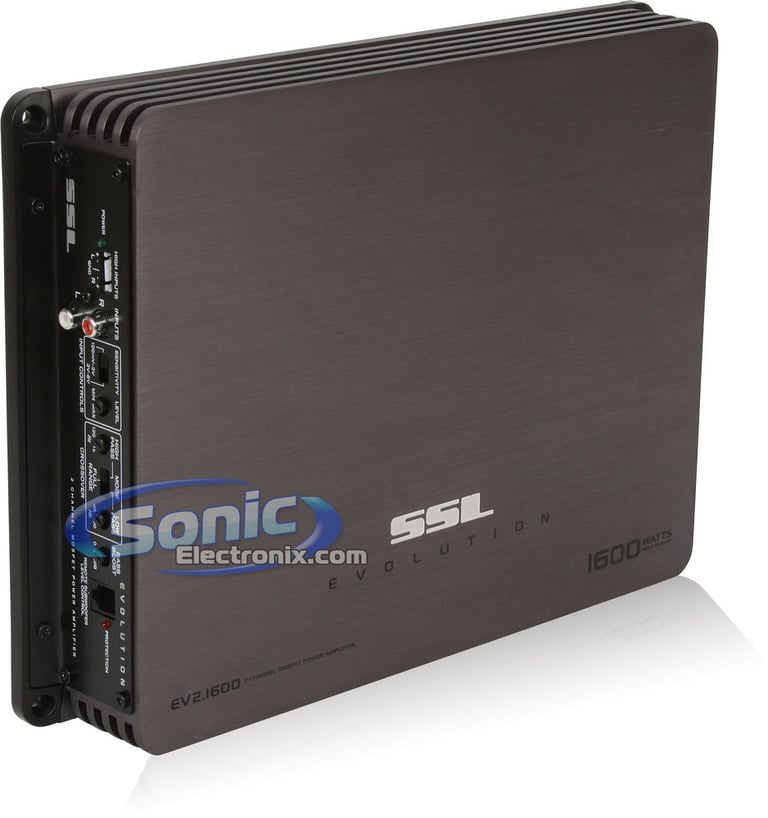

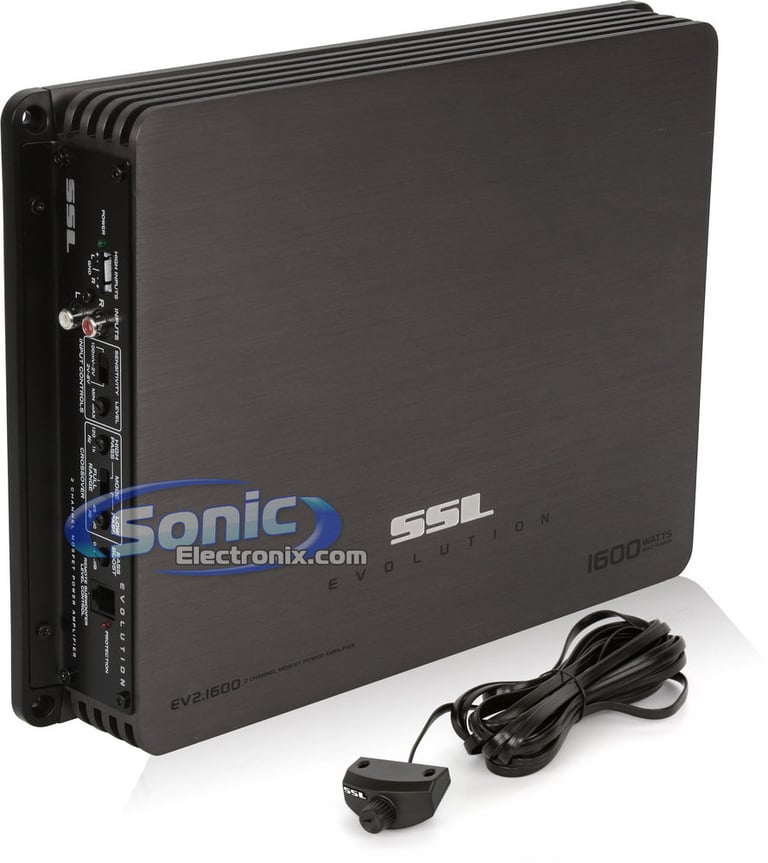

  1. Evolution Series Amplifier

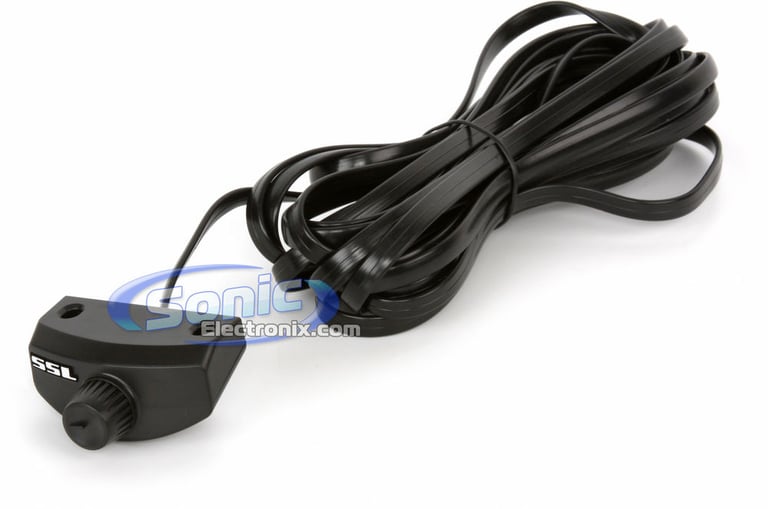

  2. Remote subwoofer level control

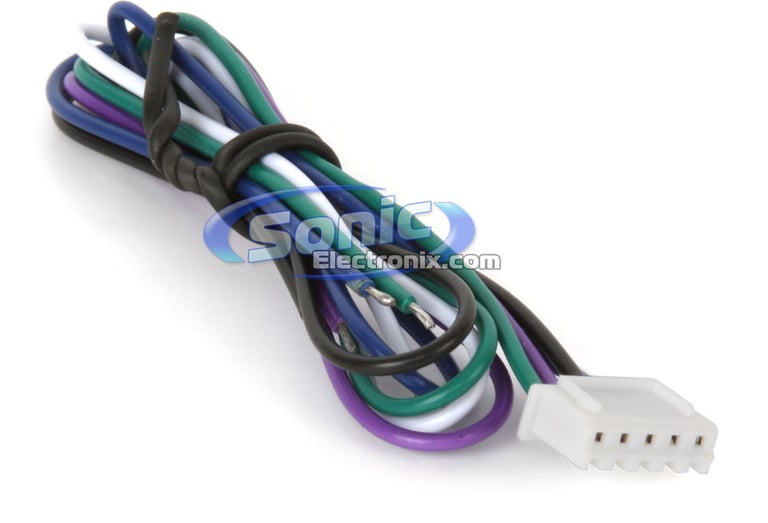

  3. High input cable with connector

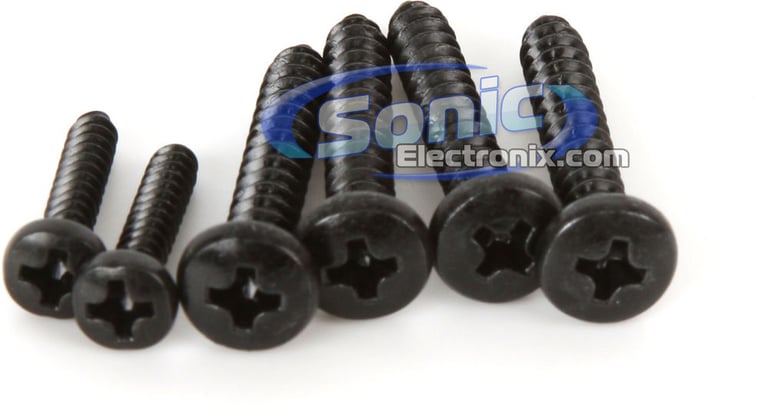

  4. Four mounting screws

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 2 channel
Bridged RMS Power
1600 watts x 1 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Evolution Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
2
Total Peak Power Output
1600 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
120 - 1,000 Hz
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
105 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 1
Total Fuse Rating
25
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?

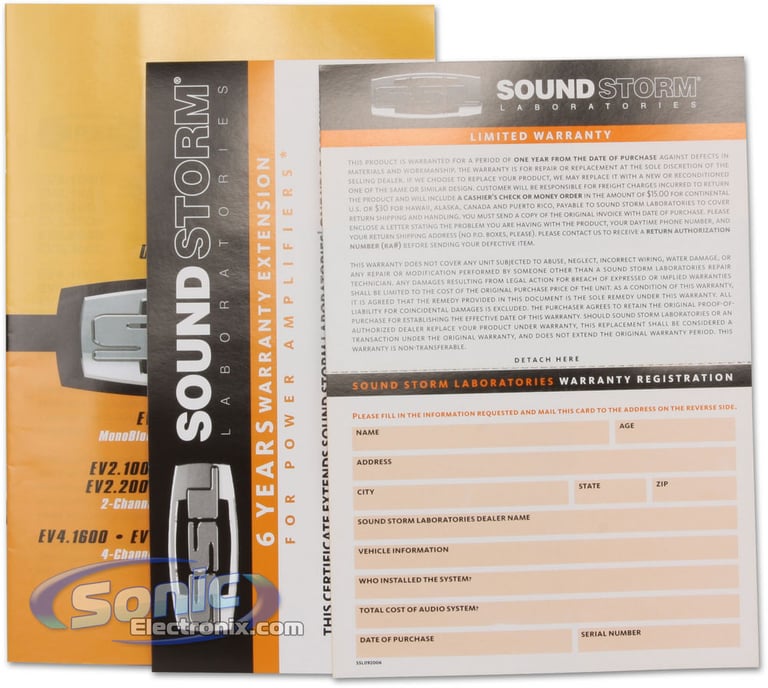

Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
High-level input wiring harness w/ molex connector
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV2.1600

Weight:

10.00lbs

Internal SKU:

ev21600

Internal Product ID:

23046

Product and How-to Videos


Customer Ratings & Reviews



5 star
63%
4 star
13%
3 star
13%
2 star
13%
1 star
0%



Durability
4.2
Value
4.4
Features
3.9
Design
4.7
Usability
3.9
Sort by:

Loading...

Very Very Touchy...

I have this amp hooked up to two 12" Kenwood 400 watt RMS subs. Wired to two ohms. It seems like it is barely putting out enough power for them, and if it hits a not it doesn't like, or if it's being pushed too hard it will go into protect mode. This amp is very frustrating.

By Jake on January 2, 2014

25

found this helpful.

Extremly nice amp for the money

I have it hooked up to two Kenwood KFC-W3012 12 inch subs. It makes them rattle every thing in my car, and I'm only using one of the two channels. It's powerful enough for for of these subs. I have had no trouble with it and would highly recommend this amp for anyone one in the market for one and is on a budget.

By Kyle on October 11, 2010

24

found this helpful.

Awesome Amp

I've recently purchased 2 of these amps for 2 different systems, both of them work flawlessly. I have them pushing 2 audiobahn aw10's which are another awesome value, the subs can handle huge amounts of rms power which is why i bought this amp. It puts out great clean power for the subs and they sound awesome.

By Dustin on January 11, 2012

19

found this helpful.

Solid Amp ALERT!!! stock up!!! Do not hesitate to buy!!

This amp is SOLID! I have it pushing 1 10" JLw3v3 4 ohm sub bridged in my F150 supercrew and it POUNDS! This amp doesn't even break a sweat when cranked really loud. Heck! I am so impressed I decided to actually write a review! The build quality is amazing, It is a good looking amp, and most importantly, it puts out solid clean power. I don't understand why anybody would pay 3 times the amount for a different amp when you can get this much quality for such short change. I don't see any indication of this amp not lasting as long or longer then most higher priced amps.

By Phoenix on May 28, 2012

18

found this helpful.

decent for the money

If your looking for a cheap amp this is the one... but it would be worth spending more for a better amp

By Jake on March 11, 2011

18

found this helpful.

nice amp for the price

I ordered this amp for my son to install in his car. The shiping was fast and arrived well packed from shiping. Took us 2 hours to hook it up. The install took some time but only reason why was we had trouble getting the rear seat out of his car. The unit is built well and he has had this amp for 6 mounths now. He is really rough with his stuff so i am impressed with this amp as it still works great. he runs two 12 400 watt subs in the trunk and two 6 inch speakers in the doors. Plus he runs a bunch of other things off it. He really likes this amp and is thinking of adding another. Overall i rate this at a 10 with 10 being the high score. Well worth it if your on a buget.

By johnny on March 5, 2012

17

found this helpful.

great buy

i bought this almost 6 months ago havent had a problem and it still works great

By mike on August 9, 2011

14

found this helpful.

Decent

I bought this product as a replacement for the same, as i purchased a sub from a friend, and his right speaker terminal had burned out. Mind you, this amp lasted him for 6 or more years prior. So i just replaced with same, new model as i know it provided what i was looking for.

By The Bob on March 11, 2022 checkmarkIcon Verified purchase
