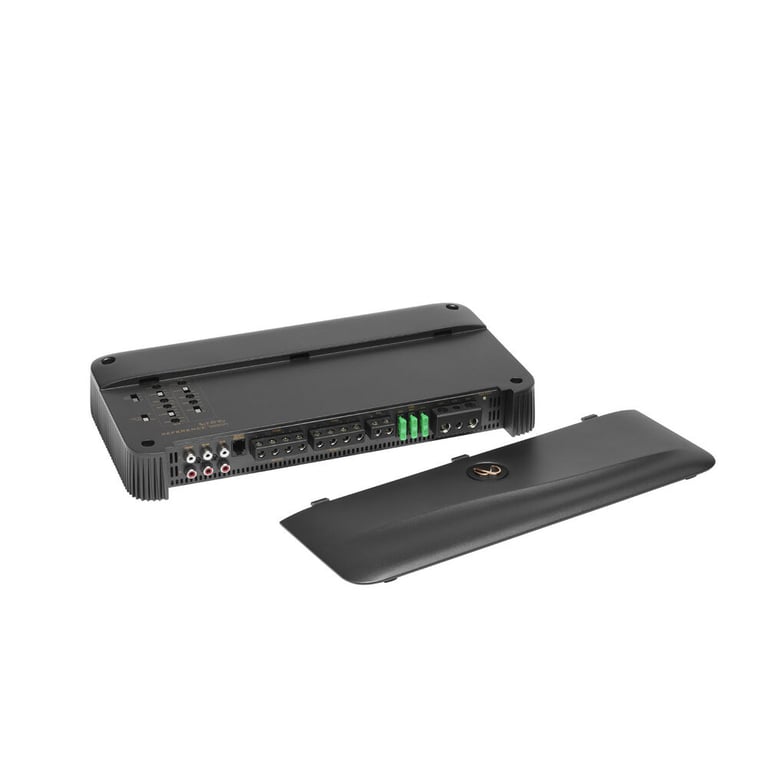

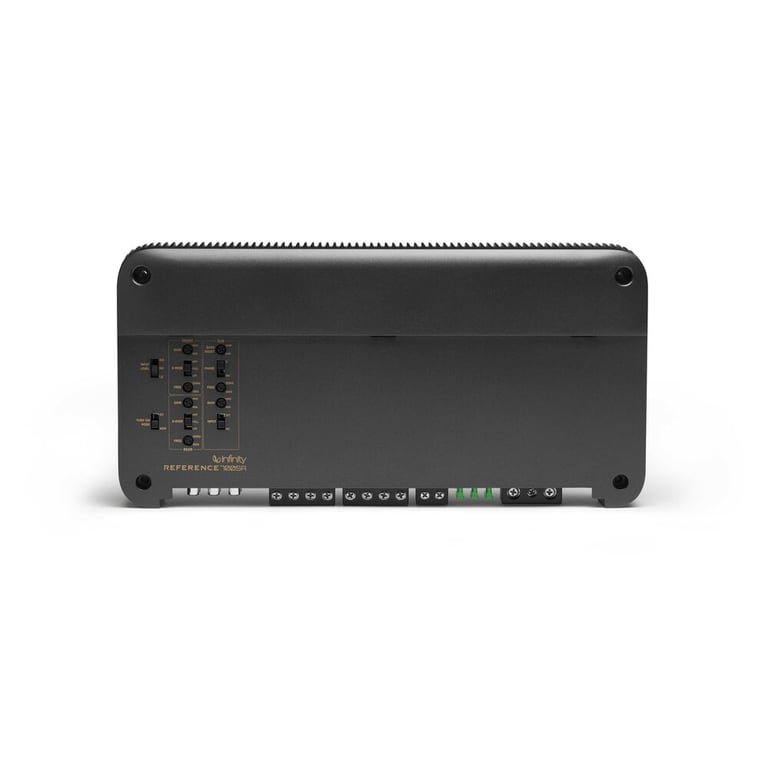

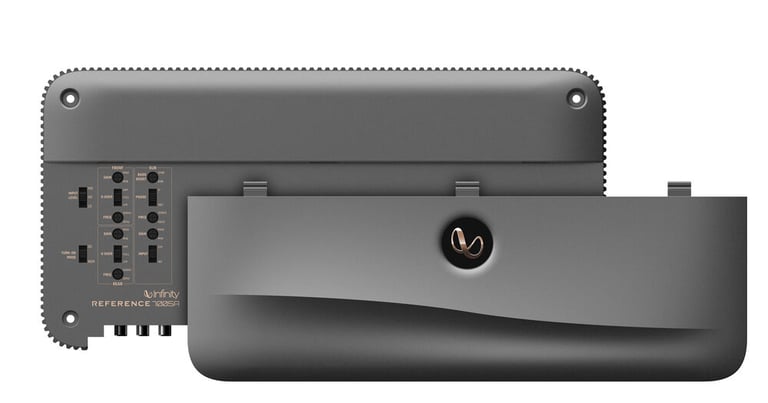

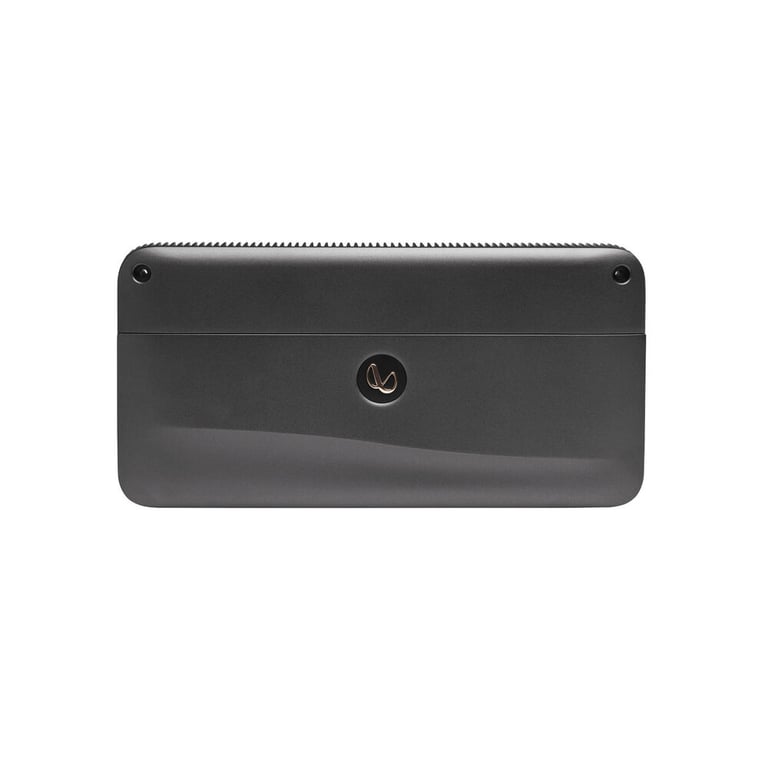

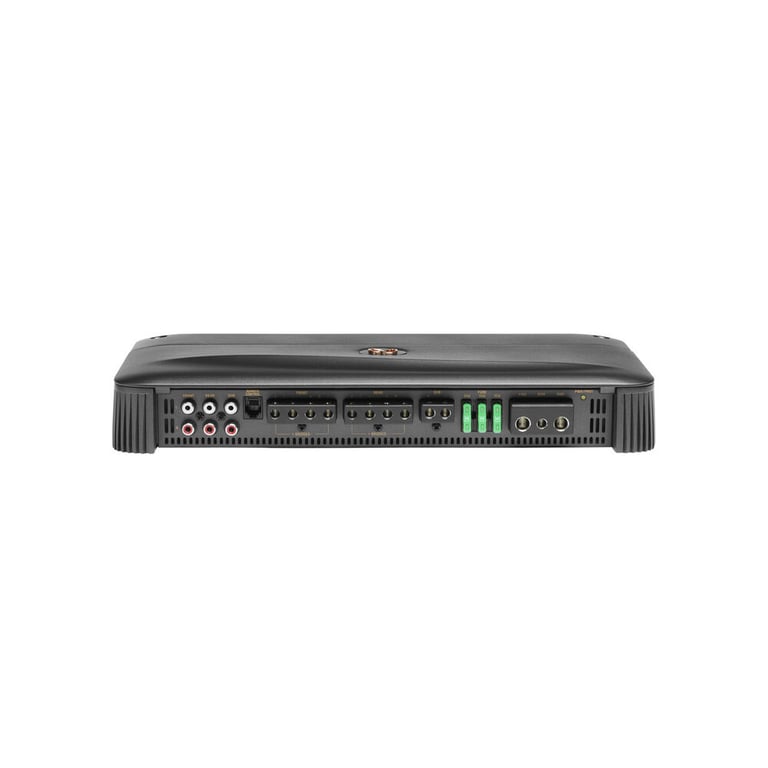

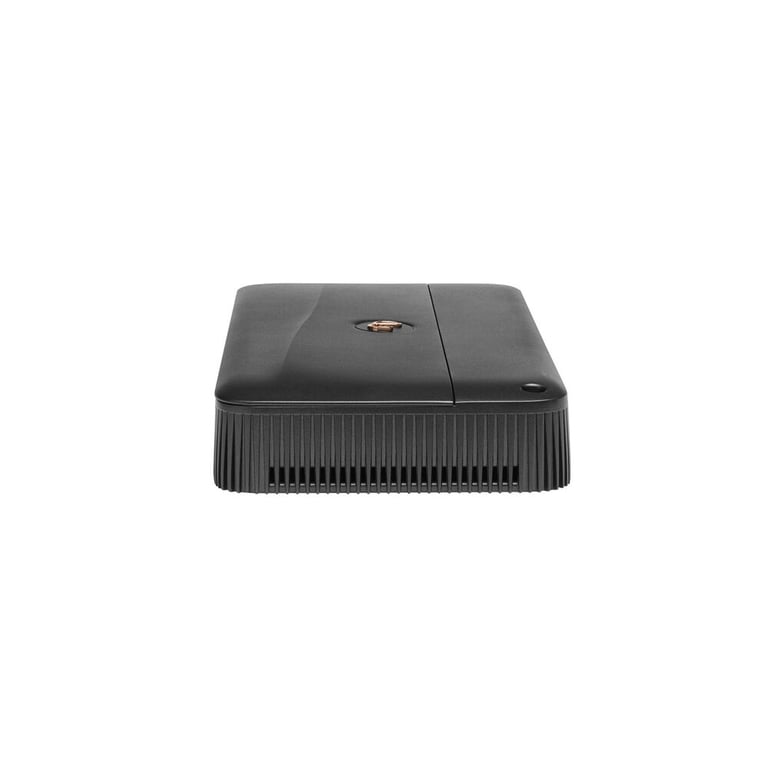

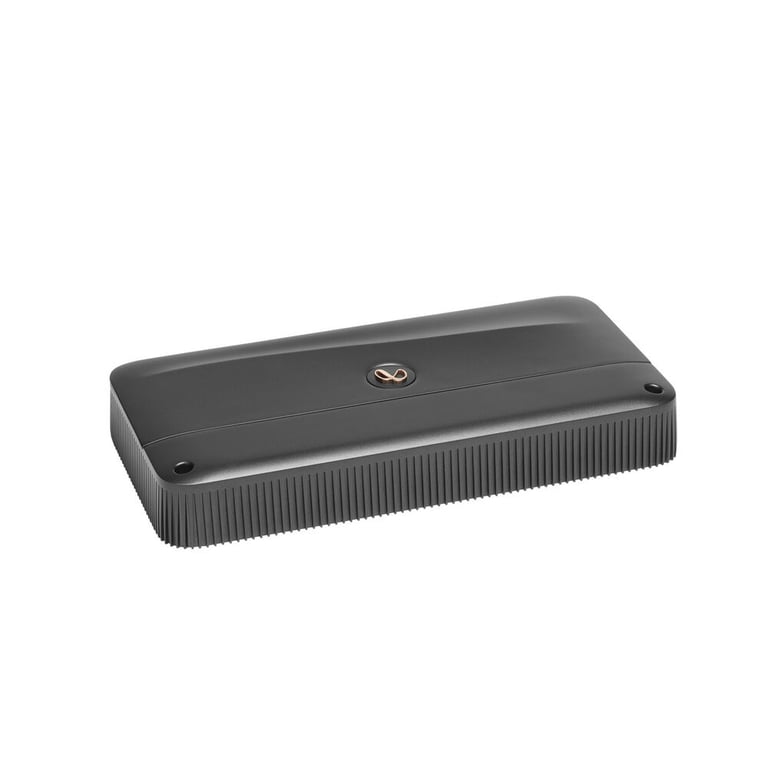

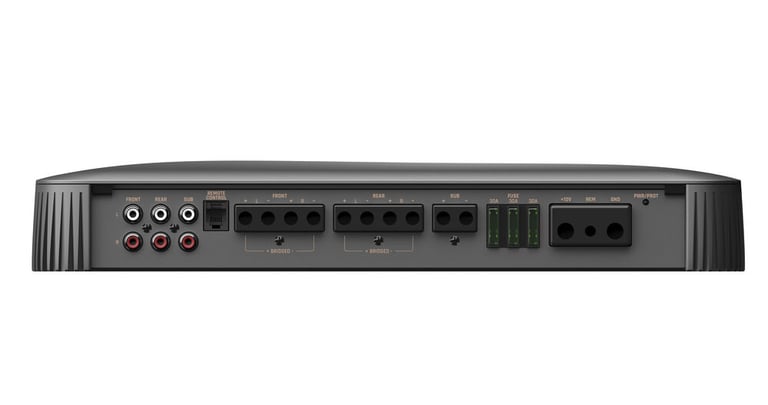

Infinity Reference 7005A (AMPRF7005AAM)

300W RMS Reference Series Class-AB 5-Channel Compact Amplifier with Bass Remote

Infinity
Shop all Infinity
highlight-star-icon

• 50 watts x 4 channel + 320 watts x 1 channel @ 4 ohm
• 65 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 140 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 280 watts
• Class AB / D 2 ohm Stable 5-Channel Amplifier

Learn more about the do-not-use-reference7005a

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

99-5806 main

Metra 99-5806 Dash Kit

Install a new Single-DIN car stereo in select 1999-2004 Focus and Cougar

3
-10.00%

$26.99

List price $29.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

86
Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Description


Infinity brand icon

Authorized dealer

Product Details:

  • Reference Series Class AB / D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 channel + 320 watts x 1 channel
    • 2 ohm: 65 watts x 4 channel + 500 watts x 1 channel
    • Bridged: 140 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
  • Total power output: 280 watts
  • LED Power/Protect Light

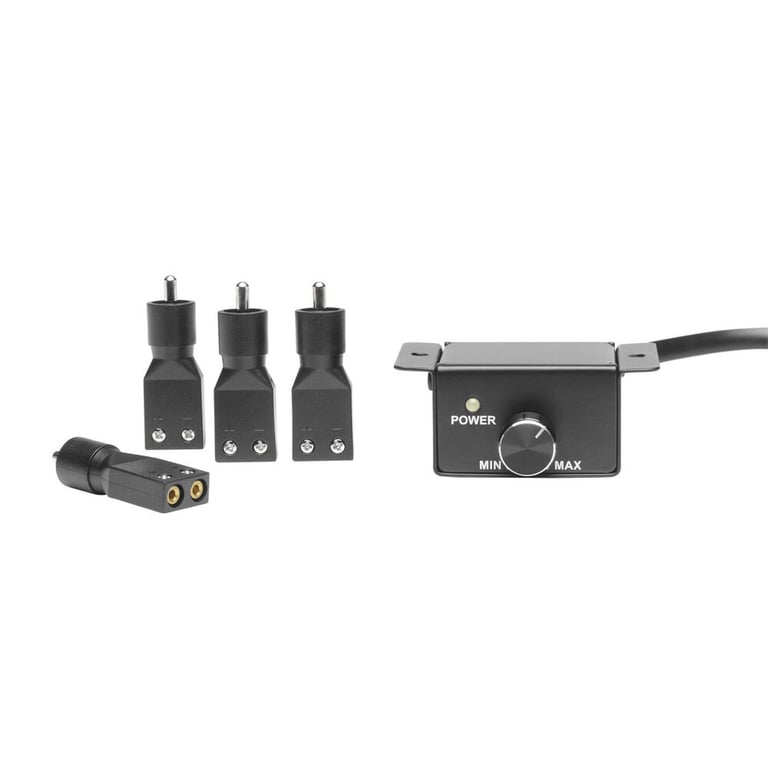

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 200mV - 2.0 volts
    • High level: 2.0V - 20 volts
  • Frequency Response: 10 - 40000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: >80 dB
  • Variable high-pass filter: 32 - 320 Hz
  • Variable low-pass filter: 32 - 320 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 90A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 14-3/16" L x 7-1/8" W x 2-3/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: AMPRF7005AAM

Check out the Infinity Reference 7005A Owner's Manual

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(17)

$259.99

List price $323.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$549.99

List price $779.98

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(5)

$499.99

List price $600.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

GM-DX975 small

Pioneer GM-DX975

• 75 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$549.99

List price $650.00

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Compact Design
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
65 watts x 4 channel
Bridged RMS Power
140 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
320 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
AB / D
Number of Channels
5-Channel
Total RMS Power Output
280 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
2 ohms
Frequency Response
10 - 40000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 3
Total Fuse Rating
90
Strappable
No
Sonic Certified Amplifier
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 2.0 volts
High-Level Input Sensitivity
2.0V - 20 volts
What is in the box?
Paperwork
User manual
Brand sticker/decal
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Mounting screws (6)
Three spare fuses
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

do-not-use-3

Weight:

8.86lbs

Internal SKU:

do-not-use-reference7005a

Internal Product ID:

183295

Customer Ratings & Reviews


Infinity Reference 7005A (AMPRF7005AAM) thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


GR10 small

Grado GR10

In-Ear Audiophile Earbuds w/ Moving Armature Design and Small Housing

(2)

$329.00

List price $399.00

SR80I small

Grado Prestige Series SR80i

Prestige Series, Dynamic Open-Air Headphones with Padded On/Over Ear-Cups & Non-Resonant Air Chamber

(24)

$99.00

List price $99.00

No picture

Optima Blue Top Battery

$169.99

List price $199.99

AF45 White Knight (AF451-0-02) small

AudioFly AF451002 (White Knight)

45 Series Sound Isolating In-Ear Headphones

$24.99

List price $59.95

RP-HJE120-R small

Panasonic RP-HJE120-R - Red

Earbuds with ErgoFit Design for a Comfortable Fit and Colors Matching iPod Nano 5th Generation

(2)

$9.99

List price $9.99

W80 small

Westone W80

Signature Series In-Ear Monitors w/ 8 Balanaced Armature Drivers and Detachable ALO Audio Hi-Fi “Reference 8” cable

$1499.99

List price $1499.99

XS-12/2 small

Soundstream XS-12/2

12" Dual 2 ohms XS Series Subwoofer

(1)

$44.99

List price $99.99

05SW16-25FT small

Kicker 05SW16 (25FT)

25 ft. - Kicker 16 Gauge S-Series Speaker Wire Precut from Roll of 05SW16250

$24.99

List price $39.99

95-3107S small

Metra 95-3107S Dash Kit

Install a new Double-DIN car stereo in select 2008 Astra (Sliver)

$16.99

List price $27.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Ford Focus

2012 Ford E Series

1996 Cadillac DeVille

1984 Chrysler E Class

2019 Ford Escape

2022 Ford E Series

2007 Subaru Outback

1991 Mitsubishi Eclipse

1998 Mazda MPV

2007 Audi A6

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
