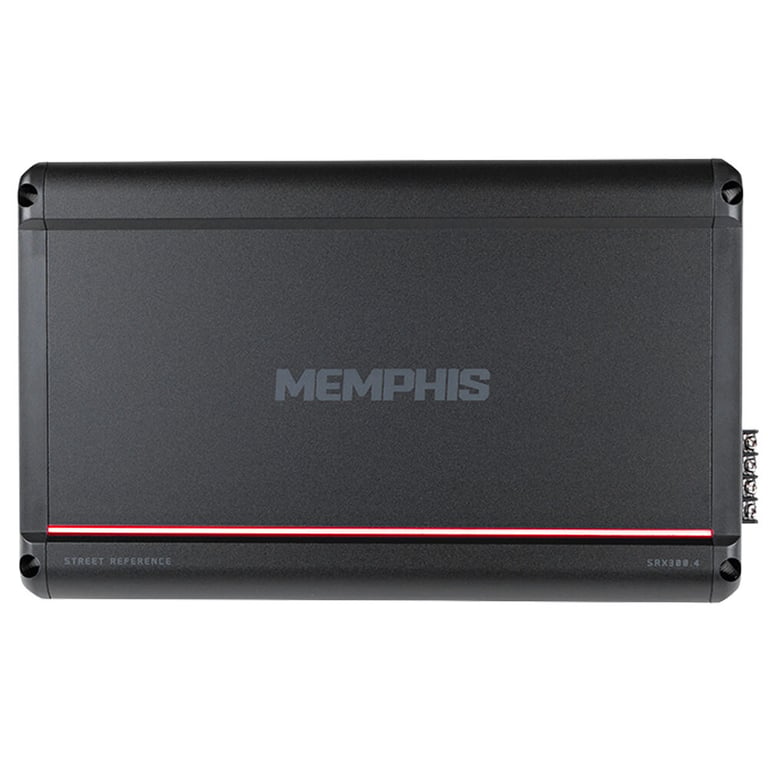

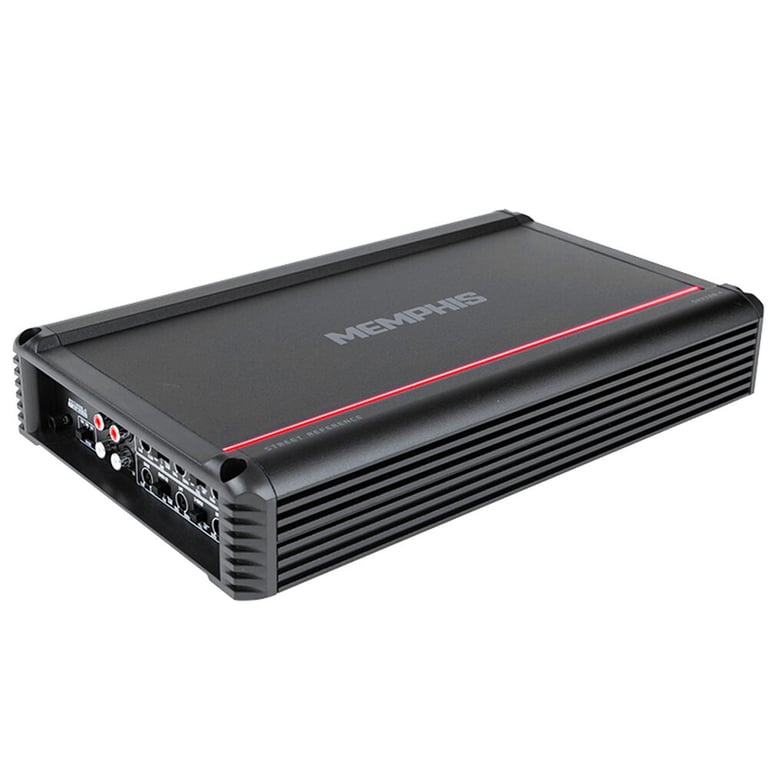

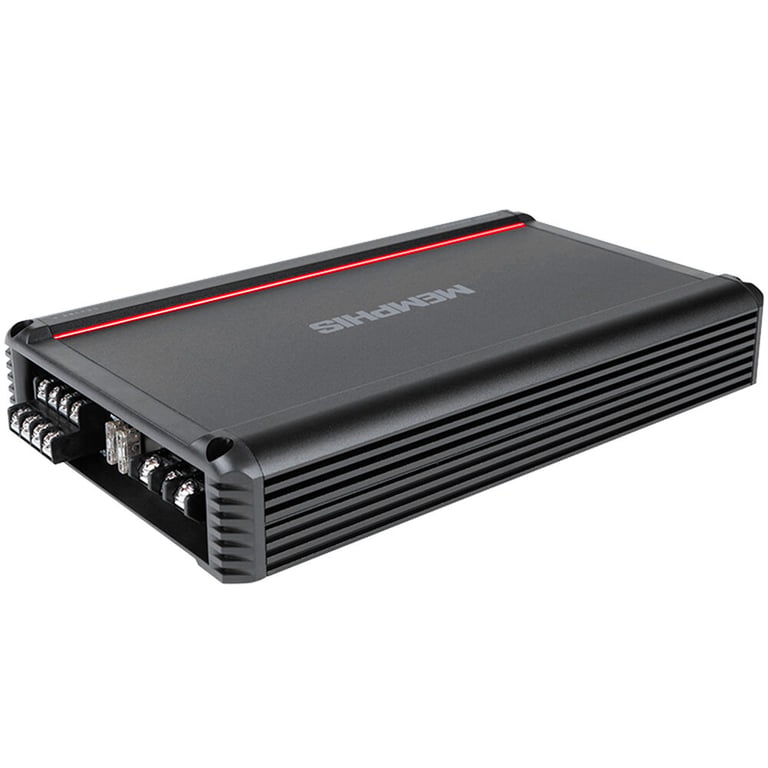

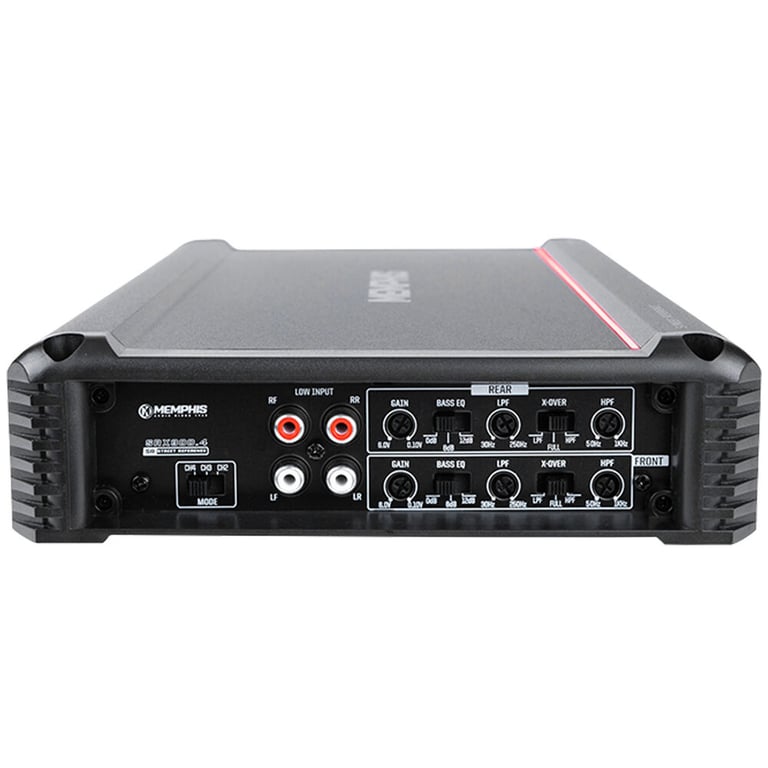

Memphis SRX300.4

300W RMS Street Reference Series Class AB 4-Channel Amplifier

Memphis
Shop all Memphis
highlight-star-icon

• 50 watts x 4 channel @ 4 ohms
• 75 watts x 4 channel @ 2 ohms
• Bridged: 150 watts x 2 channel @ 4 ohms
• Total RMS Power: 300 watts
• Class A/B 2 ohms Stable 4-Channel Amplifier

Learn more about the srx3004

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

srx3004v thumbnail

Memphis SRX300.4V

OUR PRICE: $199.95

View item

Description


Memphis brand icon

Authorized dealer

Product Details:

  • Class A/B 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 channel
    • 2 ohms: 75 watts x 4 channel
    • Bridged, 4 ohms: 150 watts x 2 channel
  • Total power output: 300 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 100mV - 6 volts
    • High level: 400mV - 12 volts
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 50 - 1000 Hz, 24 dB/octave
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • Fuse Rating: 50A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 8.07" W x 13.01" L x 2" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Memphis SRX300.4V thumbnail
(newest, current model)
Memphis SRX300.4 thumbnail
(previous model, replaced by Memphis SRX300.4V)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20,000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 1000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
50 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Total Fuse Rating
50A
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
100mV - 6 volts
High-Level Input Sensitivity
400mV - 12 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Mounting screws (4)
Washers (4)
Two spare fuses
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRX300.4

Weight:

6.50lbs

Internal SKU:

srx3004

Internal Product ID:

186795
