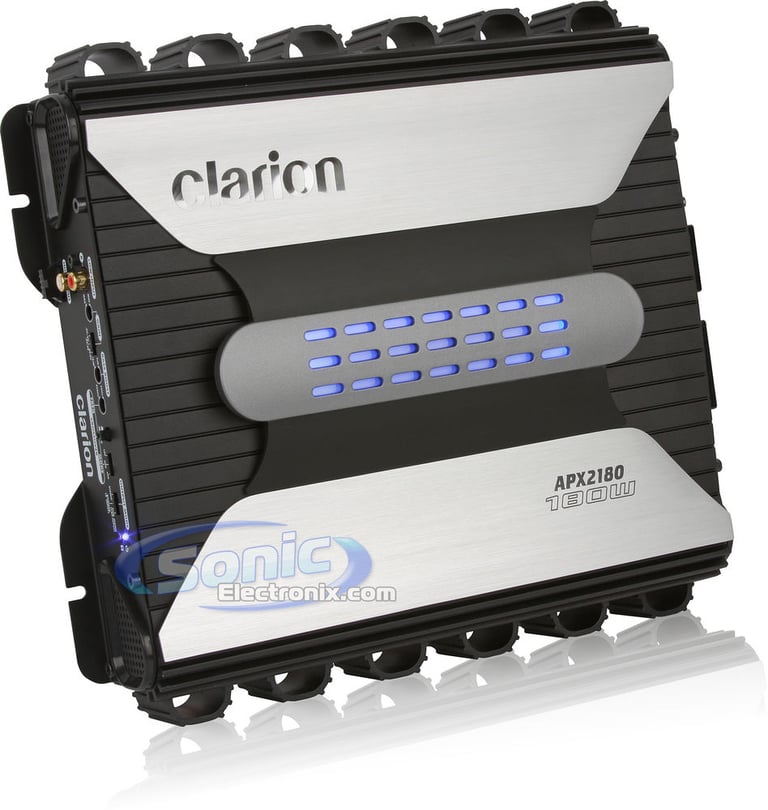

Clarion APX2180

320W Max, 2-Channel Power Amplifier (APX 2180)

Clarion
Shop all Clarion
Product videos
highlight-star-icon

Power Series 2-Channel Class A/B Car Amplifier • 90 Watts x 2 Chan. @ 4 Ohm • 150 Watts x 2 Chan. @ 2 Ohm • 300 Watts x 1 Chan. @ 4 Ohm • Speaker-Level Inputs • Compact Footprint • Ground Loop Isolated RCA Inputs

Learn more about the apx2180

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

99-5831G main

Metra 99-5831G Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2014-2018 Transit Connect (Two-tone Gray and Black)

-42.86%

$107.99

List price $188.99

70-5524 main

Metra Ford Fiesta Wiring Harness (70-5524)

Wiring Harness For select 2011-2019 vehicles from Ford

1
-10.01%

$17.99

List price $19.99

AXDI-FOC main

Axxess AXDI-FOC

Install New Car Stereo and Retain Steering Wheel Controls and Other Factory Features In select 2011-2019 vehicles from Ford

-10.37%

$120.99

List price $134.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5

Product Highlights


Power Series 2-Channel Class A/B Car Amplifier • 90 Watts x 2 Chan. @ 4 Ohm • 150 Watts x 2 Chan. @ 2 Ohm • 300 Watts x 1 Chan. @ 4 Ohm • Speaker-Level Inputs • Compact Footprint • Ground Loop Isolated RCA Inputs

Description


Clarion brand icon

Authorized dealer

  • Power Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 90 watts x 2 chan.
    • 2 ohm: 150 watts x 2 chan.
    • Bridged, 4 ohm: 300 watts x 1 chan.
  • Max power output: 160 watts x 2 chan.
  • MOSFET power supply
  • LED power indicators
  • Bass Boost (0-18 dB)
  • Low profile, compact footprint to accommodate space limitations
  • 2/1 channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • 2-Way System Protection circuitry (thermal and speaker short protection)
  • Input voltage selector with three sensitivity ranges (.2-6V, .6-2V, 2-8V)
  • Heavy duty aluminum alloy heatsink for efficient heat dissipation
  • Ground loop isolation for RCA inputs
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter (50-550 Hz, 12 dB/octave)
  • Variable low-pass filter (50-550 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-50,000 Hz
  • Dimensions: 12"L x 12"W x 2-7/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
90 watts x 2 channel
RMS Power @ 2 ohms
150 watts x 2 channel
Bridged RMS Power
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
320 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.025%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 550 Hz
Low-Pass Crossover Frequency
50 - 550 Hz
Signal-to-Noise Ratio
93 dB
Channel Separation
70 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 1

Item Details


Manufacturer:

Model Number:

APX2180

Weight:

8.00lbs

Internal SKU:

apx2180

Internal Product ID:

18993
