MTX JH3004

720W Peak (360W RMS) Jackhammer Series 4-Channel Class AB Amplifier

MTX
Shop all MTX
highlight-star-icon

• 60 watts x 4 channel @ 4 ohms
• 90 watts x 4 channel @ 2 ohms
• Bridged: 180 watts x 2 channel @ 4 ohms
• Total RMS Power: 360 watts
• Class A/B 2 ohms Stable 4-Channel-Channel Amplifier

Learn more about the jh3004

We apologize

This item has been discontinued

Description


MTX brand icon

Authorized dealer

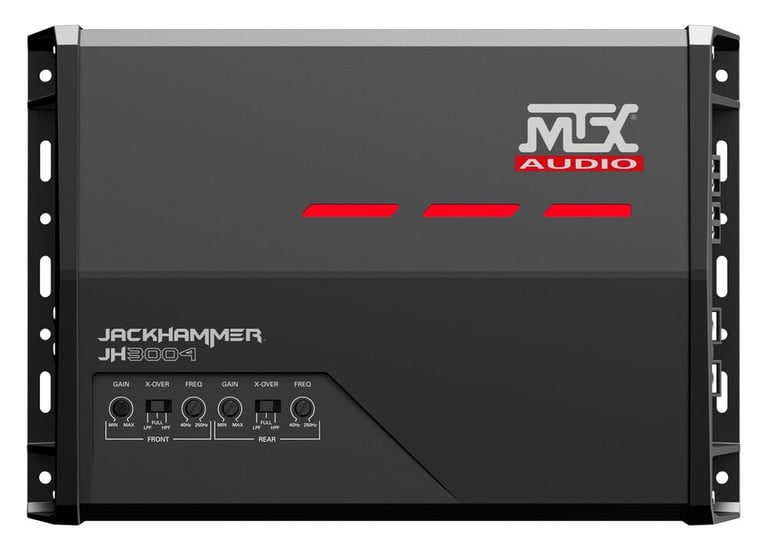

Easy Access Controls

The JH3004 is a high fidelity amplifier designed to drive high powered full range speakers. The top panel includes controls for both front and rear full range speakers including gain, crossover and frequency adjustment. The front panel location allows for easy adjustment after the unit is installed. This layout is simple and elegant, giving the JH3004 a sophisticated look with the convenience of easy accessibility.

Only What You Need

The JH3004 has the functionality to up to four full range speakers. The input section features high quality RCAs (front and rear) for easy connection to after market head units or processors. The Input Level selection is either Pre or Spk In so it can also be used with factory radios that don't have RCA outputs. The Auto Turn On feature is selectable, enabling the unit to turn on when it senses signal, eliminating the need to run a remote wire, or it can be turned on using a remote wire, the choice is yours. The unit can also be used in either 4-channel or 2-channel mode depending on the Input Mode selection.

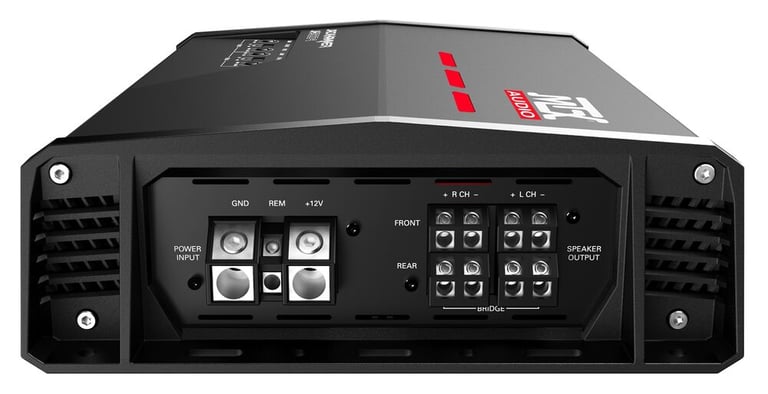

High Quality Power and Speaker Connections

The JH3004 can accept up to a standard 4-gauge power and ground wire for optimal performance. The speaker terminals can accept up to 12-gauge speaker. The speaker connection terminal has two sets of positive and negative terminals for easy wiring, the JH3004 can play loads down to 2Ω. Both sets of connectors use set screw style fittings that ensure proper connection and continual signal transfer.

Product Details:

  • JackHammer Series Class A/B 2 ohms Stable 4-Channel-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 60 watts x 4 channel
    • 2 ohms: 90 watts x 4 channel
    • Bridged, 4 ohms: 180 watts x 2 channel
  • Total power output: 360 watts
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 60 dB
  • Variable high-pass filter: 40 - 250 Hz, 24 dB/octave
  • Variable low-pass filter: 40 - 250 Hz, 24 dB/octave
  • Fuse Rating: 50
  • 12 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.61" W x 11.14" L x 2.57" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
PDF IconMTX JH3004 owner’s manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
Bridged RMS Power
180 watts x 2 channel
Amplifier Specifications
Series
JackHammer Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
720 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
12 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20,000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
60 dB
Remote bass/level controller
No
Fuse Rating
50A x 1
Total Fuse Rating
50
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

JH3004

Weight:

7.25lbs

Internal SKU:

jh3004

Internal Product ID:

191783
