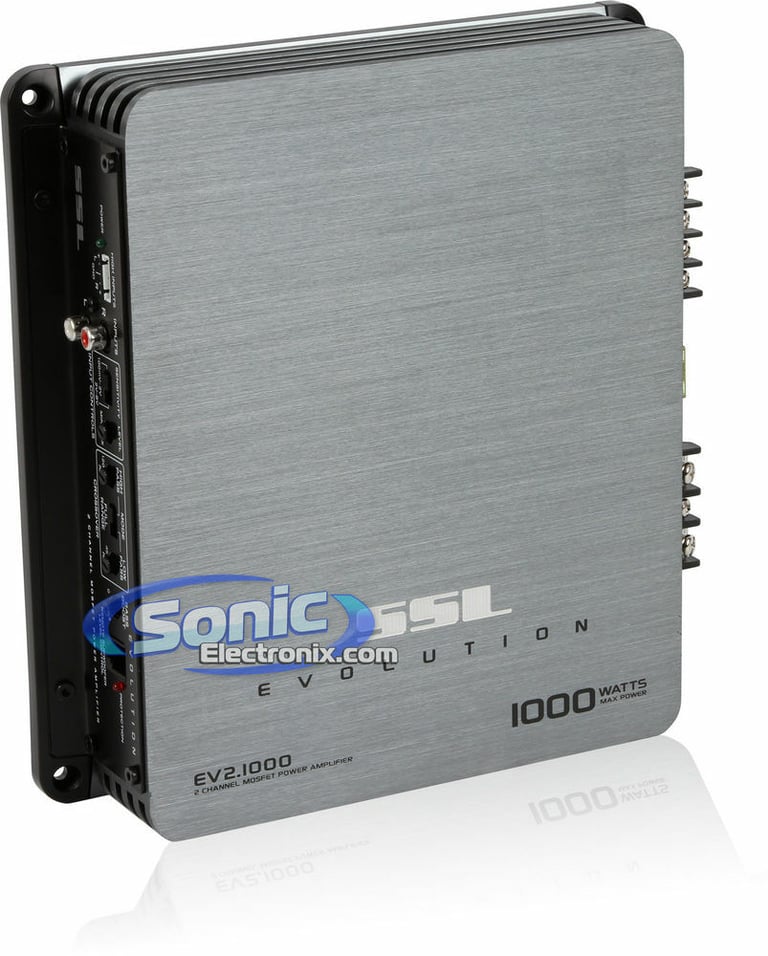

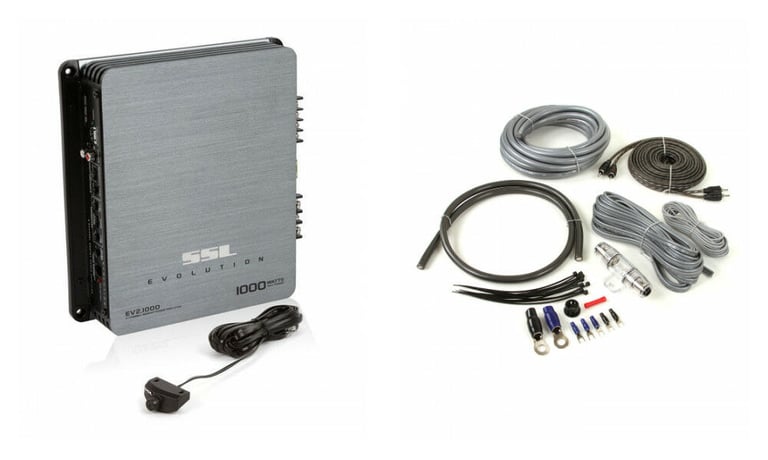

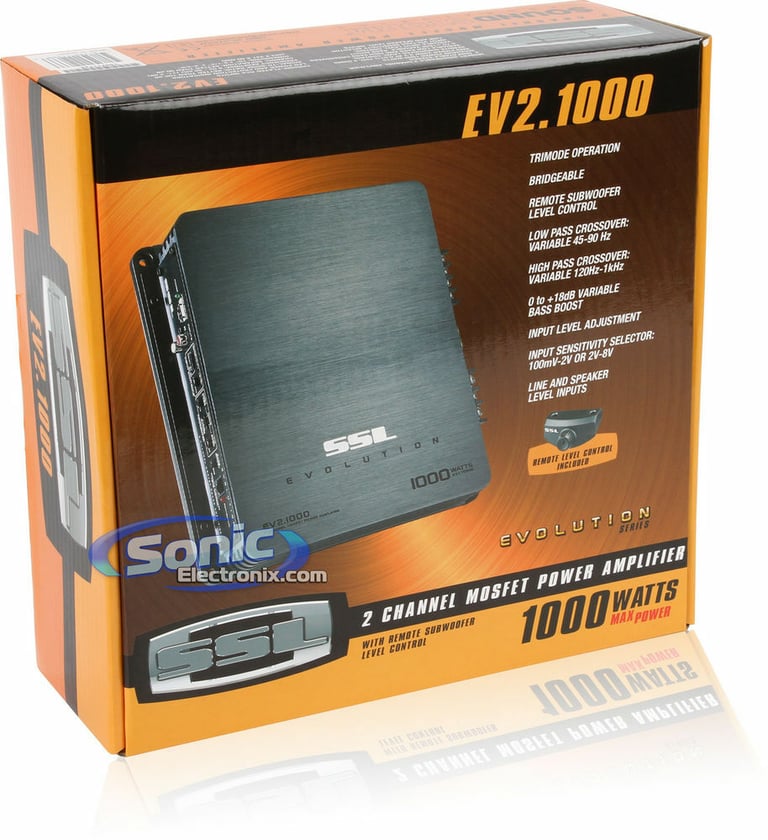

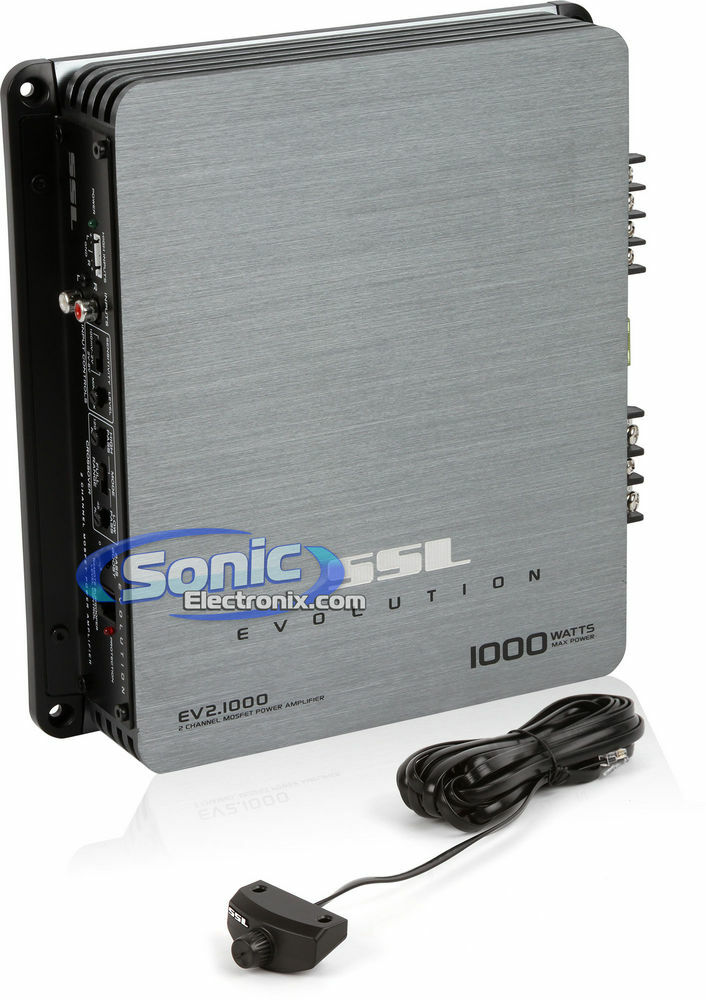

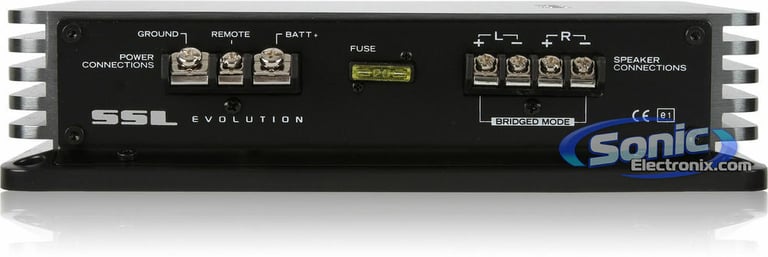

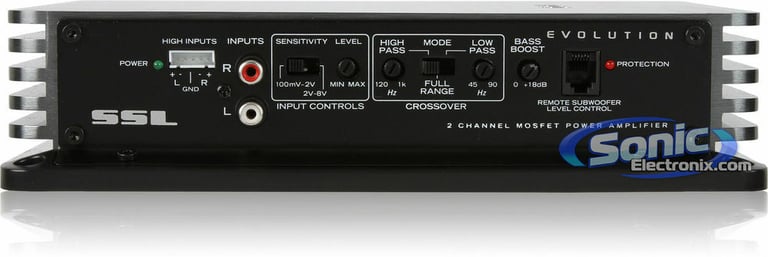

SSL EV2.1000 with Amplifier Wiring Kit

• 2-Channel Class AB Evolution Series Amplifier
• 4 ohms: 200 watts x 2 chan.
• 2 ohms: 500 watts x 2 chan.
• Bridged, 4 ohms: 1000 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply

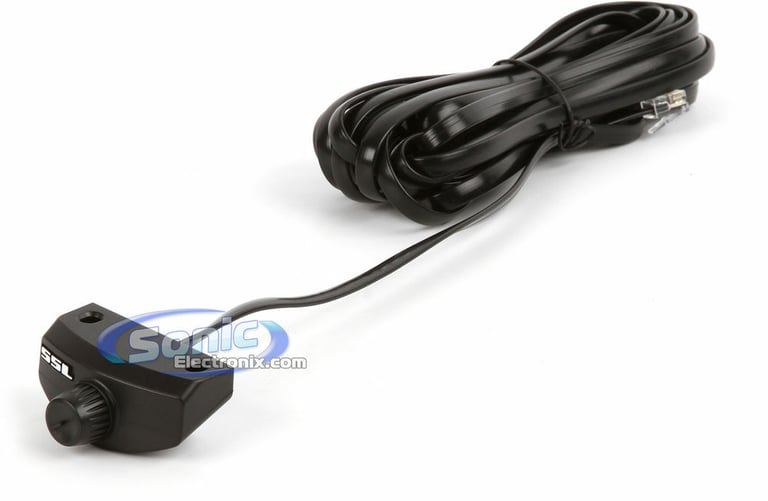

• Bass remote level control included
• LED power green and protect red indicators
• Variable bass boost (0-18 dB)
• Soft Start Turn-on
• Remote turn on/off circuit
• 2 or Mono channel operation
• Speaker-level (high-level) inputs
• Variable input gain control
• Tri-Mode capable
• 2-Way System Protection circuitry (thermal and speaker short protection)
• Dark gray anodized heatsink for extreme heat dissipation
• Nickel-Plated RCA level inputs
• Nickel-Plated screw terminals
• Variable High-Pass Filter (120-1000 Hz)
• Variable Low-Pass Filter (45-90 Hz)
• Damping factor: >125
• THD (Total Harmonic Distortion): 0.01%
• Frequency Response: 9-50,000 Hz
• Signal-to-Noise Ratio: 105 dB
• Channel Separation: 90 dB
• Fuse Rating: 1 x 20 Amps
• Dimensions: 10"D x 9-1/2"W x 2-3/8"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Product Details:

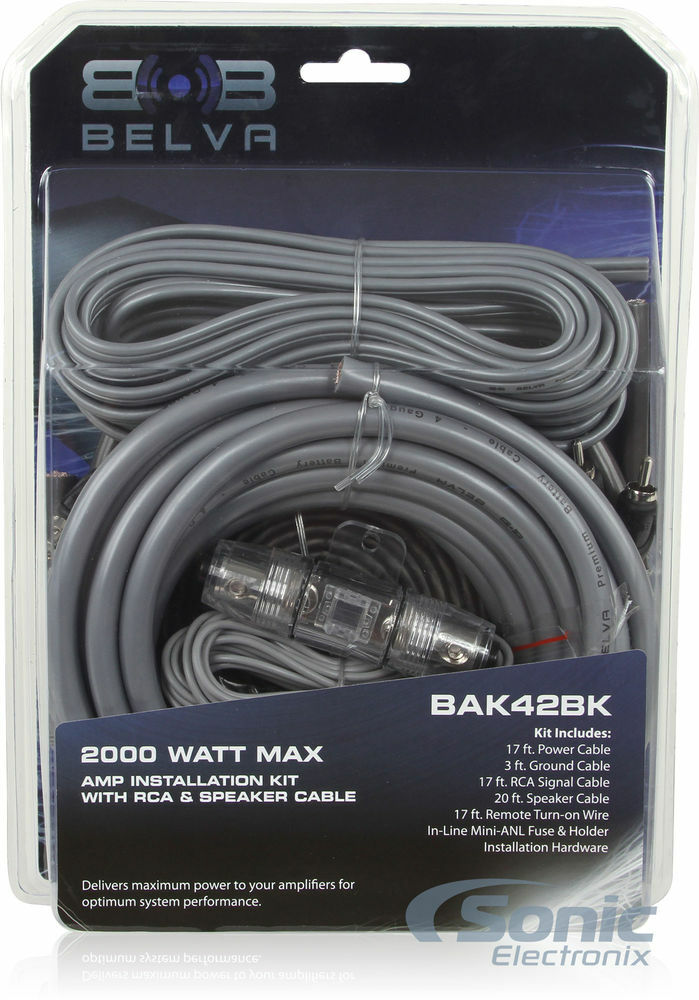

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Also available in Blue and Red
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

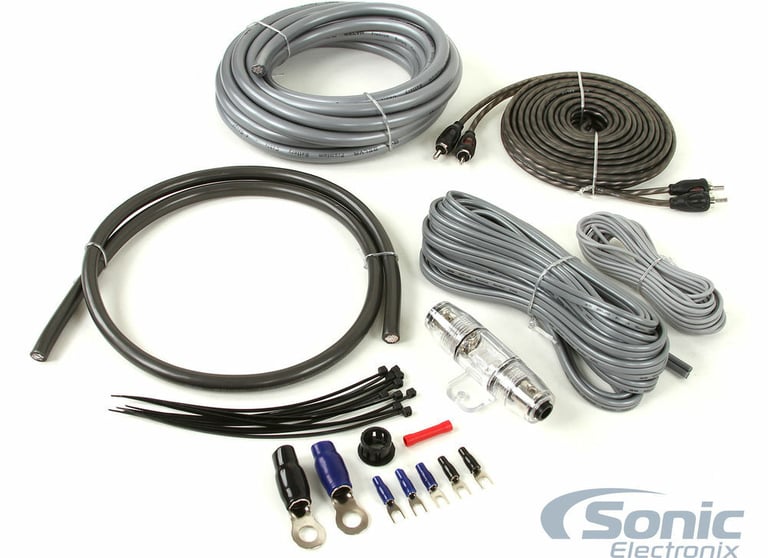

Kit includes:

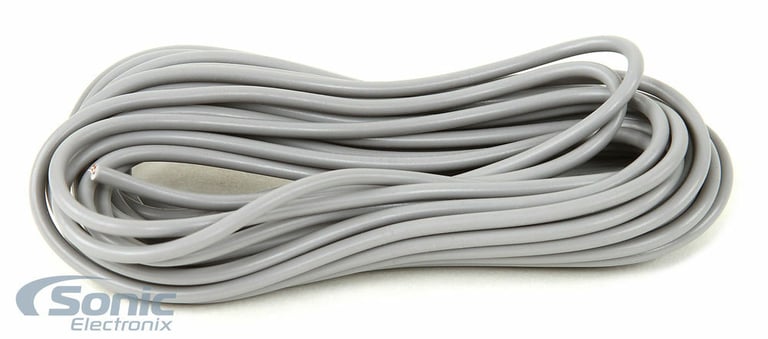

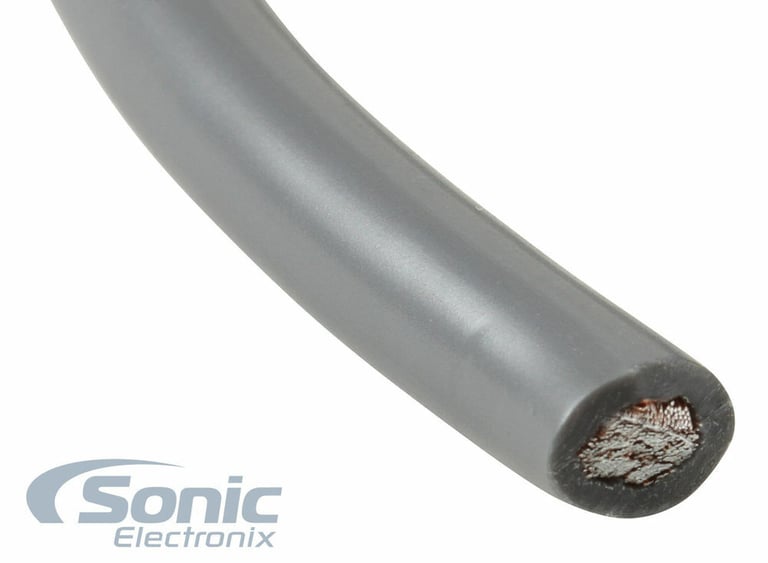

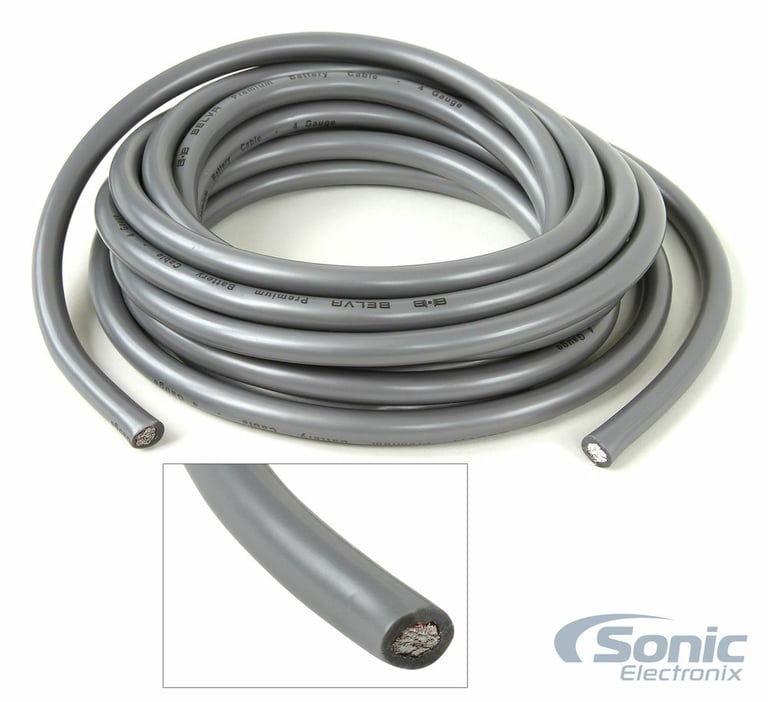

1. 17 ft. (5.2 meters) Gray 4 gauge power wire

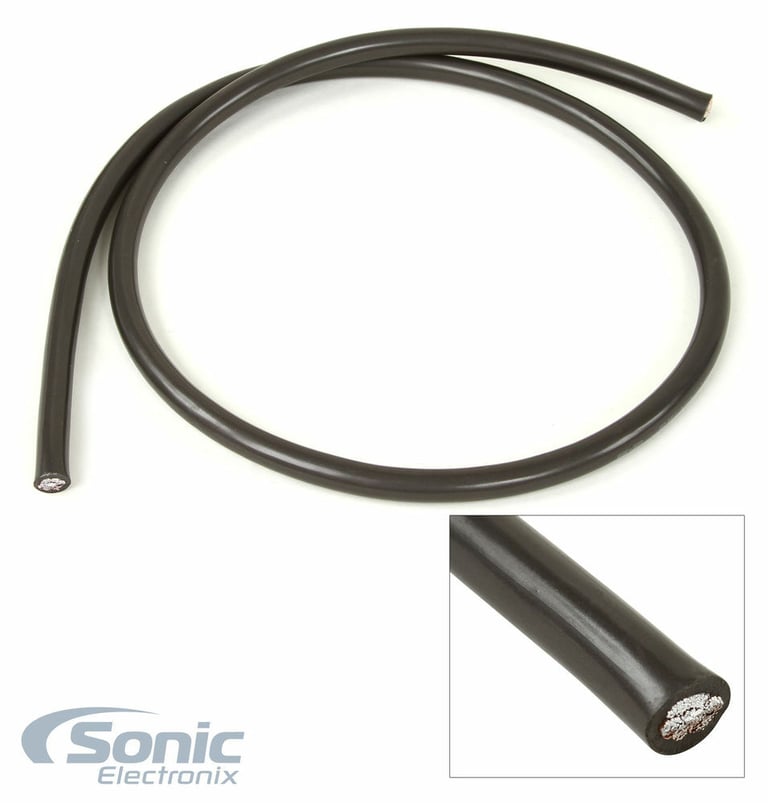

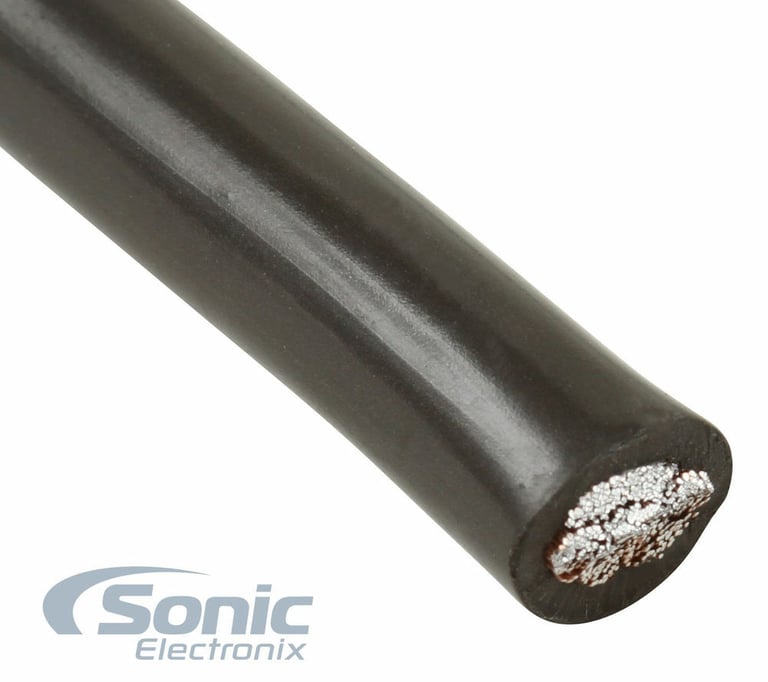

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

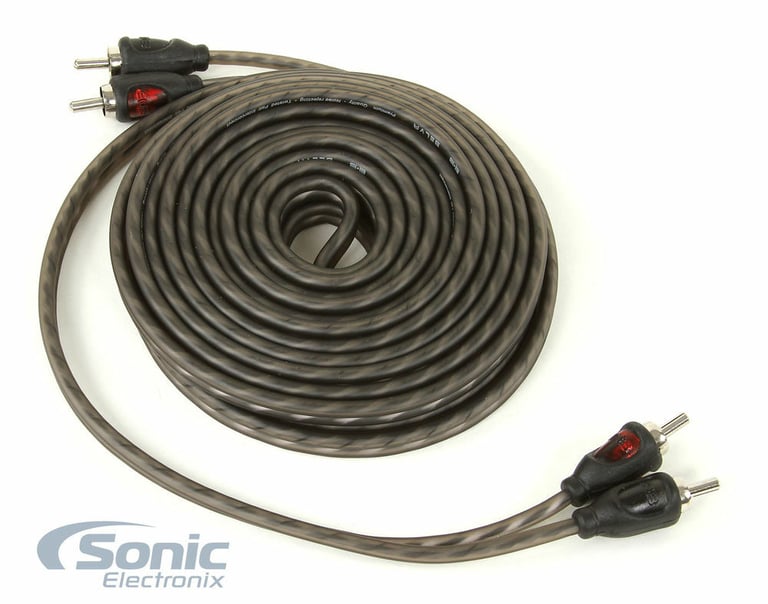

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

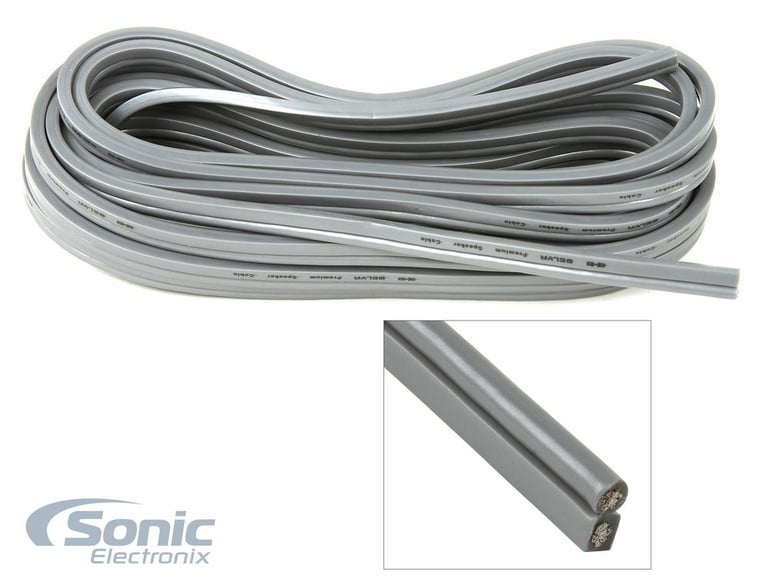

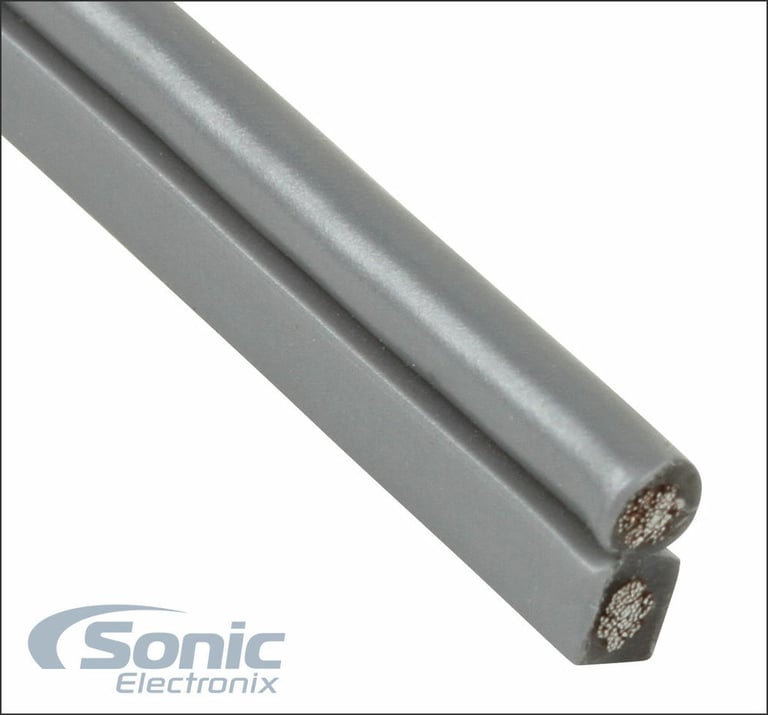

5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

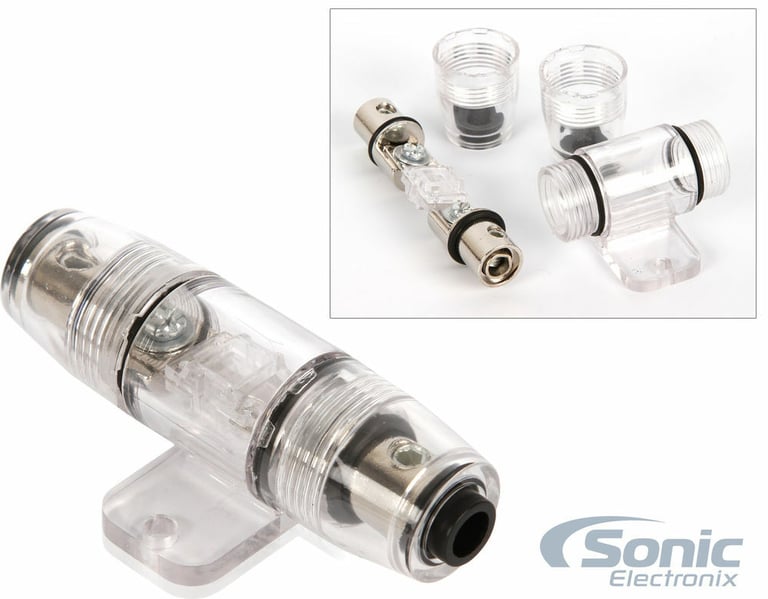

6. One MINI-ANL Fuse Holder with a 80 amp fuse

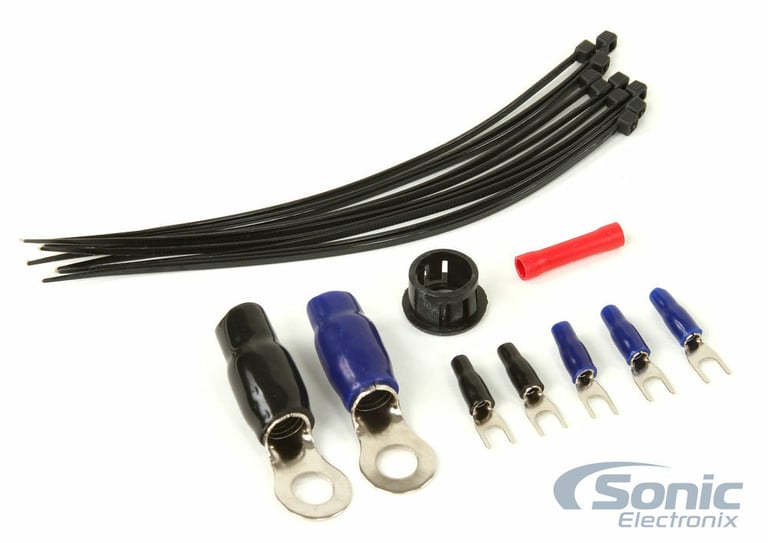

7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
