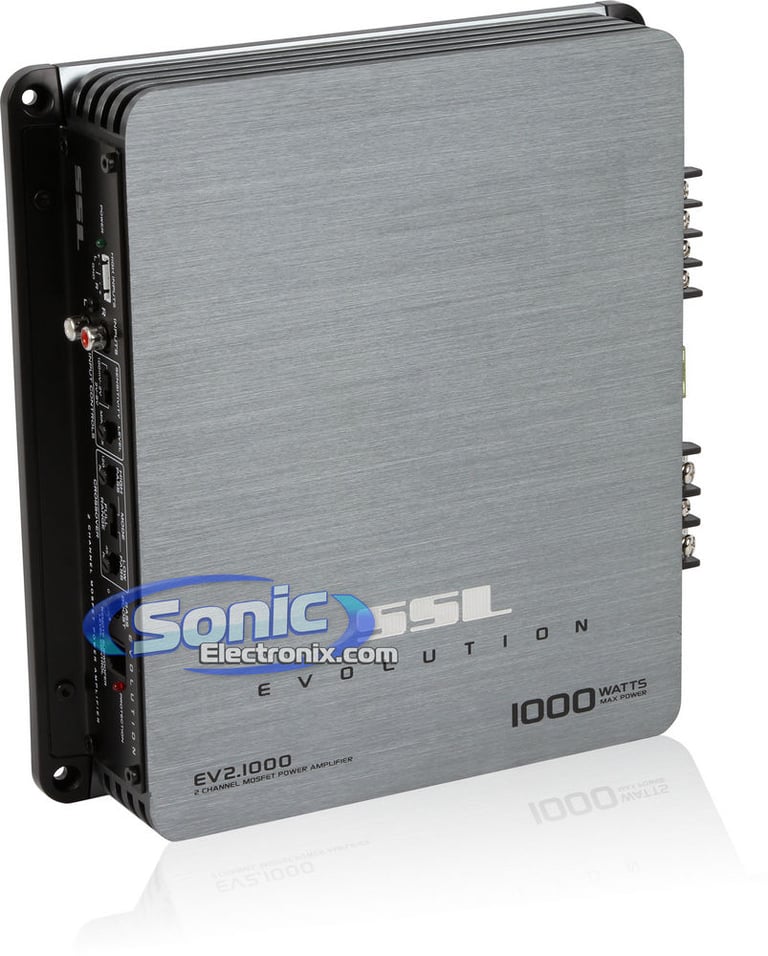

Sound Storm Labs (SSL) EV2.1000

1000W Peak Evolution Series 2-Channel Full Range A/B Amplifier with Remote Subwoofer Level Control

Product videos
highlight-star-icon

• RMS: 4 ohms: 200 watts x 2 chan
• Pulse Width Modulated MOSFET Power Supply

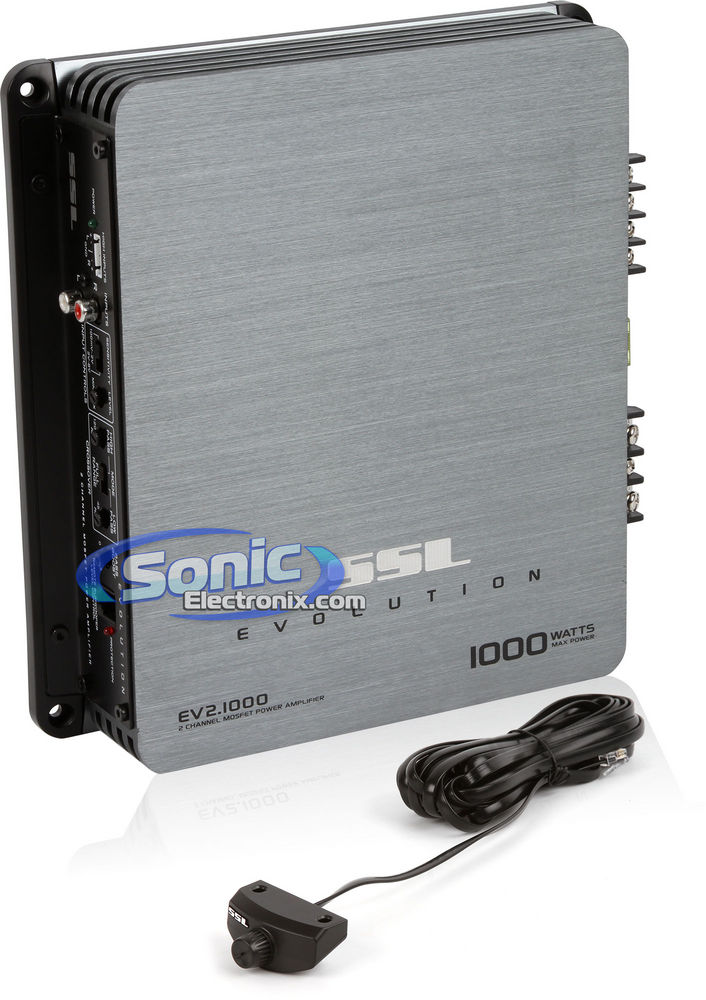

• Bass Remote Level Control Included
• Variable Bass Boost
• 2-Way System Protection Circuitry
• Dark Gray Anodized Heatsink

Learn more about the ev21000

We apologize

This item has been discontinued

Expert built bundles that save you more (1)


Choose from any of our many bundles that include this product for even more savings!

SSL EV2.1000 with Amplifier Wiring Kit

1000W Peak Evolution Series 2-Channel Full Range A/B Amplifier with Remote Subwoofer Level Control

(45)

$120.95

Product Highlights


• RMS: 4 ohms: 200 watts x 2 chan
• Pulse Width Modulated MOSFET Power Supply
• Bass Remote Level Control Included
• Variable Bass Boost
• 2-Way System Protection Circuitry
• Dark Gray Anodized Heatsink

Description


Sound Storm Labs (SSL)

Authorized dealer

SoundStorm EV2.1000 2-Channel Car Amplifier

Sonic Electronix is now carrying the new 2011 line of SSL Evolution Series Amplifiers. These amps come in Monoblock, 2-Channel, and 4-Channel configurations as well as numerous different power ratings. Each one these SSL amplifiers feature dark gray anodized heatsink, soft turn on circuit, variable input gain control, 2-way protection circuitry, LED power & protect indicators, and much more.

The EV2.1000 version has an RMS power rating of 200 watts x 2-channels wired at 4 ohms and a Max power rating of 500 watts x 2-channel wired at 2 ohms. It is equipped with nickel plated RCA level inputs & screw terminals and is powered by a MOSFET power supply. The Evolution Series amps have a wide variety of power and channel configurations for you to chose from.

SSL Platinum Dealer Product Features

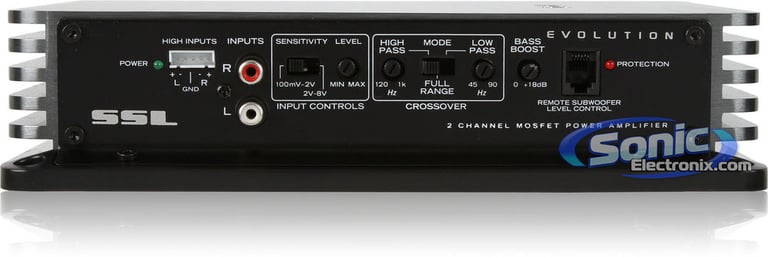

  • 2-Channel Class AB Evolution Series Amplifier
  • 4 ohms: 200 watts x 2 chan.
  • 2 ohms: 500 watts x 2 chan.
  • Bridged, 4 ohms: 1000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

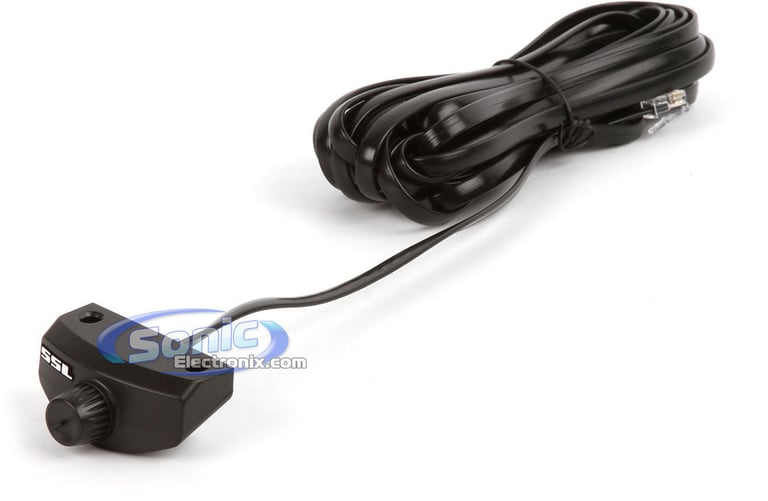

  • Bass remote level control included
  • LED power green and protect red indicators
  • Variable bass boost (0-18 dB)
  • Soft Start Turn-on
  • Remote turn on/off circuit
  • 2 or Mono channel operation

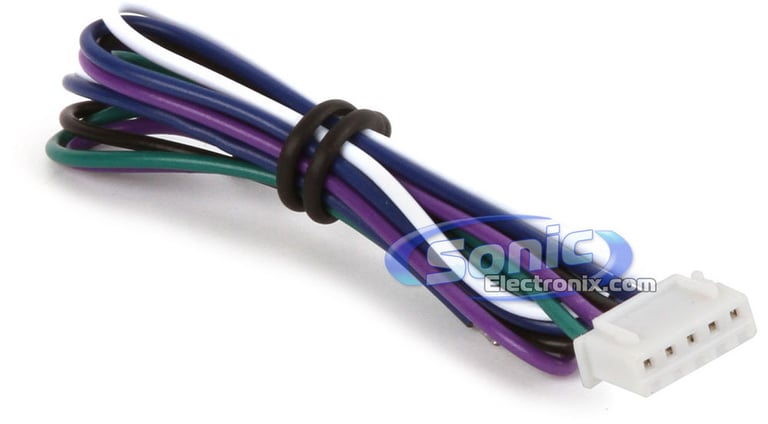

  • Speaker-level (high-level) inputs
  • Variable input gain control
  • Tri-Mode capable
  • 2-Way System Protection circuitry (thermal and speaker short protection)
  • Dark gray anodized heatsink for extreme heat dissipation
  • Nickel-Plated RCA level inputs

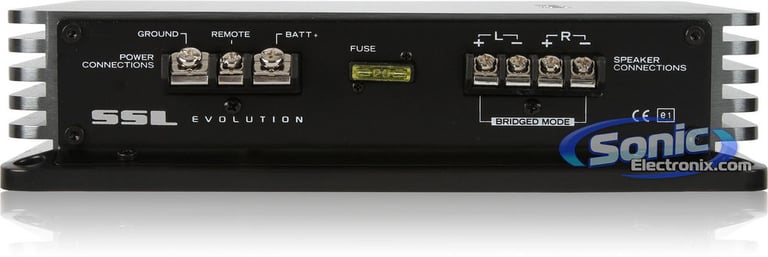

  • Nickel-Plated screw terminals
  • Variable High-Pass Filter (120-1000 Hz)
  • Variable Low-Pass Filter (45-90 Hz)
  • Damping factor: >125
  • THD (Total Harmonic Distortion): 0.01%
  • Frequency Response: 9-50,000 Hz
  • Signal-to-Noise Ratio: 105 dB
  • Channel Separation: 90 dB
  • Fuse Rating: 1 x 20 Amps
  • Dimensions: 10"D x 9-1/2"W x 2-3/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

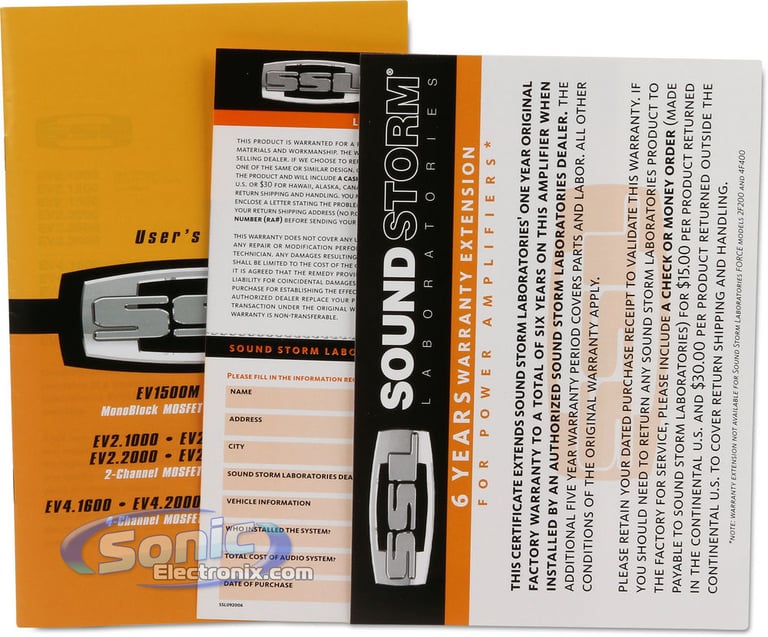

Sound Storm Labs EV2.1000 owner’s manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 2 channel
RMS Power @ 2 ohms
Not specified by manufacturer
RMS Power @ 1 ohm
Not specified by manufacturer
Bridged RMS Power
Not specified by manufacturer
Amplifier Specifications
Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
2
Total Peak Power Output
1000 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
9 - 50,000 Hz
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
120 - 1000 Hz
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
105 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
1A x 20
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
.1 - 2 volts
High-Level Input Sensitivity
2 - 8 volts
What is in the box?
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV2.1000

Weight:

7.00lbs

Internal SKU:

ev21000

Internal Product ID:

34964

Product and How-to Videos


Customer Ratings & Reviews



5 star
47%
4 star
20%
3 star
27%
2 star
0%
1 star
7%



Durability
4
Value
4.4
Features
3.9
Design
4.3
Usability
4.5
Sort by:

Loading...

Nice little amp

This is a nice little amp for the money. I was using it on two 10" Kicker CVT bridged and it didn't heat up.

By accoman on March 23, 2014

25

found this helpful.

93 lexus ls400

someone gave me this little amp... im making a budget build just for the amp... after tuning it at work (i work in car audio) i got 300 rms at 4 ohms and no clipping... to tell the truth i didn't think it would sound so good wired up to a kicker comp 15 in a very big box... maybe its all the other things ive done to it but still... for a free amp im not going to say no

By mathieu on February 15, 2013

24

found this helpful.

great

good design. will fit great in my boot. can't wait to install

By Jimmy on April 28, 2014

23

found this helpful.

SoundStorm EV2.1000

Exactly what I wanted when powering a 12"Kenwood. Using around half of the amps power in a 1.12 cu ft square box in the trunk of a late model Impala. Hits the sub hard sound 100% clean.
Cons:The supplied remote was worthless. I don't there's much difference no matter the setting.
None the less the remote wasn't installed. I'm absolute happy with the purchase overall..

By Rockshard on February 25, 2013

23

found this helpful.

an okay amp

i bought this amp installed it in Friday hooked up to 2 kicker comp 15's by 2-channel works fine.. but when i bridge them well the protection mode turns on. I may have just wired it wrong. Also the bass knob didn't work. Very disappointed but can't complain for the price. All in all i would recommend it to anyone.

By berlinetta on September 6, 2011

22

found this helpful.

hot hot

Excellent amp. Options very good. Great output. Second day using it to push 2 12" MTX Terminators and I set of a car alarm. Only problem is the heat. Its in a decently vented area and it gets hot fast. Excellent power if vented properly

By phil on May 2, 2011

22

found this helpful.

great product

This is one of the best amps I have ever used. It has a sleek compact design and various options for comnecting to the car audio. Plenty of power and all at a price that cant be beat.

By zeke on April 28, 2014

22

found this helpful.

Good when its working

This amp is the first amp i have bought before. i didnt know any better and decided to cheap out and give this thing a try. Great shipping, i got it two days later, but i had bought it from the manufacturer themselves and when it came to my house it wasn't fully functional. I wired it up and only one channel worked (and flickered every now and then), and the other channel didnt work at all. This is a visually pleasing amp but it only has one 25a fuse on it which means if it did work 100% there is no way this thing is pushing out more than 400w ( or less, i guess it is expected since this company is involved with boss audio). My advice, spend some more money and get an alpine mrp-m500 for a full 1000watts, or get a rockford fosgate p250 for equal performance

By hayden on December 16, 2012

20

found this helpful.

Fantastic amp

Highly recommended no shortage of power never overheats fully satisfied with it's performance.

By David24 on March 8, 2012

20

found this helpful.

Best Bump for the buck ;D

Purchased amp about 2 weeks ago. Just got to installing it in a 94 Camry. Have it bridged in series to two 12inch Dual subs at 2ohms in a ported enclosure. The sound quality is fantastic! The best part is how clean & tight the bass this amp is producing! Now I know it's an 80 dollar amp but rest assured it's money well spent. Highly recommend. You won't get any other 2 channel amp at this price with these awesome specs. SoundStorm has won me over as a long standing customer :D

By Frank on April 17, 2011

21

found this helpful.
