Memphis PRX800.5V

800W RMS Power Reference Series Class-D 5-Channel Amplifier with Bass Remote

Memphis
Shop all Memphis
highlight-star-icon

• 70 watts x 4 channel + 200 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 400 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 400 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

Learn more about the prx8005v

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

jp-tsh1 main

Metra JP-TSH1

Fender Light Harness for select 2018-2026 Gladiator and Wrangler (JL)

-10.64%

$41.99

List price $46.99

JP-1014 main

Metra JP-1014 Speaker Pods Adapters

Install aftermarket 6.5" or 6.75" speakers in select 2018-2024 Gladiator and Wrangler (JL)

7
-10.11%

$79.99

List price $88.99

JP-1019 main

Metra JP-1019 Soundbar Speaker Adapters

Install aftermarket 6" to 6.75" speakers in select 2024-2026 Gladiator and Wrangler

-10.26%

$174.99

List price $194.99

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

APH-CH03 main

PAC APH-CH03

18" Speaker Connection Harnesses for select 2016-2026 vehicles from Jeep, Dodge, Chrysler

-51.70%

$42.99

List price $89.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42

Description


Memphis brand icon

Authorized dealer

Product Details:

  • PRX Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 4 channel + 200 watts x 1 channel
    • 2 ohm: 100 watts x 4 channel + 400 watts x 1 channel
    • Bridged: 200 watts x 2 channel @ 4 ohm + 400 watts x 1 channel @ 2 ohm
  • Total power output: 800 watts

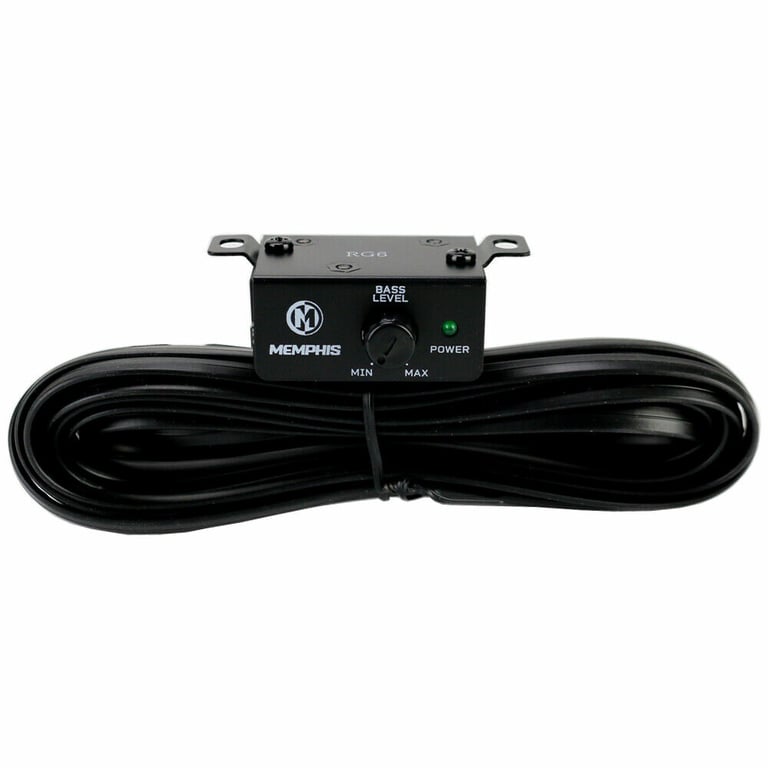

  • Wired bass level remote control included
  • No of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Platinum plated connectors
  • Protection circuitry
  • Extruded aluminum heatsink
  • Top mounted controls
  • Input sensitivity: 0.20 - 6 volts
  • Frequency Response: 10 - 36K Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 80 dB
  • Variable high-pass filter: 50 - 1000 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7.28" L x 13.07" W x 2" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: PRX800.5V

PDF IconMemphis PRX8005V owner’s manual

Product history:

Memphis PRX800.5V thumbnail
(newest, current model)
Memphis PRXA700.5 thumbnail
(previous model, replaced by Memphis PRX800.5V)

Loading...
R2-DB8V-TRK main

Alpine R2-DB8V-TRK

2000W Peak (700W RMS) Loaded Dual 8" R-Series Vented Truck Enclosure for select 2007-2024 vehicles from Ford, Jeep, Ram

1
-16.67%

$999.95

List price $1200.00

S2-DB8V-TRK main

Alpine S2-DB8V-TRK

600W Peak (300W RMS) Loaded Dual 8" Vented Enclosure for select 2007-2024 vehicles from Jeep, GMC, Ford

-16.67%

$849.95

List price $1020.00

JT-S84LD main

DS18 JT-S84LD

3600W Peak (1800W RMS) Loaded Quad 8" Sealed Enclosure with Digital LED Lights for select 2020-2026 Gladiator

$1,249.95

Limited time!
SBX-J-JTGLAD/10TW1 main

JL Audio Stealthbox® SBX-J-JTGLAD/10TW1

Custom Fit 10" Subwoofer Enclosure for select 2020-2026 Gladiator

-46.67%

$1,599.99

List price $2999.99

TXJ-TD8 main

AudioControl TX-JTD8

1000W RMS Loaded Dual 8" Vented Enclosure for select 2020-2024 Gladiator

-15.02%

$849.00

List price $999.00

JP-GL1-12 main

VIBE JP-GL1-12

900W Peak (300W RMS) Loaded Single 12" Vented Truck Subwoofer Enclosure for select 2020-2025 Gladiator

MBQJT-SUB-1 main

MB Quart MBQJT-SUB-1

Custom underseat enclosure with two 8" subs fits select 2020-2026 Gladiator

-10.00%

$629.99

List price $699.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Series
PRX Series
Amplifier Class
D
Number of Channels
5-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
2 ohms
Frequency Response
10 - 36K Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 1000 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
Yes
Sonic Certified Amplifier
Not Tested
Low-Level Input Sensitivity
0.20 - 6 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
Quick start guide
WITB: Amplifiers
Amplifier
Mounting screws (4)
Washers (4)
One spare fuse
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PRX800.5V

Weight:

7.59lbs

Internal SKU:

prx8005v

Internal Product ID:

198340
