Visonik V317SX

800W Max, Hi-Intense Series Monoblock Amplifier

Visonik
Shop all Visonik
Product videos
highlight-star-icon

Hi-Intense Series Car Amplifier • Single-Channel Monoblock Operation • Class AB • 400W x 1 Chan. @ 4 Ohm • 800W Max Output • Variable Bass Boost • Thermal/Short/Overload Protection Circuitry

Learn more about the v317sx

We apologize

This item has been discontinued


Loading...
AXLOC-CH5 main

Axxess AXLOC-CH5

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ram, Dodge, Jeep with Non-Amplified Systems

10
-10.48%

$93.99

List price $104.99

SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

19
-28.59%

$9.99

List price $13.99

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

10
-37.63%

$499.00

List price $800.00

Product Highlights


Hi-Intense Series Car Amplifier • Single-Channel Monoblock Operation • Class AB • 400W x 1 Chan. @ 4 Ohm • 800W Max Output • Variable Bass Boost • Thermal/Short/Overload Protection Circuitry

Description


Visonik brand icon

Authorized dealer

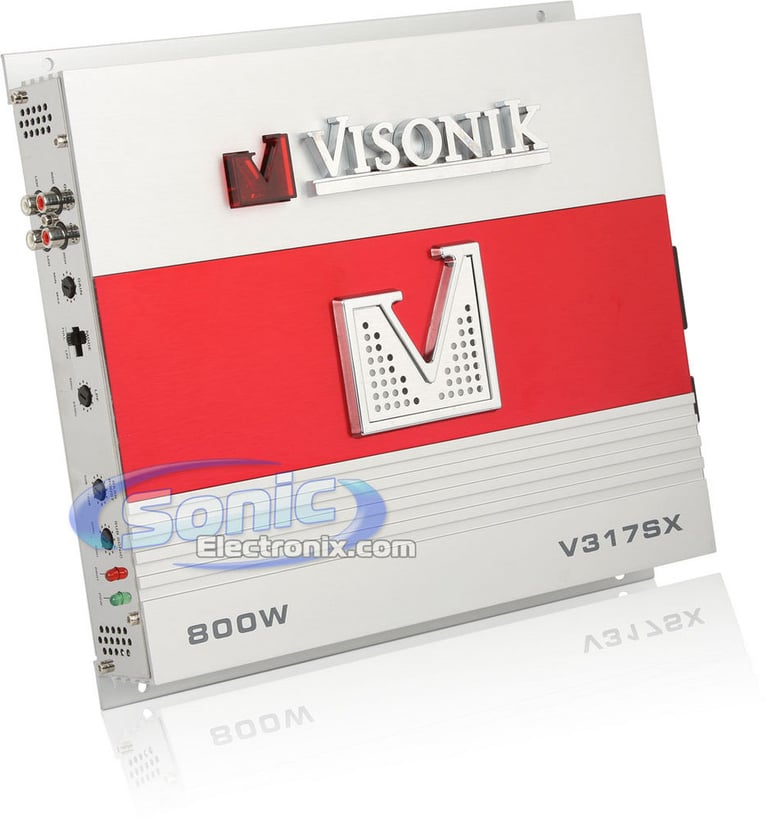

The Visonik V317SX is a single channel amplifier designed to produce high powered output while keeping a low price. This monoblock amplifier is rated at 400 watts at 4 ohm and 600 watts at 2 ohm. That power rating is perfect for most entry and mid level subwoofers on the market today. The small construction of the Visonik V317SX helps make this amplifier easy to install and convenient to place in cars, trucks, SUVs, or any other vehicle. For an entry-level amplifier designed to power a subwoofer or two, the Visonik V317SX is a perfect choice!

Product Features:
  • Hi-Intense Series Single-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
  • Max power output: 800 watts x 1 chan.
  • Full MOSFET power supply and circuitry
  • Power/Protection LED indicators

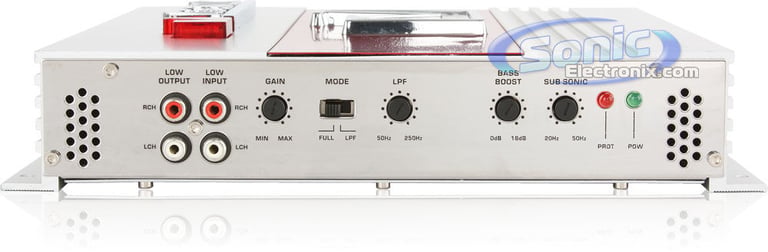

  • Tuned Bass EQ (0-18 dB bass boost @ 45 Hz)
  • Single channel monoblock operation
  • Heavy duty aluminum alloy heatsink for heat dissipation
  • Silver RCA level inputs
  • Gold plated screw terminals
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Variable subsonic filter (20-50 Hz, 24 dB/octave)
  • 200mV - 4V Input Sensitivity
  • Frequency response: 20-20,000 Hz
  • 90dB Signal-to-Noise Ratio
  • 60dB Channel Separation
  • 22K Ohm Input Impedance
  • Dimensions: 12"L x 9-5/8"W x 2H

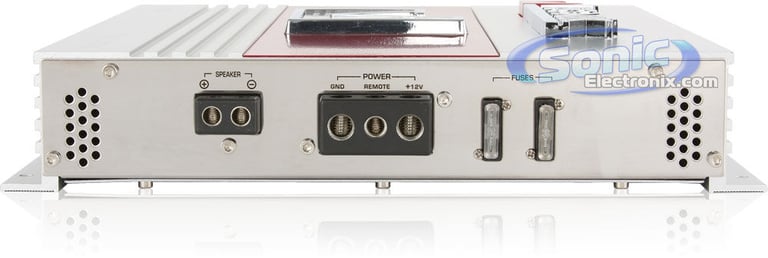

  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 2-year Manufacturer's warranty

Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

DRQC20AC-TN main

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

2
SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

DRQC20C-TN main

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

Two 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure for select 2002-2018 vehicles from Ram, Dodge

51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 vehicles from Ram

-10.53%

$849.99

List price $949.99

SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

51KR_46CXA_RCT_XK42_NK_49K main

Kicker KRDL7T10 Sub Enclosure + CXA1200.1 Amp + Remote w/ Free Amp Install Kit

1000W RMS Dual 10" Sealed Truck Enclosure, 1200W RMS Class D Monoblock Amp, Wired Bass Remote, 4 Gauge OFC Amp Kit, and 2 Koozies

158
-18.40%

$1,290.01

List price $1580.93

51KRDL_NDA15_XK42_NK_KK main

Kicker KRDL7T10 Subwoofer Enclosure + NVX NDA15001 Amp w/ Free Amp Install Kit

1000W RMS Loaded Dual 10 inch Sealed Truck Enclosure, 1500W RMS Class D Monoblock Amplifier with Bass Remote, 4 Gauge OFC Wiring Kit and Koozies

138
-24.94%

$1,050.02

List price $1398.94

51KTDL7_NDA15_XK42_NK_49K main

Kicker 51KTDL7T102 + NVX NDA15001 w/ Free Amp Install Kit

1000W RMS Loaded Dual 10" Sealed Truck Enclosure with 1500W RMS Class D Monoblock Car Amplifier, 4 Gauge OFC Wiring Kit, and Koozies

137
-24.94%

$1,050.02

List price $1398.94

51L7T_CXA12_ARCT_XK42_NK_KK main

Kicker 51KTDL7T102 Enclosure + CXA1200.1 Amp w/ Free Amp Install Kit

Kicker 1000W RMS Loaded Dual 10" Sealed Truck Enclosure, 1200W RMS Monoblock Amp, Bass Remote, NVX 4-Gauge OFC Wiring Kit, and Koozies

157
-18.40%

$1,290.01

List price $1580.93


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
800 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No

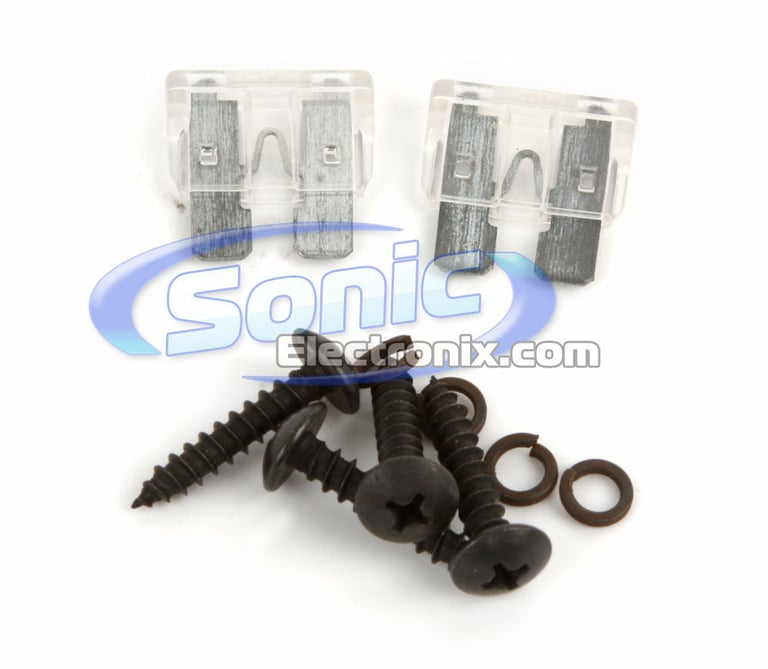

Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

V317SX

Weight:

9.00lbs

Internal SKU:

v317sx

Internal Product ID:

1995

Product and How-to Videos


Customer Ratings & Reviews


Visonik V317SX thumbnail image

5 star
57%
4 star
33%
3 star
7%
2 star
0%
1 star
3%



Durability
4.3
Value
4.7
Features
4.2
Design
4.1
Usability
4.7

Customer Reviews

Sort by:

Loading...

Temp Replacement

I bought this amp to temporarily replace my high end amp that is broken beyond repair. Hopefully it can power my subs till I can buy another high end amp. But bass on others reviews this sounds like it could be a promising replacement for awhile.

By Talowin on July 3, 2010

10 found this helpful


amp is ILL

This amp is great, it works perfect, drives my Kenwood KFC series sub perfectly, it bumps, shakes my mirrors, rattles my trim, this thing bumps! it is small enough to fit almost anywhere, and is a great value.

By A Money Swagg Flocka on December 15, 2010

7 found this helpful


Not bad at all.

The amp has a great deal of power and a 24 db slope for the crossover. I simply couldn't find a better deal for the money. It's running at 2 ohm just fine connected to a 12" DVC woofer.

By Me on September 8, 2010

7 found this helpful


Good bang for your buck

I bought this amp to power one 12" SPL sub in my wife's Acura RSX. It's held up great so far and powers the sub pretty well. No complaints here.

By Vincent on February 23, 2011

6 found this helpful


Awesome amp for the price

I bought this amp to replace my old one because it went into protect mode and couldn't be fixed. I have a Power Bass 12 in a single cab truck and it shakes it to pieces. I would definitely recommend it to someone espically for the price. People don't let the price fool you...its a good deal

By vencent on December 29, 2010

6 found this helpful


Good Deal (I think)

I have this powering my 500 watt rms 12" sub. Not sure if its really 400 but it shakes the seats. If it lasts good deal. Only had it for a day so the durability is 1 star, could very well be 5 though.

By AZW on January 10, 2011

5 found this helpful


Fantastic Deal!

When first looking at this amplifier, I was a bit skeptical because of the cheap price and high wattage/rms. Figuring that the amp might not produce as much rms/wattage as they claim, i held off and waited awhile before finally deciding to make a risk and purchase them. I bought two of them to power my dual 2 OHM 15" subwoofer, which I had also gotten from this site, and installed them with my absolute capacitor, which I had gotten here also. And let me tell you. It is fantastic! What a deal they are! The Sound is loud and strong, these amps are built sturdy and thick to make sure it never overheats! I ran them for four hours and they got slightly warm! As they are a fantastic deal, the only downfall is that there is not data link for a bass remote. However, after looking into these amps, they last long periods of time, which is more than two years if installed correctly. If you're sitting and not sure what to do, install these bad boys. They draw minimal power from your system (which a cap helps tremendously) and never goes into protect mode. Great buy, great site, fast shipping even when its standard, and cheap price. What more could you ask for???!

By Scott on October 5, 2010

5 found this helpful


Beefy

Has a nice SMPS of +/- 40 volts DC. BEEFY for a 2 ohm setup.

By Robert on April 1, 2010

5 found this helpful


Great little amp

For the 6 months i have been using this amp. It puts out close to rated power for a cheap price. Ive been thinking about getting another one so i can run an amp to each sub.

By Bastian on January 3, 2011

4 found this helpful


Best amp for the price

I helped my friend select his system for his truck and I picked out this amp to push a 10 inch Kenwood sub. At 400 watts RMS his single cab ranger is bumpin! I would definitely recommend this to anyone else looking for some power for a cheap price.

By AustinPeteMo on November 9, 2010

4 found this helpful




A1800 small

** CLOSEOUT!! ** JL Audio A1800

2000W RMS, Class D Monoblock A Series Amplifier

(6)

$319.99

List price $549.99

99-5808 small

Metra 99-5808 Dash Kit

Install a new Single-DIN car stereo in select 2004-2007 vehicles from Ford, Mercury

$18.99

List price $32.99

HK298 small

MA Audio HK298

400 watts, 2-Channel Amplifier

(2)

$99.99

List price $249.99

3MBBNCF small

Install Bay 3MBBNCF

3M Blue 16/14 Gauge 0.156" Female Nylon Bullet Connectors

$23.99

List price $38.99

HK398 small

MA Audio HK398

600 watts, 2-Channel Amplifier

(1)

$139.99

List price $359.99

VIR-5100 small

Soundstream VIR-5100

In-Dash DVD, CD, MP3 Receiver with 5" TFT-LCD Touchscreen Monitor, USB Port and Aux In-put

$229.95

List price $319.99

E-CB200MR small

Install Bay E-CB200MR

Waterproof 200A Circuit Breaker

$97.99

List price $108.99

KS-AR7501D small

JVC Arsenal KS-AR7501D

1200W Max, Class D Monoblock Amplifier

(1)

$169.99

List price $379.99

PSW410 small

Alphasonik PSW410

10" Dual 4 ohms Alpha 400 Series Subwoofer

(4)

$89.99

List price $149.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2006 Lexus LS430

2014 Ram 2500

2006 Subaru Forester

2016 Ford Explorer

1998 Mitsubishi Eclipse

2011 Ford Explorer

2011 Subaru Outback

2016 Subaru Outback

2002 Saab 9-3

2009 Volkswagen Eos

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
