Alpine HDA-V90 with 15 Band Parametric EQ Digital Signal Processor

900W RMS Status Series Class-D 5-Channel Car Amplifier

Alpine
Shop all Alpine
highlight-star-icon

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 75 watts
• Class D 2 ohm Stable 5-Channel Amplifier

Learn more about the hdav90_xdsp66bt

We apologize

This item has been discontinued


Loading...
43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

Description


Alpine brand icon

Authorized dealer

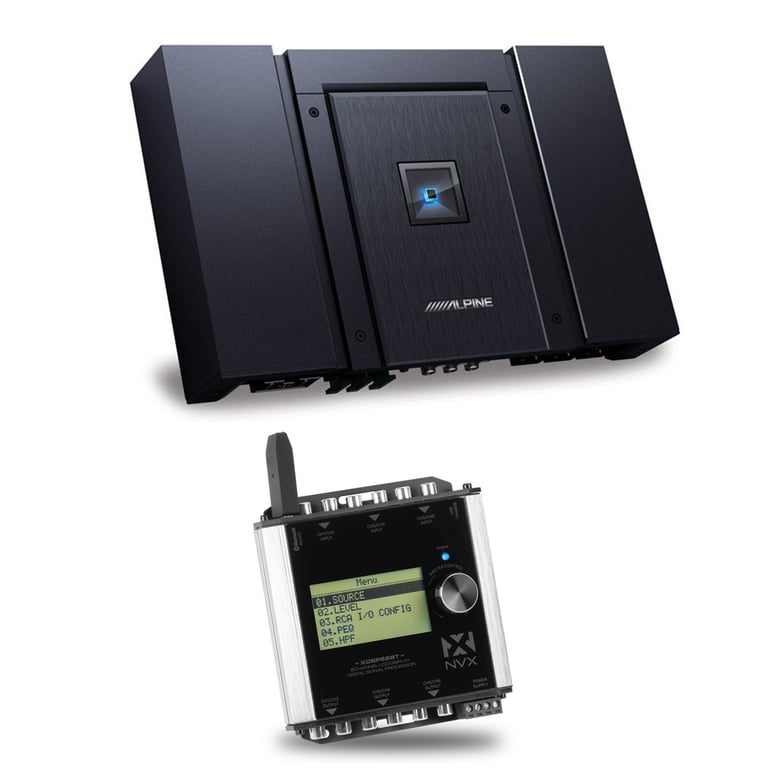

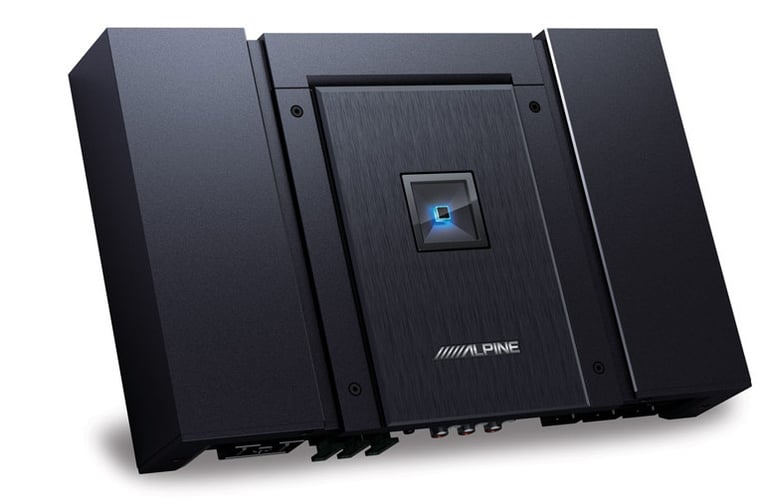

Alpine Status HDA-V90

900W RMS Class D Status Series 5 Channel High-Resolution Car Amplifier
Quantity: 1

Product Details:

  • Status Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 channel + 300 watts x 1 channel
    • 2 ohm: 100 watts x 4 channel + 500 watts x 1 channel
    • Bridged: 200 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
  • Total power output: 900 watts
  • Wired bass level remote control with optional Alpine RUX-KNOB.2 or Alpine RUX-H01 (Sold separately)
  • Hi-Res Audio Playback (192kHz/24Bit)
  • High-Efficiency Digital Circuit Design
  • Alpine's Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Featuring copper-plated chassis
  • Black circuit board
  • One-sided terminal layout
  • Top panel sound controls

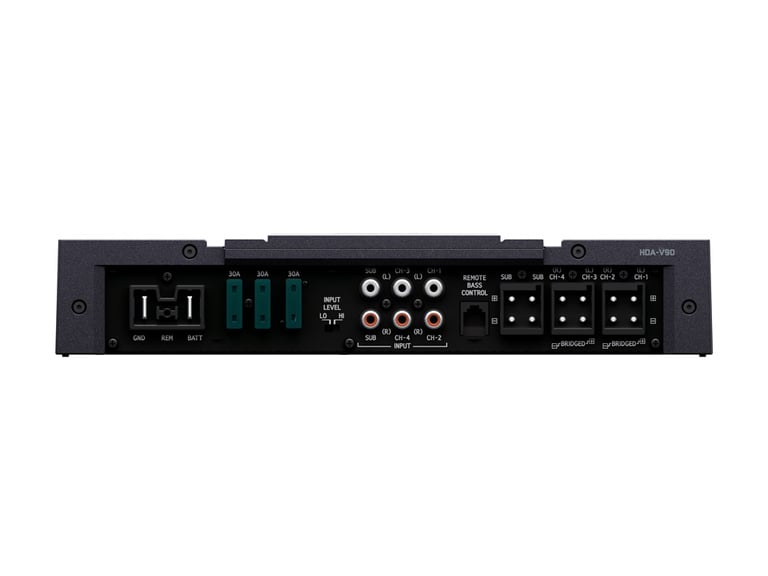

  • Quick connect power and speaker terminals
  • Input sensitivity:
    • Low level: 0.1 - 4 volts
    • High level: 0.4 - 10 volts
  • Frequency Response: 8 - 60000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 104 dB
  • Variable high-pass filter: 50 - 400 Hz
  • Variable low-pass filter: 50 - 400 Hz
  • Subsonic filter: 8 - 40 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 90A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 11-7/16" L x 7-1/2" W x 2-1/8" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: HDA-V90

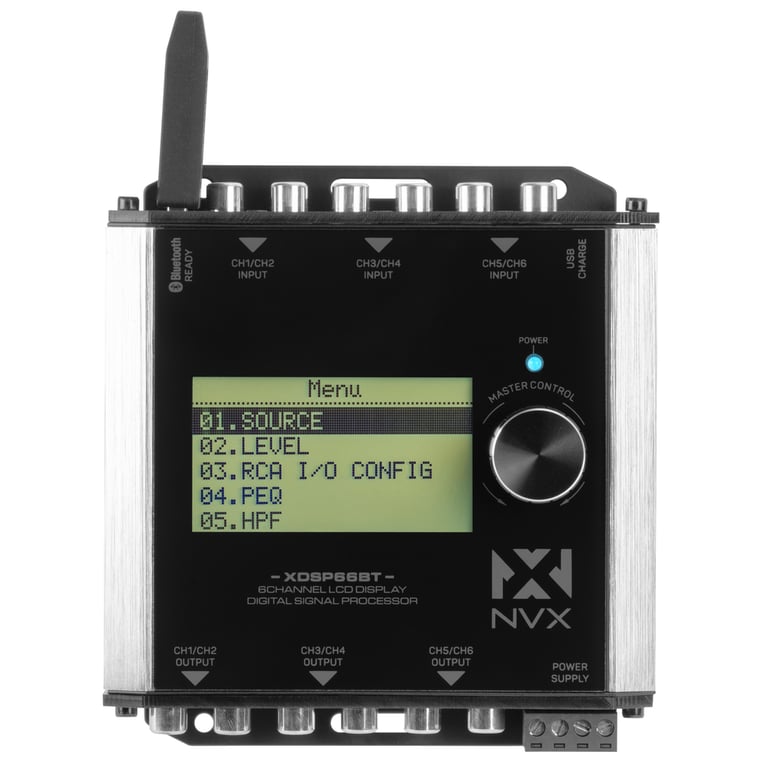

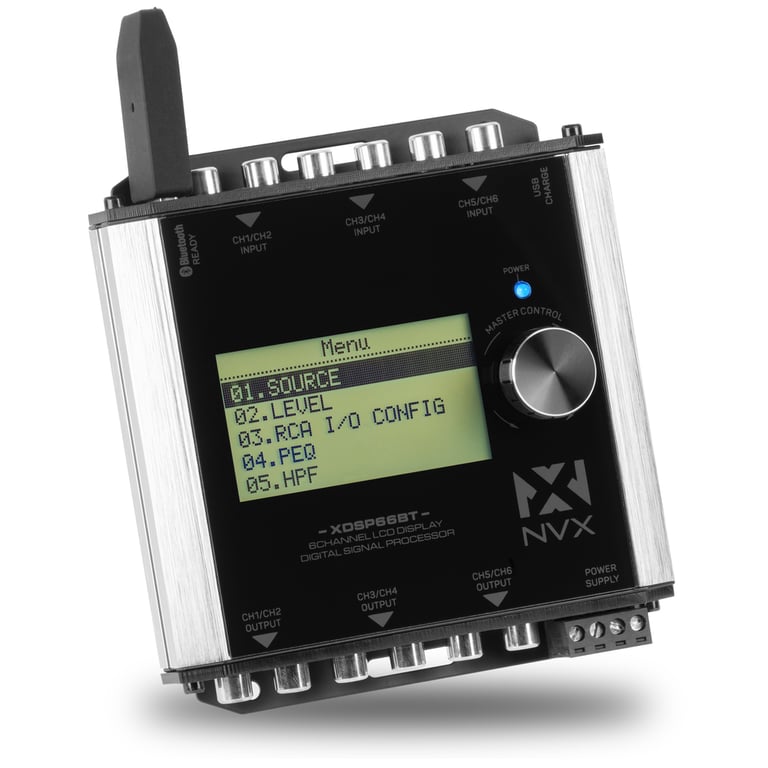

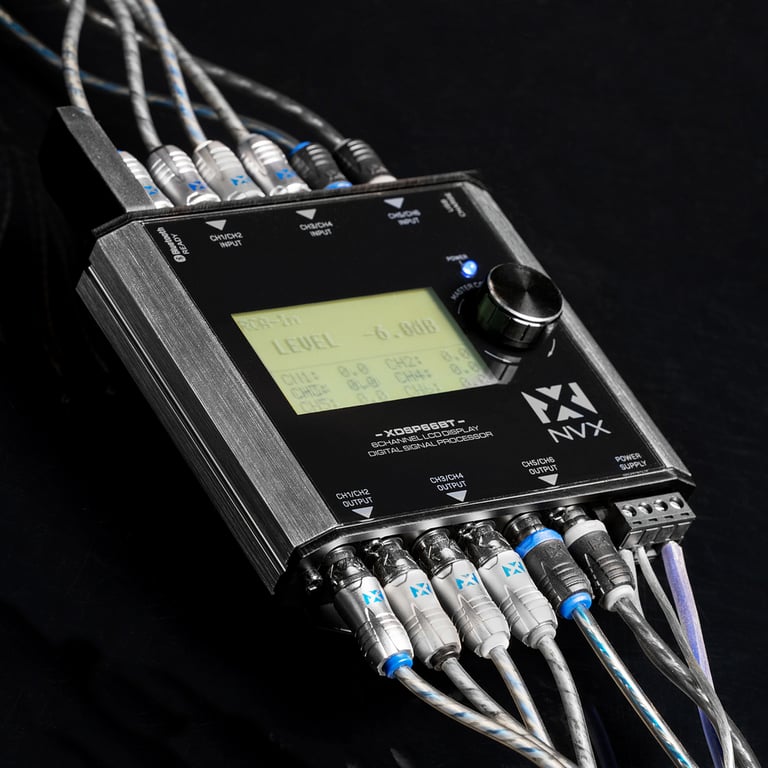

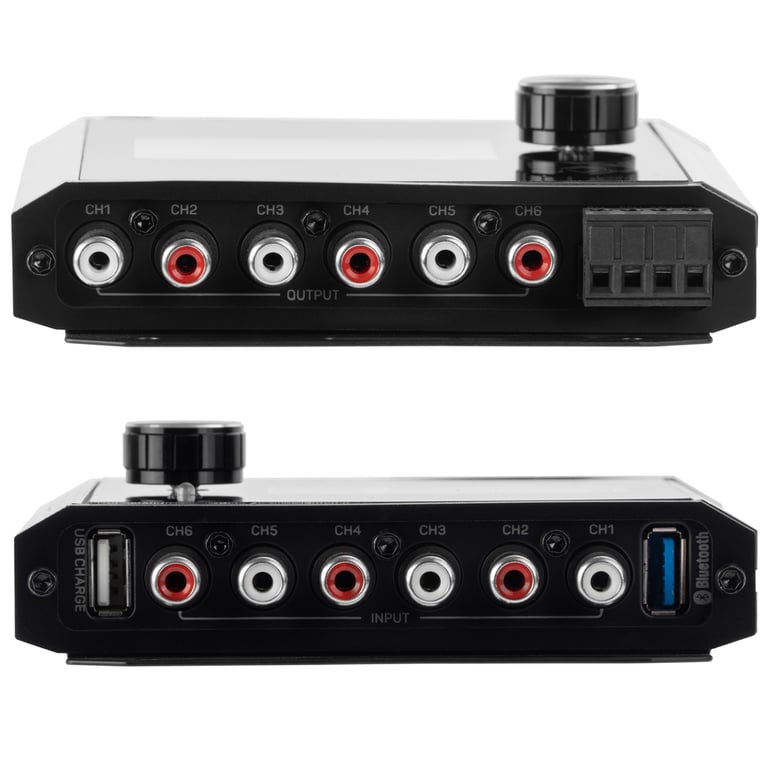

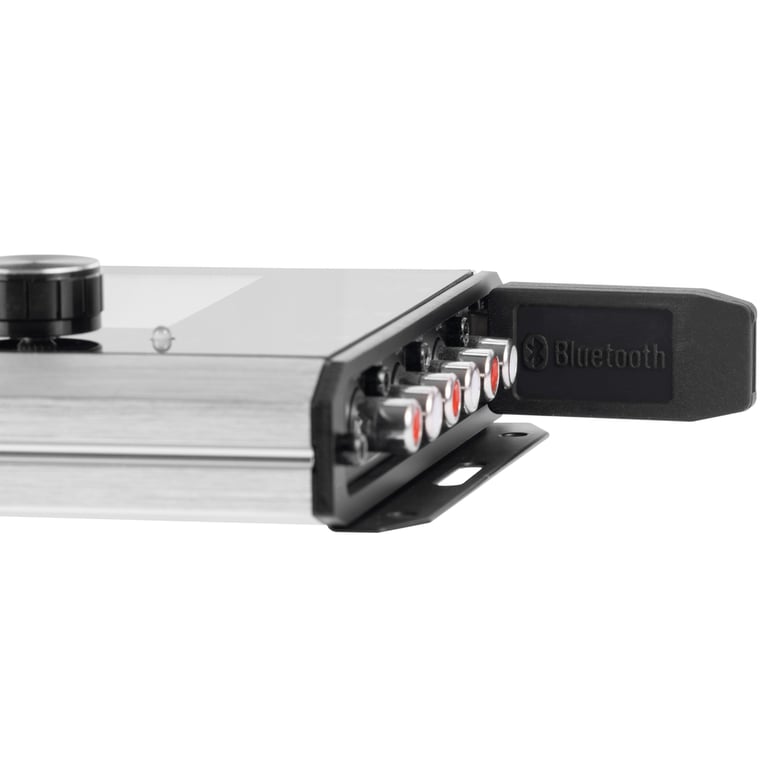

NVX XDSP66BT

6-Channel X-Series Digital Signal Processor with 2.75" LCD Display and Bluetooth Streaming Dongle
Quantity: 1

Product Features:

  • 6 channel digital signal processor
  • 2.75" LCD display for visually accessing menu and settings
  • Works with both speaker-level and low-level audio signals

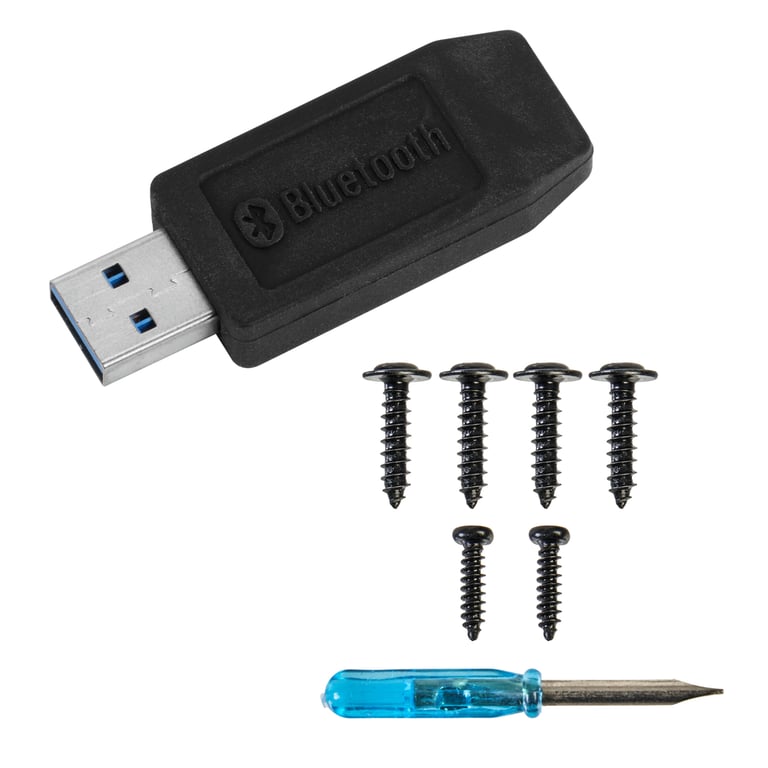

  • Includes Bluetooth dongle via USB port for wireless streaming
  • Rotating control knob for easy access to all menu functions
  • Chargeable via standard USB charge port (5V/1A)
  • Built-in status LED for power on signal
  • Ground, remote in/out power supply
  • Channel settings can be separate or linked together
  • Fully adjustable High and Low-pass filters
  • Anodized aluminum body for extra durability
  • High level input: 20 volts (maximum) via RCA
  • Input impedance: 20K ohm
  • Output signal voltage: 6.5 volts (maximum)
  • Signal-to-noise ratio: 95dB (A weighted)
  • Frequency response: 10 - 25000 Hz
  • Signal-to-noise ratio: 70dB
  • Gain level: -40 - 0dB
  • Phase adjustment level: 0 - 180 degrees

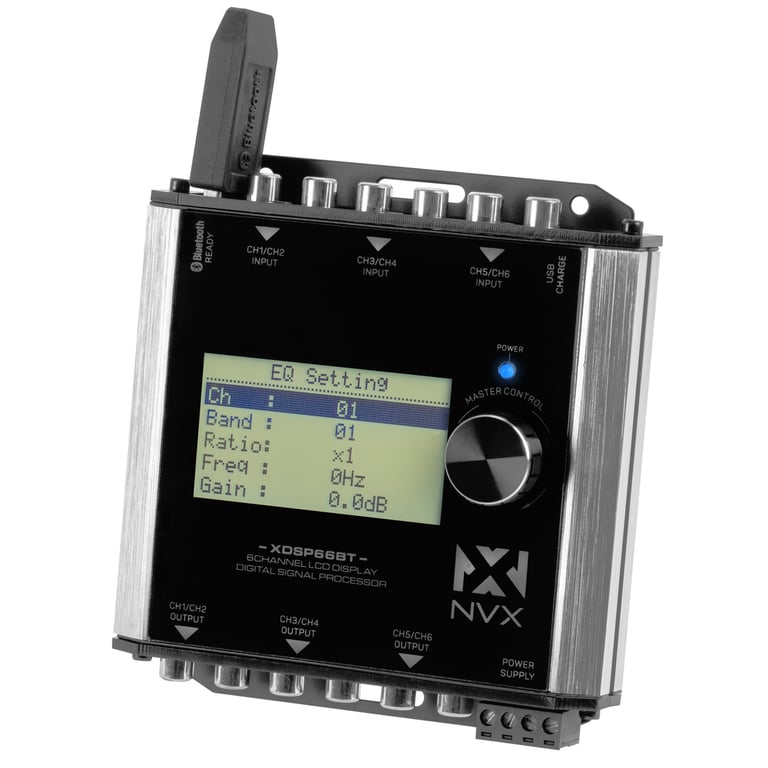

  • Equalizer Band: 15 Band Parametric Equalizer
  • Total harmonic distortion (THD): 1%
  • Dimensions: 4.77" W x 5.1" L x 1.4" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
NVX XDSP66BT owner’s manual

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Series
Status Series
Amplifier Class
D
Number of Channels
5-Channel
Total RMS Power Output
75 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
8 - 60000 Hz
THD at Rated RMS Power
.02%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Subsonic Filter
8 - 40 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 3
Total Fuse Rating
90
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
Yes
Low-Level Input Sensitivity
0.4 - 10 volts
High-Level Input Sensitivity
0.5 - 10 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
Quick start guide
WITB: Amplifiers
Amplifier
Mounting screws (4)
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HDA-V90, XDSP66BT

Weight:

10.09lbs

Internal SKU:

hdav90_xdsp66bt

Internal Product ID:

200760
