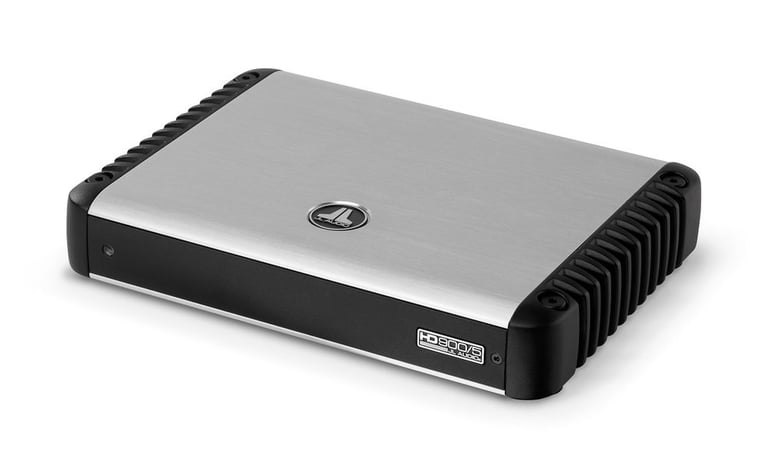

JL Audio HD900/5 R/B Image 1 — JL Audio HD900/5 R/B

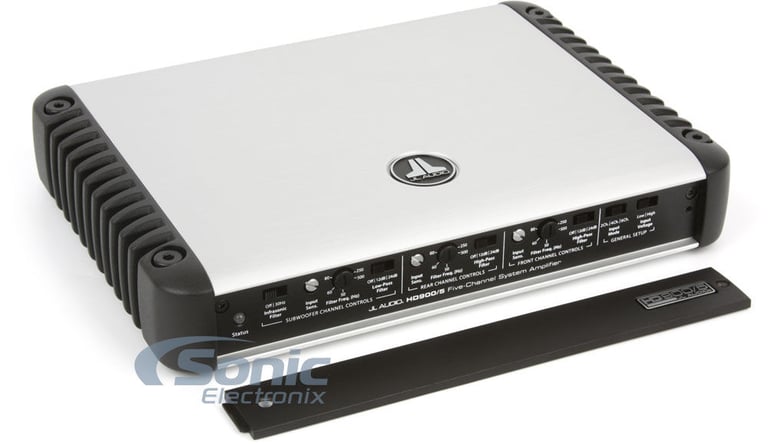

JL Audio HD900/5 R/B Image 2 — JL Audio HD900/5 R/B

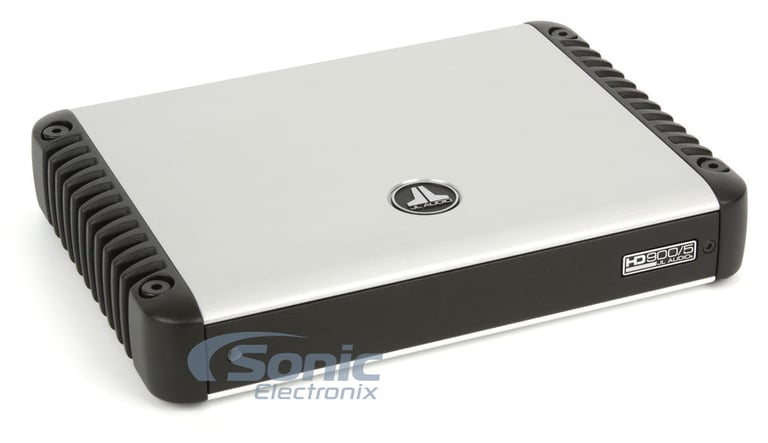

JL Audio HD900/5 R/B Image 3 — JL Audio HD900/5 R/B

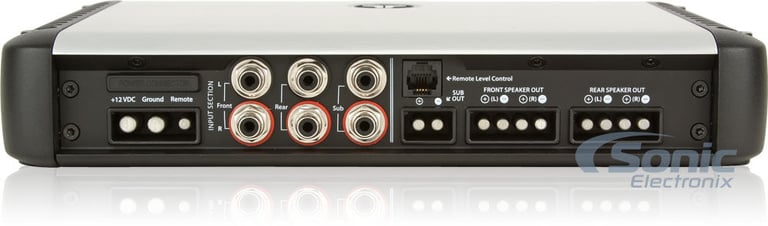

JL Audio HD900/5 R/B Image 4 — JL Audio HD900/5 R/B

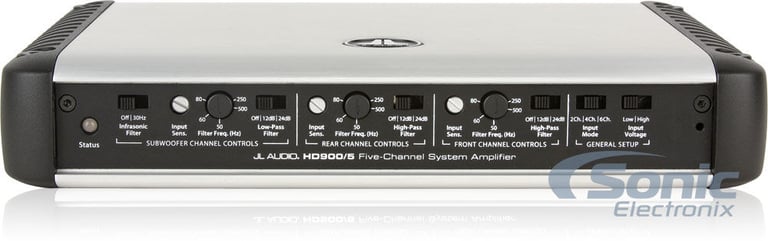

JL Audio HD900/5 R/B Image 5 — JL Audio HD900/5 R/B

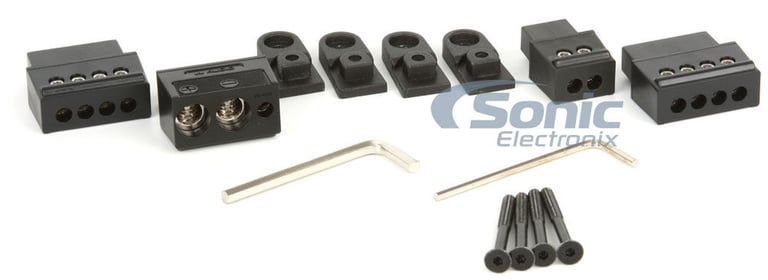

JL Audio HD900/5 R/B Image 6 — JL Audio HD900/5 R/B

JL Audio HD900/5 R/B Image 7 — JL Audio HD900/5 R/B

Product videos

Product highlights

• Full-Range RMS: 100W x 4 @ 4 ohm, 75 x 4 @ 3 ohm
• Subwoofer RMS: 500W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• R.I.P.S. (Regulated, Intelligent Power Supply)
• Class D Circuitry
• Balanced Differential Inputs
• Dimensions: 10-13/16"D x 8-7/8"W x 2H

Learn more about the LS-hd9005-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

More Power from a Smaller Chassis

The 5-channel JL Audio HD900/5 HD series car amplifier delivers unreal power in a very small and convenient size. Often times smaller amplifiers will lack power or even quality, however with the new JL Audio HD amplifiers this will not be the case. The HD amplifiers are equipped with amazing technologies like Single Cycle Control, which tracks audio signal and compares it to the real PWM waveform and then corrects it accordingly each and every cycle. This helps to control distortion causing mechanisms improving the quality of the amplifier tremendously. HD amplifiers also feature the R.I.P.S. System, R.I.P.S. stands for "Regulated, Intelligent Power Supply" and ensures consistent power delivery over a wide range of battery voltages and load impedance's. This means you will received the same power output at 4 ohms all the way down to 1.5 ohms each and every single time. With dual mounting options for added versatility and advanced heatsinks with vertically oriented fins for extreme heat control, the JL Audio HD amplifiers are unmatched by other amplifiers in the same class.

Product Features:

JL Audio HD Series 5-Channel Class D Amplifier
Main Channels RMS Power Rating (11V-14.5V):

4 ohm: 100 watts x 4 chan.
3 ohm: 75 watts x 4 chan.
2 ohm: 75 watts x 4 chan.
1.5 ohm: 75 watts x 4 chan.

Bridged RMS Power Rating (11V-14.5V):

Bridged, 8 ohm: 200 watts x 2 chan.
Bridged, 6 ohm: 150 watts x 2 chan.
Bridged, 4 ohm: 150 watts x 2 chan.
Bridged, 3 ohm: 150 watts x 2 chan.

Subwoofer Channel RMS Power Rating (11V-14.5V):

4 ohm: 500 watts x 1 chan.
3 ohm: 500 watts x 1 chan.
2 ohm: 500 watts x 1 chan.
1.5 ohm: 500 watts x 1 chan.

Total Continuous Power Rating: 900 watts
Single Cycle Control delivers reference-grade performance while requiring less current from the vehicle's electrical system
R.I.P.S (Regulated, Intelligent Power Supply) ensures consistent power delivery over a wide range of battery voltage and load impedances
- Regulated means that the power supply adjusts its operation to maintain the rated power output and low distortion operation over range of vehicle voltages
- Intelligent power supply is a circuit that monitors output current to perfect the amps output power over a range of load impedances. It detects the actual impedance and adjusts rail voltages for the best output
LED power indicators
Variable front crossover: 50 - 500Hz, selectable slope 12dB/octave
Variable rear crossover: 50 - 500Hz, selectable slope 12dB/octave
Differential-balanced inputs to effectively control noise and will allow you to connect most OEM units straight to the amplifier
Three sets of RCA Jack input, front, rear and subwoofer with a dedicated input sensitivity gain control for the channels
RealSink heat management with rollback protection removes heat from the amplifiers circuitry while the vertical heat
Infrasonic filter: Defeatable 24dB/octave at 30 Hz
Subsonic Filter (24 dB at 30 Hz)
Frequency response: 12 - 28,000Hz
Optional wired remote level control: JL Audio HD-RLC
Optional stacking equipment for HD amplifiers: JL Audio HD Stack Kit
Dimensions: 10-13/16"D x 8-7/8"W x 2H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

5-Channel

Total RMS Power Output

900 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1.5 ohm

Minimum Impedance Bridged

3 ohms

THD at Rated RMS Power

.03%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Subsonic Filter

30 Hz

Signal-to-Noise Ratio

108 dB

Bass Boost

0 - 15 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
