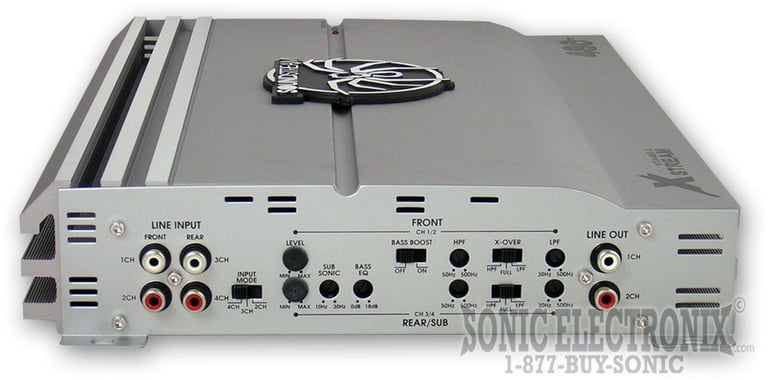

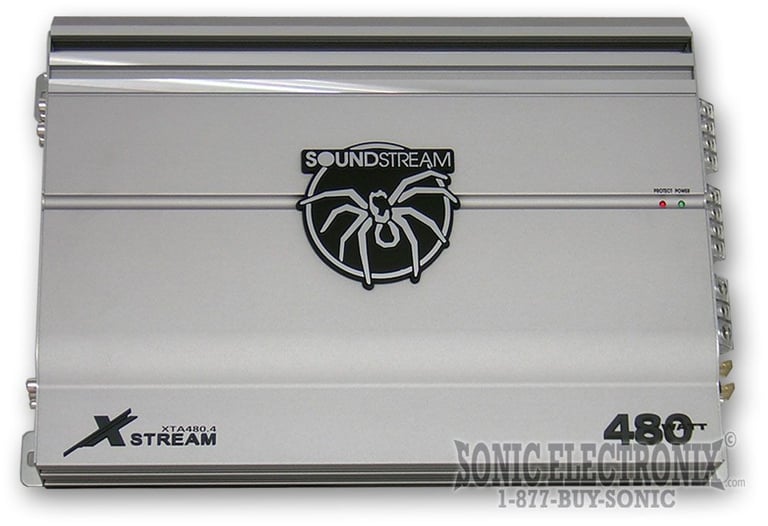

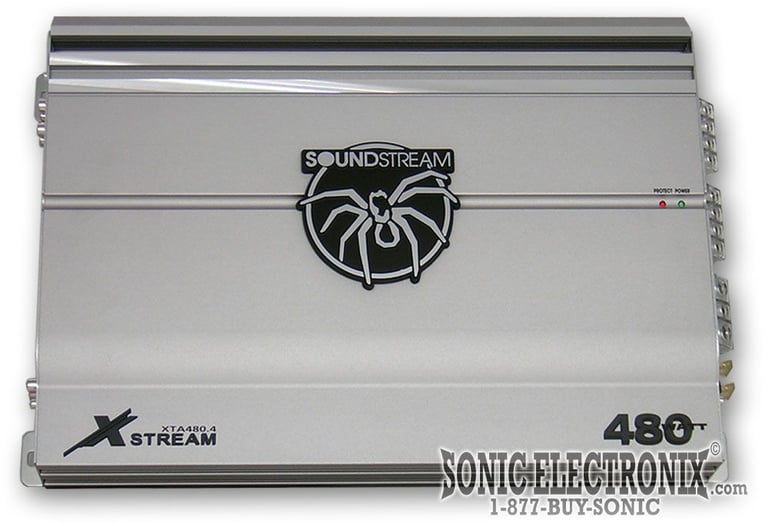

Soundstream XTA480.4

480 watts, 4-Channel Xstream Series Amplifier XTA 480.4

Product videos
highlight-star-icon

480W RMS 4 channel Xstream Series • 120W x 4 channel power output at 2 ohm • 60W x 4 channel at 4 ohm • Bass EQ Control • Drive Delay II • Selectable X-Over HPF / Full / LPF

Learn more about the xta4804

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


480W RMS 4 channel Xstream Series • 120W x 4 channel power output at 2 ohm • 60W x 4 channel at 4 ohm • Bass EQ Control • Drive Delay II • Selectable X-Over HPF / Full / LPF

Description


Soundstream brand icon

Authorized dealer

  • RMS Power Output:
    • 120 watts x 4 chan.@ 2 ohm
    • 60 watts x 4 chan. @ 4 ohm
  • Bass EQ Control: Fully adjustable subwoofer equalization circuit providing frequency and boost ("Q") adjustment for optimum subwoofer performance. A frequency tracking subsonic filter protects woofers from potentially harmful low frequency information and maximizes output in a usable range.
  • Drive Delay II: Amplifier section powers up 2 to 3 seconds after the poewr supply eliminating turn-on and off pops. The turn off process is reversed: Amplifier section turns off first, followed by the power supply.
  • Flexible Input Level Control: Allows 500 mV to 4 V input sensativity.
  • Trident 3-way Protection
  • IDI (Intelligent Distress Indicator)
  • Thermal / Short / Over Load Protection
  • Stability:
    • 2/4 ohm Stereo Mode
    • 4 ohm Mono/Bridged Mode
  • P.W.M Mosfet Power Supply
  • Power and Protection Indicator
  • Selectable X-Over HPF / Full / LPF
  • 18db Bass Boost with Switch Sub (50Hz)
  • Frequency Response: 10Hz - 30kHz
  • Variable High-Pass Crossover (50-500Hz)
  • Variable Low-Pass Crossover (30Hz-500Hz)
  • Variable Sub Sonic Filter: (60Hz-200Hz)
  • Gold Plated Terminal Strips / RCA Jacks
  • Heavy Duty Heat Sink
  • Adjustable Input Sensativity
  • Soft Delay Remote Turn-On
  • Low Level Inputs
  • Phantom Channel For Powering Center Speaker or Subwoofer
  • Dimensions: 24.9"L x 12.4"W x 3"H

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
120 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
480 watts
Amplifier Specifications
Number of Channels
4-Channel
Total RMS Power Output
480 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Signal-to-Noise Ratio
96 dB
Bass Boost
0 - 18 dB
Fuse Rating
25A x 2

Item Details


Manufacturer:

Model Number:

XTA480.4

Weight:

13.00lbs

Internal SKU:

xta4804

Internal Product ID:

2090

Product and How-to Videos


Customer Ratings & Reviews


Soundstream XTA480.4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Good amp

This amp has power it made both of my sets of 10" sound good 10" boss audio ripper 350rms 700wmax & Phenix gold Ryval V10S 150rms 600wmax I've tried newer amps from Amazon and turned them back in same day still haven't found one good enough to push the subs like this amp did if anyone has one to get rid of I'd take it off your hands lol

By Grizz on January 16, 2022

5 found this helpful
