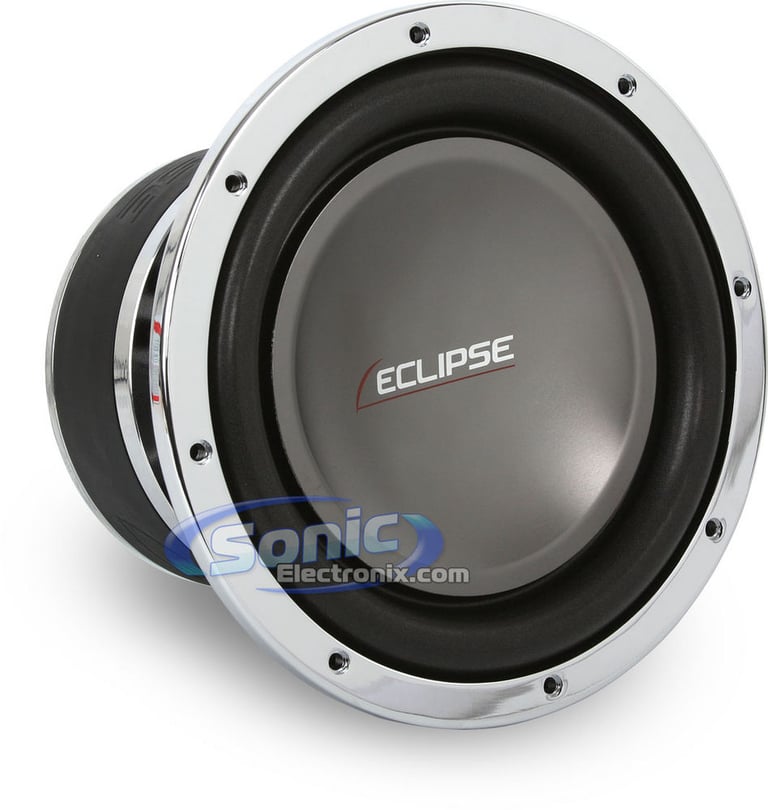

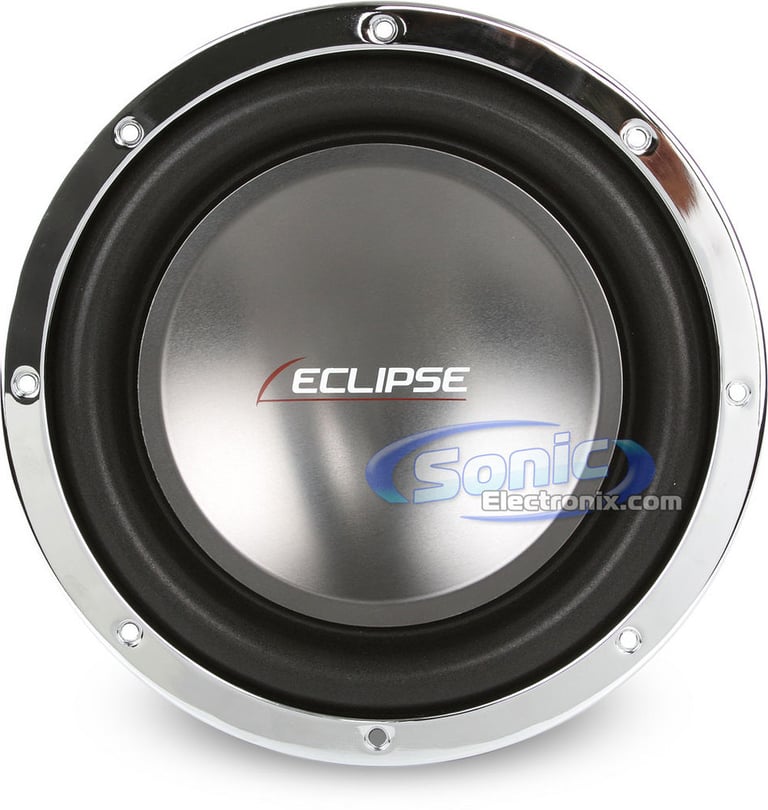

Eclipse SW8010

10" Single 4 ohm 8000 Series Subwoofer

Shop all Eclipse
Product videos

10" Eclipse 8000 Series Subwoofer • Single 4 Ohm • 700 Watts RMS • Anodized Alloy Cone Woofer • Multi Layer Surround • Progressive "S" Surround

Learn more about the sw8010

We apologize

This item has been discontinued

Product Highlights

10" Eclipse 8000 Series Subwoofer • Single 4 Ohm • 700 Watts RMS • Anodized Alloy Cone Woofer • Multi Layer Surround • Progressive "S" Surround


High Quality Bass at an Affordable Price

If you are looking for a great deal on a high-end subwoofer, then you stumbled upon one of the best deals out there! For those that haven't looked at our other Eclipse products, Sonic Electronix is proud to offer you the best prices on these brand new Eclipse products. The Eclipse SW8010 is another exclusive deal that we are having on these Japanese electronics. This particular subwoofer is not one to be underestimated. Behind it's basic design and simplistic structure is a powerful subwoofer that will play loud and clear. Easily handling 700 watts continually, the SW8010 works very well with high output amplifiers. It features an anodized alloy cone woofer with a multi-layer surround for greater strength, as well was smoother response and excellent excursion. On the back of the sub are three magnets totaling a overall weight of 58 oz! The triple stacking of the magnets help the subwoofer manage the amount of power that it is able to accept. It's frequency response rating is 18-200 Hz, which is perfect for achieving all the low frequencies you music can produce. You will be able to hear (and feel) all the bass you can handle! Even though this subwoofer is only a 10", it is often mistaken for being a 12" (and sometimes a 15") because of it's loud and efficient output. You wont find a deal like this anywhere else on the internet. This exclusive deal wont last long, so act fast and get some quality Eclipse bass in your car!

  • 10" Single 4 Ohm Eclipse 8000 Series Subwoofer
  • Power Handling:
    • RMS: 700 watts
  • Impedance: 4 Ohm
  • Anodized alloy cone woofer

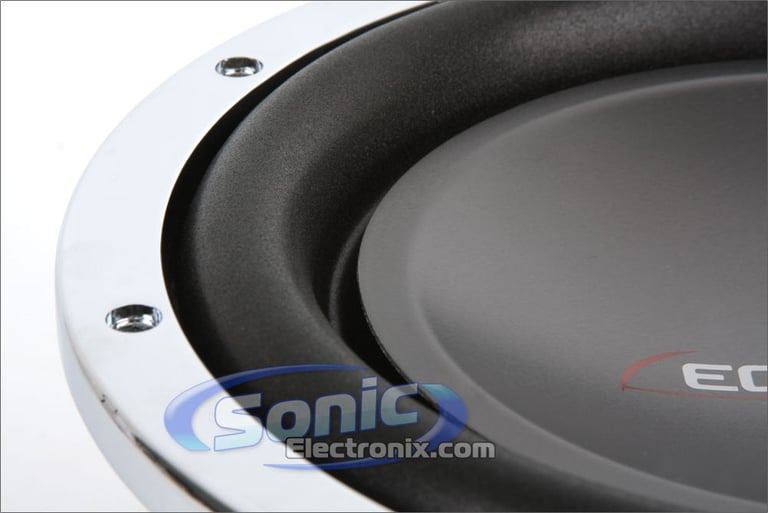

  • Multi layer surround
  • Backplate venting system
  • Progressive "S" surround
  • Single inside/outside voice coil
  • Long voice coil with 3" diameter and 2" winding height
  • Large magnet with rubber cover
  • Frequency response: 18-200 Hz
  • Sensitivity: 86 dB

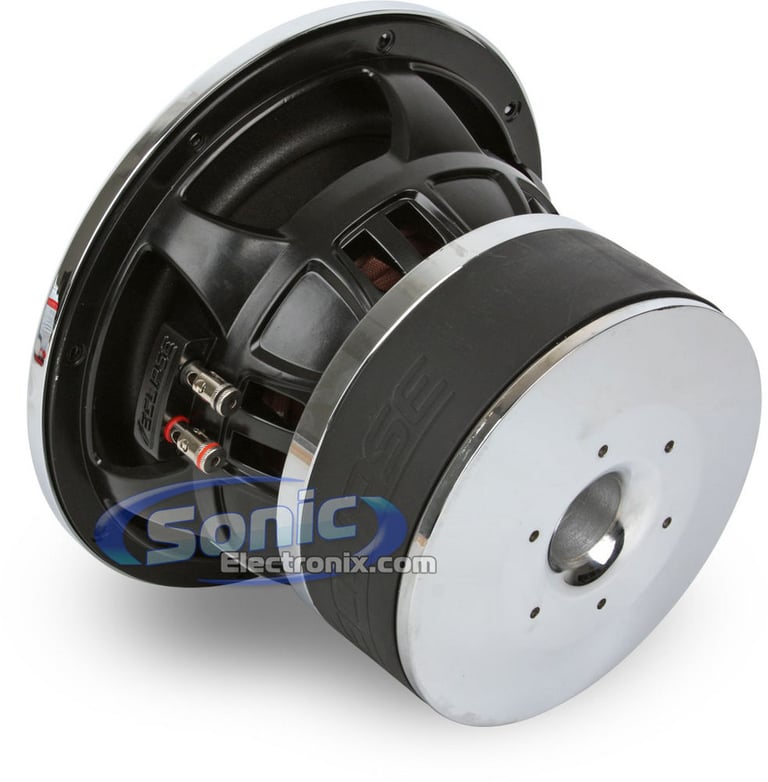

  • 58 oz. Triple stacked magnets
  • Faraday Ring inside the magnet structure
  • Includes an aluminum trim ring
  • Designed and engineered in the U.S.A
  • 1-year warranty

Click Here to read more about the Eclipse SW8010 and the 8000 series of Eclipse subwoofers in our blog!

Subwoofer Wiring Guide

Wiring Guide to Wire 1 Eclipse SW8010 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Eclipse SW8010 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Eclipse SW8010 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Eclipse SW8010 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details

Subwoofer Specifications
Subwoofer Size
RMS Power Handling
700 watts
Voice Coil(s)
Impedance (Per Voice Coil)
4 ohms
Voice Coil Material
Voice Coil Diameter
Frequency Response
18 - 200 Hz
86 dB
Xmax (millimeters)
28 mm
Subwoofer Design
Round / Circle
Main Cone Color
Woofer Composition
Anodized Alloy
Woofer Surround
Multi Layer Surround
Magnet Structure
Magnet weight
Magnet Type
Subwoofer Grille
Re-Cone Kit Available
CTA-2031 Compliant
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Sealed Box Volume
1.25 cubic feet
Optimum Sealed Box Volume
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Optimum Ported Box Volume
Maximum Ported Box Volume
3.0 cubic feet
Top-Mount Depth (Mounting Depth)
Cutout Diameter
Shallow Mount Installation
Electromechanical Parameters
Free-Air Resonance (Fs)
Equivalent Compliance (Vas)
Total Speaker Q Value (Qts)
Electrical Q Value (Qes)
Electrical Resistance of Voice Coil (Re)
Mechanical Q Value (Qms)
Efficiency Bandwidth Product (EBP)
What is in the box?
WITB: Subwoofers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Model Number:




Internal SKU:


Internal Product ID:


Product and How-to Videos

Customer Ratings & Reviews

5 star
4 star
3 star
2 star
1 star

Sort by:



I switched out my 1.25 sealed/polyfilled box per chamber box/ with a ported box which is actually only .9/polyfill per chamber and it slams a lot harder. It was a premade box but an expensive one. I wasn't thrilled bout it being smaller then the sealed and was worried it would make no impact to even make it worse but to my surprise the bass got way harder. A lil uglier on some songs where the sealed was more crisp. I may see if I can have a new one built to make it a lil bigger but if I go to big it completely blocks off my trunk and doesnt allow bass to get into the car,

By eric on December 4, 2010


found this helpful.


All i have to say is OMG!!! Im not getting any other brand of subwoofer. It hits soooo hard!!!....I ask people what do they think is in my trunk they either say a single 15 and sometime even two the lows are absolutely redic and i only have one!!! Only ooooone!!! Shaking windows I'm getting another one :-d and I say you guys get one two.

By JerRonamo on October 29, 2010


found this helpful.

Amazing subwoofer

This subwoofer its amazing. The lows it hits are superb, the excursion on it its crazy. Most people think I have 2 12s in the car and what I show them its only this 10" they can't believe it.

By Jesus on January 26, 2011


found this helpful.

good subs

These subs are pretty beefy, and have some pretty heavy magnets. I got 2 of them at 99 each. running them to 2 PDX M6. so each one is seeing 600 watts. there in my 06 BMW 5 series. They hit very hard and its hard for me to tell if the vibrations on the car max it sound distorted or if its the subs themselves. If they can safely run 700 RMS all day then I don't see how 600rms amp can make them distort. I have the gains pretty much on max.

When I play bass music or rap with hard bass these guys dance hard. I think they might be right at there threshold as i think the sub is at max excursion. I don't think they can honestly handle 700 watts RMS all day long like they claim especially listening to bass oriented music. But there hitting good. I get scared that they might dance right outta the box. Problem with my car is BMW's don't allow bass to enter the car so i don't truly get there impact. I cut some of my rear deck out and it sounds a little better. Some songs with bass around 60hz will make my steering wheel shake like made but from what I can tell for 99 bux these hammer. If they blow out imma step up to xxx

By eric on October 16, 2010


found this helpful.

Best 10 I've ever heard

This is definitely the best sub for the price. It sounds better than any sub I have ever owned. Very good choice buying this

By David on October 14, 2010


found this helpful.

amazing sub

been using this site for about a month its great. just like this sub and if you can manage to blow it companys will specially make components for this sub top to bottom and they rate it (with upgrades) up to 4500wrms!!! u cant go wrong buy it TRY to beat to death. if u succede make it better with upgrades. Unfortunately my fiance says im not allowed to upgrade it till i can break it prob not gonna happen :( p.s buying this sub and upgrading is the BEST way to go straight to the top at competitions.

By kyle on October 12, 2010


found this helpful.

serious bass homie

this goes hard! heck of a deal. Got just one of these in a dual ported box and its going hard sounds like a 15. this sub will require a pretty powerful amp.

By Young Clay on October 1, 2010


found this helpful.


I bought three of these and currently only have 2 running until i get a more powerful amp. Just the two with only 450 rms a piece want to shake my car apart. I cant wait until i get a bigger amp to run them at full power and adding the third will rip my car apart!!

By Fightin_Sioux on June 30, 2010


found this helpful.

bass monster

I got this sub for 99.99, just before they bumped the price. Awesome sub. Very power hungry.. For the price u cant beat it.

By TFizzo on December 3, 2010


found this helpful.

POWER hungry

First let me say that I jumped on this simply because it was 100 bucks shipped. I am powering it with the sub channel off of a Audison 5.1k. At 4 ohms and 12 volts it should be seeing about 650 RMS conservatively. I built a ported enclosure as well as a sealed enclosure to test the sub in both. It became apparent pretty quickly that this sub is extremely power hungry. That being said, with the right power I think this sub would be an absolute low-end monster. If you are considering this sub, make sure you can feed it at around 1500 real RMS watts. I think it would take that easily on a daily basis. I'm not sure where they came up with the 700 RMS figure, but it's not even close to what this sub needs. The TSP's indicate this as well.

By Torquem on November 3, 2010


found this helpful.
