Cerwin-Vega SX220.2 (Stealth 220.2) 220W RMS, 2-Channel Stealth Series Amplifier

220W RMS, 2-Channel Stealth Series Amplifier

Product videos
highlight-star-icon

Stealth Series 2-Channel Class D Car Amplifier • 65 watts x 2 chan. @ 4 ohm • 110 watts x 2 chan. @ 2 ohm • Full PWM Power Supply • Standard ATC/ATO Automotive 25A Power Fuses

Learn more about the sx2202

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
FRING4 main

NVX FRING4

Universal 4" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

4
-36.91%

$11.98

List price $18.99

FRING525 main

NVX FRING525

Universal 5.25" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

2
-45.02%

$10.99

List price $19.99

REF-5032CFXAM main

Infinity Reference 5032cfx (REF-5032CFXAM)

270W Peak (90W RMS) 5.25" Reference Series 2 Way Coaxial 3-ohm Speakers

-42.32%

$74.99

List price $130.00

Infinity Reference REF-4032cfx (REF4032CFXAM)

210W Peak (70W RMS) 4" Reference Series 2 Way Coaxial 3-ohm Speakers

1
-42.84%

$79.99

List price $139.95

Product Highlights


Stealth Series 2-Channel Class D Car Amplifier • 65 watts x 2 chan. @ 4 ohm • 110 watts x 2 chan. @ 2 ohm • Full PWM Power Supply • Standard ATC/ATO Automotive 25A Power Fuses

Description


Cerwin-Vega brand icon

Authorized dealer

Cerwin-Vega Sound, Small Footprint

Getting high quality sound doesn't mean you have to install a large, bulky amplifier. The Cerwin-Vega Stealth SX220.2 is compact amplifier that lives up to the Cerwin-Vega name. At 4 ohms, this tiny class D amplifier will put out 65 watts of RMS power. That is enough to power a decent set of front or rear speakers. If you have 2 ohm speakers, you will be able to get 110 watts of RMS power.

  • Stealth Series 2-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 65 watts x 2 chan.
    • 2 ohm: 110 watts x 2 chan.
    • Bridged, 4 ohm: 220 watts x 1 chan.
  • RMS Total Output: 220 Watts
  • LED power and protection indicators with built in overload protection
  • Vega Bass adjustment (0-12 dB bass boost)
  • Full PWM power supply
  • Crossover selection switch allows you to adjust the crossover point
  • Input gain adjustment allows for more precise adjustments
  • RCA Input and pass-thru output allow for normal RCA left and right channel signal input
  • Aluminum alloy casing great for fast heat dissipation

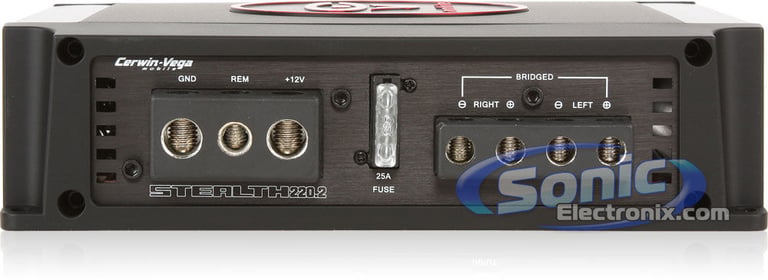

  • Power input connections
  • Standard ATC/ATO automotive 25A power fuses
  • Silver control adjustments
  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Frequency response: 20-30,000 Hz
  • Dimensions: 6-3/5"L x 7"W x 1-7/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
65 watts x 2 channel
RMS Power @ 2 ohms
110 watts x 2 channel
Bridged RMS Power
220 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total RMS Power Output
220 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.2%
Speaker Level Inputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SX220.2

Weight:

3.00lbs

Internal SKU:

sx2202

Internal Product ID:

22127

Product and How-to Videos


Customer Ratings & Reviews


Cerwin-Vega SX220.2 (Stealth 220.2) 220W RMS, 2-Channel Stealth Series Amplifier thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.8
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

unbelievable

I bought one of these amps, gave it a thorough trial and quickly bought two more. The first amp ran a set of diamond audio hex components and really brought them to life, The first thing I noticed was the clarity and definition, this amplifier brought a depth to my music that I didn't know existed; the second was the volume. This amp plays quite loud with no audible distortion and very minor fatigue after hours of listening. After being very impressed I was left wanting more and the impression that I could make my system even better with more of these amps. I now run three of them for my front stage, one for the tweeters, one for the mids, and one for the midbass; they are actively crossed over using the lanzar obti3b and the combination is unbelievable. Listening to my old collection of music is a whole new experience as I hear notes and instruments in the background that I didn't know existed. Now the attainable volume is such that I can't even hear myself scream, will definitely make your ears ring but not a sign of fatigue (yes there is a difference). Never thought I'd run tweeters off of a class D amp, so glad I gave this thing a try.

By Con on March 3, 2012

8 found this helpful


Great Amp

Running a 10" Vega 102.2 sub brigged @ 4 ohm 220 RMS. Affordable and the sub sounds great in my hatchback.

By Chago on June 9, 2012

6 found this helpful


CERWIN VEGA STEALTH 220

Using this on my motorcycle hooked to a pair of JBL GTO 428 and boss sk 6.5 components in a T-bag. Small size, good power, but no bass boost in flat position. Class D means less draw on the electrical system, will see how my c109 likes the load in the spring, when I can ride again.

By PHILIP on December 30, 2011

4 found this helpful


very musical

I am using this amp to power two 6-1/2" infinity reference speakers. Has not given me any problems and sounds really good for a class d full range amp.

By vaughn on February 4, 2012

2 found this helpful
