Product highlights

HFi Series 4-Channel Class A/B Car Amplifier • 110W x 4-Chan. @ 2 Ohm • 55W x 4-Chan. @ 4 Ohm • Tri-Mode Speaker Operation • 4-Way System Protection Circuitry • Preamp RCA Outputs • Blue Illuminated Hifonics Badge

Learn more about the hfi554

Product Highlights

Description

Authorized dealer

Retro Look with New Design

The Hifonics HFi55.4 informs you of its main objective in the name, Hi-Fi audio. High end sound processing is the designs main focus, however it continues to bring value to the table by providing high power output in an pleasantly small chassis. The illuminating retro Hifonics logo brings an old-school look back into a new series.

This four channel HFi series amplifier integrates Pulse Width Modulated MOSFET power supplies to allow for affordable power, while causing minimal draw on your cars electrical system. Its bridging options allow bridging from their 4 channel down to 3 channels. This allows the amplifier to drive a bridged channel for a sub, and two unbridged channels for normal output for components such as door speakers. The bridging options also allow for bridging to two separate dedicated channels, to allow for high output to subwoofers, or high powered components.

This incredible power output is combined with the HFi series of amplifiers integrated high-dissipation heat-sink design, and built-in system diagnostics. Affordability does not have to sacrifice value or sound quality – making the HFi55.4 multi-channels the perfect choice.

HFi Series 4-Channel Class A/B Car Amplifier
RMS Power Rating:
- 4 ohm: 55 watts x 4 chan.
- 2 ohm: 110 watts x 4 chan.
- Bridged, 4 ohm: 220 watts x 2 chan.
Pulse Width Modulated (PWM) MOSFET power supply

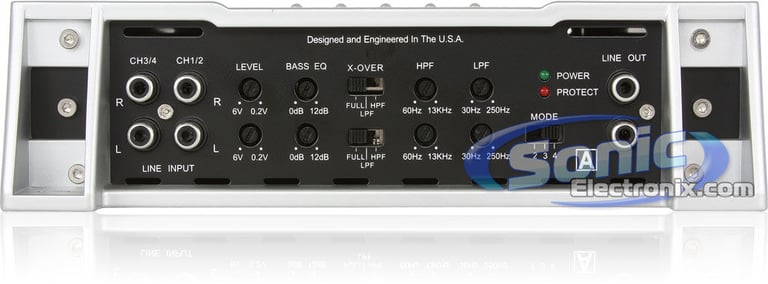

LED power (blue) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)

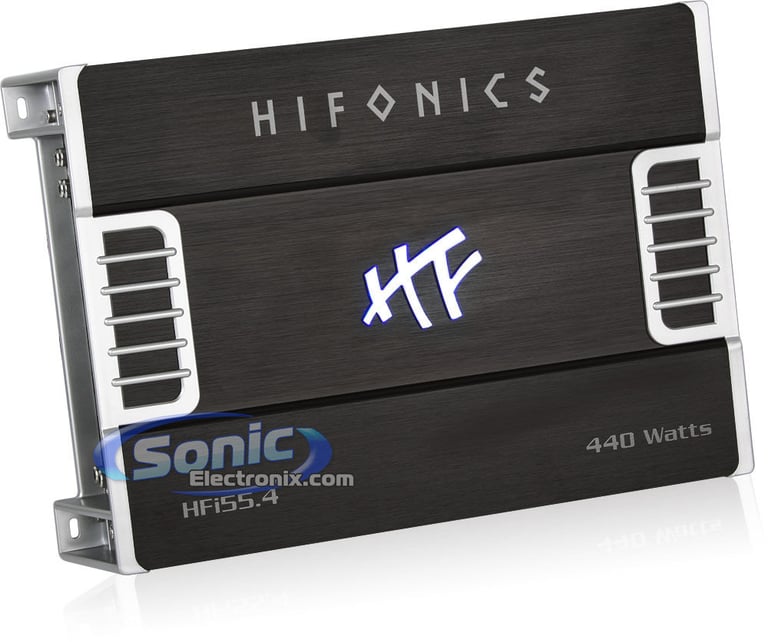

Blue illuminated Hifonics badge
Soft start sound function
4/3/2 channel operation
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)
Tri-mode speaker operation
Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
Silver nickle-plated RCA level inputs

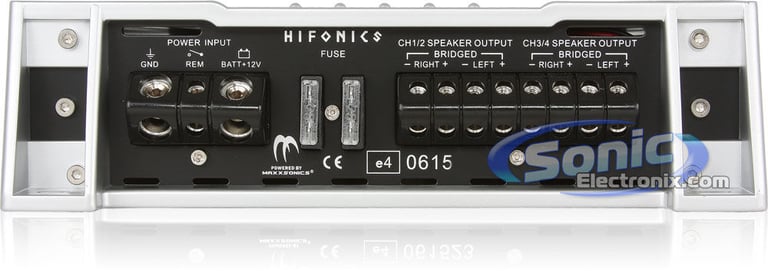

Silver nickle-plated screw terminals
Input sensitivity:
- Variable level: 200mV-6V
Variable high-pass filter (60-12,000 Hz, 12 dB/octave)
Variable low-pass filter (30-250 Hz, 12 dB/octave)
Damping factor: >180
Frequency response: 30-12,000 Hz
Dimensions: 13-1/2"L x 8-13/16"W x 2-7/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Product history:

	Hifonics HFi55.4 (newest, current model)
	Hifonics TXi 4408 (previous model, replaced by Hifonics HFi55.4)
	Hifonics Titan TXi 4406 (previous model, replaced by Hifonics TXi 4408)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

55 watts x 4 channel

RMS Power @ 2 ohms

110 watts x 4 channel

Bridged RMS Power

220 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

440 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 12,000 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

90 dB

Channel Separation

80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		67%
4 star		27%
3 star		0%
2 star		7%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.4
Value		4.8
Features		4.6
Design		4.9
Usability		5

Customer Reviews

Sort by:

great amp!

powerful, and dependable, highly recommend.

By louis on September 6, 2010

10 found this helpful

Report abuse

Great amp for the price..

I never thought about using the Hifonics amps in a custom installation but I will tell you if you are on a budget and are looking for a quality product this is the amp for you. I resently installed a custom system in a customers truck with this amp and it sounds way better then I ever thought it would. I hooked 8 sets of 3/4" soft dome RF tweeters to this amp and it handles the task with-out getting hot or clipping. It also shows well if you are doing a show quality system as well.

By David on December 10, 2011

9 found this helpful

Report abuse

Good sound but not really enough amp to push sub

The amp I got had great mids and highs 234 channel switch was broken I would recommend this amp to push 4 Fosgate 6x9 punch speakers or something like that not a sub Maxxsonics says power uprated 20 percent broken switch prob. A fluke if u want old school Hifonics take a pass on hf series go Zeus or Brutus depending on your wants

By Tom on April 19, 2011

7 found this helpful

Report abuse

Great Amp! Highly Recommended

I was told these amps were the lower end amps, but I got it because of the price and I'm stubborn and I don't regret it one bit, it looks cool because it lights up. My highs sound so much better, very reasonable price, and never gets hot. If you are looking for a cheap amp but still good quality go with this amp.

By PapaDuck on September 20, 2011

6 found this helpful

Report abuse

great amp!

Great amp. Design is nice. The HF lights up blue.. very nice amp.. great power for mid/highs.

By Chris on April 26, 2010

7 found this helpful

Report abuse

Horrible amp

This amp is horrible spend the extra $20 on the brutus line trust me its worth it due to the cea compliance (true wattage)

By kicker man on June 12, 2012

5 found this helpful

Report abuse

Awesome Amp!!!!!

This amp is easy to hookup. Easy to set. Amp produce power and clear for sound. Awesome amp and great price. Highly recommend to buy.

By Clifford on October 25, 2011

5 found this helpful

Report abuse

Nice Amp!!

You can't beat this amp for the price!!! This amp is made by the same company that makes MB QUART!!

By Daryl on September 13, 2011

6 found this helpful

Report abuse

Good amp maybe

I have this amp running four Hifonics Zeus ZXi 683 (85 watts rms @ 4 ohms) it does good under moderate load but if you crank it up the amp heats up and sounds washy. I still have to play around with a fan and other things to see if it helps but was shocked that it heated up so fast in a well ventalated area. also not sure if I lost a channel of if a wife got jacked but I only have three speakers working right now.

By Made In The CSA on September 10, 2011

5 found this helpful

Report abuse

Hifonics HFi55.4

Unbelievable amp for the price, it blows you away. Highly recommended

By Rick on April 14, 2011

5 found this helpful

Report abuse
