Diamond Audio DA1423SGTP3R

Product Details:

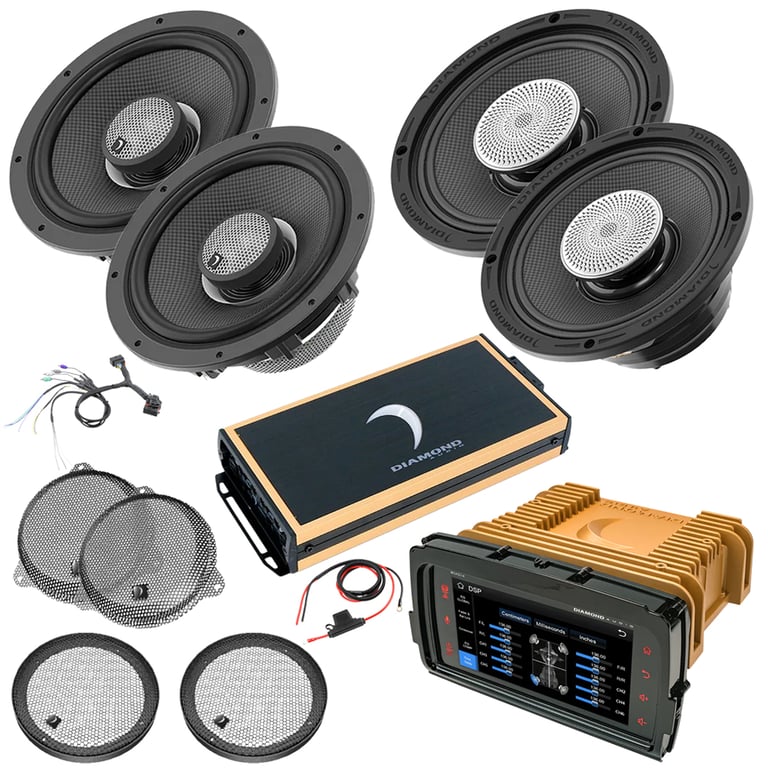

• System includes one digital multimedia stereo, a pair of 6.5" coaxial pro-audio speakers, a pair of 6.5" coaxial speakers, one 4-channel amplifier, and vehicle-specific harnesses
• Designed and engineered to match and compliment the factory fit and finish of your vehicle
• Plug and Play design for easy installation
• No drilling or cutting required

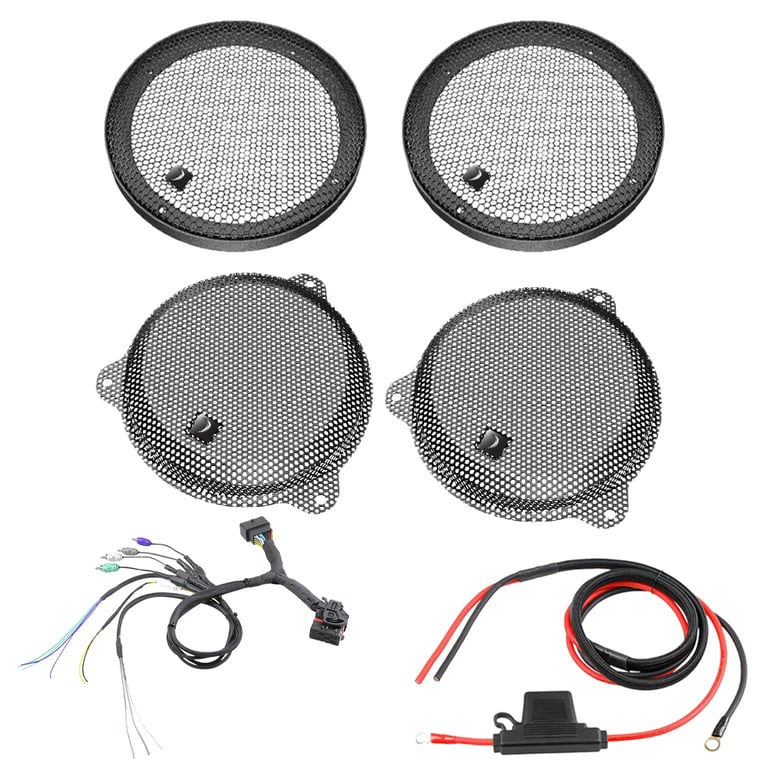

• Vehicle-specific hardware and harnesses included:
• Diamond Audio DHDRGU 6.5” speaker mesh grilles
• Diamond Audio DHDSG upper fairing speaker mesh grilles
• Diamond Audio MSPWHR 8-gauge power, ground and remote harness kit
• Diamond Audio MSTLINK 4-channel input load resistor and output T-harness
• 0.5” spacer required for Tour Pak models
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Compatible with select 2014-2023 vehicles from Harley Davidson

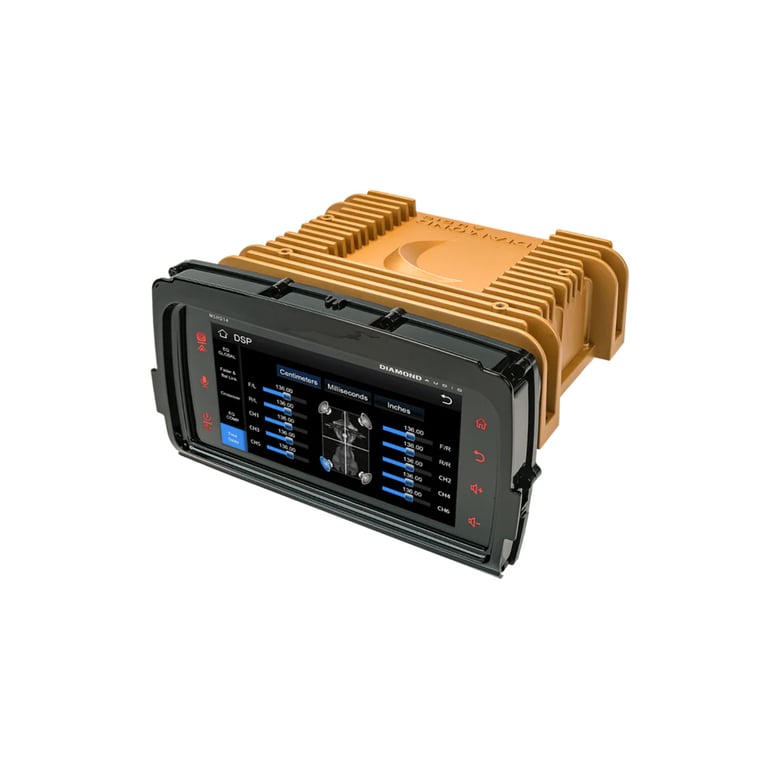

Diamond Audio MSHD14 7” Custom-Fit Digital Multimedia Receiver:

• Power Output:
• Peak: 50 watts x 4-channel
• RMS: 28 watts x 4-channel
• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android
• Utilizes factory USB for phone charging and music playback
• Maestro built in for advanced vehicle data Boom Audio 2 amplifier turn on
• Retains handlebar controls, reconfigurable though programming
• CAN-BUS integration and vehicle data allows for selectable on-screen data such as RPM, voltage, temperature, and throttle position
• Glove friendly, ultra-bright 7" 1000 nit, sunlight viewable touch screen display
• 6 independent equalizers for the ultimate sound customization (1 Global, 5 for Setup)
• 10-channel integrated digital signal processor with time delay
• High-pass, bandpass, and low-pass filters with adjustable 6,12,18,24db slopes
• Independent channels can be linked together or separated from fader control
• MP3 | AAC | WMA | FLAC Audio Playback
• AVI | MP4 | MPG | MOV | XVID | WMV Video Playback
• AM/FM tuner with 12 FM / 5 AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Parametric Equalizer
• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• 6 programmable auxiliary triggers for controlling lighting, kickstands and accessories via touchscreen, timers/triggers or handlebar controls
• Internal iDataLink ADS-MRR2 CAN-BUS module for seamless integration
• 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Factory Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Bluetooth line driver for maximum output
• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free sound
• MFR #: MSHD14

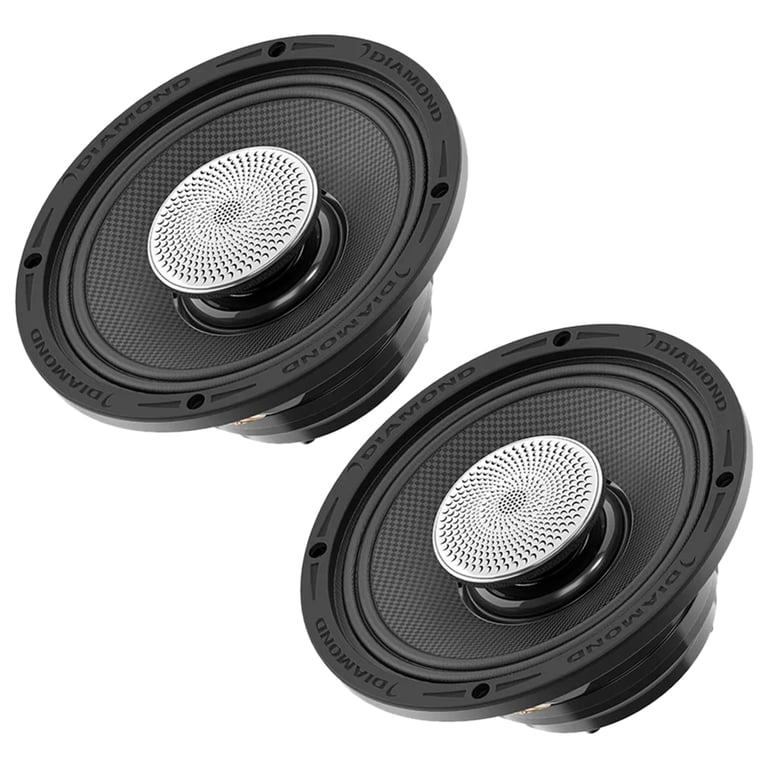

Diamond Audio MS652NEO2S 6.5" 2 Way Coaxial Pro Audio Speakers:

• Power Handling:
• Peak: 1200 watts per pair / 600 watts each
• RMS: 400 watts per pair / 200 watts each
• Waterproof DuPont Kevlar cone material
• Rubber speaker surround
• Polyethylene-Naphthalate horn tweeters
• 2" High temperature coated voice coil
• Neodymium magnet motor structure
• Shallow mounting depth for tight applications
• Heavy duty industrial cast aluminum basket
• Bi-ampable for DSP tuning or use with separate amplifier channels
• Field serviceable tweeter voice coil
• Fully waterproof for extreme applications
• Highest output motorsports speaker
• Top-mount Depth: 2.74"
• Cutout Dimensions: 5.43"
• Impedance: 2 ohm
• Frequency Response: 180 - 20000 Hz
• Sensitivity: 95 dB
• MFR #: MS652NEO2S

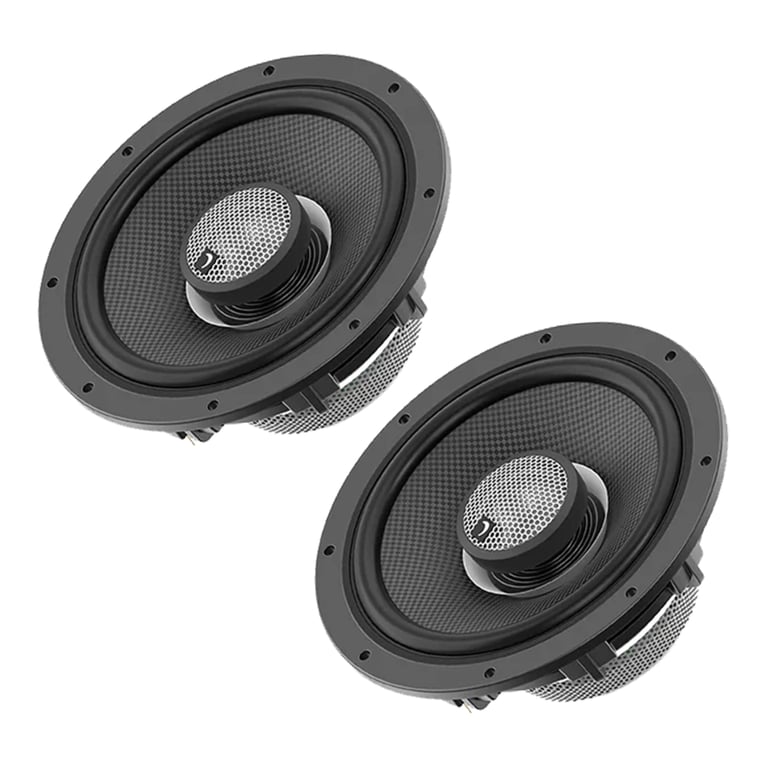

Diamond Audio HXM65F2BK 6.5" 2 Way Coaxial Speakers:

• Carbon fiber cone material
• Rubber speaker surround material
• Light weight injection molded composite basket
• Power Handling:
• Peak: 750 watts per pair / 375 watts each
• RMS: 250 watts per pair / 125 watts each
• 1-1/2" Titanium dome tweeters
• 1.5" High temperature voice coil
• Water spray and salt water resistant, 100% UV stable
• Ultralight neodymium magnet motor structure
• Flush or back mount design
• Impedance: 2 ohm
• Frequency Response: 110 - 20000 Hz
• Sensitivity: 95 dB
• MFR #: HXM65F2BK

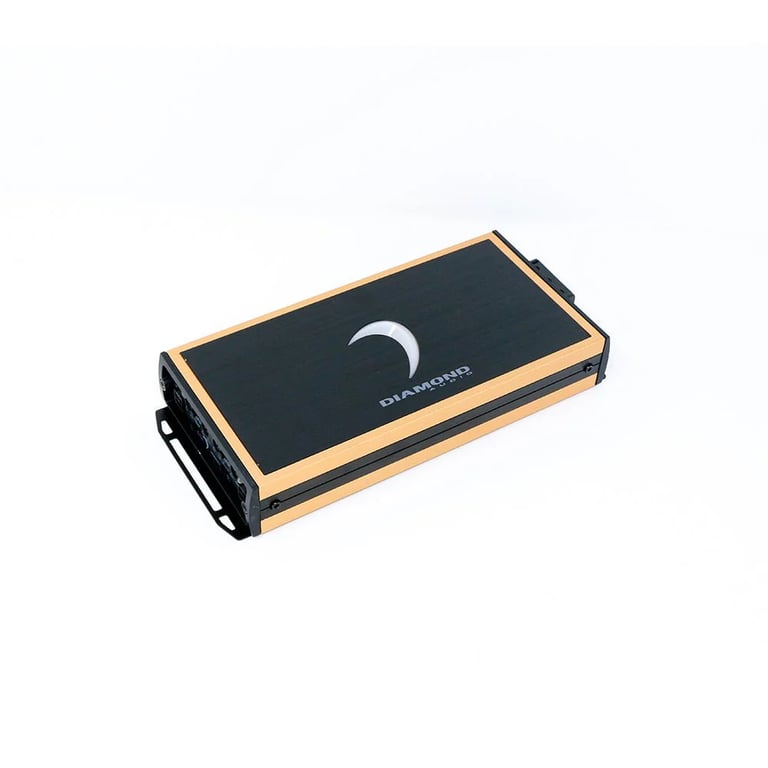

Diamond Audio MICRO84U Class D 4-Channel Amplifier:

• RMS Power Rating:
• 4 ohm: 85 watts x 4 channel
• 2 ohm: 125 watts x 4 channel
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS power output: 660 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• DirectFET Power MOSFET output stage
• SMD technology on 4-layer glass PC board
• Conformal coated PCB assembly for added water resistance
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 10 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: 85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 40A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• MFR #: MICRO84U
