Name: Sound Storm Labs (SSL) EV4.1600
Brand: Sound Storm Labs (SSL)
SKU: ev41600
Price: 143.99 USD
Availability: Discontinued
Rating: 4.5000 (10 reviews)

Shop all Sound Storm Labs (SSL)

by Sound Storm Labs (SSL)

About
Specs & Details
Product Videos
Reviews
Add-ons
Similar Products
Related Searches

Image description — Sound Storm Labs (SSL) EV4.1600

Product videos

Product highlights

• 180W x 4 Chan. @ 4 Ohms
• 400W x 4 Chan. @ 2 Ohms
• 1600W Max Bridged
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Learn more about the ev41600

Product Highlights

• 180W x 4 Chan. @ 4 Ohms
• 400W x 4 Chan. @ 2 Ohms
• 1600W Max Bridged
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Description

Authorized dealer

Amplifier Features:

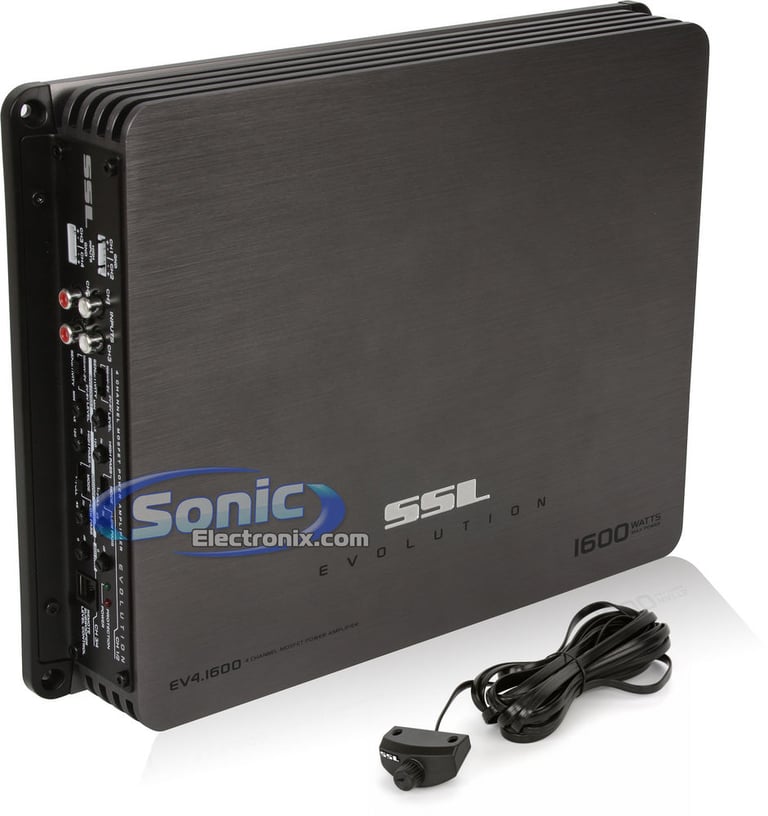

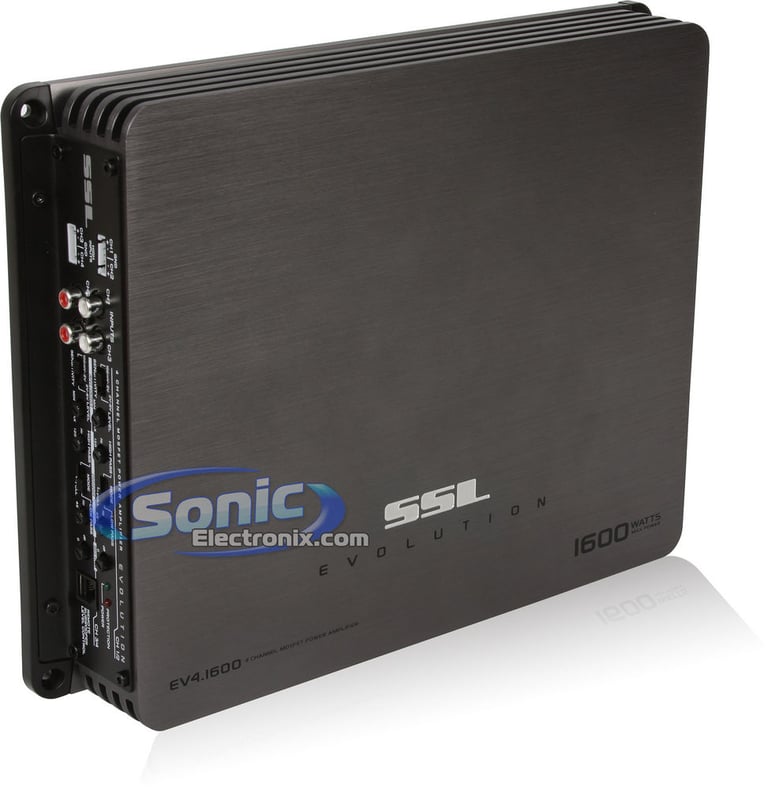

Evolution Series Four-Channel Class AB Car Amplifier
RMS Power Rating:
- 4 ohms: 180 watts x 4 chan.
Max power output:
- 2 ohms: 400 watts x 4 chan.
- Bridged, 4 ohms: 800 watts x 2 chan.
MOSFET PWM (Pulse Width Modulated) power supply)

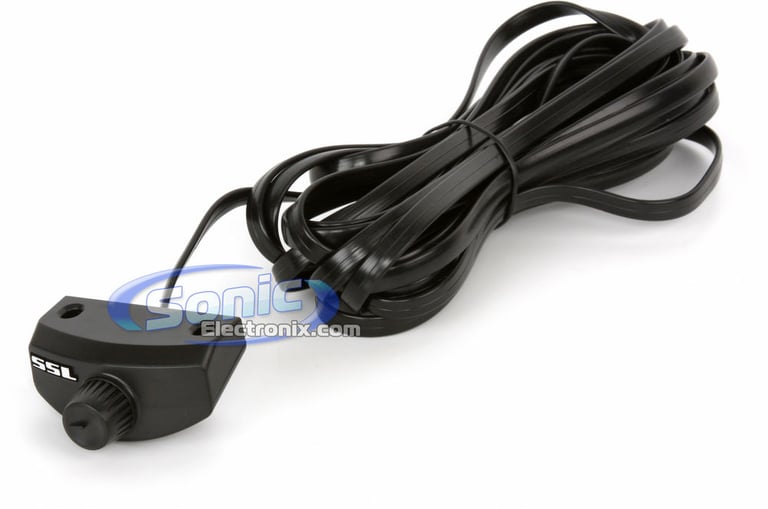

Wired remote bass level control included
Power and protection LED indicators
Variable tuned bass EQ (0-18 dB bass boost)
2 Ohm stable
4/2 channel monoblock operation

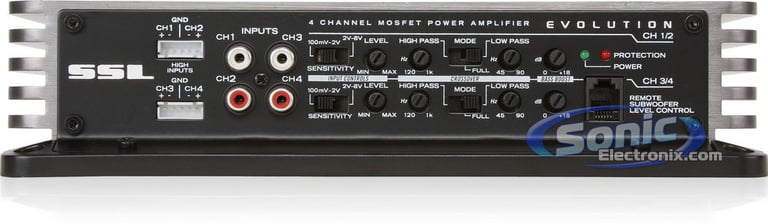

Selectable input sensitivity (100mV-2V or 2V-8V)
Thermal and speaker short protection
Soft turn-on circuit
Remote turn-on/turn-off circuit
Variable input gain control
Dark gray anodized heatsink
Large aluminum heatsink for excellent heat dissipation
Nickel-plated RCA level inputs

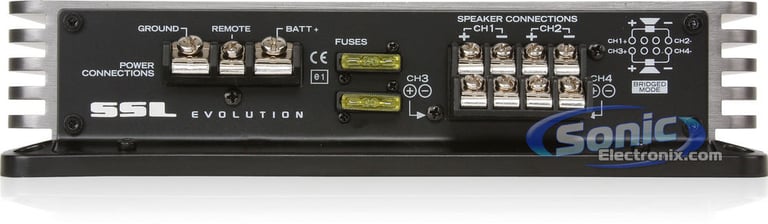

Nickel-plated screw terminals
Variable low-pass filter (45-90 Hz, 12 dB/octave)
Variable high-pass filter (120-1,000 Hz, 12 dB/octave)
Frequency response: 9,000-50,000 Hz
Dimensions: 10"D x 13-1/2"W x 2-3/8"H
4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Package Includes:

Evolution Series Amplifier
Remote subwoofer level control
High input cable with connector
Four mounting screws

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 4 channel

RMS Power @ 2 ohms

300 watts x 4 channel

Bridged RMS Power

600 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ .5 ohm

Power Specifications - Full Range Channels

Peak Power @ 2 ohms

400 watts x 4 channel

Bridged Peak/Max Power

800 watts x 2 channel

Power Specifications - Subwoofer Channel

Peak Power @ .5 ohm

Amplifier Specifications

Series

Evolution Series

Marine Certified

Amplifier Class

A/B

Number of Channels

Total Peak Power Output

1600 watts

Maximum Input Gauge Size

Any Gauge with use of Spade Terminal AWG

Minimum Impedance Unbridged

2 ohms

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.01%

Speaker Level Inputs

Yes - with included adapter

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

120 - 1,000 Hz

Low-Pass Crossover Frequency

45 - 90 Hz

Signal-to-Noise Ratio

105 dB

Channel Separation

90 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fan Cooled

Fuse Rating

20A x 2

Total Fuse Rating

Strappable

CEA-2031 Compliant

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

Low-Level Input Sensitivity

High-Level Input Sensitivity

What is in the box?

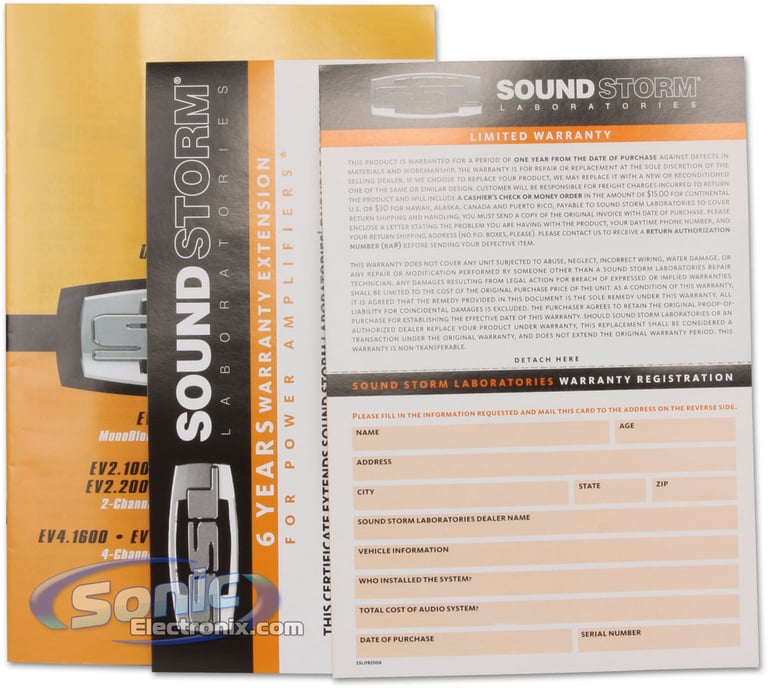

Paperwork

User manual

WITB: Amplifiers

Amplifier
Wired gain knob (wire attached)

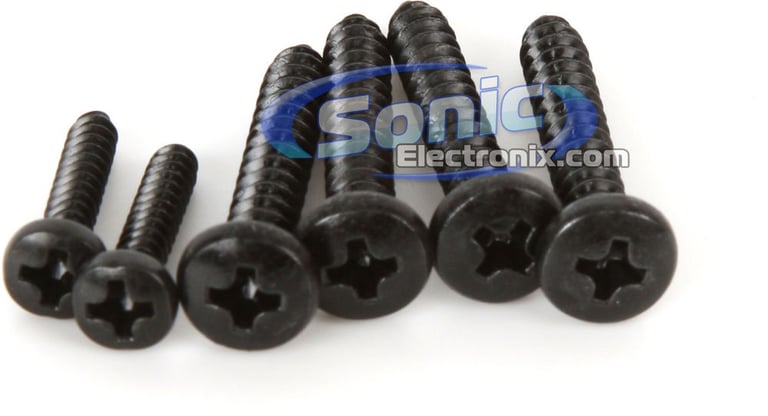

Mounting screws (6)

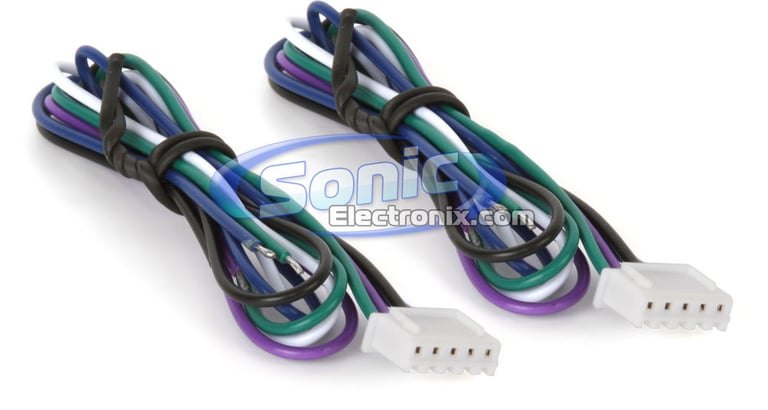

High-level input wiring harness w/ molex connectors (2)

Other Accessory #6

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Rate or review product

Overall rating distribution

5 star		50%
4 star		50%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.1
Value		4.5
Features		4.2
Design		4.5
Usability		4.6

Customer Photos & Videos

Customer Reviews

Sort by:

awesome!

this amp is great! i have it hooked up to my mids and highs and i have a clarion eq and it is amazing. it goes great next to my 1600 wat hifonics class d amp for my bass. i would recomend this amp for your mids and highs.

By jakeyy on June 24, 2014

found this helpful.

Helpful? Report abuse

quality product

Great amp pushing 4 6.5 speakers and has good features. I really like this amp, have no issues so far, sounds great.

By yoshi on March 16, 2014

found this helpful.

Helpful? Report abuse

Decent

This little amp is a decent mids and highs amp for the money im running 8 kicker ks series mids of all sizes and it does a great job, great for the money.

By kris on December 5, 2011

found this helpful.

Helpful? Report abuse

Awesome amp. Great value for the money.

Best bang for the buck. Quality build. Nice look. All the things you need in a good amp. I highly recommend it!

By David on January 24, 2012

found this helpful.

Helpful? Report abuse

great amp!!

sound great with no distortion. For the value it performs well. I am running 4 1/2 inches in the doors and a set of 6 x 9 in back of my Jeep. It sounds great.

By Corey on January 17, 2015

found this helpful.

Helpful? Report abuse

Good value at low price

This is a very good amplifier if you are on a budget. decent power output at low cost. I would have preferred hex terminals but the regular terminals work ok.

By Trilla on April 2, 2014

found this helpful.

Helpful? Report abuse

Excellent

Id recommend this to anyone looking to amp their speakers. I have four kenwood 500 watt speakers hooked to this sucker and it works great.
Rocks real loud with decent quality.

By Paul on May 26, 2013

found this helpful.

Helpful? Report abuse

Nice

Good amp for any app. High and low sounds good. Got mines ran to 2 6x9. Looks good too

By Vernell on May 12, 2011

found this helpful.

Helpful? Report abuse

Good frying pan

I could literally scramble my eggs with this amp. This amp gets SO HOT. This amp is just okay. If you're expecting something great then this is not the amplifier for you. This amp performs well, and Its fuse rating is 40A. This amp is kind of close to what the claimed RMS output is. I will continue to use this because it still works. If you just don't care that much about a perfect sound system then get this. If you're trying to get a great sounding system on a budget, I would avoid this.

By Christopher on June 1, 2016 checkmarkIcon

Verified purchase

found this helpful.

Helpful? Report abuse

Highly recommend it

Was add to a 10 inch woofer sounds amazing. Great size great

By Jasmine on March 22, 2023 checkmarkIcon

Verified purchase

Helpful? Report abuse
