Name: Sound Storm Labs (SSL) EV5000D [Refurbished]
Brand: Sound Storm Labs (SSL)
SKU: LS-ev5000d-RBC
Price: 119.99 USD
Availability: Discontinued

by Sound Storm Labs (SSL)

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 1 — Sound Storm Labs (SSL) EV5000D [Refurbished]

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 2 — Sound Storm Labs (SSL) EV5000D [Refurbished]

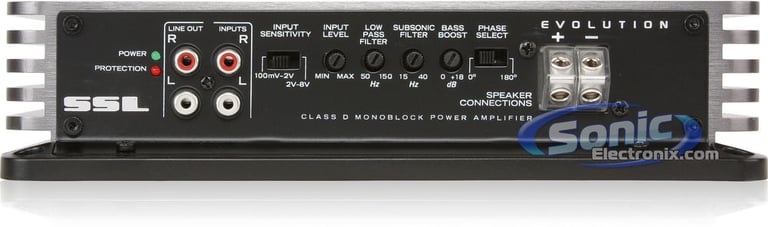

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 3 — Sound Storm Labs (SSL) EV5000D [Refurbished]

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 4 — Sound Storm Labs (SSL) EV5000D [Refurbished]

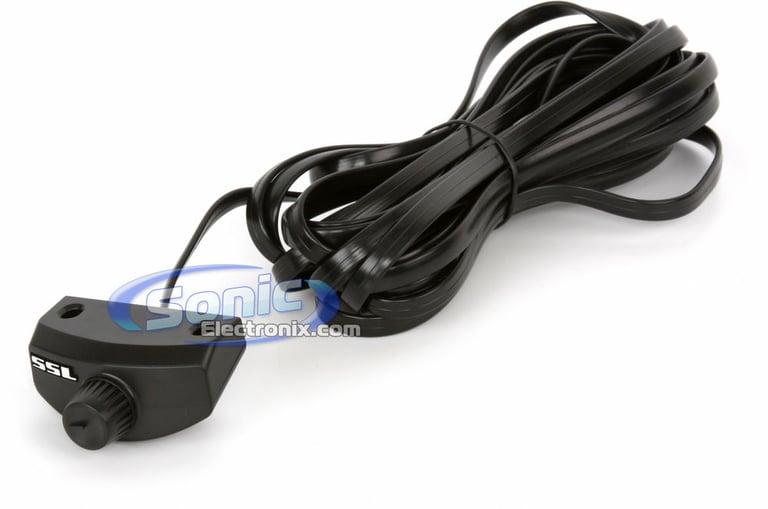

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 5 — Sound Storm Labs (SSL) EV5000D [Refurbished]

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 6 — Sound Storm Labs (SSL) EV5000D [Refurbished]

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 7 — Sound Storm Labs (SSL) EV5000D [Refurbished]

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 8 — Sound Storm Labs (SSL) EV5000D [Refurbished]

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 9 — Sound Storm Labs (SSL) EV5000D [Refurbished]

Sound Storm Labs (SSL) EV5000D [Refurbished] Image 10 — Sound Storm Labs (SSL) EV5000D [Refurbished]

Product highlights

• RMS: 1800W x 1 @ 4 ohm, 2500W x 1 @ 2 ohm
• Peak: 2200W x 1 @ 4 ohm, 3500W x 1 @ 2 ohm, 5000W x 1 @ 1 ohm
• Wired Bass Level Remote
• Bass Boost: 0-18 dB
• DataLink Cable for Connecting Two Evolution Amps
• Dimensions: 10"D x 19-1/2"W x 2-3/8"H

Learn more about the LS-ev5000d-RBC

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Amplifier Features:

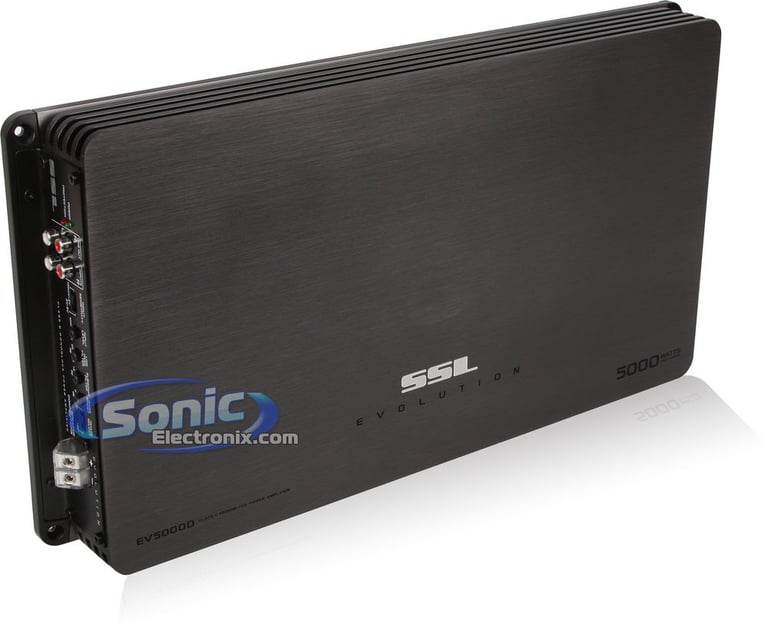

Evolution Series Single-Channel Class D Car Amplifier
RMS Power Rating:

4 ohm: 1750 watts x 1 chan.

Max power output:

2 ohm: 3500 watts x 1 chan.
1 ohm: 5000 watts x 1 chan.

MOSFET PWM (Pulse Width Modulated) power supply)
1 Ohm stable
Wired remote bass level control included
Power and protection LED indicators
Variable tuned bass EQ (0-18 dB bass boost)
Single channel monoblock operation
Selectable input sensitivity (100mV-2V or 2V-8V)
Thermal, overload, and speaker short protection
1 Pair of preamp RCA outputs
Soft turn-on circuit
Selectable 0/180 phase shift

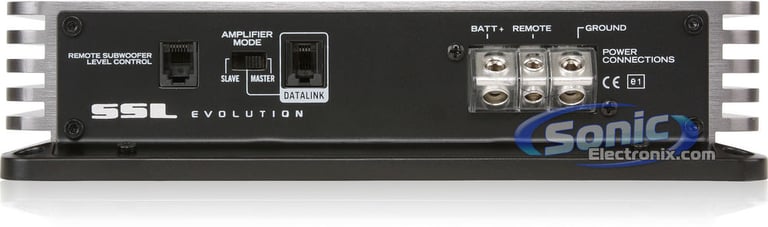

DataLink cable included for connecting two Sound Storm Evolution amplifiers together
Variable input gain control
Dark gray anodized heatsink
Large aluminum heatsink for excellent heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (50-150 Hz, 12 dB/octave)
Subsonic Filter (15-40 Hz, 12 dB/octave)
Frequency response: 50-150 Hz
Dimensions: 10"D x 19-1/2"W x 2-3/8"H
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Authorized Internet Dealer
1-year Manufacturer's warranty

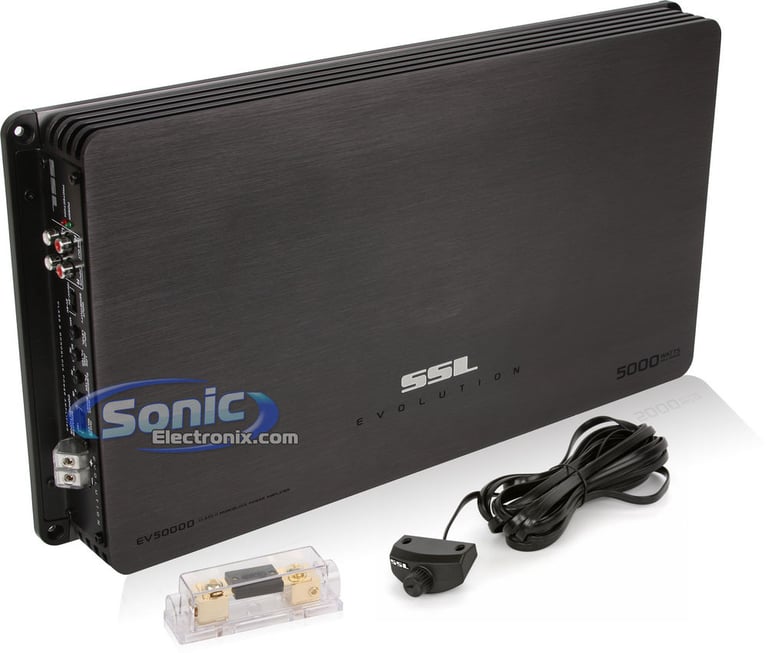

Package Includes:

Class D Amplifier
Remote subwoofer level control
Remote subwoofer control cable

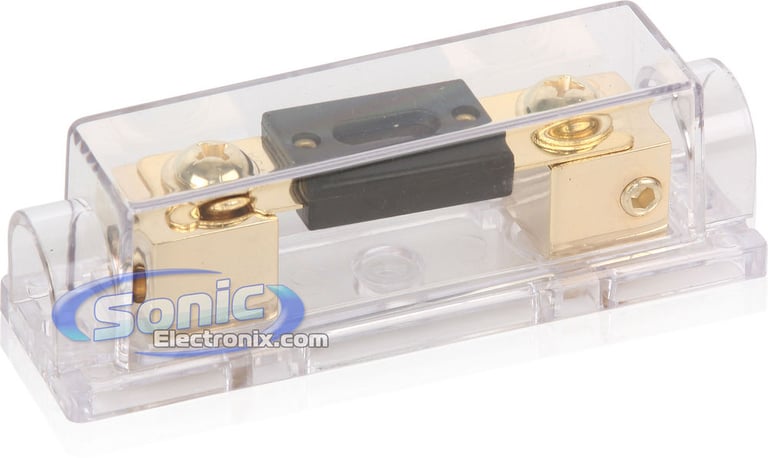

ANL Fuse holder
200A Fuse

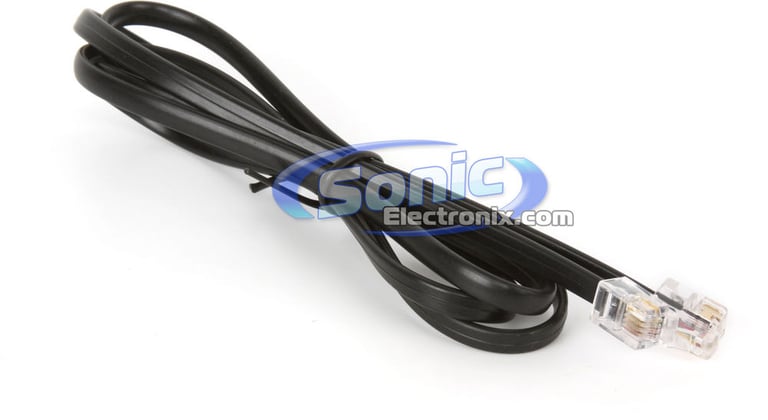

DataLink cable

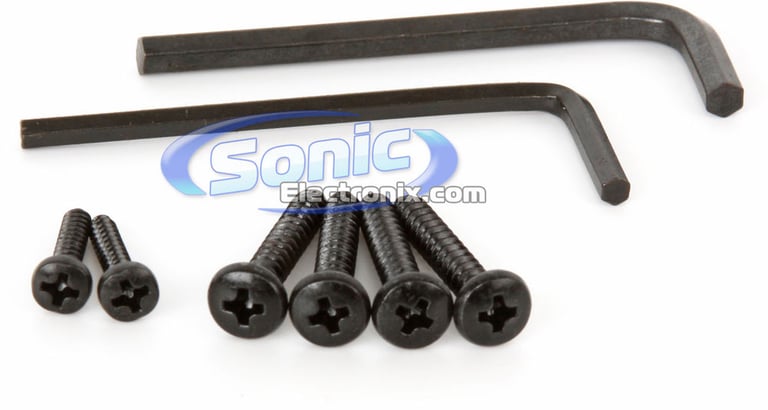

Four mounting screws

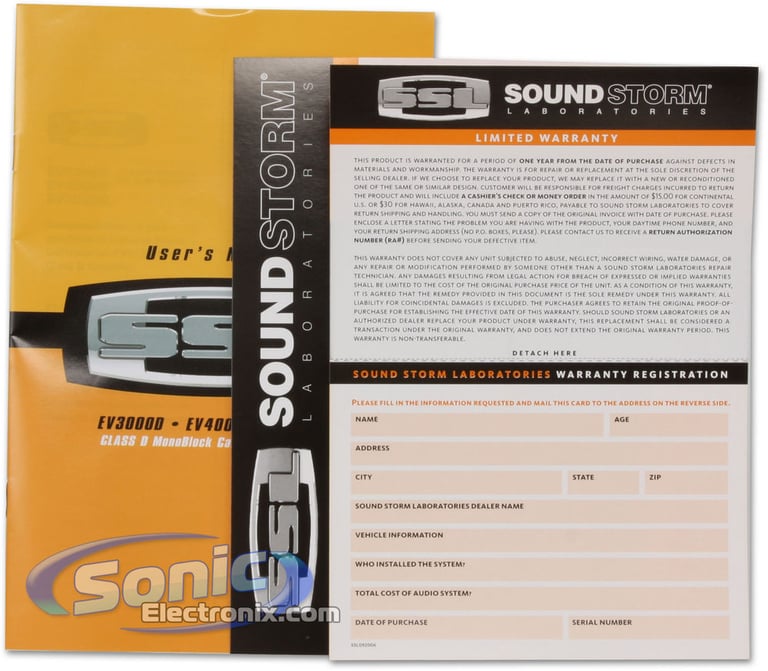

Check out the EV5000D Owner's Manual

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1750 watts x 1 channel

RMS Power @ 2 ohms

2000 watts x 1 channel

RMS Power @ 1 ohm

2500 watts x 1 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

2750 watts x 1 channel

Peak Power @ 2 ohms

3500 watts x 1 channel

Peak Power @ 1 ohm

5000 watts x 1 channel

Amplifier Specifications

Series

Evolution Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

5000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

105 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Strappable

Yes

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
