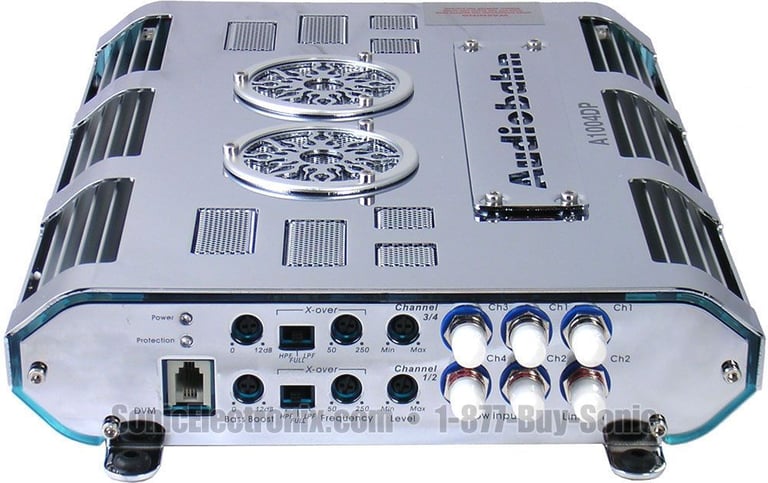

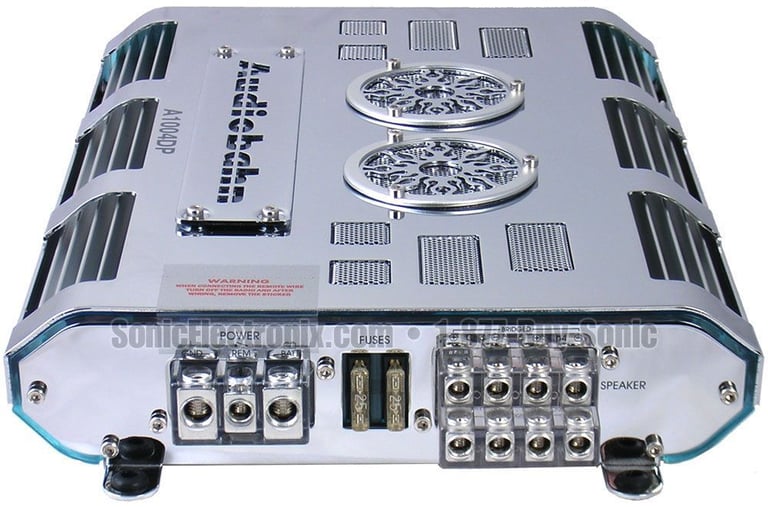

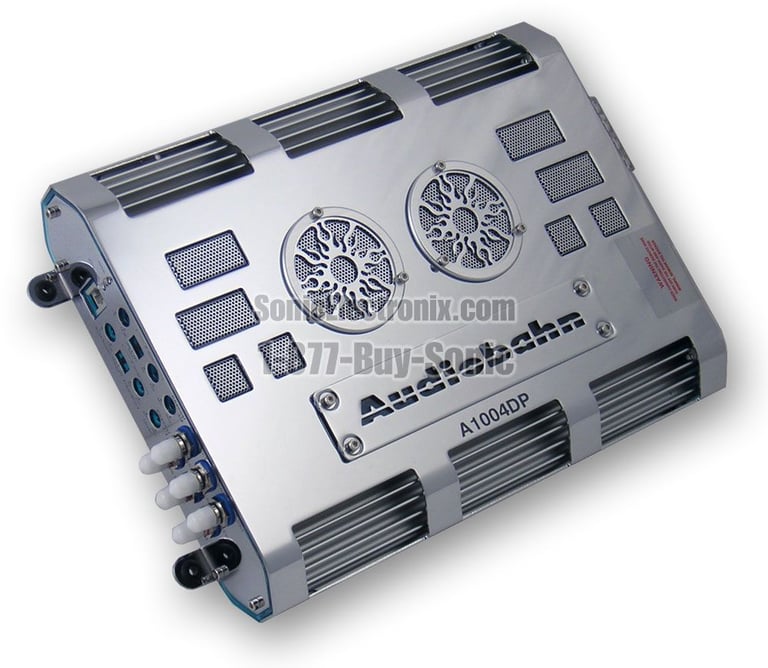

Audiobahn A1004DP

True Digital Series 4-Channel Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

1 ohm stereo stable, 2 ohm bridged • True Digital Circuitry • Dual Cooling Fans • HP/LP Crossovers • Bass Boost • Cobalt Blue Illumination • 100/200/300 watts x 4 ch. (@ 4/2/1 ohm)

Learn more about the a1004dp

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
C1-075ct main

JL Audio C1-075ct

50W RMS 0.75" C1 Series 8-ohm Component Dome Tweeters

5

Product Highlights


1 ohm stereo stable, 2 ohm bridged • True Digital Circuitry • Dual Cooling Fans • HP/LP Crossovers • Bass Boost • Cobalt Blue Illumination • 100/200/300 watts x 4 ch. (@ 4/2/1 ohm)

Description


  • Class D, True Digital Circuitry 4-Channel Car Amplifier
  • RMS Power Rating:
    • 100 watts x 4 chan. @ 4 ohm
    • 200 watts x 4 chan. @ 2 ohm
    • 300 watts x 4 chan. @ 1 ohm
    • Bridged, 200 watts x 2 chan. @ 4 ohm
    • Bridged, 400 watts x 2 chan. @ 2 ohm
  • Preamp Outputs
  • Cobalt Blue LED Illuminated Heat Sink Design (on/off switch for your preference)
  • Dual Cooling Fans
  • Chrome Flame Cooling Fan Grill Covers Included (other optional designs available and sold separately)
  • Double Sided Glass Epoxy Circuit Board
  • High Gloss Chrome Plated Finish
  • Optional Remote-mount Digital Volt-meter Display (Audiobahn ADM100T sold separately)
  • 4-Way Protection Circuitry: Thermal, Short Circuit, Overload, DC Offset
  • Variable Bass Boost: 0-12dB
  • Variable High-Pass Crossover: 50-250Hz
  • Variable Low-Pass Crossover: 50-250Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 20Hz-20kHz
  • THD: 0.05%
  • Input Sensitivity: 200mV - 8V
  • 4-gauge power and groud leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 9-1/2" L x 8-1/2" W x 2-1/16" H
  • 1-year SonicElectronix.com warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-25.50%

$298.00

List price $399.99

XAV-AX3200, BLPCAM2 main

Sony XAV-AX3200 with License Plate Camera

6.95" Double-DIN Touchscreen Digital Multimedia Receiver with License Plate Backup Camera

72
-32.40%

$337.99

List price $499.98

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
RMS Power @ 1 ohm
300 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
1200 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2

Item Details


Manufacturer:

Model Number:

A1004DP

Weight:

15.00lbs

Internal SKU:

a1004dp

Internal Product ID:

2307

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A1004DP thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
4.5
Design
4.5
Usability
4

Customer Reviews

Sort by:

Loading...

Good amp for speakers

This is a good amp for speakers. Its not so great for subwoofers. My reveiw are for mids and highs not subwoofers

By Billy on March 16, 2006

5 found this helpful


amazed once again

i bought this amp as well as the A12001DT fom SE recently. this amp in size is small yet sounds so clear and defined especially when u have components in the front. the only drawback i see with this amp was the dual fans, since the fans are small they have more RPM and produce a slight noise, but nothing to be worried about...its physics. i dont know how SE gets their prices so low, but if anyone is thinking of getting "anything" from SE i highly recommended it. you wont find it cheaper anywhere else, trust me. the staff is great, this isnt one of those blow by companies. i will definatly be buying from SE again.

By Shaun on May 2, 2005

2 found this helpful
