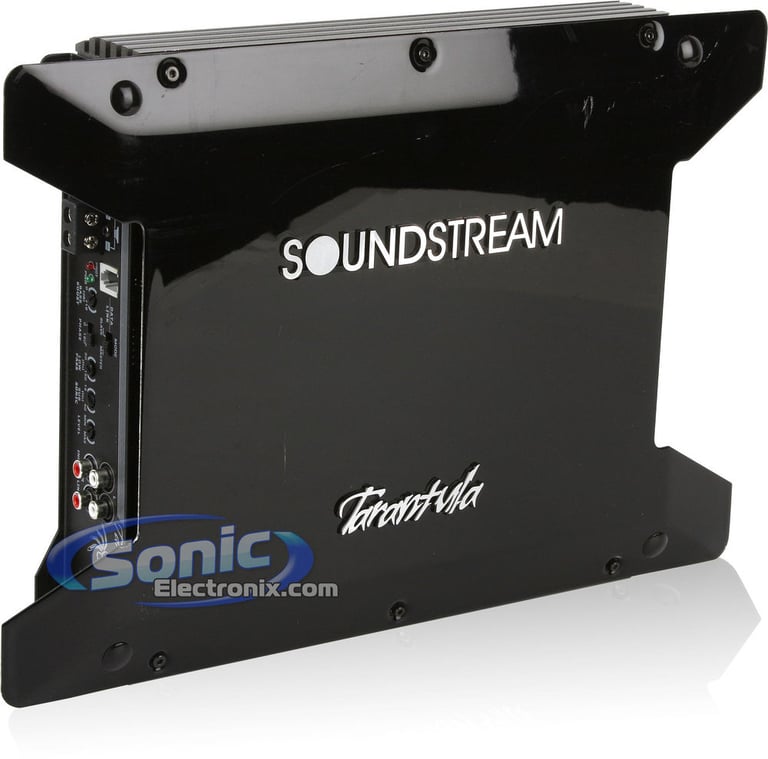

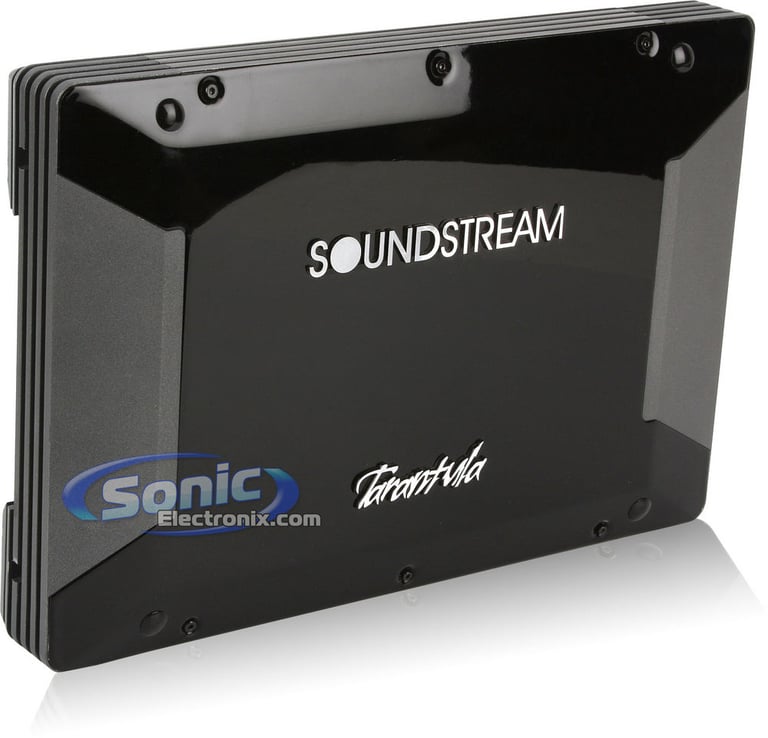

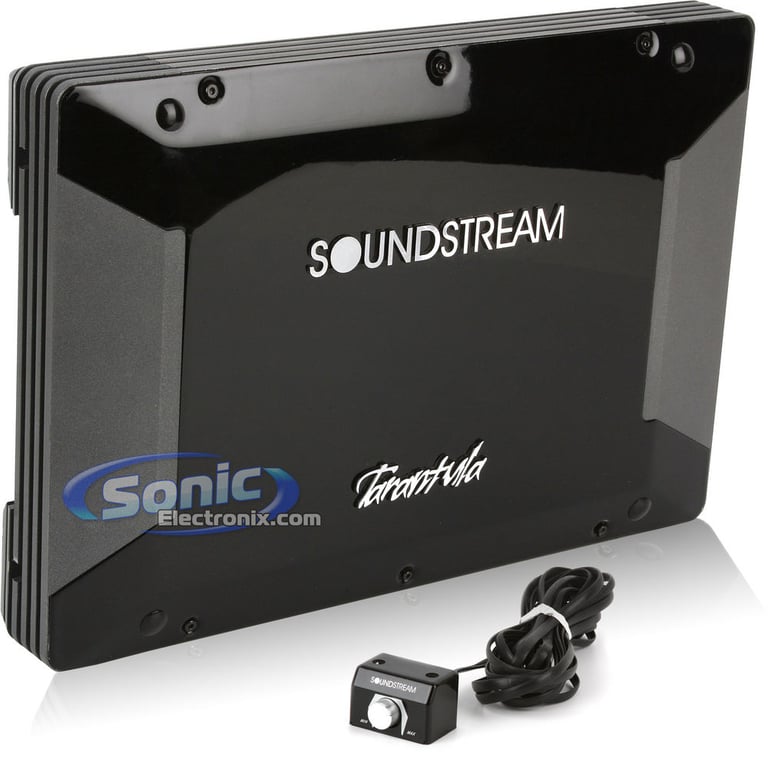

Soundstream TRX700D

700W RMS, Tarantula Series Class D Monoblock Amplifier

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

Soundstream Tarantula Series Monoblock Amp • 350W x 1-Chan. @ 4 Ohm • 520W x 1-Chan. @ 2 Ohm • MOSFET Power Supply • Twin Stack Technology • Variable Bass Boost • Bass Boost Remote • CEA-2006 Compliant

Learn more about the trx700d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

Product Highlights


Soundstream Tarantula Series Monoblock Amp • 350W x 1-Chan. @ 4 Ohm • 520W x 1-Chan. @ 2 Ohm • MOSFET Power Supply • Twin Stack Technology • Variable Bass Boost • Bass Boost Remote • CEA-2006 Compliant

Description


Soundstream brand icon

Authorized dealer

  • Soundstream Tarantula Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 350 watts x 1 chan.
    • 2 ohm: 520 watts x 1 chan.
    • 1 ohm: 700 watts x 1 chan.
  • MOSFET power supply

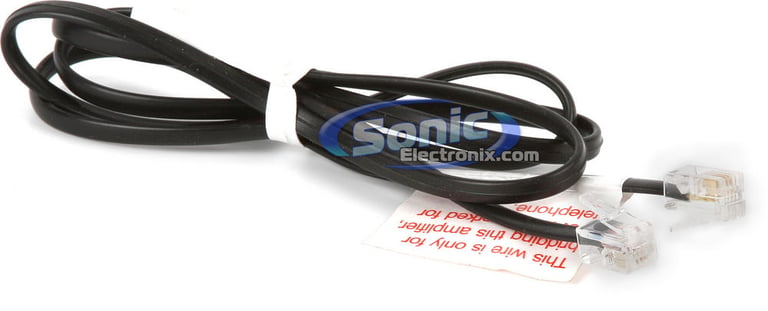

  • TST (Twin stack technology) allows 2 amps to drive one voice coil

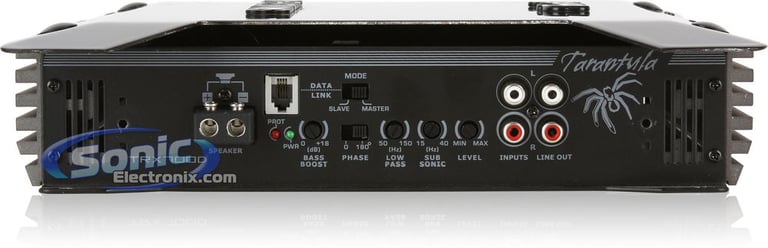

  • Bridged mode switch (slave and master)
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost @ 35-80 Hz)
  • Monoblock operation
  • Preamp RCA outputs to daisy chain multiple amps
  • Hi gloss piano black heatsink for maximum heat dissipation
  • Platinum RCA level inputs

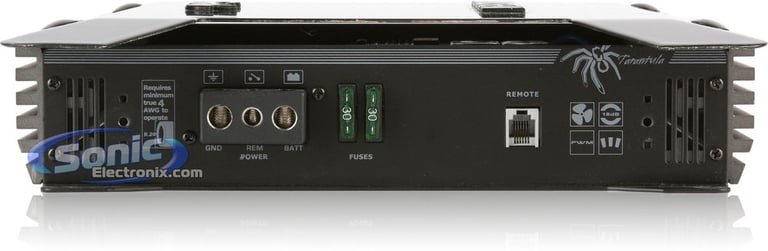

  • Platinum 4-gauge power connectors

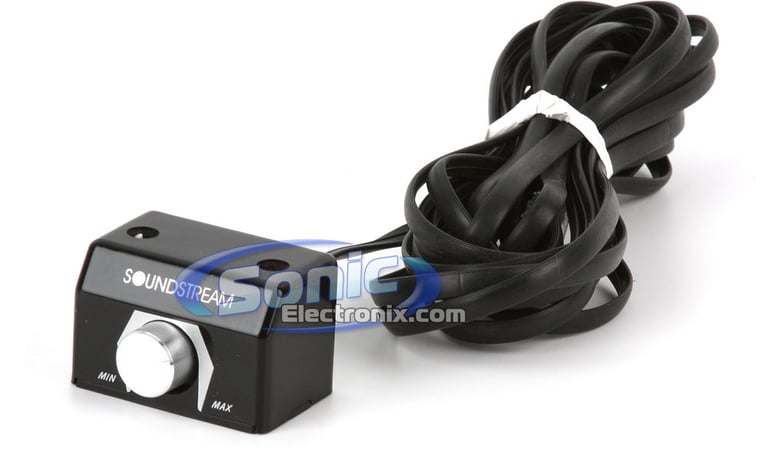

  • Bass boost remote control included
  • Input sensitivity:
    • Input Level (Balanced): 0.02V-8V
  • Variable low-pass filter (50-150 Hz)
  • Phase Shift: 0-180°
  • Frequency response: 15-150 Hz
  • Subsonic filter control (15-40 Hz)
  • Sound to noise ratio: 100dB
  • Dimensions: 15-4/5"L x 11"W x 2-3/5"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
350 watts x 1 channel
RMS Power @ 2 ohms
520 watts x 1 channel
RMS Power @ 1 ohm
700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
0.30%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRX700D

Weight:

13.00lbs

Internal SKU:

trx700d

Internal Product ID:

23195
