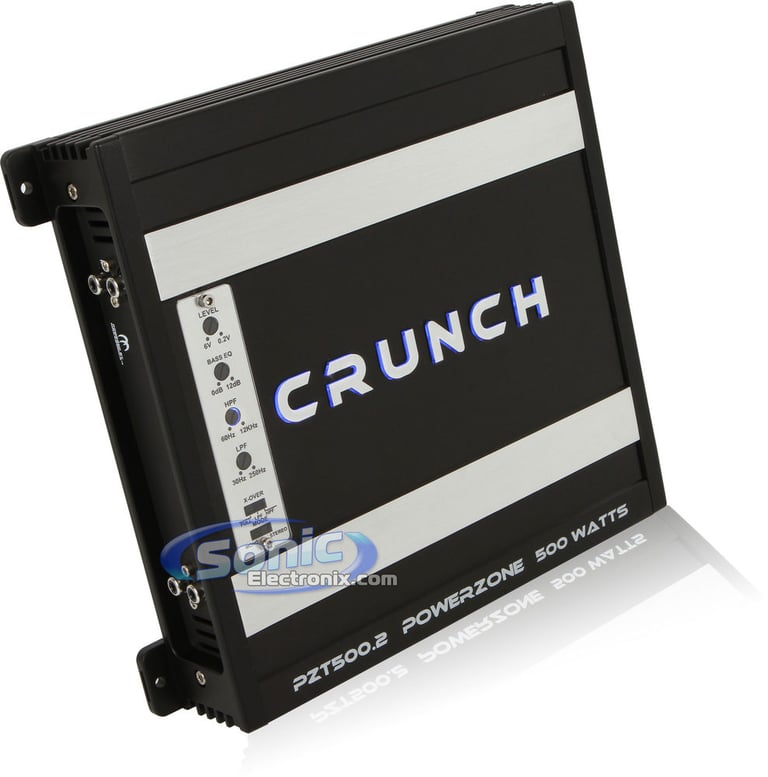

Crunch PZT500.2

500W Max, Power Zone Series 2-Channel Amplifier (PZT-500.2)

Crunch
Shop all Crunch
Product videos
highlight-star-icon

2-Channel Power Zone Series Car Amplifier • Class A/B • 125W x 2 Chan. @ 4 ohm • 250W x 2 Chan. @ 2 ohm • 500 Watts Max • Crossover Switch • Soft-Start Circuitry • Nickel-Plated Contacts • Illuminated Crunch Logo

Learn more about the pzt5002

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

pz8002 thumbnail

Crunch PZ800.2

OUR PRICE: $62.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

28
-42.32%

$74.95

List price $129.95

K 165 main

Hertz K 165

300W Peak (75W RMS) 6.5" Uno Series 2-way 4-ohm Component Speaker System

4
-33.34%

$99.99

List price $150.00

MM-50L main

Deaf Bonce Machete MM-50L

320W Peak (196W RMS) 5.2" Machete Series Midrange 4-ohm Speakers

1
NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

Product Highlights


2-Channel Power Zone Series Car Amplifier • Class A/B • 125W x 2 Chan. @ 4 ohm • 250W x 2 Chan. @ 2 ohm • 500 Watts Max • Crossover Switch • Soft-Start Circuitry • Nickel-Plated Contacts • Illuminated Crunch Logo

Description


Crunch brand icon

Authorized dealer

  • PowerZone Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 62.5 watts x 2 chan.
    • 2 ohm: 125 watts x 2 chan.
    • Bridged, 4 ohm: 250 watts x 1 chan.
  • Max Power Rating (@ 14.4V):
    • 4 ohm: 125 watts x 2 chan.
    • 2 ohm: 250 watts x 2 chan.
    • Bridged, 4 ohm: 500 watts x 1 chan.
  • Total max power output: 500 watts
  • MOSFET PWM power supply
  • DC, speaker short, thermal, and overload LED power indicators
  • Tuned Bass EQ (0-12 dB bass boost at 45 Hz)
  • Slow un-mute turn-on enables a safe soft start
  • 2/1 Channel operation for speakers or subwoofers

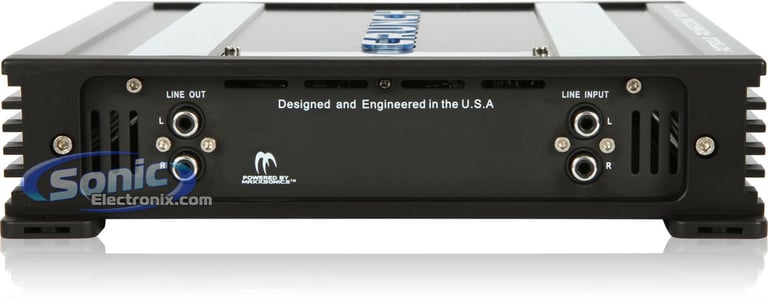

  • Full range RCA line output connections
  • Adjustable voltage level (0.2-6V)
  • 1 Pair of preamp RCA outputs
  • Stereo and mono switch
  • Crossover switch for low-pass filter, high-pass filter, and full
  • Illuminated Crunch embossed logo on the face of the amplifier
  • Power and protection LED diagnostic indicator

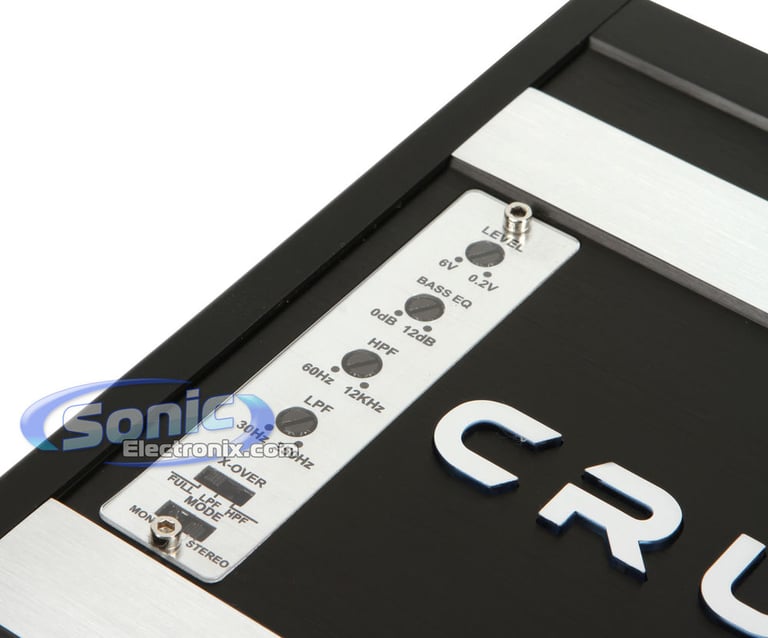

  • Adjustments and controls conveniently located on the front of the amplifier
  • Aluminum alloy heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs

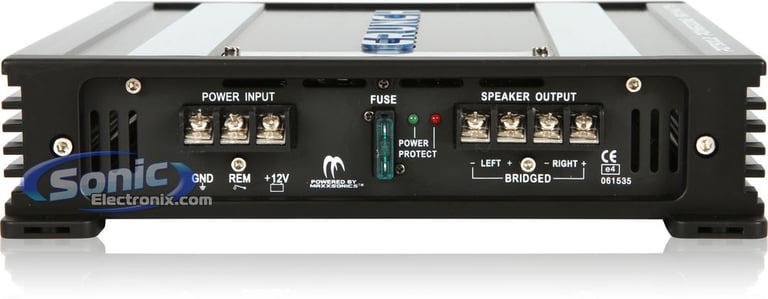

  • Nickel-plated screw terminals
  • Variable high-pass filter (60-1,200 Hz)
  • Variable low-pass filter (30-250 Hz)
  • Frequency response: 10-45,000 Hz
  • Dimensions: 9-1/2"L x 10"W x 2-3/16"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Crunch PZ800.2 thumbnail
(newest, current model)
Crunch PZA700.2 thumbnail
(previous model, replaced by Crunch PZ800.2)
Crunch PZT500.2 thumbnail
(previous model, replaced by Crunch PZA700.2)
Crunch P500.2 thumbnail
(previous model, replaced by Crunch PZT500.2)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
62.5 watts x 2 channel
RMS Power @ 2 ohms
125 watts x 2 channel
Bridged RMS Power
250 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
500 watts
Total RMS Power Output
250 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1,200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PZT500.2

Weight:

7.00lbs

Internal SKU:

pzt5002

Internal Product ID:

23675
