Name: Crunch PZT1500.1 Open Box
Brand: Crunch
SKU: LS-pzt15001-OB
Price: 99.99 USD
Availability: Discontinued

by Crunch

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

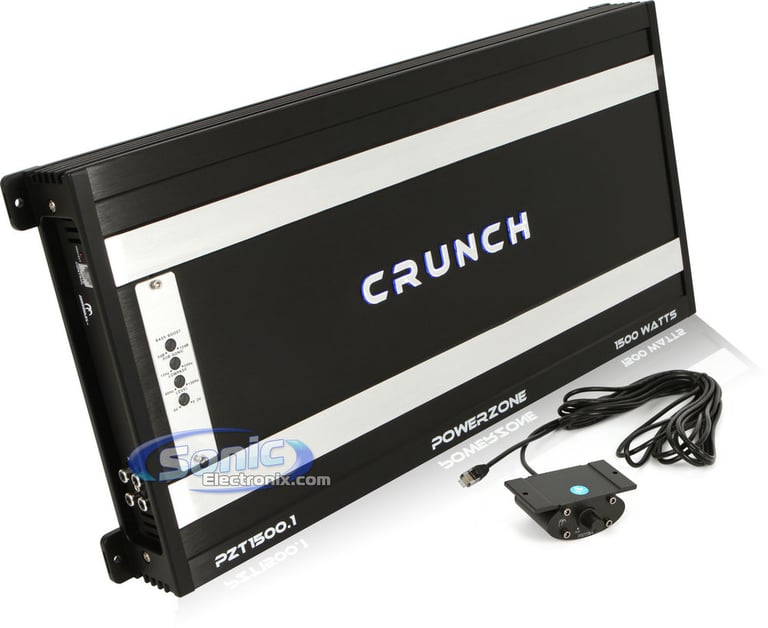

Crunch PZT1500.1 Open Box Image 1 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 2 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 3 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 4 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 5 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 6 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 7 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 8 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 9 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 10 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 11 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 12 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 13 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 14 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 15 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 16 — Crunch PZT1500.1 Open Box

Crunch PZT1500.1 Open Box Image 17 — Crunch PZT1500.1 Open Box

Product videos

Product highlights

Single-Channel Power Zone Series Car Amplifier • Monoblock • 375W @ 4 ohm • 750W @ 2 ohm • 1500W @ 1 ohm • Subsonic Filter • Soft-Start Circuitry • Nickel-Plated Contacts • Illuminated Crunch Logo

Learn more about the LS-pzt15001-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

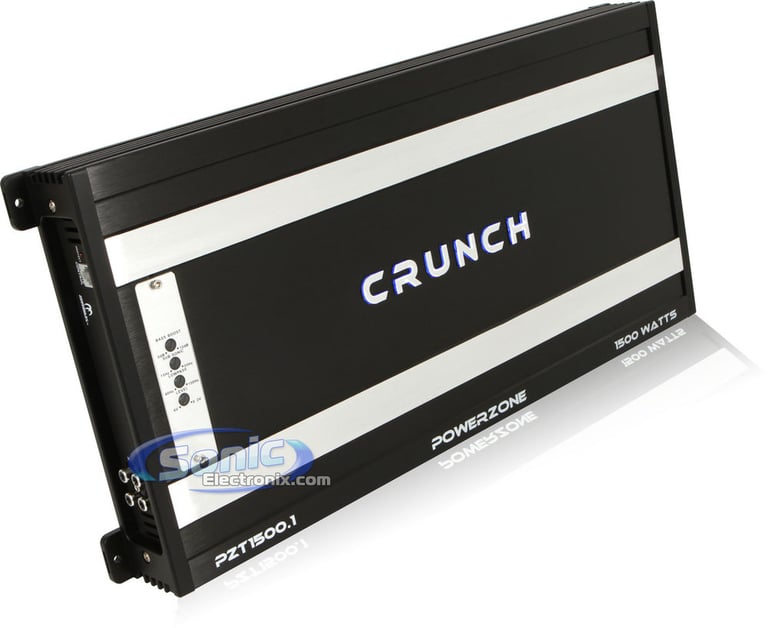

PowerZone Series Single-Channel Monoblock Car Amplifier
RMS Power Rating (@ 14.4V):
- 4 ohm: 187.5 watts x 1 chan.
- 2 ohm: 375 watts x 1 chan.
- 1 ohm: 750 watts x 1 chan.
Max Power Rating (@ 14.4V):
- 4 ohm: 375 watts x 1 chan.
- 2 ohm: 750 watts x 1 chan.
- 1 ohm: 1500 watts x 1 chan.
Total max power output: 1500 watts
MOSFET PWM power supply
DC, speaker short, thermal, and overload LED power indicators

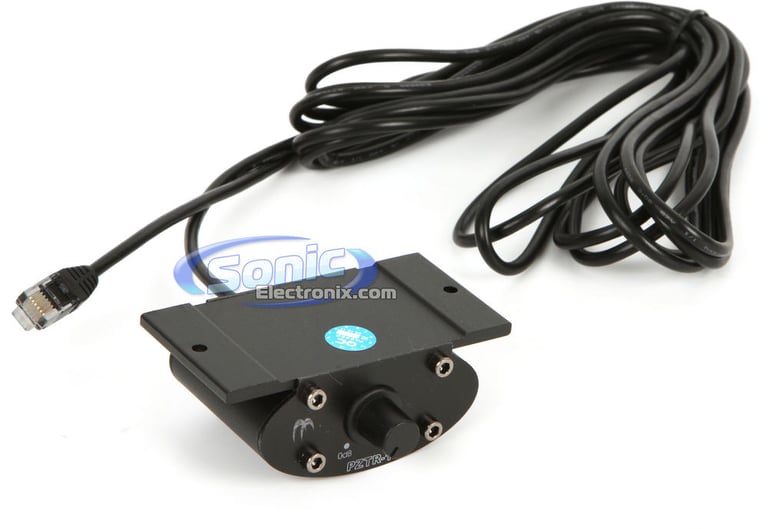

Wired remote bass level control included
Tuned Bass EQ (0-12 dB bass boost at 45 Hz)
Slow un-mute turn-on enables a safe soft start
Single Channel operation designed for subwoofers

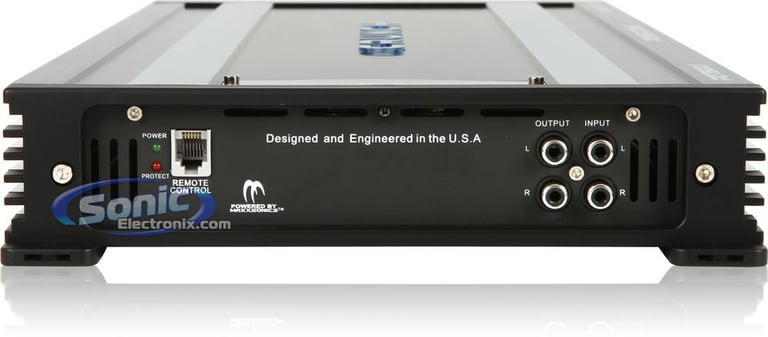

Full range RCA line output connections
Adjustable voltage level (0.2-6V)
1 Pair of preamp RCA outputs
Stereo and mono switch
Crossover switch for low-pass filter, high-pass filter, and full
Illuminated Crunch embossed logo on the face of the amplifier
Power and protection LED diagnostic indicator

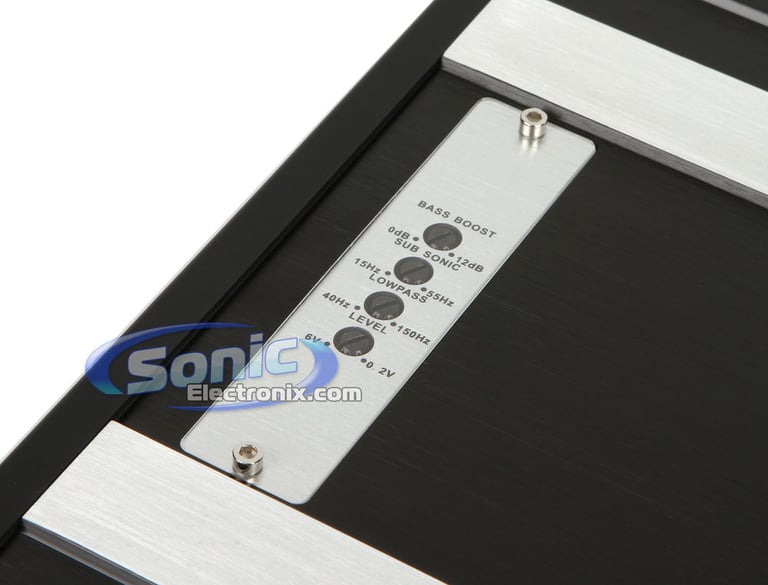

Adjustments and controls conveniently located on the front of the amplifier
Aluminum alloy heatsink for efficient heat dissipation
Nickel-plated RCA level inputs

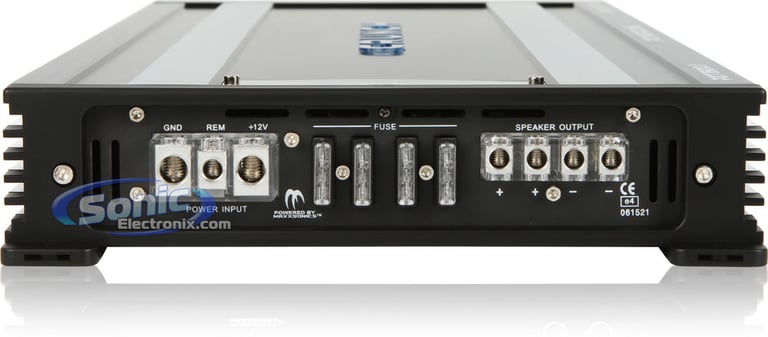

Nickel-plated screw terminals
Variable low-pass filter (40-150 Hz)
Variable Subsonic filter (15-55 Hz)
Frequency response: 10-25,000 Hz
Dimensions: 18-1/2"L x 10"W x 2-3/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

187.5 watts x 1 channel

RMS Power @ 2 ohms

375 watts x 1 channel

RMS Power @ 1 ohm

750 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

1 - Mono

Total Peak Power Output

1500 watts

Total RMS Power Output

750 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

15 - 55 Hz

Signal-to-Noise Ratio

95 dB

Channel Separation

85 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

25A x 4

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
