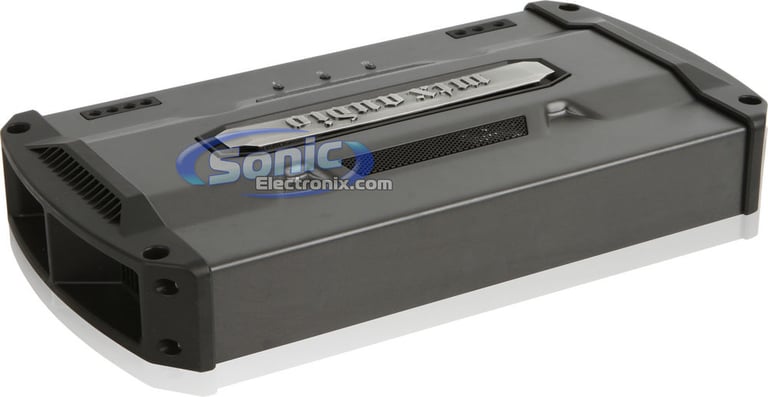

MTX Audio RFL600D R/B Image 4 — MTX Audio RFL600D R/B

MTX Audio RFL600D R/B Image 5 — MTX Audio RFL600D R/B

MTX Audio RFL600D R/B Image 6 — MTX Audio RFL600D R/B

MTX Audio RFL600D R/B Image 7 — MTX Audio RFL600D R/B

MTX Audio RFL600D R/B Image 8 — MTX Audio RFL600D R/B

MTX Audio RFL600D R/B Image 9 — MTX Audio RFL600D R/B

Product videos

Product highlights

Single-Channel Monoblock Car Amplifier • RFL Series • Adaptive Class D Technology • 1200 Watts Max • 600 Watts @ 2 ohm • 350 Watts @ 4 ohm • Active Fan Cooling • Bass Boost • EBC • CEA-2006 compliant

Learn more about the LS-rfl600d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

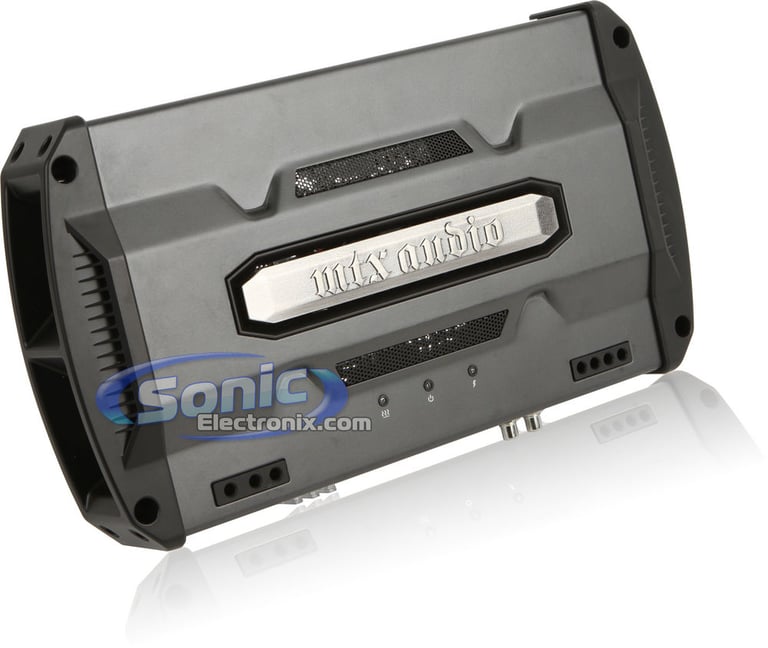

RFL Series Single-Channel Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 350 watts x 1 chan.
- 2 ohm: 600 watts x 1 chan.
Max power output: 1200 watts x 1 chan.
MOSFET power supply

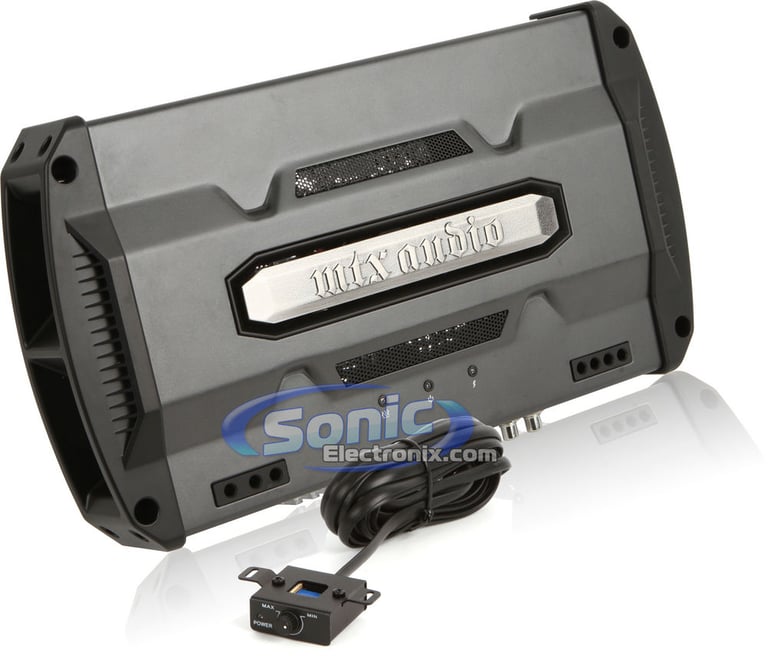

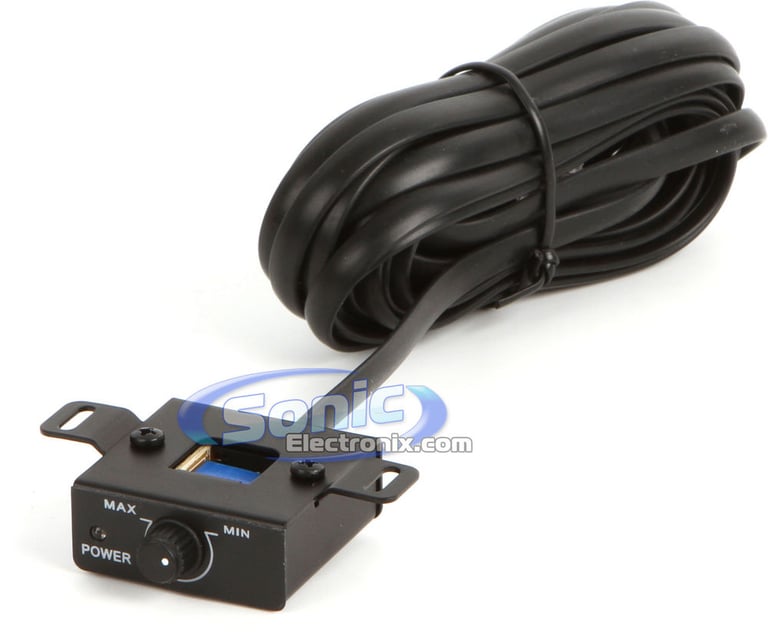

Electronic Bass Control allows the user to adjust the bass from a remote controller that can be installed near the drivers seat
Power and protection LED indicators
Tuned Bass EQ (0-12 dB bass boost)
1 channel operation

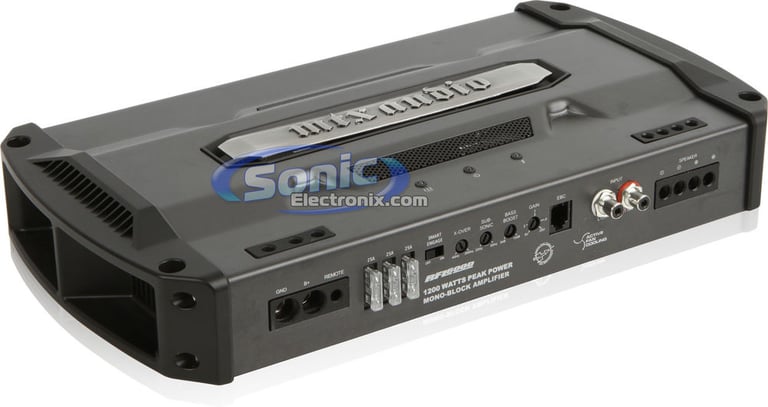

Active Fan Cooling technology has air inlets along the top of the amp and hot air outlets on the sides

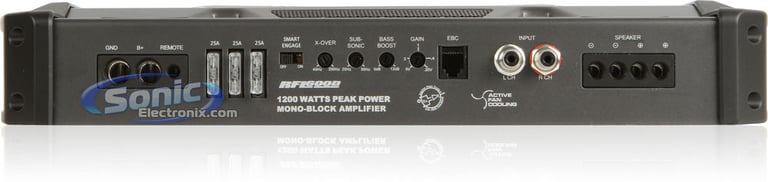

Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (40-200 Hz, 24 dB/octave)
Subsonic Filter (20-50 Hz, 12 Hz)
CEA-2006 compliant amplifier
Frequency response: 20-200 Hz
Dimensions: 14-11/16"L x 8"W x 2-3/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

350 watts x 1 channel

RMS Power @ 2 ohms

600 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

1200 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 200 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

70 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

25A x 3

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		4.5
Features		4.5
Design		5
Usability		4

Customer Reviews

Sort by:

A good one!

I didn't see any review for this amp on this site so I decided to do it! I bought this amp a year ago and it still goes on rock solid! Nothing bad about this amp. Specs are underrated and pushes 2 10 inches Alpine Type-E like it's nothing! HIGHLY RECOMMEND.

By Josée on April 5, 2012

3 found this helpful

Report abuse

Amazing Amp

Have this amp hooked up in a buddy's car pushing 2 Kicker CVR 12's and 1 Kicker CVR 15 like it's NOTHING. Don't know what actual ohm load we're running on the amp, we have had this amp on 8ohm and 2ohm, and it still pounded. I wanna say that the birth sheet with it says about 718rms at 1ohm, but i don't remember. Either way, minor electrical system upgrades will need to be done because this amp puts out some power and draws some power. Different battery at least. Overall, amazing amp. And it's rock solid. Had this amp underwater once, bad story. Pulled it out, popped the cover off, and dried it out. A little skeptical after that, but nothing messed up on it. Still rock solid to this day.

By TheBassMan on February 13, 2013

1 found this helpful

Report abuse
