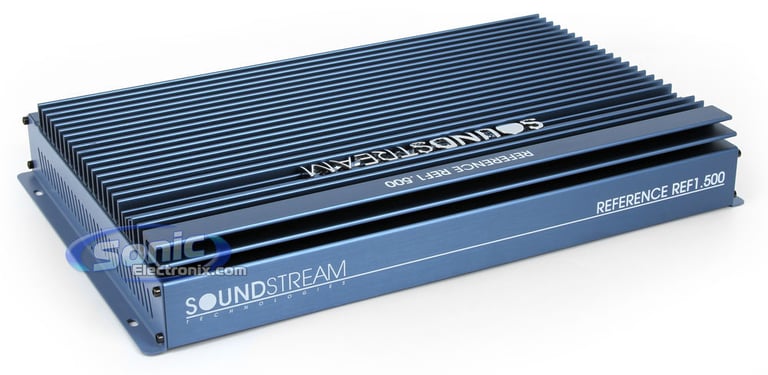

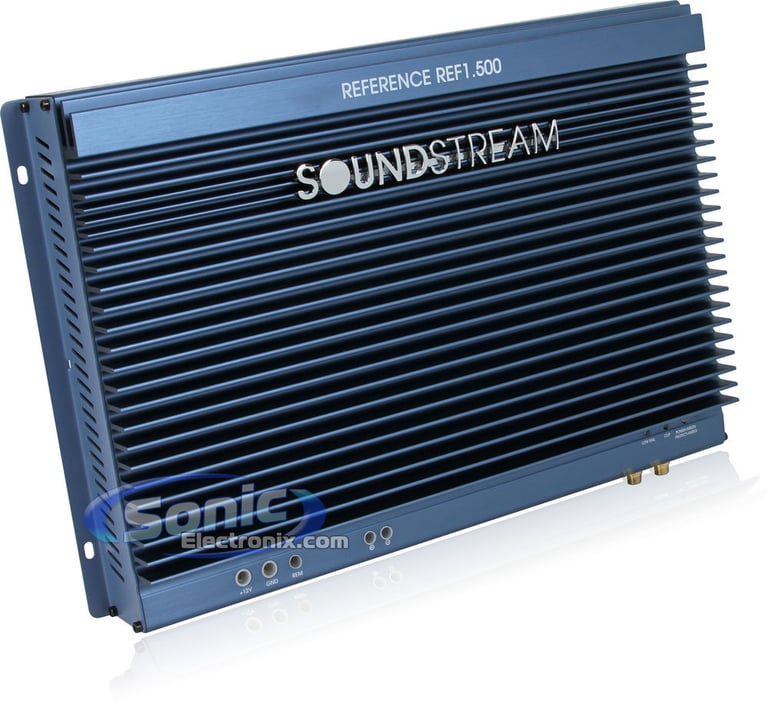

Soundstream REF1.500

500W RMS, Class D Reference Series Monoblock Amplifier

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

Reference Series Monoblock Car Amplifier • 180W x 1 Chan @ 4 Ohm • 500W x 1 Chan @ 2 Ohm • MOSFET Power Supply • Hawkins Bass Control • Harmonic Bass Alignment • Rail Stabilization Protection • Tri-Mode Operation

Learn more about the ref1500

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Product Highlights


Reference Series Monoblock Car Amplifier • 180W x 1 Chan @ 4 Ohm • 500W x 1 Chan @ 2 Ohm • MOSFET Power Supply • Hawkins Bass Control • Harmonic Bass Alignment • Rail Stabilization Protection • Tri-Mode Operation

Description


Soundstream brand icon

Authorized dealer

  • Soundstream Reference Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 180 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • MOSFET power supply
  • RUBI (Rapid-Use Branched Impulse) proprietary power supply technology
  • STACT (Stabilized Apex Current Technology) reduces power supply stress by 50%
  • Hawkins Bass Control (0-10 dB bass boost at 15-4000 Hz)
  • Trident amplifier power topology
  • Monoblock operation
  • Vortex induction fan thermor management
  • Ultra-low ESR capacitors ensure rapid power delivery for dynamic peaks
  • Harmonic Bass Alignment produces tighter, clean bass
  • Rail stabilization protection circuitry
  • Balanced line inputs for highest noise rejection
  • Triple Darlington output circuitry
  • BIP (Bias Input Protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

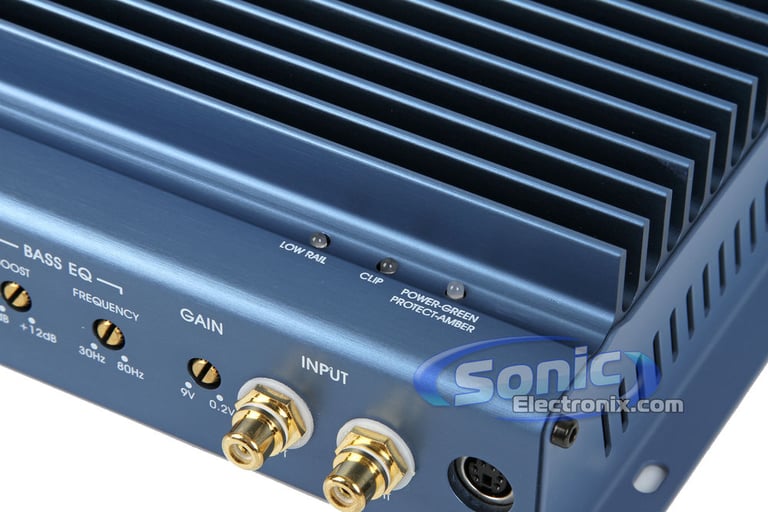

  • Gold-plated RCA level inputs

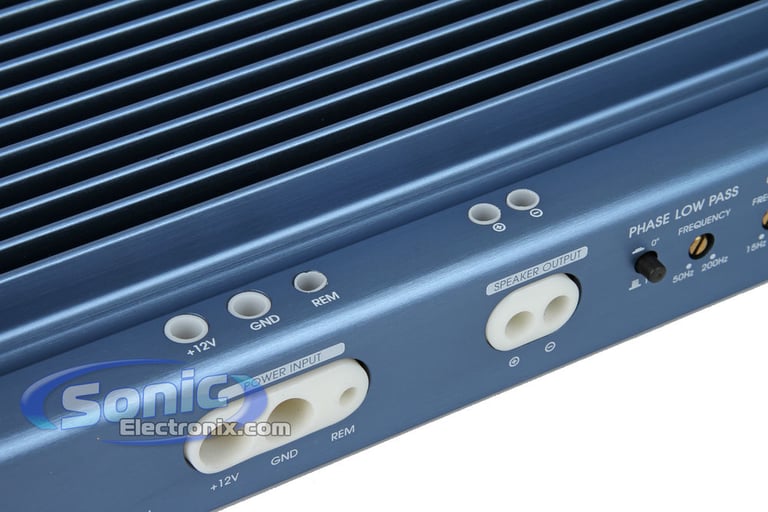

  • Gold-plated screw terminals
  • Tri-mode operation

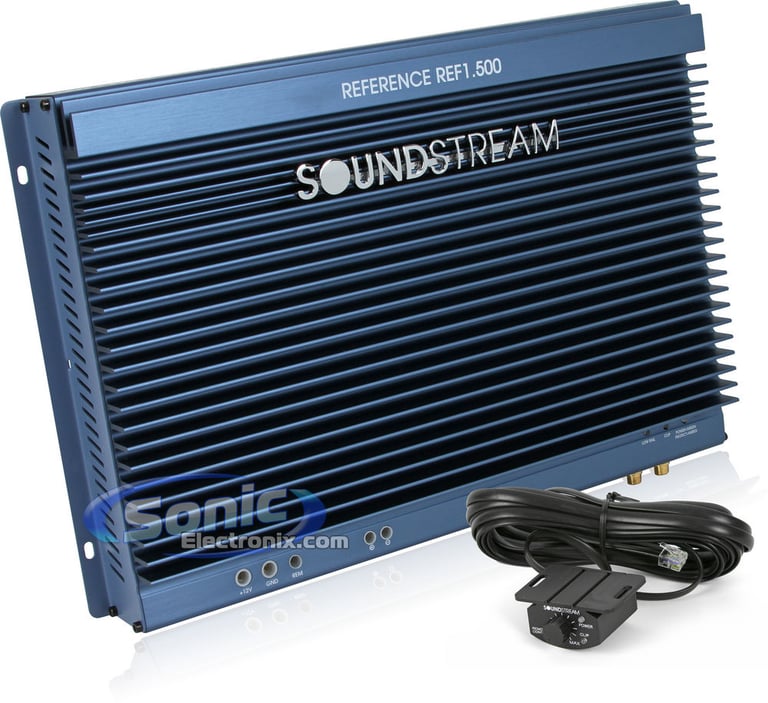

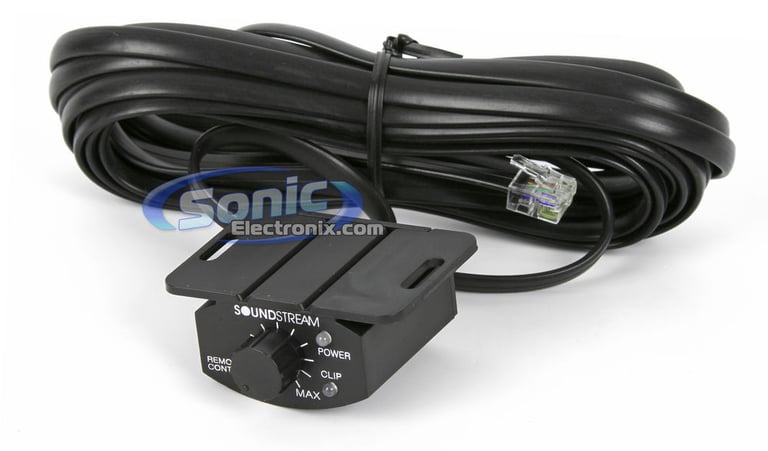

  • Bass remote control included

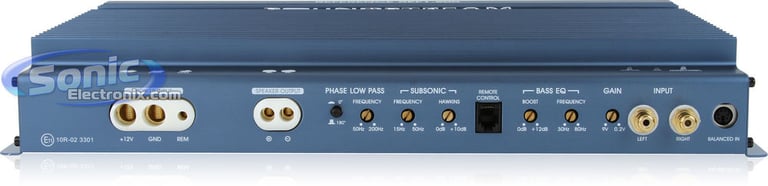

  • Variable high-pass filter (15-4000 Hz, 12 dB/octave)
  • Variable low-pass filter (50-2000 Hz, 12 dB/octave)
  • Bass Boost (30-80 Hz, 12 dB/octave)
  • Frequency response: 15-200 Hz
  • Subsonic Filter: 24 dB, 15-50 Hz
  • Phase Control Switch: 0 or 1800
  • THD (Total Harmonic Distortion): 0.02%
  • Signal-to-noise ratio: 102dB
  • External Fuse Required: 80
  • Input Sensitivity: 0.2-9 volts
  • Damping factor: >2000
  • Dimensions: 14-1/16"L x 9-7/8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
15 - 50 Hz
Signal-to-Noise Ratio
102 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REF1.500

Weight:

12.50lbs

Internal SKU:

ref1500

Internal Product ID:

23864
