Name: Hifonics SATURN A4000 R/B
Brand: Hifonics
SKU: LS-saturna4000-RB
Price: 69.99 USD
Availability: Discontinued
Rating: 4.0000 (1 reviews)

Shop all Hifonics

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

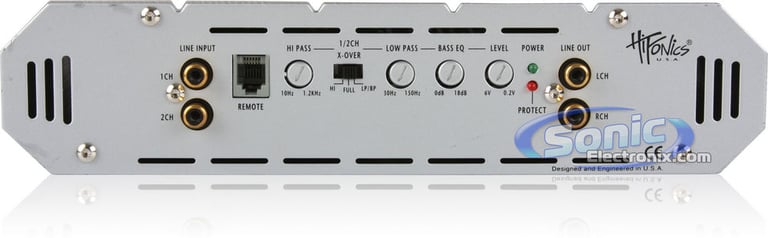

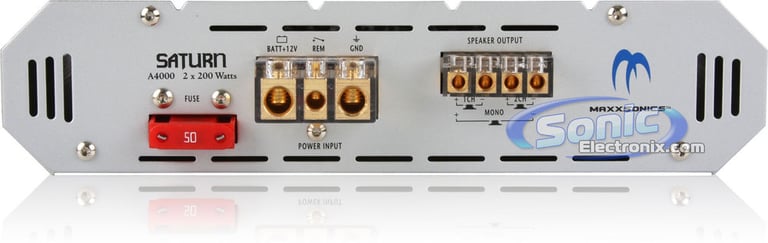

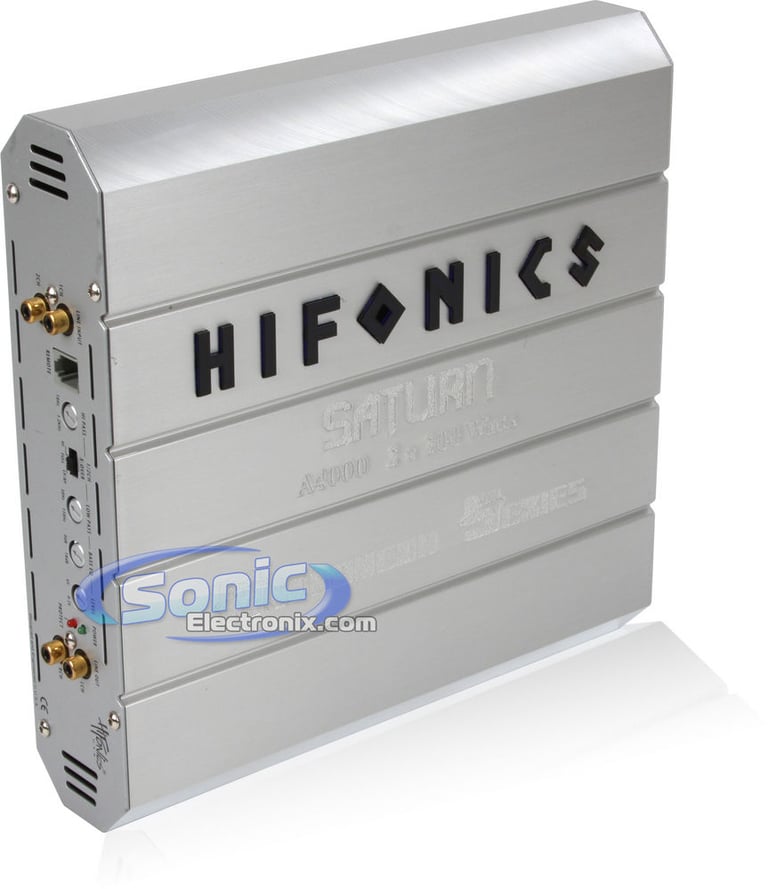

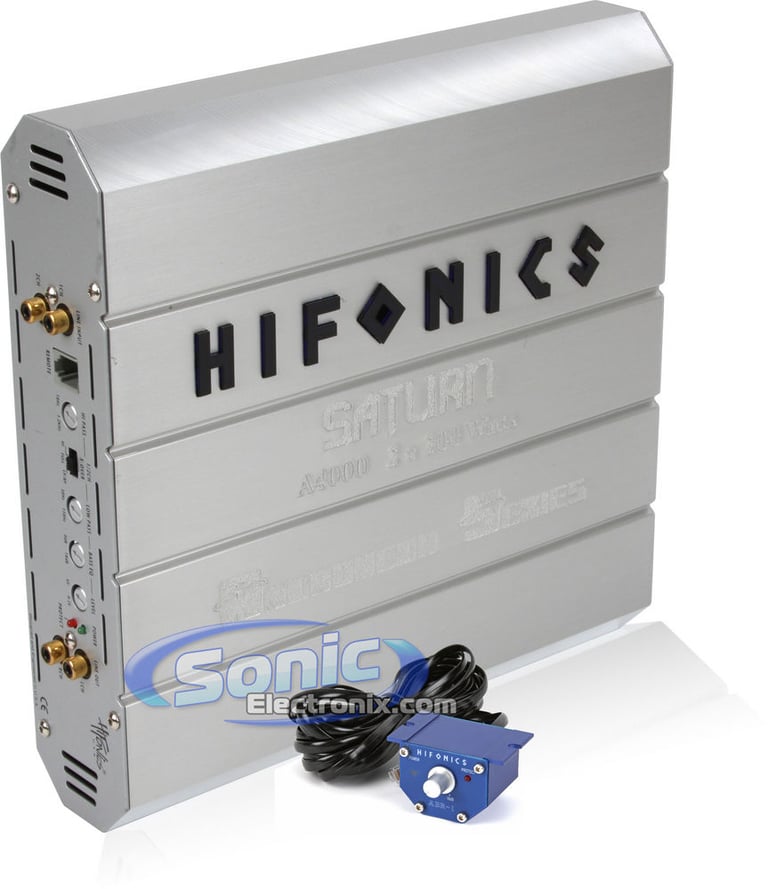

Hifonics SATURN A4000 R/B Image 1 — Hifonics SATURN A4000 R/B

Hifonics SATURN A4000 R/B Image 2 — Hifonics SATURN A4000 R/B

Hifonics SATURN A4000 R/B Image 3 — Hifonics SATURN A4000 R/B

Hifonics SATURN A4000 R/B Image 4 — Hifonics SATURN A4000 R/B

Hifonics SATURN A4000 R/B Image 5 — Hifonics SATURN A4000 R/B

Product videos

Product highlights

Andromeda Series 2-Channel Class A/B Amplifier • 200W x 2-Chan @ 2 Ohm • 100W x 2-Chan @ 4 Ohm • Ultra-Fi MOSFET Power Supply • Preamp RCA Outputs • Fully Adjustable Accu-Cross Crossovers • Tri-Mode Operation

Learn more about the LS-saturna4000-RB

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Andromeda Series 2-Channel Class A/B Amplifier
RMS Power Rating:
- 4 ohm: 100 watts x 2 chan.
- 2 ohm: 200 watts x 2 chan.
- Bridged, 4 ohm: 400 watts x 1 chan.
Pulse Width Modulated Ultra-Fi MOSFET power supply
SPC Simpatico coil design
HSMO Hifonics surface mount design

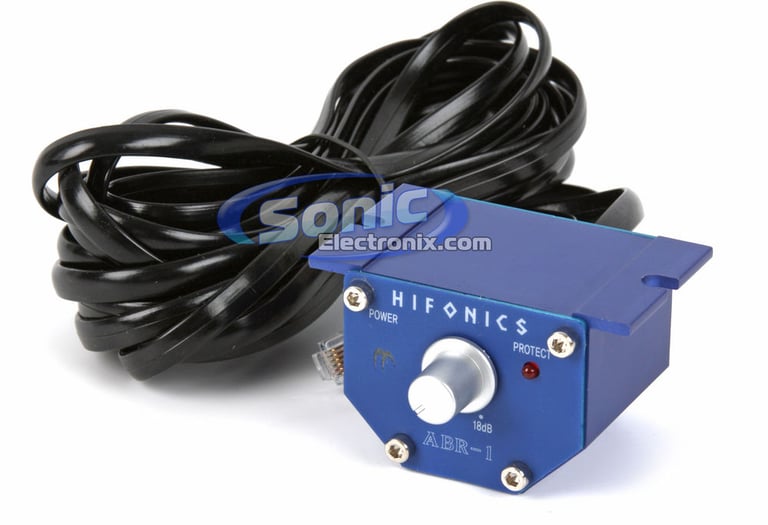

ABR-1 Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 45 Hz
Tri-Mode operation allows the connection of 3 speakers
3/2/1 channel operation
Power from the gods included
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heatsink extreme heat dissipation
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- Low level: 200mV-6V
Fully adjustable Accu-Cross crossovers
Variable high-pass filter (10-1.200 Hz, 12 dB/octave)
Variable low-pass filter (30-150 Hz, 24 dB/octave)
Damping factor: >200
Frequency response: 10-1,200 Hz
Dimensions: 11-1/8"L x 10-3/8"W x 2-3/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 2 channel

RMS Power @ 2 ohms

200 watts x 2 channel

Bridged RMS Power

400 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

400 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

< 0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

10 - 1,200 Hz

Low-Pass Crossover Frequency

30 - 150 Hz

Signal-to-Noise Ratio

>95 dB

Channel Separation

>70 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

50A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Hifonics SATURN A4000 R/B thumbnail image

Overall rating distribution

5 star		0%
4 star		100%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		5
Features		4
Design		4
Usability		5

Customer Reviews

Sort by:

Good Amp

All in all it's a pretty good little amp. I bought it for my girlfriends car and it's pushing a pioneer champion 12. it puts out petty good power. I would recommend it.

By mustangbass on September 29, 2010

1 found this helpful

Report abuse
