Name: Hifonics XX-CYCLOPS R/B
Brand: Hifonics
SKU: LS-xxcyclops-RB
Price: 609.99 USD
Availability: Discontinued

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

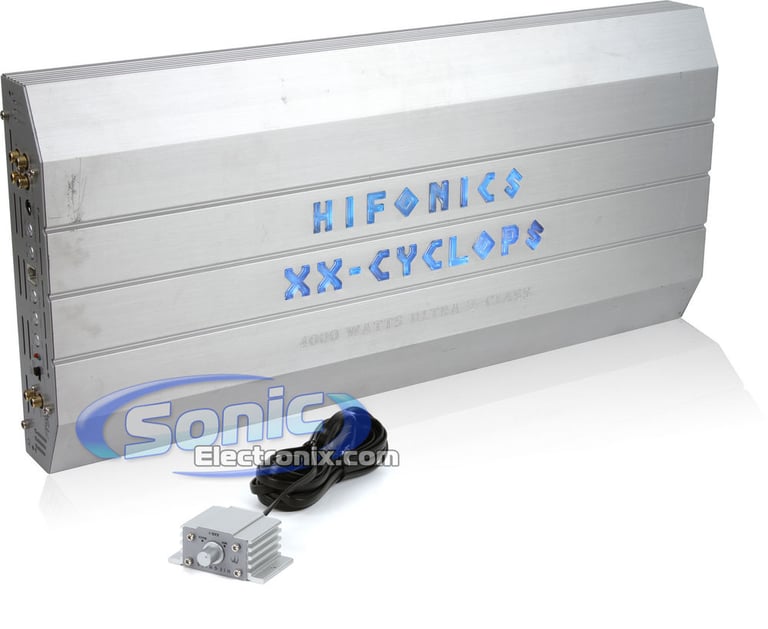

Hifonics XX-CYCLOPS R/B Image 1 — Hifonics XX-CYCLOPS R/B

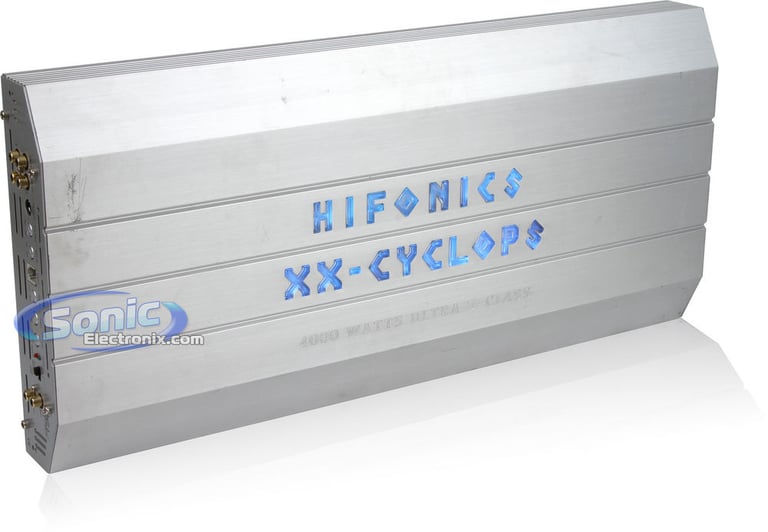

Hifonics XX-CYCLOPS R/B Image 2 — Hifonics XX-CYCLOPS R/B

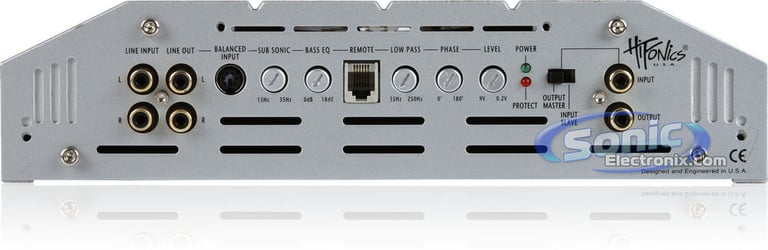

Hifonics XX-CYCLOPS R/B Image 3 — Hifonics XX-CYCLOPS R/B

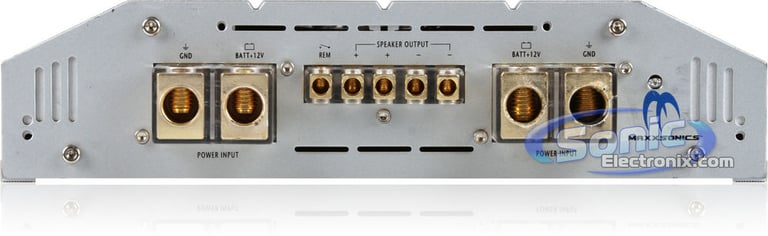

Hifonics XX-CYCLOPS R/B Image 4 — Hifonics XX-CYCLOPS R/B

Hifonics XX-CYCLOPS R/B Image 5 — Hifonics XX-CYCLOPS R/B

Product videos

Product highlights

Generation XX Series Monoblock Ultra Class D Car Amplifier • 4000 watts RMS x 1 chan. @ 1 ohm • 2900 watts RMS x 1 chan. @ 2 ohm • 4-Way System Protection circuitry • Full PMW Ultra-Fi Mosfet Power Supply

Learn more about the LS-xxcyclops-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Generation XX Series Monoblock Ultra Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 1500 watts x 1 chan.
- 2 ohm: 2900 watts x 1 chan.
- 1 ohm: 4000 watts x 1 chan.
Full PMW Ultra-Fi Mosfet Power Supply

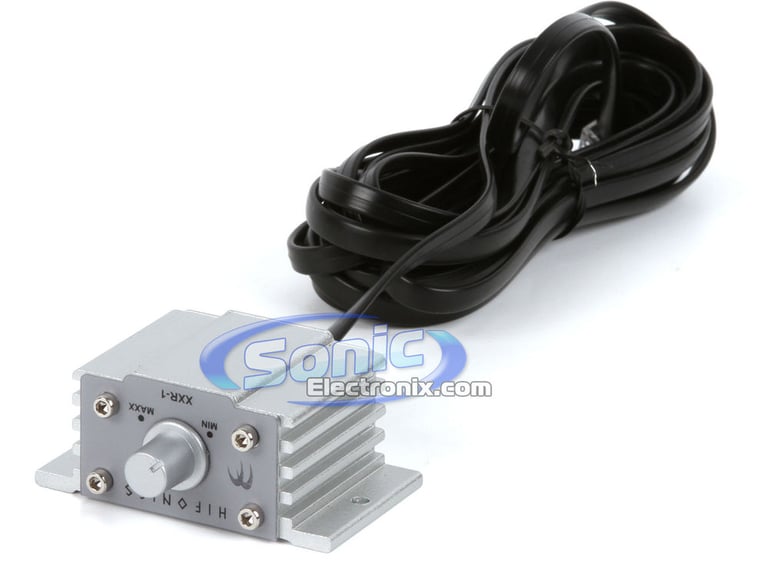

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 30-60 Hz)
Soft Start Turn-on
Mono channel operation
Package includes power from the gods
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- Low level: 200mV-9V
- High level: 400mV-18V
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Subsonic Filter (10-50 Hz)
Phase Shift: 0-180°
Damping factor: >400
Dual 2 AWG power terminals
300A In-line fuse not included
Frequency response: 2-70,000 Hz
Dimensions: 29-1/8"L x 11-1/8"W x 2-3/4"H
2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1.500 watts x 1 channel

RMS Power @ 2 ohms

2.900 watts x 1 channel

RMS Power @ 1 ohm

4,000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

4000 watts

Maximum Input Gauge Size

2 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

10 - 50 Hz

Signal-to-Noise Ratio

>98 dB

Channel Separation

>70 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

300A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
