Name: JVC KS-AX3002 R/B
Brand: JVC
SKU: LS-ksax3002-RB
Price: 39.99 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all JVC

by JVC

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

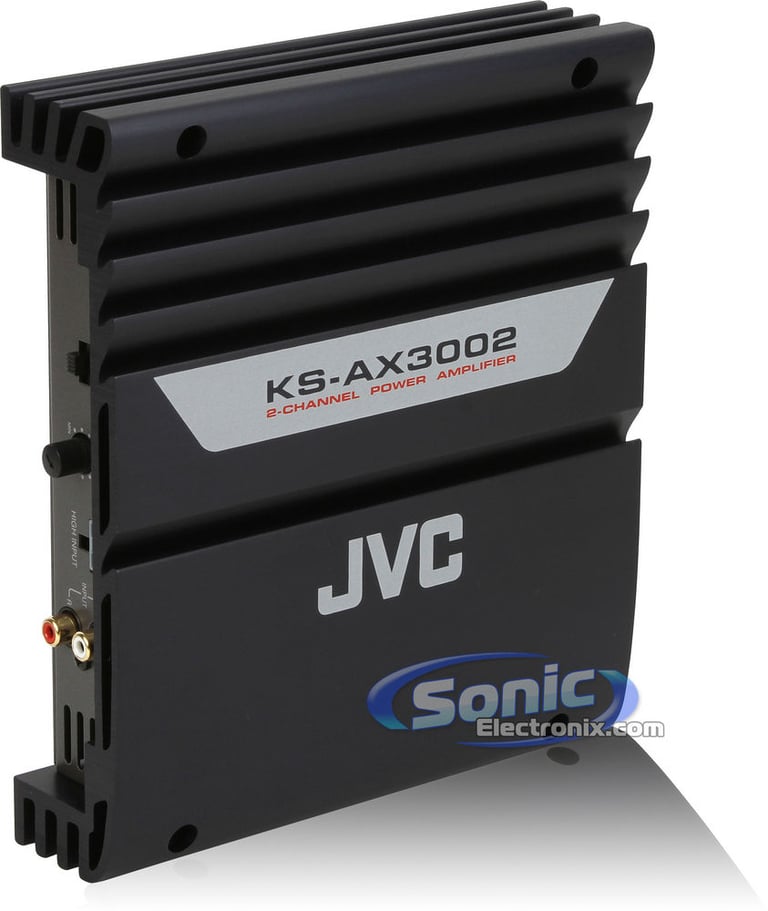

JVC KS-AX3002 R/B Image 1 — JVC KS-AX3002 R/B

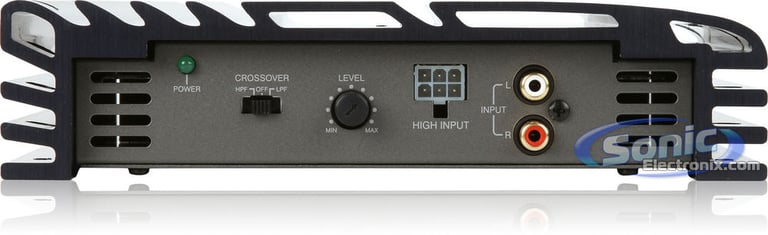

JVC KS-AX3002 R/B Image 2 — JVC KS-AX3002 R/B

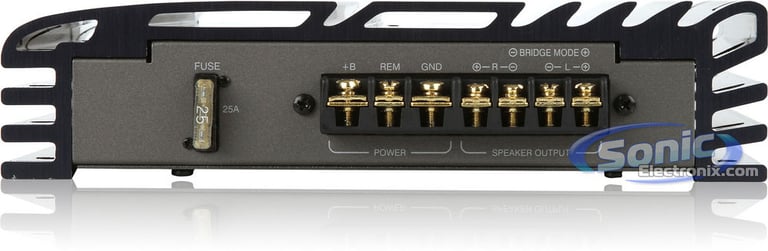

JVC KS-AX3002 R/B Image 3 — JVC KS-AX3002 R/B

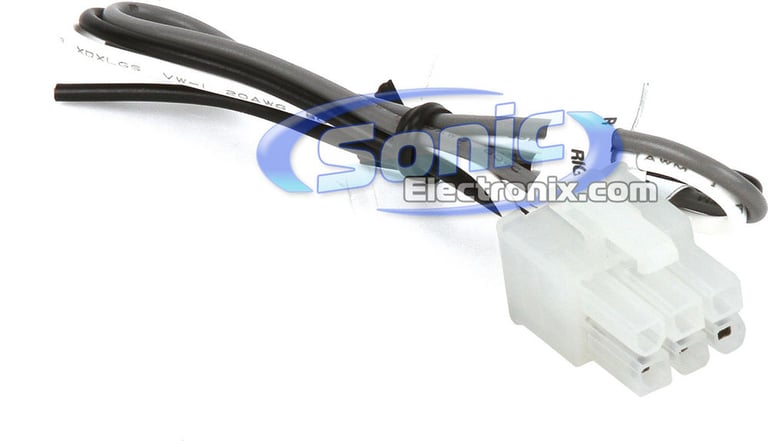

JVC KS-AX3002 R/B Image 4 — JVC KS-AX3002 R/B

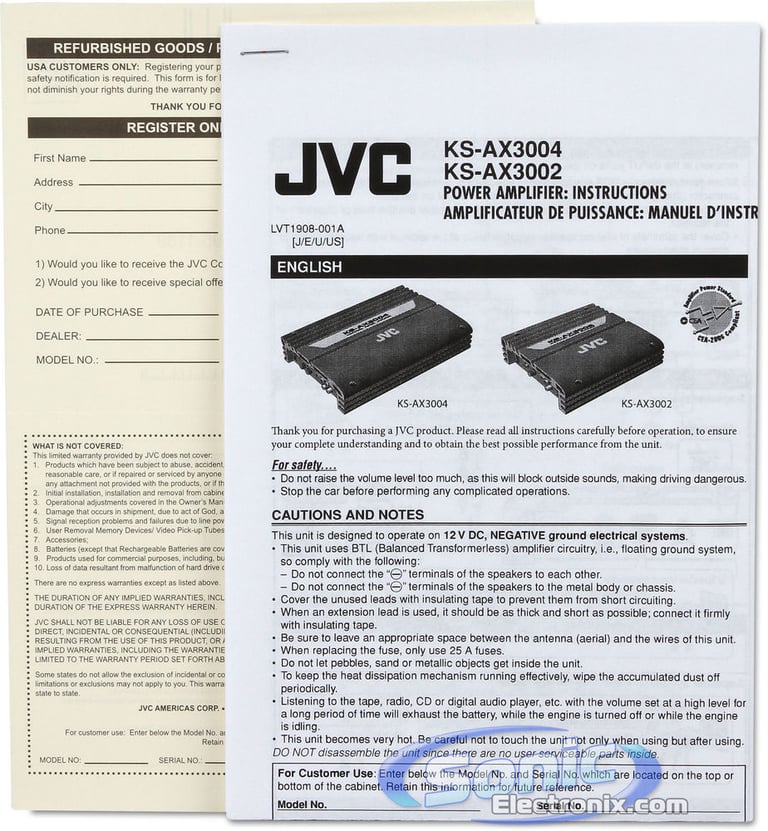

JVC KS-AX3002 R/B Image 5 — JVC KS-AX3002 R/B

Product videos

Product highlights

JVC 2-Channel Class A/B Car Amplifier • 370 Watts Max • 65 Watts x 2 Chan. @ 4 Ohm • 90 Watts x 2 Chan. @ 2 Ohm • 4-Way System Protection Circuitry • Preamp RCA Output • Speaker-Level Inputs With Signal Sensing

Learn more about the LS-ksax3002-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

JVC 2-Channel Class A/B Car Amplifier
RMS Power Rating:

4 ohm: 65 watts x 2 chan.
2 ohm: 90 watts x 2 chan.
Bridged, 4 ohm: 130 watts x 1 chan.

Max power output: 370 watts
PMW regulated MOSFET power supply
LED power and protect indicators
2/1 channel operation
Speaker-level inputs with signal sensing for automatic turn-on
Preamp RCA output
4-Way System Protection circuitry (thermal, overload, DC offset and speaker short protection)
Anti-pop circuitry
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Gold-plated RCA level inputs
Gold-plated screw terminals
Fixed high-pass filter (150 Hz, 12 dB/octave)
Fixed low-pass filter (80 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 5-50,000 Hz
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

65 watts x 2 channel

RMS Power @ 2 ohms

90 watts x 2 channel

Bridged RMS Power

130 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

370 watts

Total RMS Power Output

130 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.04%

Speaker Level Inputs

Yes - with included adapter

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

150 Hz

Low-Pass Crossover Frequency

80 Hz

Signal-to-Noise Ratio

76 dB

Remote bass/level controller

Fuse Rating

25A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
