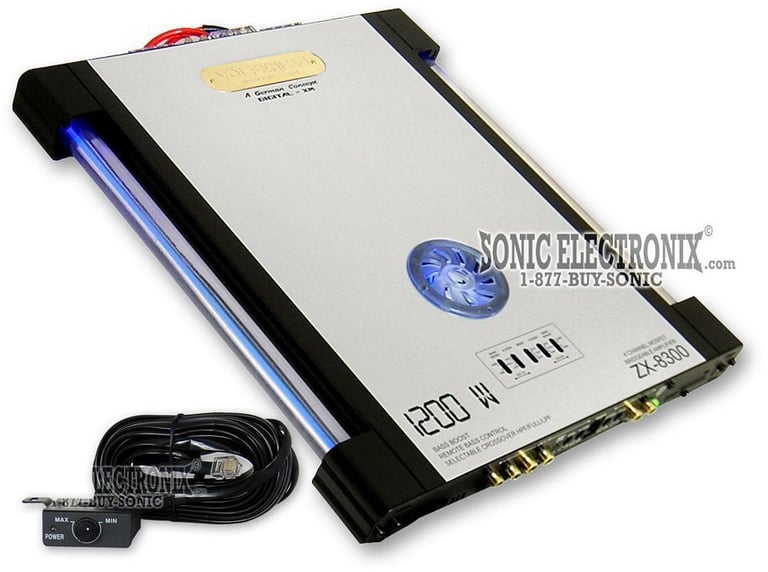

Volfenhag ZX-8300

1200W Max, 4-Channel Ultra Slim Amplifier with Bass Remote

Volfenhag
Shop all Volfenhag
Product videos
highlight-star-icon

1200 watts, 4-channel amplifier • Ultra slim 1-1/4" height • Blue light illumination • Tri-mode capable • Remote bass control • 2 ohms stereo stable, 4 ohms momo

Learn more about the zx8300

We apologize

This item has been discontinued

Product Highlights


1200 watts, 4-channel amplifier • Ultra slim 1-1/4" height • Blue light illumination • Tri-mode capable • Remote bass control • 2 ohms stereo stable, 4 ohms momo

Description


Volfenhag brand icon

Authorized dealer

  • 1200 watts, 4-channel amplifier
  • Ultra slim 1-1/4" height for a compact installation

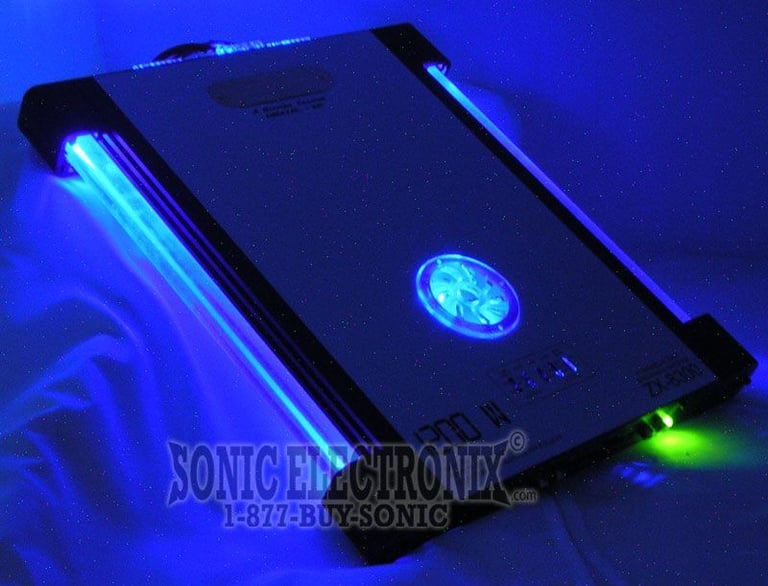

  • Blue light illuminated right and left sides
  • Blue light illuminated cooling fan
  • Blue light illuminated terminals
  • Tri-mode capable

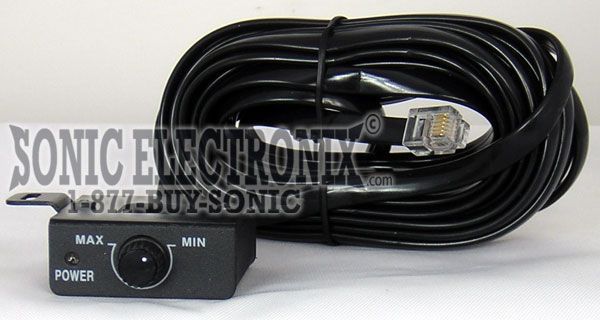

  • Remote bass control with 20ft. wire
  • 2 ohms stereo stable, 4 ohms momo
  • 4-channel bridgeable power amplifier

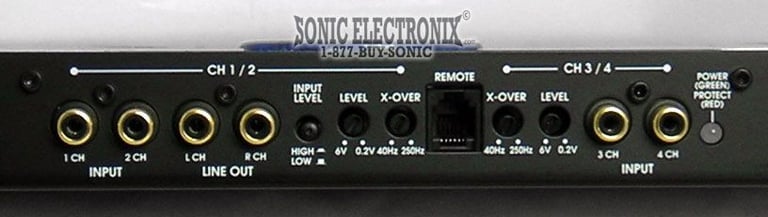

  • high and low RCA inputs available by the switch of a button
  • RCA preamp line output
  • Selectable HPF/Full/LPF crossover:
    • HPF (High-Pass Filter): 40Hz - 250Hz
    • Full: 15Hz - 30kHz
    • LPF (Low-Pass Filter): 40Hz - 250Hz
  • Adjustable input sensitivity: 0.2V - 6V
  • Bass boost: 0-18 dB
  • PWM MOSFET power supply
  • Soft delayed remote turn-on
  • Dual color indicator LED (Power and Protection)
  • Dimensions: 12.87"W x 1.5"H x 14.17"L

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Number of Channels
4-Channel
Total RMS Power Output
600 watts
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
Yes (1 Pair)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

ZX-8300

Weight:

15.00lbs

Internal SKU:

zx8300

Internal Product ID:

2553

Product and How-to Videos


Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Volfenhag zx-8300

I am quite fond of this amp I am currently running 2 of them on a 3 amp setup. The blue lighting is very nice. Notice though before you buy this amp that the blue light producing bars on the side have bubbles in them. I have never had a problem with this amp model and I have had them for almost 10 months now! They can be a bit difficult to install as the mounting hardware is unconventional and confusing but I would definitely recommend this amp to people who want a sleek looking amp that performs great

By Joshua on January 30, 2009

5

found this helpful.

it hits hard

this volfenhag amp is a real good amp to use because it has a built in fan and u can bridge your speakers with out your amp getting so hot its a top of the line amp i would suggest buying it

By Kenneth on August 1, 2005

4

found this helpful.
