Name: Hifonics MERLIN HF R/B
Brand: Hifonics
SKU: LS-merlinhf-RB
Price: 69.99 USD
Availability: Discontinued

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Product videos

Product highlights

Warrior Series Monoblock Class D Car Amplifier • 450W RMS • Variable Bass Boost • 4-Way System Protection Circuitry • Variable Low-Pass Filter • Subsonic Filter • Dual Speaker Terminals • Remote Bass Level Control

Learn more about the LS-merlinhf-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

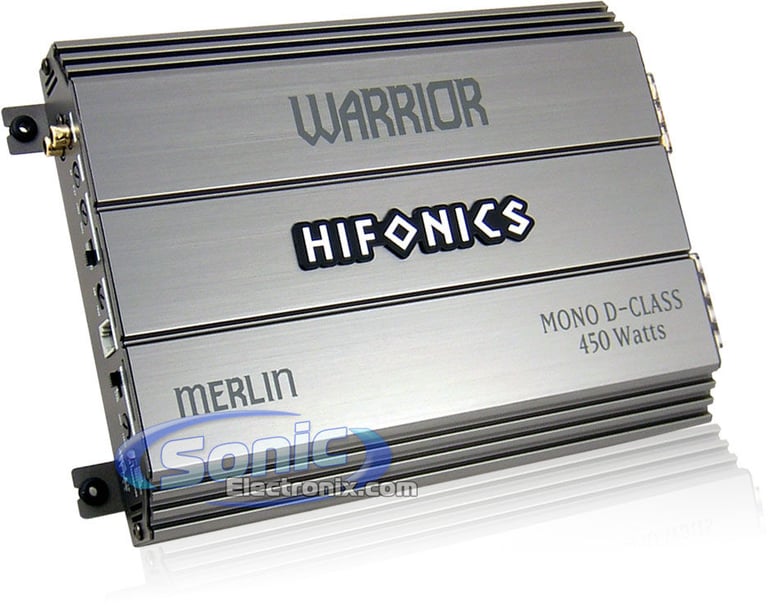

Warrior Series Monoblock Class D Car Amplifier
RMS Power Rating (14.4V):
- 4 ohm: 200 watts x 1 chan.
- 2 ohm: 300 watts x 1 chan.
- 1 ohm: 450 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators

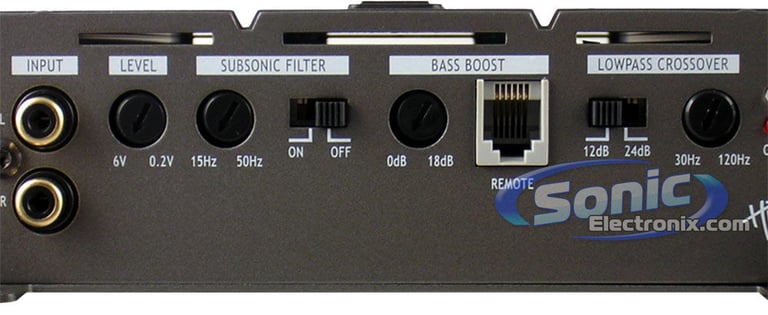

Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
Mono channel operation
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)

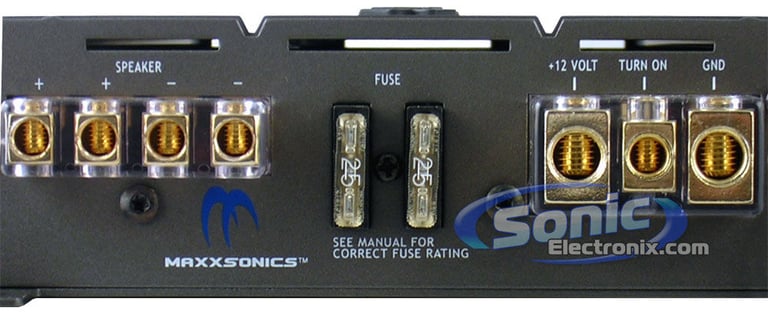

Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- Level: 200mV-6V
Variable low-pass filter (30-120 Hz, 24 dB/octave)
Subsonic filter (15-50 Hz)
Damping factor: >250
Frequency response: 10-120 Hz
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

200 watts x 1 channel

RMS Power @ 2 ohms

300 watts x 1 channel

RMS Power @ 1 ohm

450 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

450 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<0.08%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 120 Hz

Subsonic Filter

15 - 50 Hz

Signal-to-Noise Ratio

96 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
