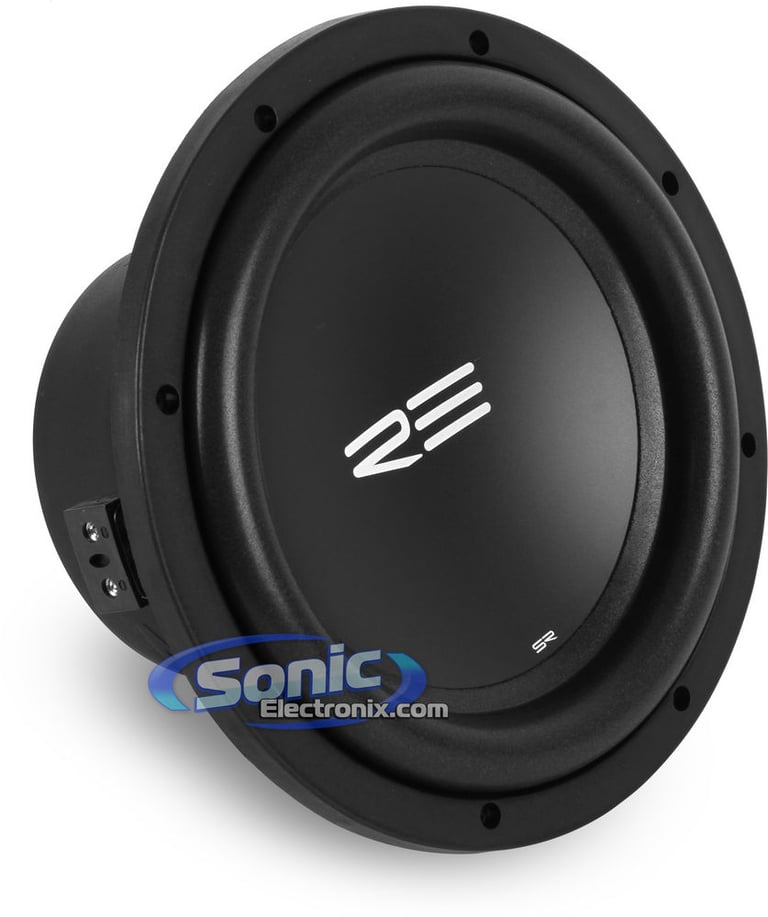

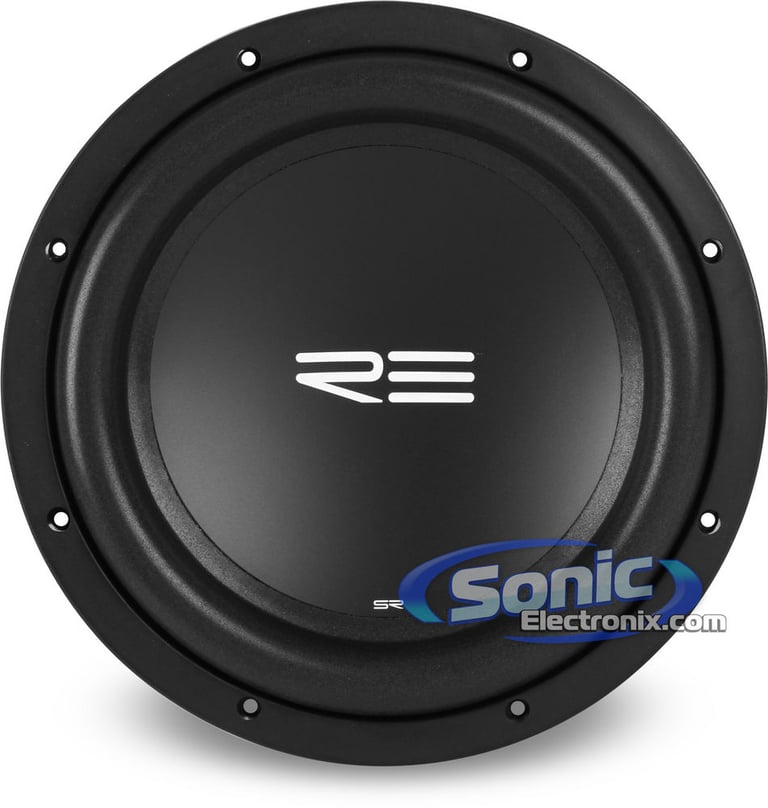

RE Audio SRX10D4

300W 10" SRX Series Dual 4 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 300W
• Dual 4 Ohm
• Kraft Pulp Cone
• Rubber Surround
• FEA Optimized Motor Structure
• 4-Layer Voice Coil
• Double Stacked Magnet

Learn more about the srx10d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

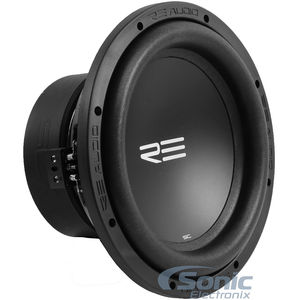

scxv210d4 thumbnail

RE Audio SCXv2-10d4 (SCX10 v2)

OUR PRICE: $89.99

View item

Loading...
S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Alpine S2-S69

520W Peak (170W RMS) 6x9" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

3
-15.03%

$169.95

List price $200.00

Product Highlights


• RMS Power: 300W
• Dual 4 Ohm
• Kraft Pulp Cone
• Rubber Surround
• FEA Optimized Motor Structure
• 4-Layer Voice Coil
• Double Stacked Magnet

Description


RE Audio brand icon

Authorized dealer

Monster Performance

Get big bass with the RE Audio SRX series of car subwoofers.! Easily expect monster performance and deep bass from these quality drivers. The SRX series has twice the power handling and improved audio output over the RE Audio REX series. The striking cosmetics complete the look of the subwoofer, while ensuring that high quality sound is produced. Once mounted, the kraft pulp cone and rubber surround will be visible for all to see. Underneath the cone is a 4-layer copper voice coil, a FEA optimized motor structure, double stacked magnets that all work together to keep the subwoofer linear and sounding great. The RMS of the SRX series is an affordable 300 watts and is perfect for those just starting their car audio system or the long time car audio enthusiast. Like all of the RE Audio subwoofers, they are capable of accepting much more power then the recommended RMS. For excellent performance for a great price, check out the RE Audio SRX car subwoofers

Subwoofer Features:
  • 10" Dual 4 ohm SRX Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • Impedance: Dual 4 ohm

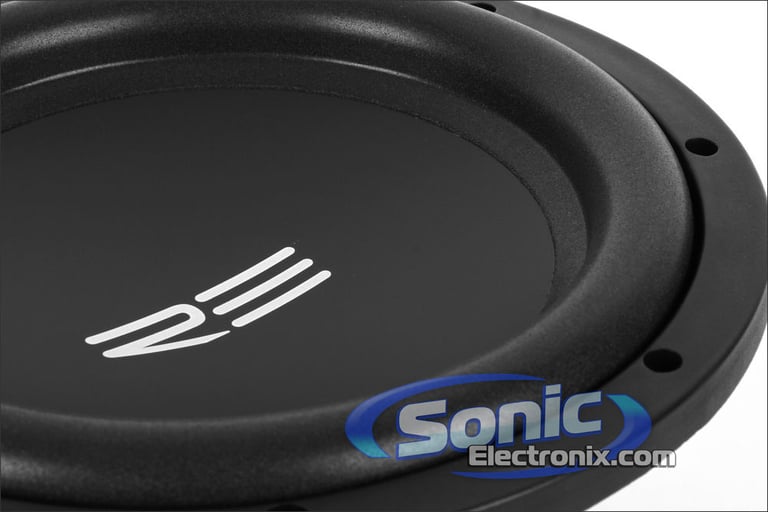

  • Kraft pulp woofer cone
  • Rubber surround

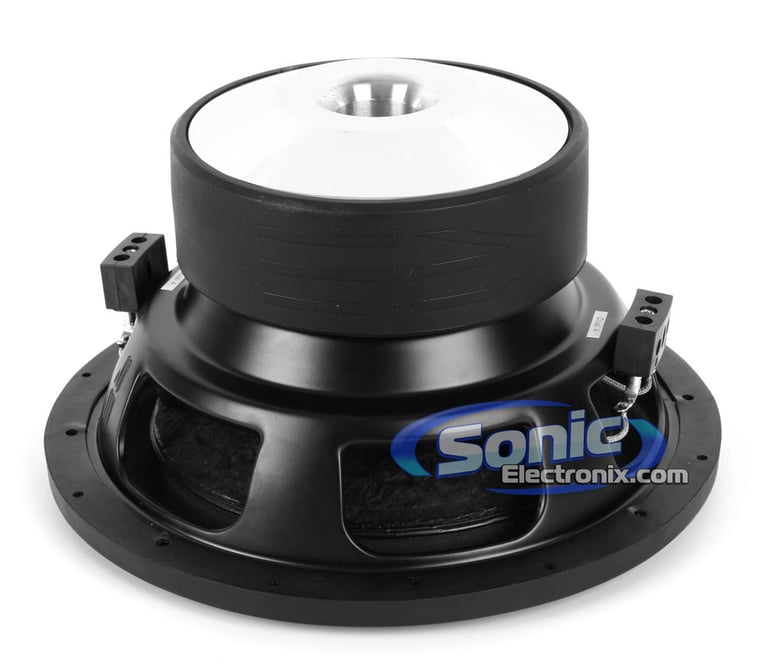

  • Pressed steel basket
  • FEA optimized motor structure
  • Linear spiders
  • Foam gasket
  • 4-Layer copper voice coil
  • Double stacked magnets
  • Also available in dual 2 ohm: RE Audio SRX10D2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SRX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.39
  • Mechanical Q Value (Qms): 5.5
  • Total Speaker Q Value (Qts): 0.36
  • Free Air Resonance (Fs): 25.3 Hz
  • Equivalent Compliance (Vas): 31 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 85.3 dB SPL
  • Effective Piston Area (Sd): 310 cm^2
  • DC Resistance (Re): 1.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 300 W
  • Force Factor (Bl): 14.35

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

RE Audio SCXv2-10d4 thumbnail
(newest, current model)
RE Audio SRX10D4 thumbnail
(previous model, replaced by RE Audio SCXv2-10d4 (SCX10 v2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SRX10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SRX10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SRX10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SRX10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
SRX Series
Subwoofer Size
10"
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85.3 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kraft Pulp
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Maximum Sealed Box Volume
0.5 cubic feet
Minimum Ported Box Volume
0.65 cubic feet
Maximum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
9-3/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25.3 Hz
Equivalent Compliance (Vas)
31 liters
Total Speaker Q Value (Qts)
0.36
Electrical Q Value (Qes)
0.39
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
5.5
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRX10D4

Weight:

16.50lbs

Internal SKU:

srx10d4

Internal Product ID:

27305

Product and How-to Videos


  • RE Audio 12" SRX Subwoofer Bass Demo | SRX12D4 in a Custom Ported Box
  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SRX10D4 thumbnail image

5 star
86%
4 star
10%
3 star
5%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

great pick for my use

i went from kicker comp i have had for 3 years now and got 2 of these in a 2.66 cu ft ported with 2 4"round ports @ 30hz and my windshield flexes 1/2 in with these i currently have 240 rms going to each and i had it checked out and im hitting 139 db in the corners of my dash re audio recomended that enclosure size to my tuning i was very surprised on how well these subs performed, major improvement from what i was running, cant wait till i get the right amps for the subs and the 5x7 re audio 2 ways then redo my whole system design

By rogggg1020 on April 12, 2011

31 found this helpful


Awesome!!!

These things sound beautiful. I ran them pushed by a punch 500.2 I would say they're comparable to the old 10w3v2 models. Almost exact SQ but hit a bit harder using the same amp. I would buy again :)

By Scott V on October 23, 2014

30 found this helpful


RE is the way to go

I got one of these n a ported 1.9 box that I also got from here and it hits hard deep and clean the box I have is perfect for the SRX, SEX, and the SXX they have great sound qualty I would take this sub over most 300 watt rms subs n if ur thinkin of gettin a type r or a w7 DONT get a SE-X its way better and will handle more than its rated and is a heck of alot cheaper than a JL W7.

By Jay on March 28, 2012

29 found this helpful


GREAT SUB !!!

I have a single 10" on 1500 watt mono and this sub pounds! Great quality,great price! Excellant job Sonic!

By MR. HATCHBACK on July 8, 2011

28 found this helpful


RE Audio is the only way to go

I got 2 of these puppies and put them in a ported box with a 2,334 watt DB amp and blew out my back window. Although my amp finally gave out after the abuse. My subs never quit on me and that's why I decided to by an RE audio amp.

By Michael on December 18, 2014

28 found this helpful


--Would NOT recommend for a sealed enclosure--

I purchased this sub with the sealed box combo offered here. I've read that the manufacturer used to not recommend this sub in a sealed box, but that no longer seemed to be the case. I'm leaving neutral stars as I cannot comment on ported enclosures and these subs may be great there.

Out of the box, the dust cover was not centered particularly well, but everything else looked fine.

I used this sub for about a month before switching to a JL 12W3v3-2.

The RE SRX10 D4 had no acceptable low end in the sealed box and didn't sound musical at all (it was also easy to locate the sub and the separation was often irritating). The JL was a night and day difference. I was hoping I could save some money with this brand as the reviews were all great. Again, this may be fine in a ported box, but that isn't what I wanted.

Each sub was powered at 2 ohms (300 watts) off a JL XD700/5 in the same location of the vehicle.

By Greg on April 21, 2014

29 found this helpful


MUY BUEN BAJO MEJOR QUE JL AUDIO

MUY BUEN SONIDO
SONIDO FUERTE Y DE BUENA CALIDAD
LO USO CON UN AMPLIFICADOR ORION HCCA275G4
A 1 OHM Y ES FUERTE DE VERDAD

By Juan on April 10, 2014

28 found this helpful


good speaker at a good price

i bought this speaker because i read good reviews. i had never heard of RE before so after buying and building a 1 cubic foot displaced box ported to 35hz i am very impressed with the sound quality.

By Bryan on September 17, 2013

27 found this helpful


A lot of sub for a little dough.

I purchased this kind of skeptical of RE since they went Chinese, but for the money I am very impressed. Sub is in a much too small sealed box in the back of my extended cab colorado and this sub can make your liver quiver. I have it running of an early 90's pioneer 760 watt amp turned to a quarter gain and I still must run it at negative 2 on my deck. Overall love it, however when it arrived it had 2 large scuffs in the surround that I am not very happy with. Hopefully it doesn't rip

By ray on May 4, 2014

27 found this helpful


RE Audio SRX10D4

I purchased 4 of these for my regular cab dodge truck. I have a Belva 5000 watt amp set to about 1600 watt rms pushing them and it's wired to 2 ohms. These subs handle it great. Hits hard and rattles my vision. Just what i was looking for.

By Cletus Earl on November 2, 2013

26 found this helpful




WHP-12 small

Xscorpion WHP-12

200 Box of 1/2" Wafer Head Pointed #8 Screws

(1)

$3.68

List price $7.99

SPT5212 small

Stinger SPT5212

1/0 Gauge to 5/16" PRO Classic Shoc-Krome Plated Ring Ground Terminal

(3)

$9.99

List price $29.00

SSDB2034 small

Stinger SSDB2034

Select Series (2) 1/0 Ga Input (3) 4 Ga Output Distrution Block

$19.99

List price $39.00

KX200.2-2 small

Kicker KX200.2 (40KX200.2)

200W RMS KX Series 2-Channel Class D-IC Stereo Bridgeable Car Power Amplifier (KX2002)

(1)

$149.95

List price $249.95

CVT102 small

Kicker CompVT CVT102 (43CVT102)

700W Peak (350W RMS) 10" Comp VT Series Single 2-ohms Subwoofer

$169.99

List price $189.99

SC-LIVE-DW small

Escort SmartCord Live Direct Wire for Portable Android Units

Add on Bluetooth Module for Select Escort & Beltronics Radar Detectors for Live Updates & Warnings

$65.85

List price $99.95

99-9604B small

Metra 99-9604B

Single DIN or Double DIN Stereo Dash Kit for select 2003-2010 Cayenne

$18.99

List price $39.99

SI426 small

Stinger SI426

6 ft. of 2-Channel 4000 Series RCA Interconnect Cable

(11)

$14.99

List price $29.00

MEX-BT3700U small

Sony MEX-BT3700U

In-Dash CD, MP3, WMA, AAC Receiver with Built-in Bluetooth, DIrect USB Control for iPod and Remote

(3)

$169.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Mitsubishi Eclipse Spyder

2012 Honda Insight

1998 Ford Expedition

2002 Ford Explorer

2018 Lincoln Navigator

2006 MINI Cooper

2009 Mitsubishi Eclipse

2003 Ford Excursion

2009 MINI Cooper

1957 Chrysler Windsor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
