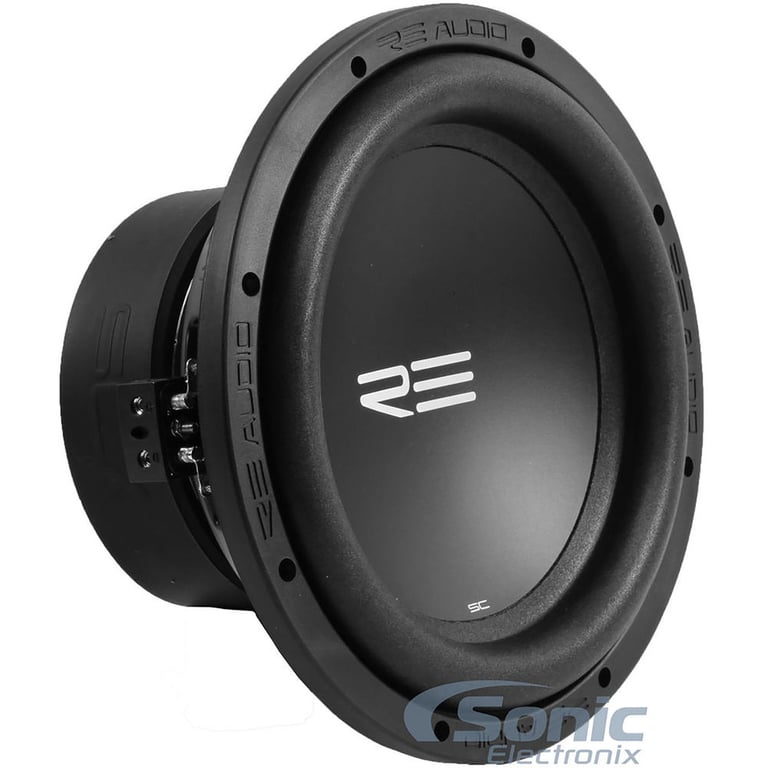

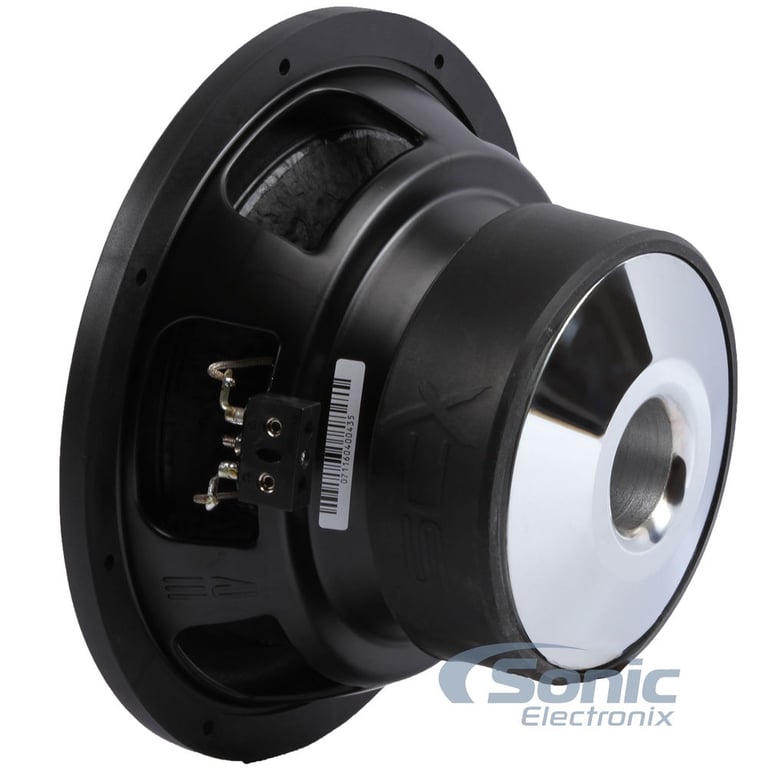

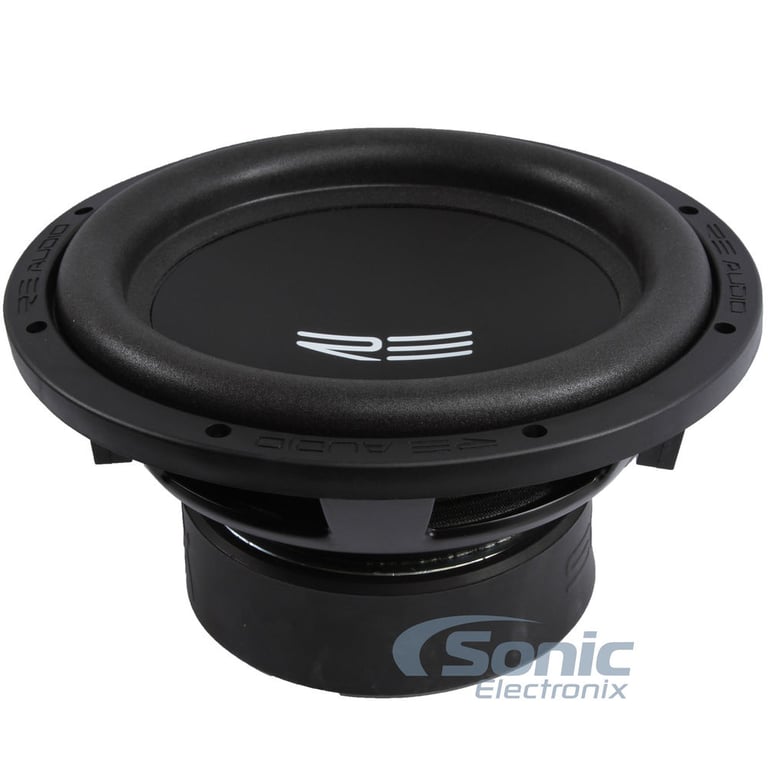

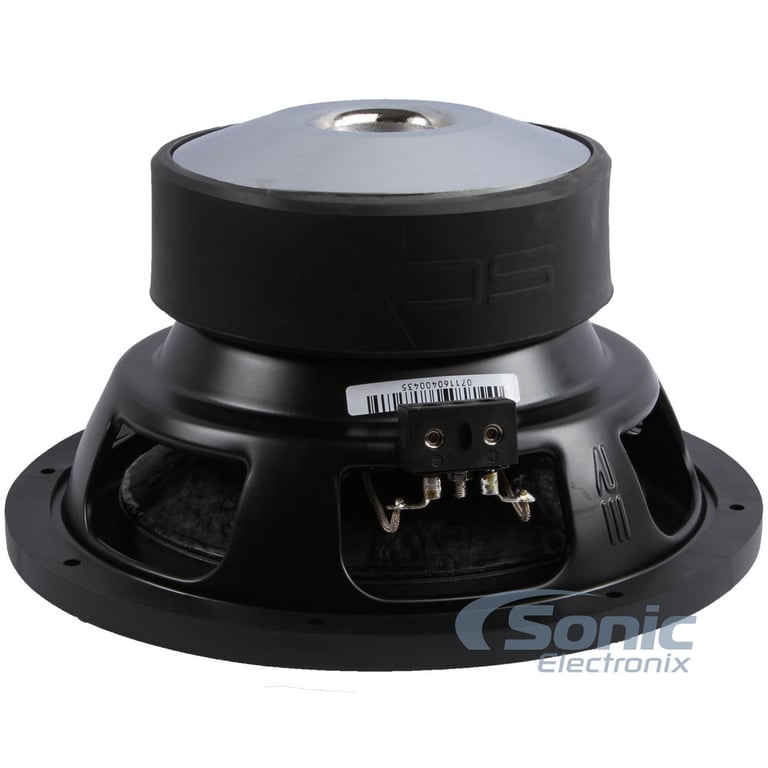

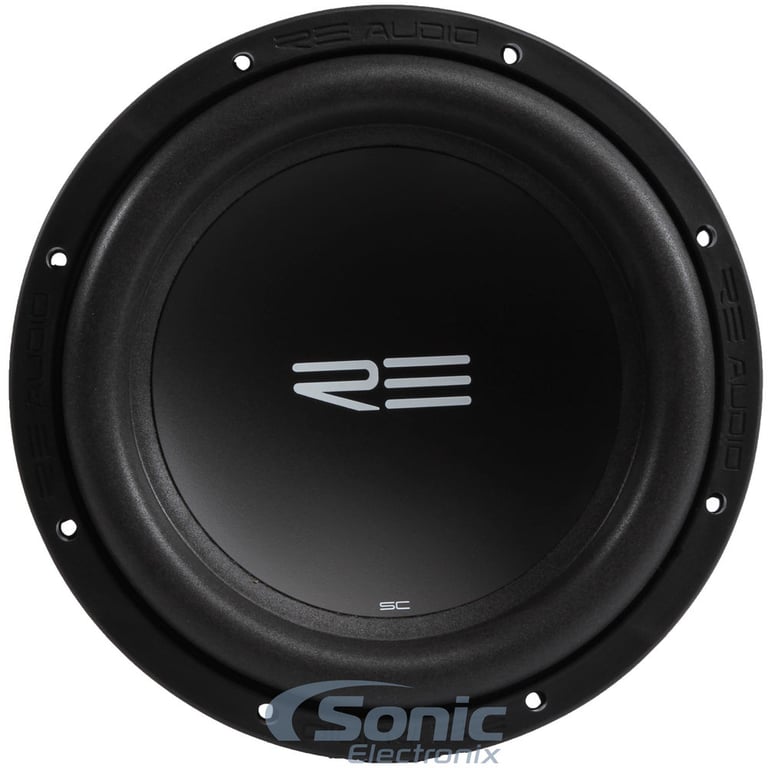

RE Audio SCXv2-10d4 (SCX10 v2)

450W 10" SCXv2 Series Dual 4 Ohm Subwoofer (SCXv2-10d4)

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• 450W RMS
• Sensitivity: 86.4 dB
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Cast Aluminum Basket
• Double Stacked Magnets
• FEA Optimized Motor Structure

Learn more about the scxv210d4

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Product Highlights


• 450W RMS
• Sensitivity: 86.4 dB
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Cast Aluminum Basket
• Double Stacked Magnets
• FEA Optimized Motor Structure

Description


RE Audio brand icon

Authorized dealer

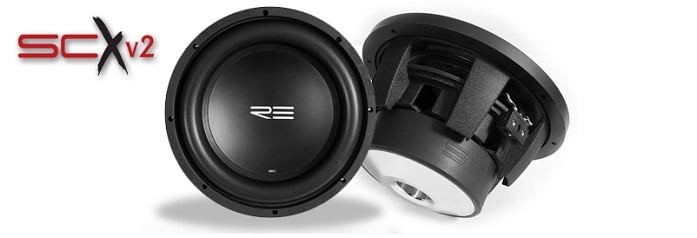

The all new SCX v2 Subwoofer Series by RE Audio is a replacement of the very celebrated SRX series. RE Audio went above and beyond to provide the market with a high quality, reliable and well performing driver. This goal resonates with the architecture of the driver, going from a lame stamped basket frame to a higher quality, better looking and more durable cast basket. In addition, the power handling is from a lowly 300 watts (RMS) to an above modest 450 watts. Expect louder output and lower lows along with better exotic styling, while still maintaining the desirable RE Audio look and Performance! Complete the setup with the matching RE Audio SA 1500.1 amplifier, that provides the exact power that the subwoofer(s) is asking for.


General Features:

  • 10" Dual 4 Ohm SCXv2 Series Subwoofer
  • Power Handling:
    • RMS: 450 watts
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • Cast aluminum basket
  • Tork-Tite terminals
  • Double stacked magnets
  • FEA optimized motor structure
  • 2.5" 4-layer aluminum voice coil
  • One-Way Linear Excursion (Xmax): 18.6 mm
  • Sensitivity: 86.4 dB 1 watt / 1 meter
  • Top-mount depth: 5.50"
  • Cutout Diameter: 9.30"
  • Displacement: 0.14 ft³
  • Weight: 16.4 lb
  • Matching amplifier: RE Audio SA 1500.1
    ✔ Add a Second Subwoofer for a 900 watt (RMS) setup!
  • Also available in a 12" version: RE Audio SCX 12 v2
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also Found As: SCX10D4-V2, SCXV2-10D4, SCXV210D4

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio RE Audio SCX 10 v2 Subwoofer Enclosure Guide

Product history:

RE Audio SCXv2-10d4 thumbnail
(newest, current model)
RE Audio SRX10D4 thumbnail
(previous model, replaced by RE Audio SCXv2-10d4 (SCX10 v2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SCXv2-10d4 (SCX10 v2) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SCXv2-10d4 (SCX10 v2) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SCXv2-10d4 (SCX10 v2) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SCXv2-10d4 (SCX10 v2) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
SCX v2 Series
Subwoofer Size
10"
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
86.4 dB
Xmax (millimeters)
18.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Optimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
1.08 cubic feet
Minimum Ported Box Volume
0.65 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Maximum Ported Box Volume
1.77 cubic feet
Top-Mount Depth (Mounting Depth)
5.50"
Cutout Diameter
9.30"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Electrical Resistance of Voice Coil (Re)
4 ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SCXv2-10d4

Weight:

16.50lbs

Internal SKU:

scxv210d4

Internal Product ID:

77323
