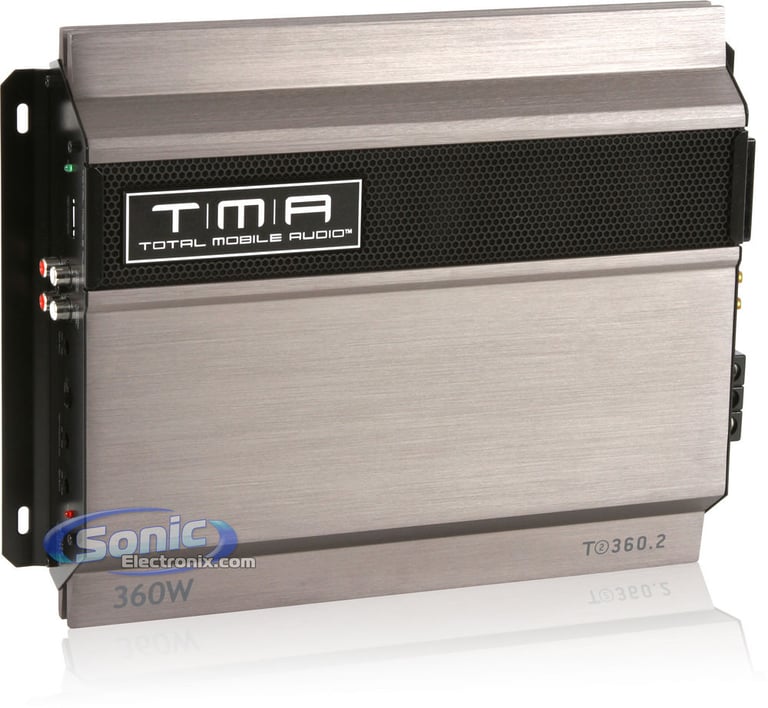

TOTAL Mobile Audio TMA T2-360.2

360W RMS, Class AB 2-Channel Car Amplifier with Dual N-Channel MOSFET

Product videos
highlight-star-icon

Full Range 2-Channel Class A/B Car Amplifier • 360W • Dual N-Channel MOSFET output stage • Speaker-level inputs • Preamp RCA outputs • Variable low/high-pass filter • Adjustable input sensitivity

Learn more about the t23602

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-1817 main

Metra 70-1817 Wiring Harness

Install a new car stereo in select 1984-2006 vehicles from Dodge, Chrysler, Plymouth

29
-14.31%

$5.99

List price $6.99

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13

Product Highlights


Full Range 2-Channel Class A/B Car Amplifier • 360W • Dual N-Channel MOSFET output stage • Speaker-level inputs • Preamp RCA outputs • Variable low/high-pass filter • Adjustable input sensitivity

Description


  • Full Range 2-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 110 watts x 2 chan.
    • 3 ohm: 135 watts x 2 chan.
    • 2 ohm: 180 watts x 2 chan.
    • Bridged, 8 ohm: 220 watts x 1 chan.
    • Bridged, 6 ohm: 270 watts x 1 chan.
    • Bridged, 4 ohm: 360 watts x 1 chan.
  • Dual N-Channel MOSFET output stage
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +9 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 2/1 channel operation

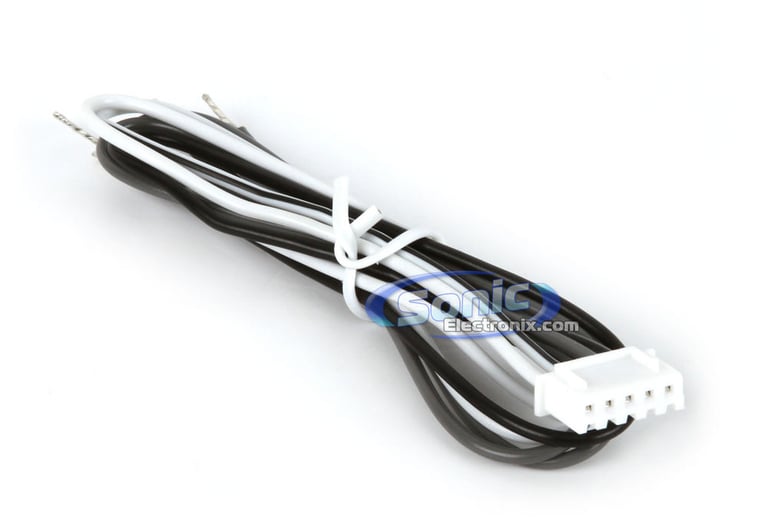

  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Adjustable input sensitivity
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave)
  • Frequency response: 10-35,000 Hz
  • Dimensions: 12-13/16"L x 9-5/8"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
110 watts x 2 channel
RMS Power @ 2 ohms
135 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
360 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
360 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

T2-360.2

Weight:

4.00lbs

Internal SKU:

t23602

Internal Product ID:

28214

Product and How-to Videos


Customer Ratings & Reviews


TOTAL Mobile Audio TMA T2-360.2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
3
Features
5
Design
3
Usability
5

Customer Reviews

Sort by:

Loading...

Great little addition

Wanted a subwoofer solution than would not overpower in car deck w speaker...Chose a JL 12WOV2 + tma amp....I can get it to rumble, slap, pound, thump, boom...pretty slick setup without killing the alternator or the quality. I must say, it really took me by surprise cause I thought I wouldn't be too far off from a basslink...was I ever :)
