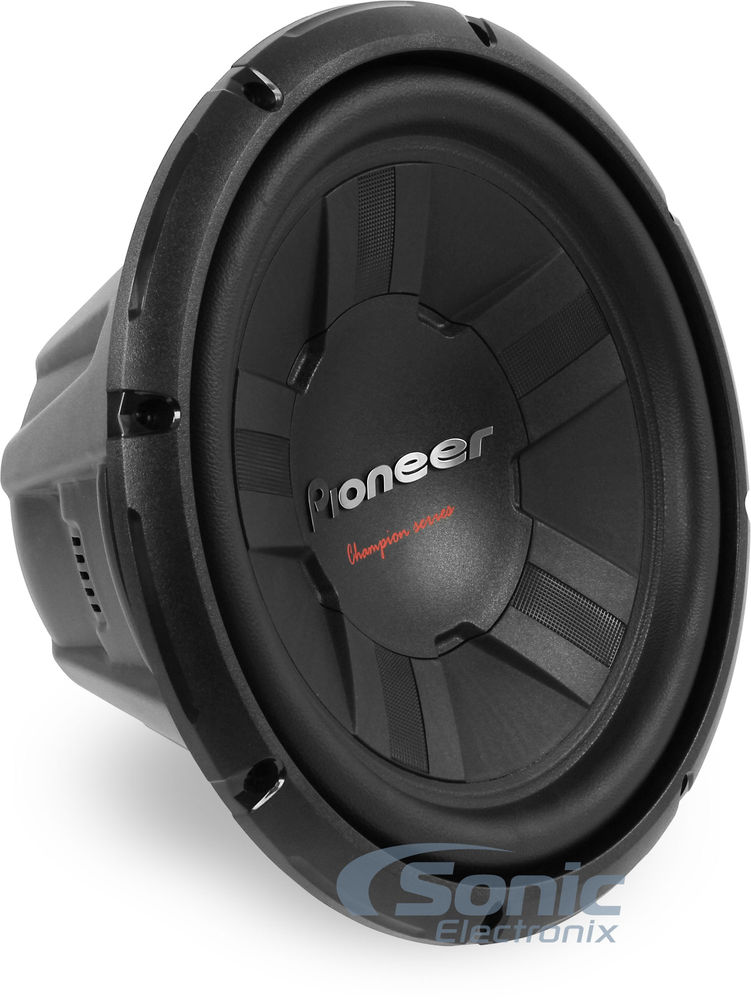

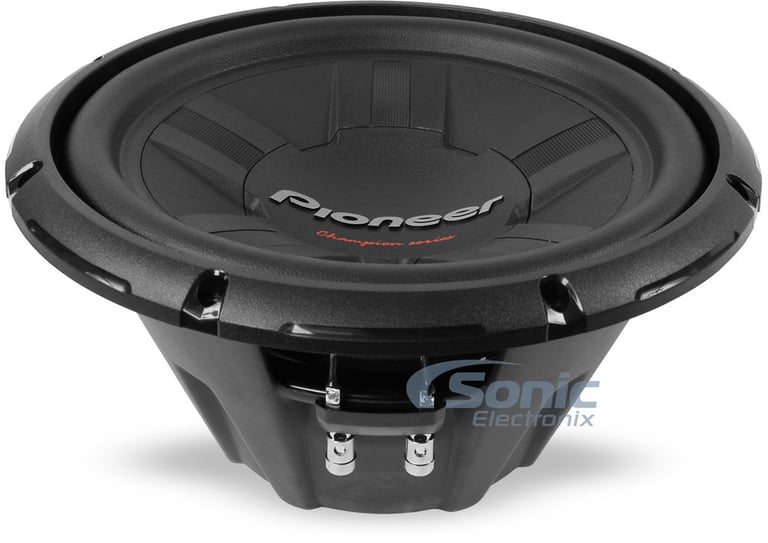

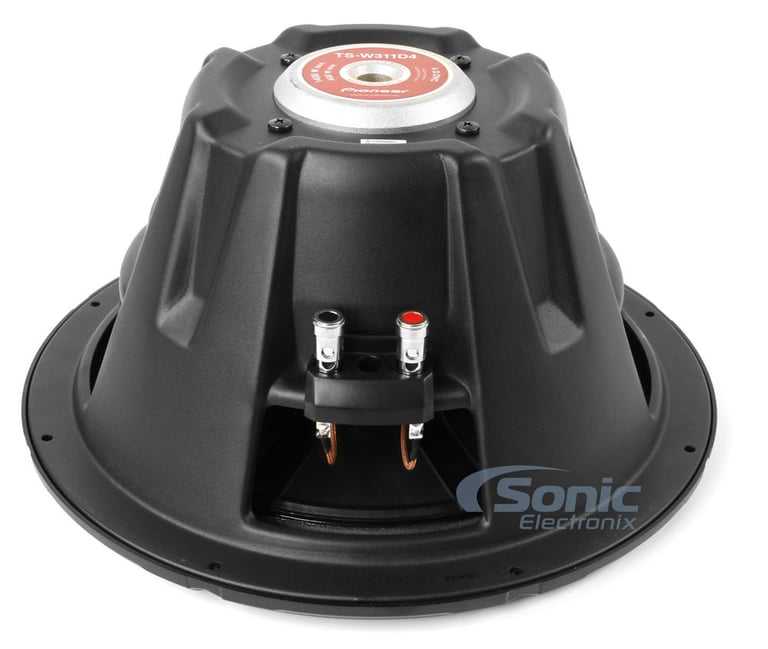

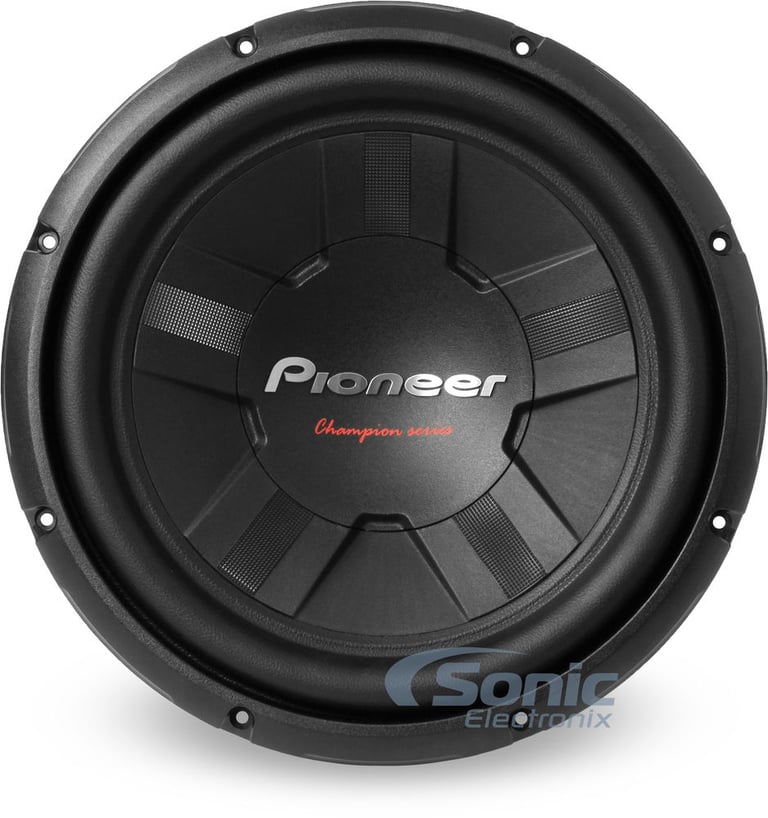

Pioneer TS-W311D4

1400W 12" Champion Series Dual 4 ohm Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 1400W
• RMS Power: 400W
• IMPP Composite Cone
• Dual Layer Fiber Reinforced Elastic Polymer Surround

Learn more about the tsw311d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
STAGE2524 main

JBL STAGE2524 (STAGE2 524)

420W Peak (70W RMS) 5.25" Stage2 Series 2 Way Coaxial 4-ohm Speakers

3
-44.49%

$49.95

List price $89.99

Product Highlights


• Peak Power: 1400W
• RMS Power: 400W
• IMPP Composite Cone
• Dual Layer Fiber Reinforced Elastic Polymer Surround

Description


Pioneer brand icon

Authorized dealer

General Features:

  • 12" Dual 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 400 watts
  • Recommended power range: 200 - 400 watts RMS
  • Newly redesigned injection molded polypropylene composite cone
    • Delivers a durable cone structure for accurate powerful bass
  • Dual layer fiber reinforced elastic polymer surround
  • Highly rigid, fully enclosed single piece basket
  • Resigned spider assembly allows the subwoofer to produce more accurate, rich bass
  • Top-mount depth: 5.9"
  • Frequency Response: 20 - 125 Hz
  • Sensitivity: 95dB
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W311D4 thumbnail
(newest, current model)
Pioneer TS-W310D4 thumbnail
(previous model, replaced by Pioneer TS-W311D4)
Pioneer TS-W309D4 thumbnail
(previous model, replaced by Pioneer TS-W310D4)
Pioneer TS-W308D4 thumbnail
(previous model, replaced by Pioneer TS-W309D4)
Pioneer TS-W307D4 thumbnail
(previous model, replaced by Pioneer TS-W308D4)
Pioneer TS-W306DVC thumbnail
(previous model, replaced by Pioneer TS-W307D4)
Pioneer TS-W305DVC thumbnail
(previous model, replaced by Pioneer TS-W306DVC)
Pioneer TS-W304DVC thumbnail
(previous model, replaced by Pioneer TS-W305DVC 12" DVC)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W311D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W311D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W311D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W311D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
12"
Peak Power Handling
1400 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 125 Hz
Sensitivity
95 dB
Xmax (millimeters)
10.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5.9"
Cutout Diameter
11.1"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
43 Hz
Equivalent Compliance (Vas)
32.7 liters
Total Speaker Q Value (Qts)
1.05
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W311D4

Weight:

15.00lbs

Internal SKU:

tsw311d4

Internal Product ID:

91071

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W311D4 thumbnail image

5 star
40%
4 star
40%
3 star
0%
2 star
0%
1 star
20%



Durability
3.8
Value
4.6
Features
3.6
Design
4.2
Usability
4

Customer Reviews

Sort by:

Loading...

Great product for the money

This was a Christmas gift for my son. He was thrilled with the gift and has already been rockin' the neighborhood!

By Mel on January 22, 2015

29 found this helpful


Awesome subs, very musical in the right box

Pioneer has always made good subs (some of them legendary).

These are rated at 400watts RMS but can handle musical peaks of up to 1400watts max. Learn the difference between RMS and max.

If you put them on a decent quality amp rated for 400watts RMS (these will probably handle at least 500rms) with gains set properly set and in a properly designed and built box, they'll be fine.

If you drive them with ANY amp to clipping (distortion) for an extended period of time, they will blow. If that amp does more than 400 REAL watts RMS and it clips, it will blow them even faster. The gain adjustment on your amp is NOT a volume knob...

Read and learn:

http://knowledge.sonicelectronix.com/car-audio-and-video/car-amplifiers/how-to-tune-and-adjust-amplifier-gains-and-bass-boost/

By Operator7G on September 10, 2015

8 found this helpful


terrible

The speakers have blown in less than one month. They're supposed to be 1400 watts but a 600 watt amp was hooked up to them. I'm very disappointed and embarrassed

By dave on May 28, 2015 Checkmark Icon Verified purchase

13 found this helpful


Amazing

It works perfect, sound is amazing. I have never had a problem with it.

By Anonymous on September 1, 2018

1 found this helpful


Great speakers for the price

I have the speakers hooked to a fosgate amp bridged 1000x2 and they slam pretty hard and take it amp is turned all the way up love the speakers, nice deep base and for the price best on the market IMO

By Lord fury on November 8, 2015

1 found this helpful




SQ6.5PKB small

SQ6.5PKB 6.5" Enclosures

Pair of 6.5" Single Sealed Speaker Enclosures - Black

$29.99

List price $56.99

No picture

Pyle PLM45 4" Millenia Series

$29.99

List price $52.99

MT-ST-K6CHB small

Bazooka MT-ST-K6CHB

Ski-Trac Kit for Wakeboard Towers with Black 6-1/2" Compression Horn Tubbies (MT6502CHB)

$949.95

List price $1199.95

V12DV4 small

Cerwin-Vega V12DV4

3600W Peak (1200W RMS) 12" Vega Series Dual 4-ohm Subwoofer

$299.99

List price $359.99

E1-2 small

FiiO E1 (White) Headphone Amplifier with In-Line Remote

Headphone Amplifier Designed for iPod and iPhone with In-Line Remote

$18.99

List price $39.99

89448P small

Motorola Folio Case for Xoom

Portfolio Style Case for Motorola Xoom Tablet w/ Different Viewing Options (89448P)

$21.99

List price $39.99

CCA748 small

Clarion CCA-748-600

iPod Audio/Video Connection Cable Adapter for Select Clarion Receivers

(4)

$29.99

List price $59.99

95-7318 small

Metra 95-7318 Dash Kit

Install a new Double-DIN car stereo in select 2005-2006 Spectra and Spectra5 (Black)

(2)

$11.99

List price $24.99

S3m Grayed Jade small

Klipsch Image S3m - Grayed Jade

In-Ear Stereo Headphones Headset Earbuds with Universal In-Line Controler & Smartphone Microphone

$24.99

List price $49.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Saturn SC2

2002 Volvo V70

2009 Kia Rio5

2002 Daewoo Lanos

2016 Subaru Crosstrek

2003 BMW 540i

1993 Cadillac DeVille

1981 Mercury Cougar

2010 Audi A5

1983 Buick Skyhawk

Vehicle
Store
Delete

2019 Can-Am Defender DPS HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
