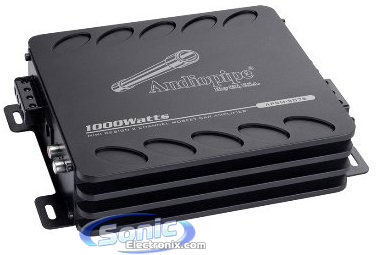

Audiopipe APSM-1300

1000W Monoblock APSM Series Class D Amplifier

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• RMS Power: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total Peak Power: 1000W
• Variable Low Pass Filter
• Dimensions: 10.5" W x 6.1" D x 1.9" H

Learn more about the apsm1300

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

Product Highlights


• RMS Power: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total Peak Power: 1000W
• Variable Low Pass Filter
• Dimensions: 10.5" W x 6.1" D x 1.9" H

Description


Audiopipe brand icon

Authorized dealer

General Features:

  • APSM Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Max power output: 1000 watts
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Mono channel operation
  • Variable low-pass filter (40-180 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15 Hz)
  • Double side FR-4 PCB high quality SMD components
  • Overload, short circuit, thermal and low voltage protection
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 10.5"W x 6.1"D x 1.9"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Series
APSM Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
.15%
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
5 - 50 Hz
Signal-to-Noise Ratio
70 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
80A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APSM-1300

Weight:

9.00lbs

Internal SKU:

apsm1300

Internal Product ID:

28941

Product and How-to Videos


Customer Ratings & Reviews


Audiopipe APSM-1300 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Good Amp!

I've had this amp for about a year pushing 1 SKAR dual 4 ohm 10" @ 2 ohms in an Alpine Type R ported box I found pretty cheap on an auction site.
I don't have an extra battery or anything so I know it's not getting enough juice but it's still probably pushing close to 500 RMS.
It never gets hot and it never shuts off.
I'm using a line out converter off the stock head unit in a 2009 Camry and I know it sound even better connected to a good deck.
I'm anxious to buy a dual 2 ohm sub and see what this amp can do at 1 ohm but a new sub, a deck, battery and a big 3 kit is gonna run me $700.
I feel like Audiopipe is at the least on a very similar level to Crunch, Autotek and MB Quart and HiFonics. As well as Power Acoustik and their line of Soundstream, PPI and SPL.

By Caleb on February 17, 2015

7 found this helpful


Great amp for the price!!!!

First audiopipe amp I've owned. Going to be pushing 2 sundown e 12" D4 wired at 1 ohm. If it pushes enough power I'm ordering another. But so far it feels like a solid amp. Didn't expect it to come with a fuse but what a surprise. Also came with bass knob. Has a built in fan very quite. Like always SONIC has great prices and very helpful service. Never disappoints me when I place an order to receive it in 2 days. Thanks sonic!
Durability isn't something I can rate as I have not used it yet. Only have it powered.

By Alex on February 2, 2015
